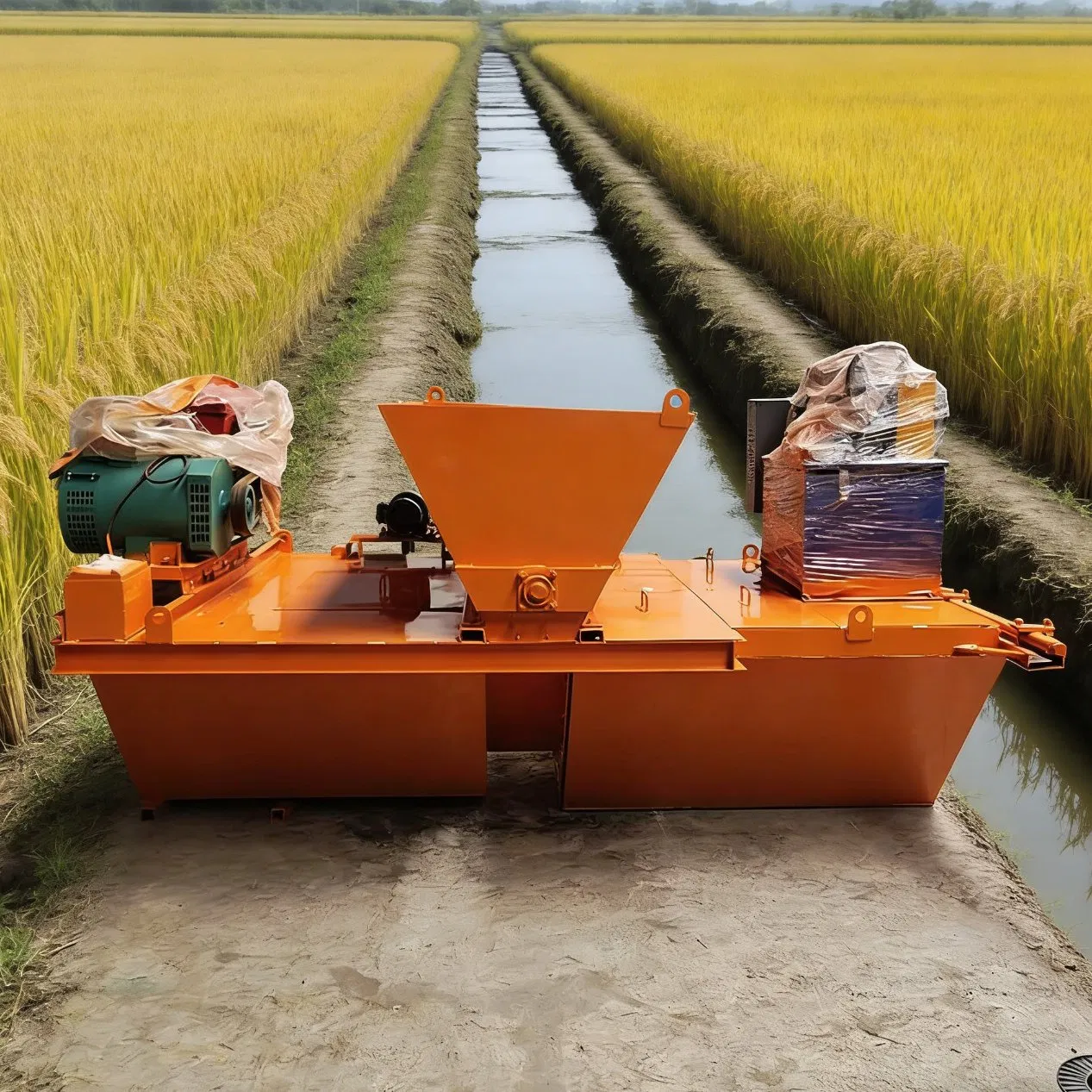

Introduction to Canal Forming Machines
The canal forming machine is a specialized construction equipment used in hydraulic, road, and other engineering projects. It enables the one-time continuous cast-in-place forming of concrete canals (such as U-shaped, trapezoidal, rectangular, etc.), featuring significant advantages including high mechanization, high construction efficiency, and excellent forming quality.
Key Advantages & Working Principle
💰
Cost Efficiency: Reduces template and labor costs. Saves 200-600 cubic meters of water per acre by reducing leakage. Compact structures save about 40% of land compared to earthen canals.
⚡
High Speed: Construction speed reaches 40 to 50 meters per hour, far exceeding manual labor.
⚙️
Working Principle: Uses hydraulic or mechanical propulsion to feed concrete into specific molds with high-frequency vibrators for compaction, achieving continuous one-time forming.
🏗️
Classifications:

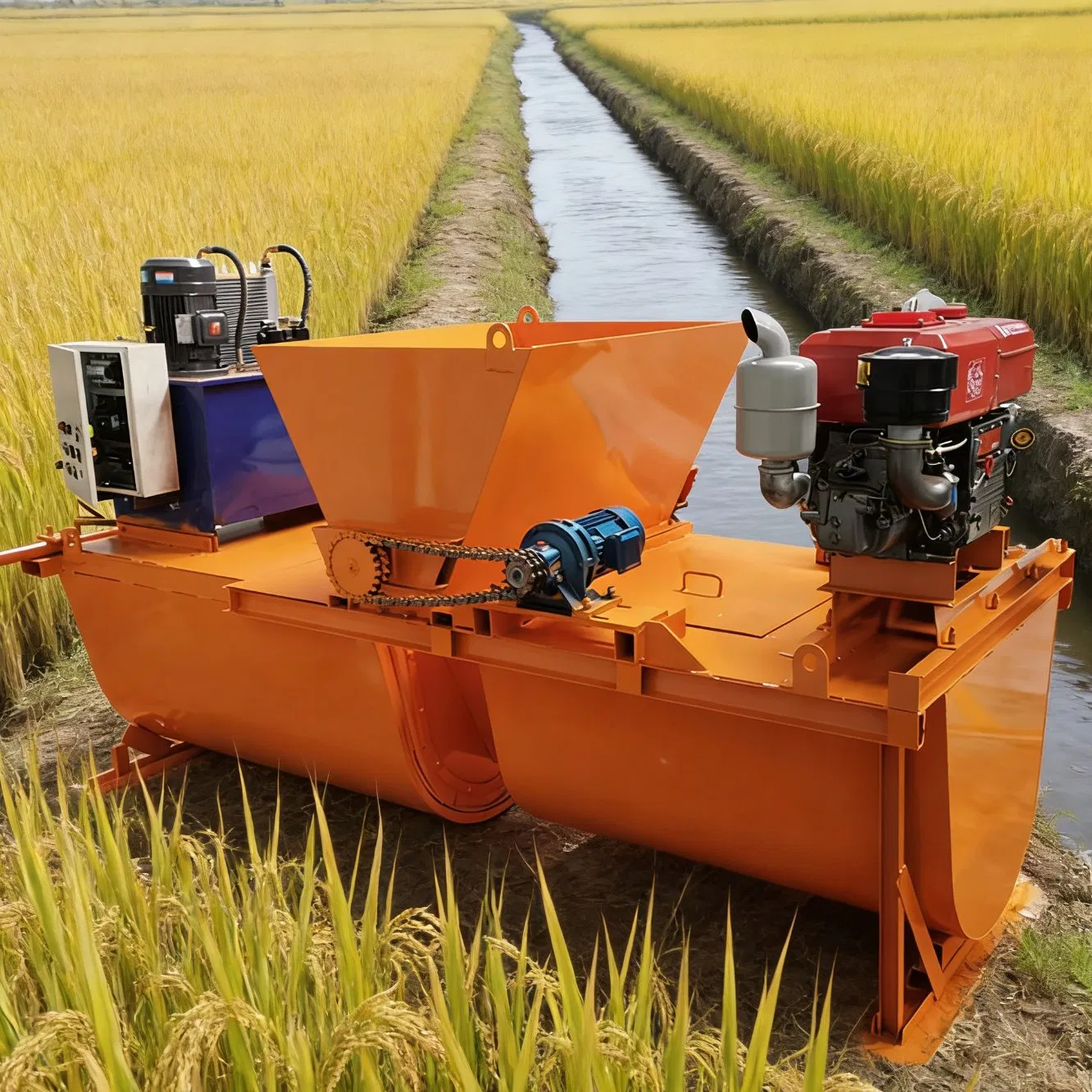

1. U-shaped groove forming machine

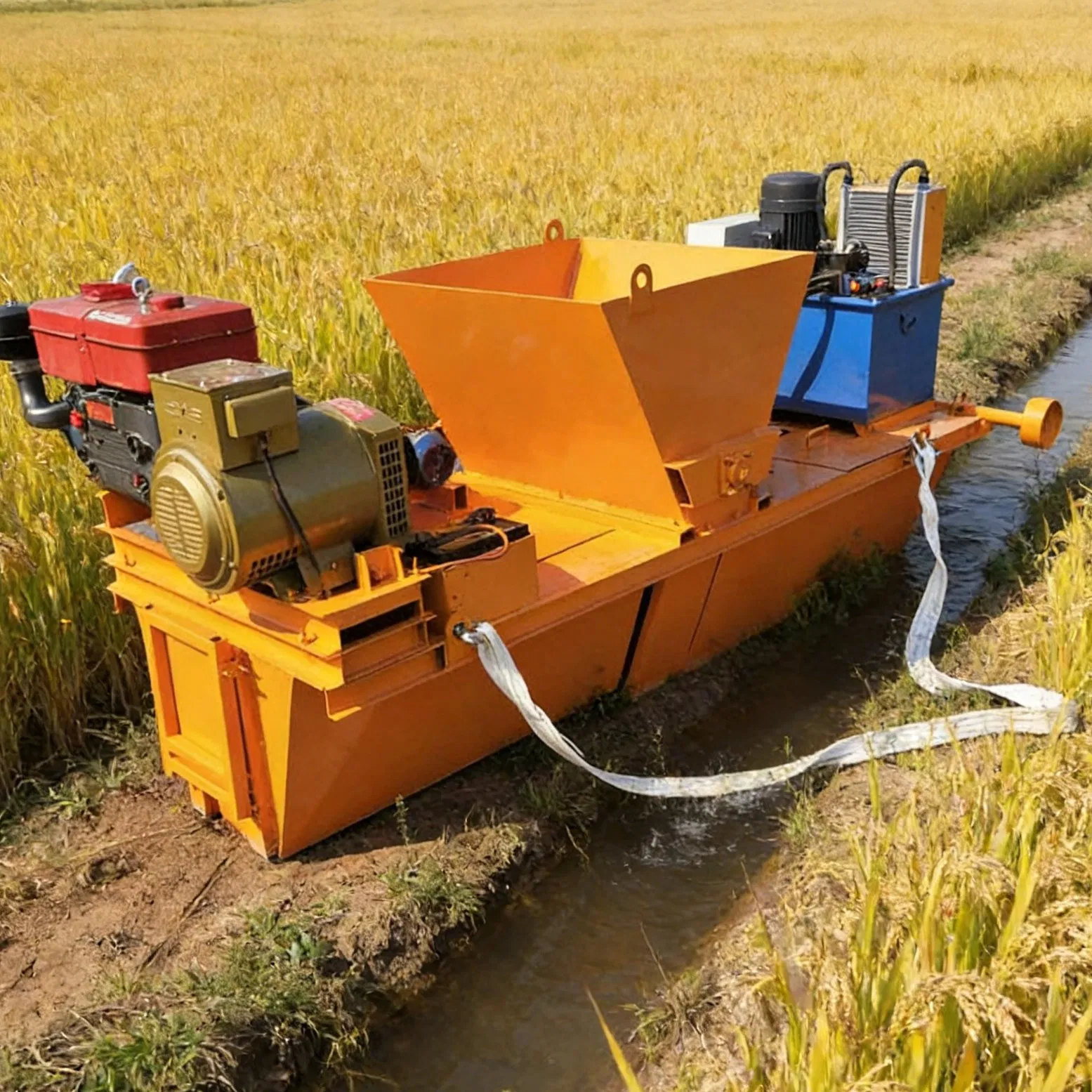

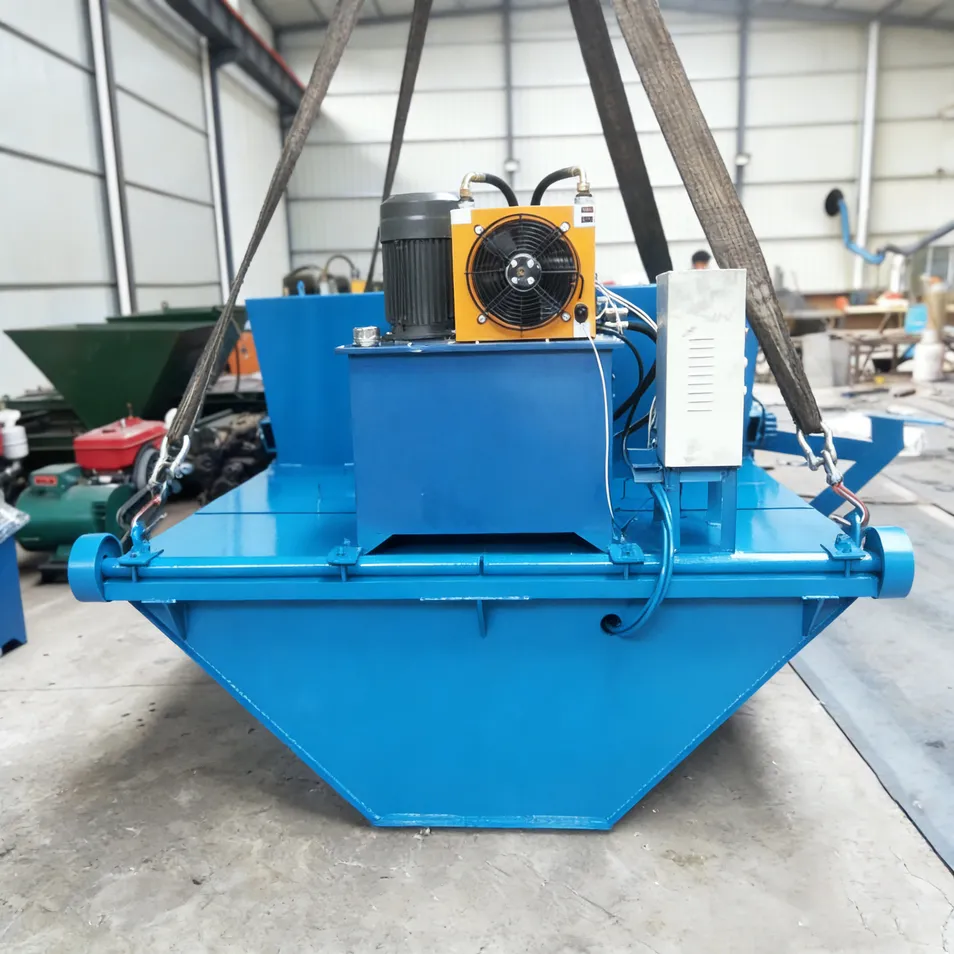

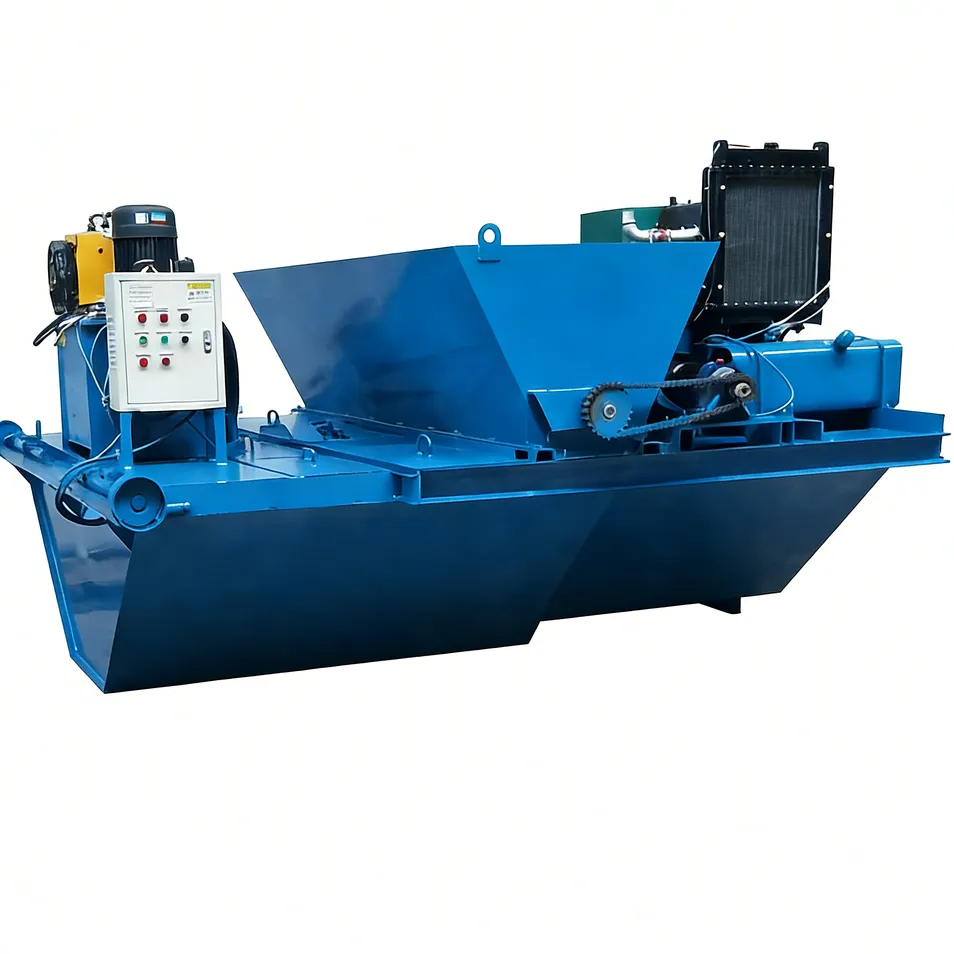

2. Trapezoidal/rectangular groove forming machine
3. Custom Forming Machine
Video Construction Demonstration
Normal Application Scope
🌾
Agricultural Water Conservancy
Construction of high-standard farmland, irrigation canals, and drainage ditches.
🛣️
Transportation Engineering
Slope drainage and lining of side ditches for highways, railways, and national roads.
🏙️
Municipal & Ecological
Urban drainage networks, river management, and photovoltaic base drainage.
Product Views & Elevations

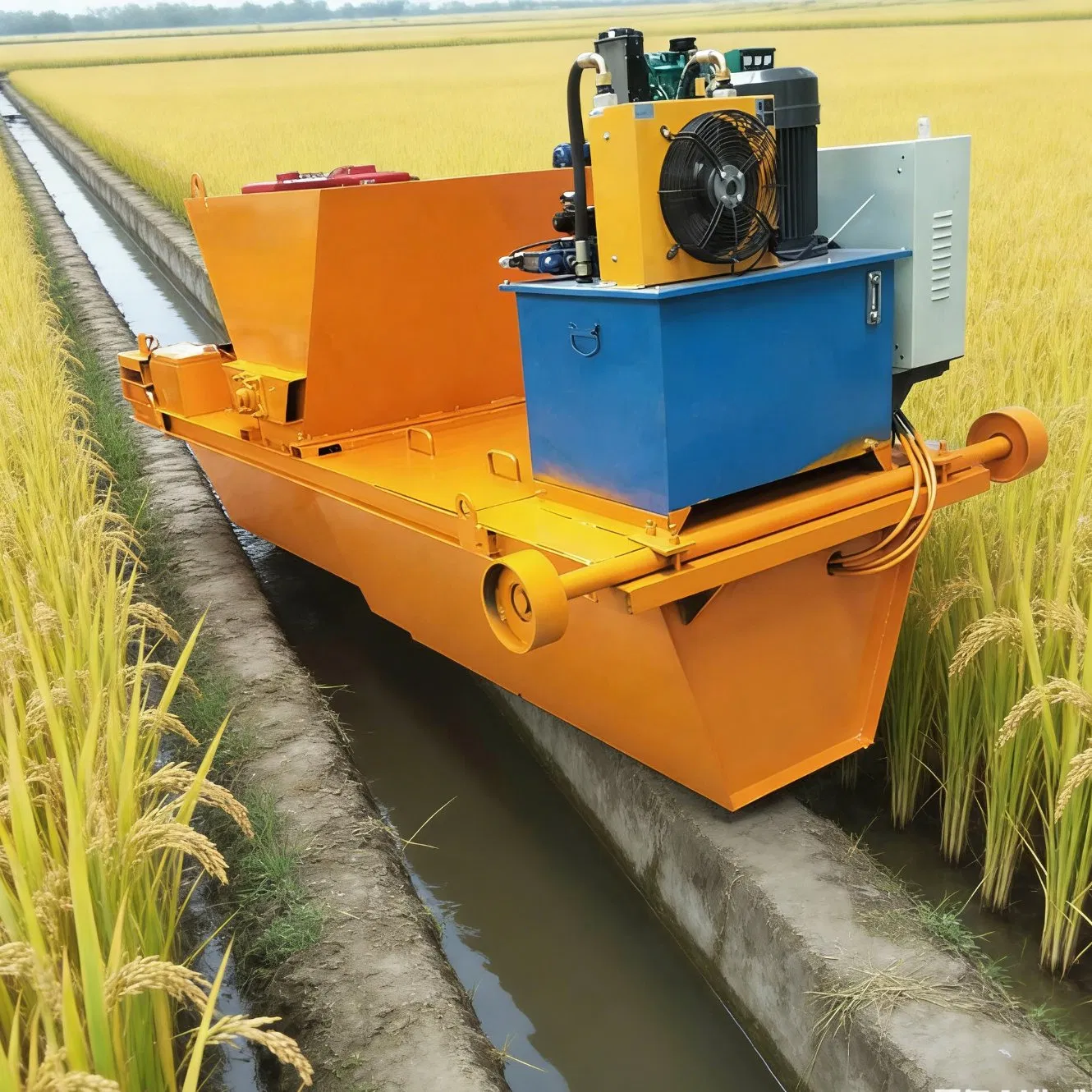

Front Elevation

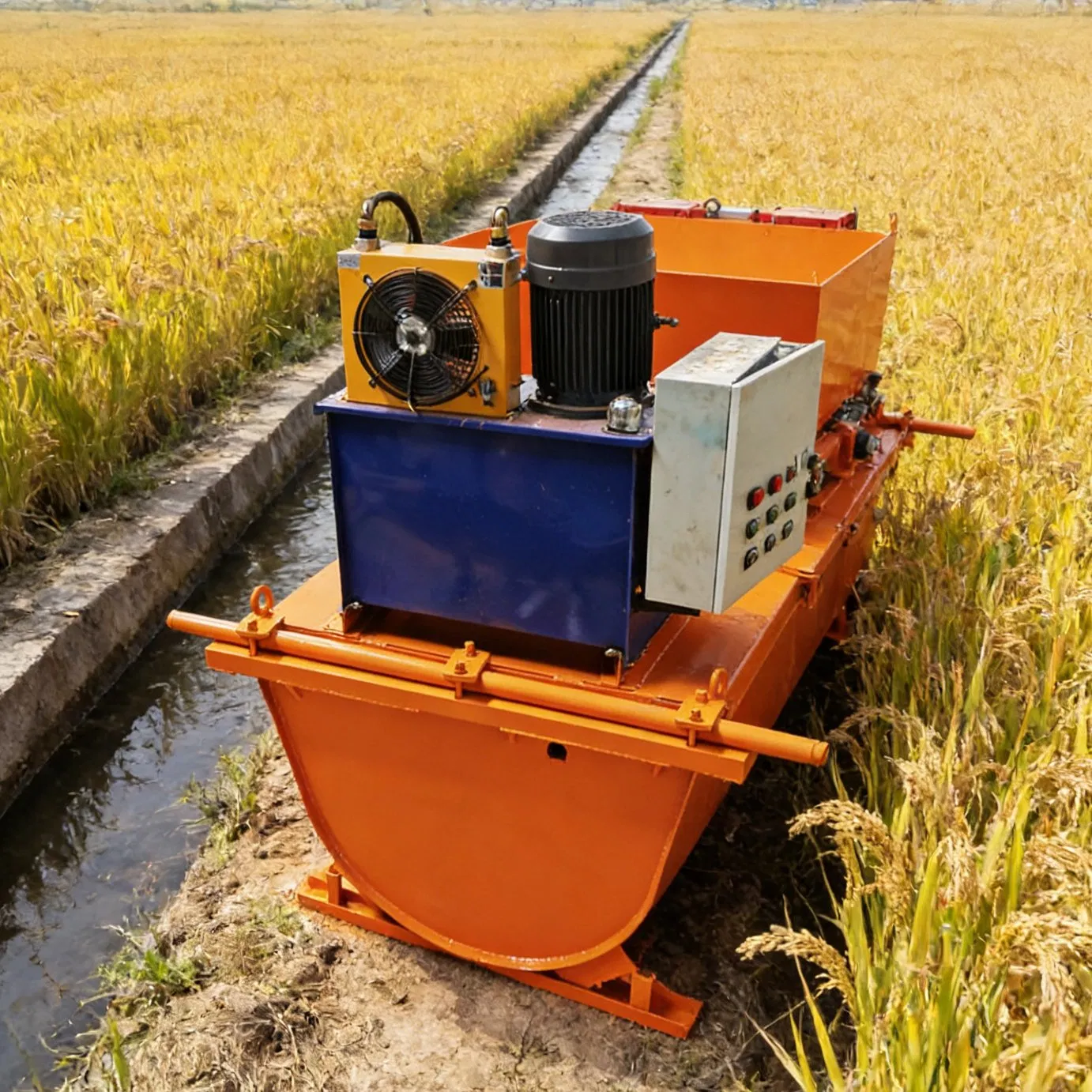

Left Elevation

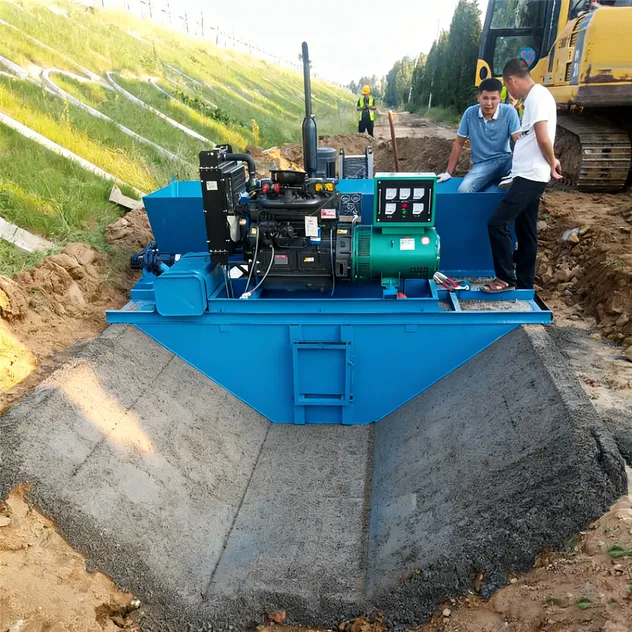

Right Elevation
Technical Specifications
Custom configurations available upon request.
| Model Parameter |
U-shaped |
Ladder Type |
Self-Defined |
| Operating Weight (kg) |
20,000 |
30,500 |
45,000 |
| Engine Power (kW) |
24 |
15 |
30 |
| Work Ability (m/h) |
40-50 |
40-50 |
40-50 |
| Length (m) |
3.5 |
3.4 |
3.7 |
| Labor Required |
2 persons |
2 persons |
2 persons |
| Width (meters) |
Customize |
Customize |
Customize |
Drawings & Dimensions: Detailed CAD drawings and dimension diagrams are available. Our engineering team provides customized designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

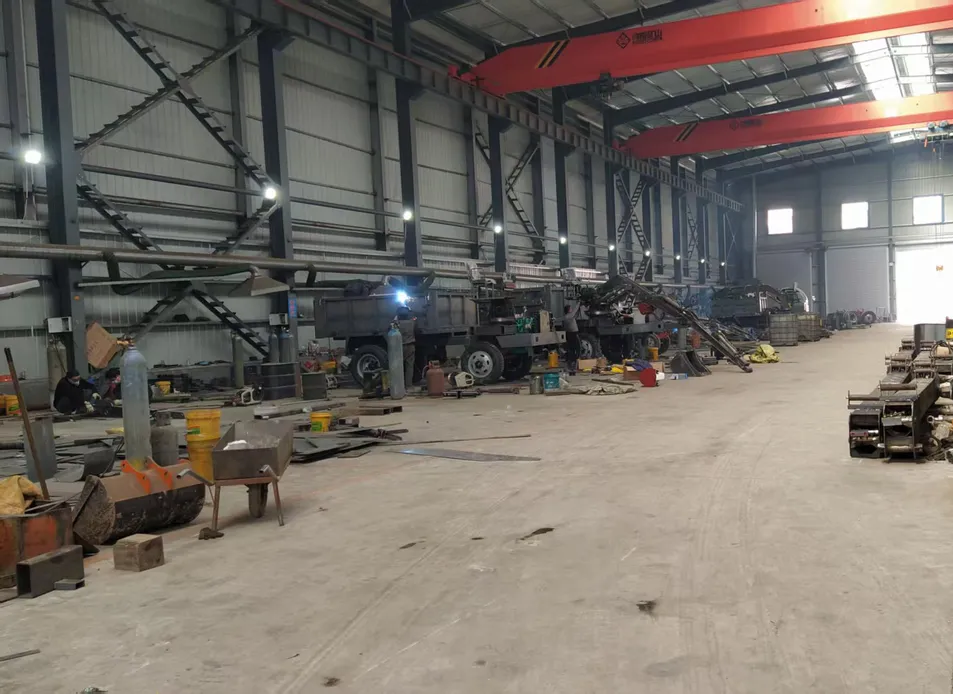

Manufacturing Excellence
We are a leading Chinese manufacturer of construction equipment with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
Why Choose Us?
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Fast shipping & customs clearance support
- Turnkey project solutions
Other Products
- Remote-controlled lawn mower
- Agricultural Tracked Vehicle
- Motor Graders
- Compost Turning Machine
- Forklifts
Frequently Asked Questions
Q: What’s the lead time for orders?
A: Standard models typically ship in 15–30 days; customized units require 30–45 days depending on specifications.
Q: Do you provide after-sales service overseas?
A: Yes, we provide global support including partnered service centers in key regions and 24/7 technical assistance.
Q: Can I request a customized bucket or mold size?
A: Absolutely! We offer tailored attachments and forming molds (U-shaped, Trapezoidal, etc.) to meet specific project needs.
Q: What documents do you provide for export?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, COC, and necessary certificates like CE/ISO.
Q: How do I place an order?
A: Please reach out for a formal quote. Once details are confirmed, the order is processed via a Purchase Order (PO) and deposit.
Q: What is the maximum construction speed of the machine?
A: The machine can reach a forming speed of 40 to 50 meters per hour, significantly improving construction efficiency compared to manual methods.
