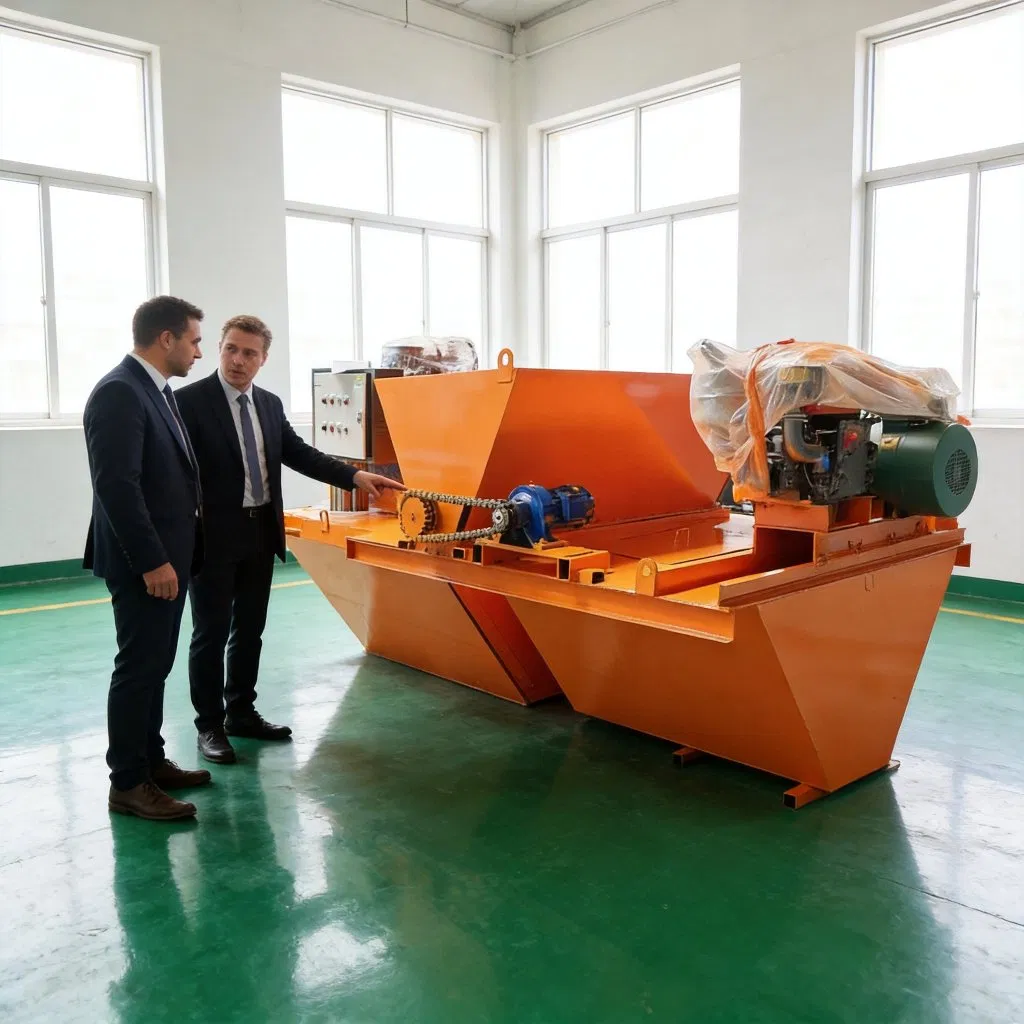

Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
1 / 5
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine
Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine

Integrated Concrete Channel Forming Equipment Farmland Drainage Construction Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Product Information
Model NO.
Trapezoidal self-propelled
Application Field
Construction
Max Trenching Depth
1500mm
Structure
Single Disc
Power Source
Diesel
Moving way
Crawler Loader
Working Speed
70 meters per hour
Paving Thickness
5-55cm
Certification
ECE, EU, CE, EPA
Warranty
One Year
Packaging & Delivery
Package Size
180.00cm * 800.00cm * 360.00cm
Gross Weight
3000.000kg
Product Description

Introduction to Machines for Building Water Ditches

The Trapezoidal channel automatic vibrating concrete lining machine (U-shaped concrete automatic ditch channel lining device) is designed for versatile site adaptation, including canal bottoms, slopes, and highways. The equipment length can be customized based on the working surface width.

Working Principle:

The machine consists of a feeding machine, spreading machine, screeding machine, and receiving frame. Concrete is fed via belt into the spreader's hopper, distributed evenly through a vibrating plate, smoothed by a trowel, and finished manually.

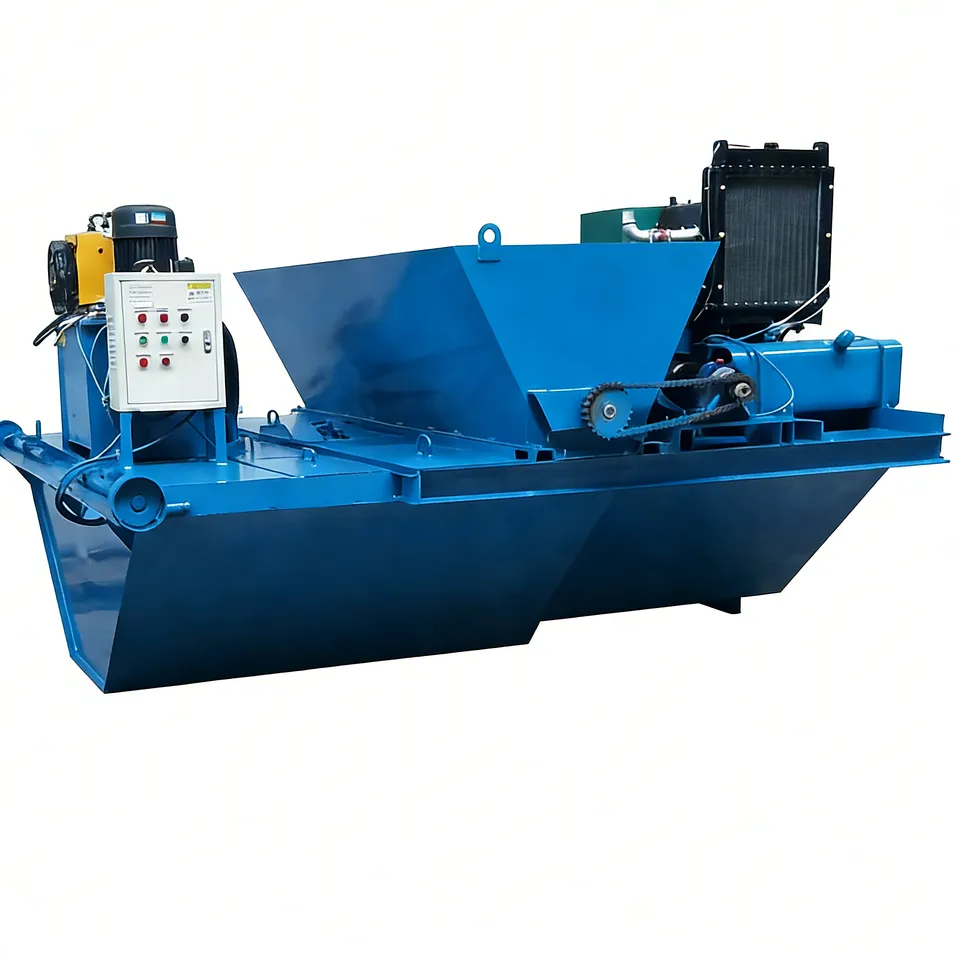

Integrated Concrete Channel Forming Equipment

Core Advantages

  • Cost Efficiency: Reduces template and labor costs; saves 200-600 cubic meters of water per acre by preventing leakage.
  • Land Saving: Compact structure saves about 40% of land compared to earthen canals.
  • High Speed: Construction speed reaches 40 to 50 meters per hour, significantly faster than manual work.
  • One-time Forming: Utilizes high-frequency vibrators for compaction and continuous forming.
Application Scope
Agricultural: High-standard farmland irrigation and drainage.
Transportation: Slope drainage for highways, railways, and national roads.
Municipal: Urban drainage networks and river management.
Ecological: Photovoltaic power generation base drainage facilities.
front elevation
left elevation

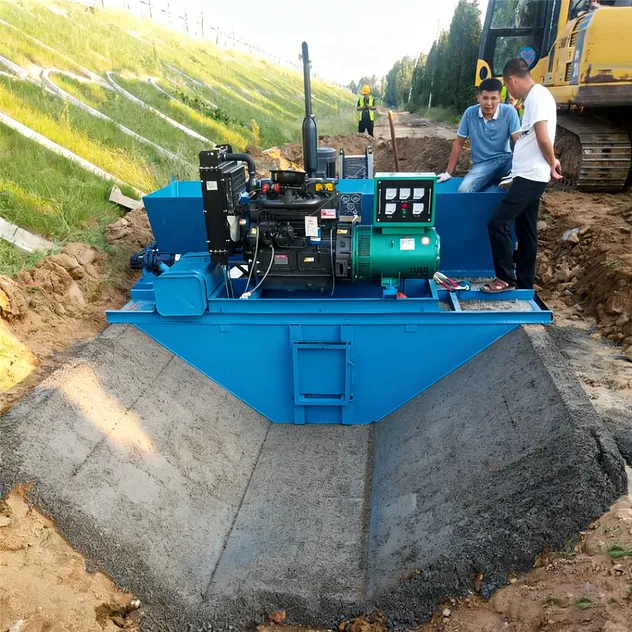

right elevation
Technical Specifications
Model Type U-shaped Ladder type Self defined
Operating Weight (kg) 20,000 30,500 45,000
Engine Power (kW) 24 15 30
Work ability (m/h) 40-50 40-50 40-50
Length (m) 3.5 3.4 3.7
Personnel Required 2 2 2
Production Capability & Quality

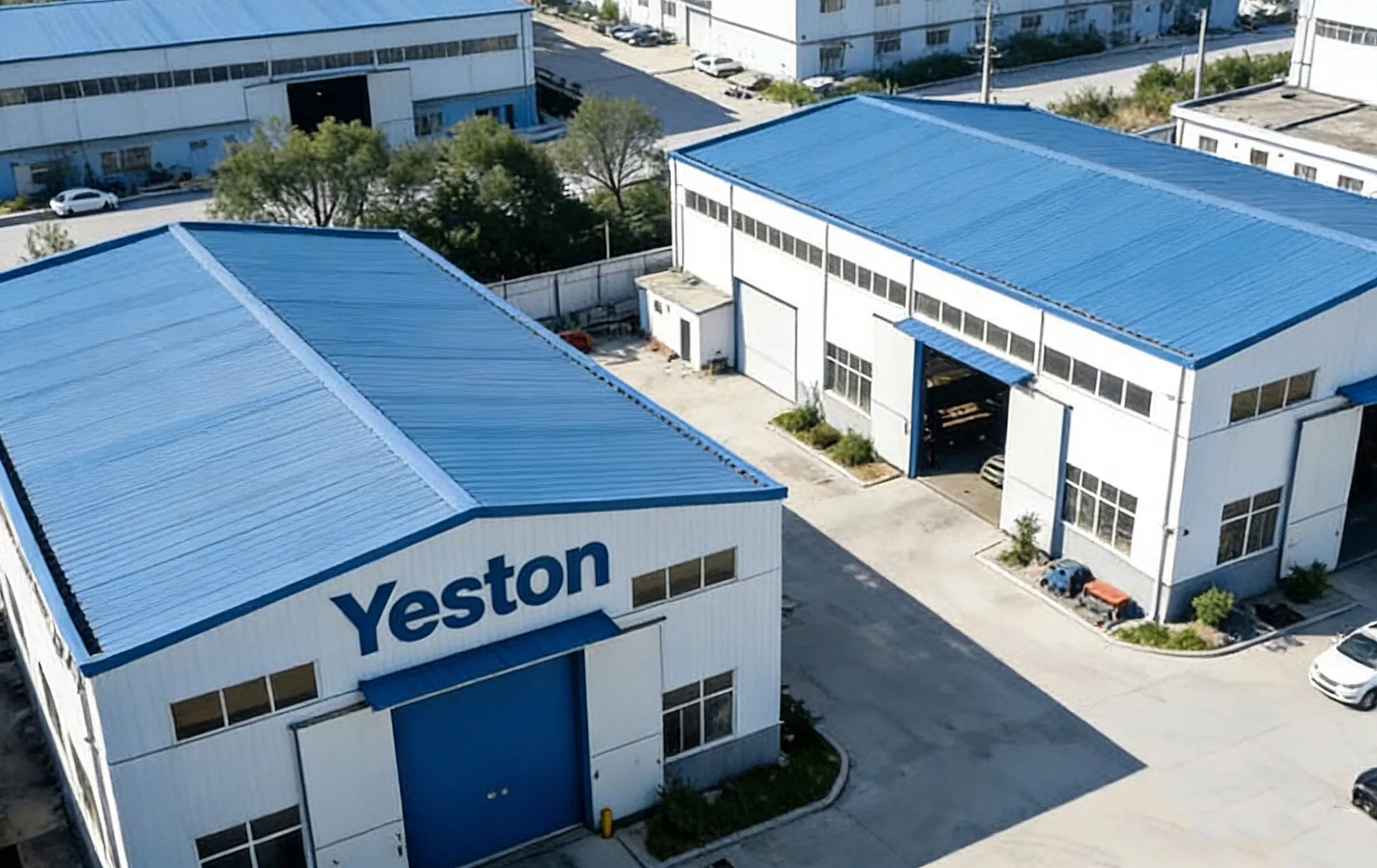

Factory Overview
Global Reach: Exported to 50+ countries with ISO 9001, CE, and GOST certifications.
OEM/ODM: Full customization capabilities for specific project needs.

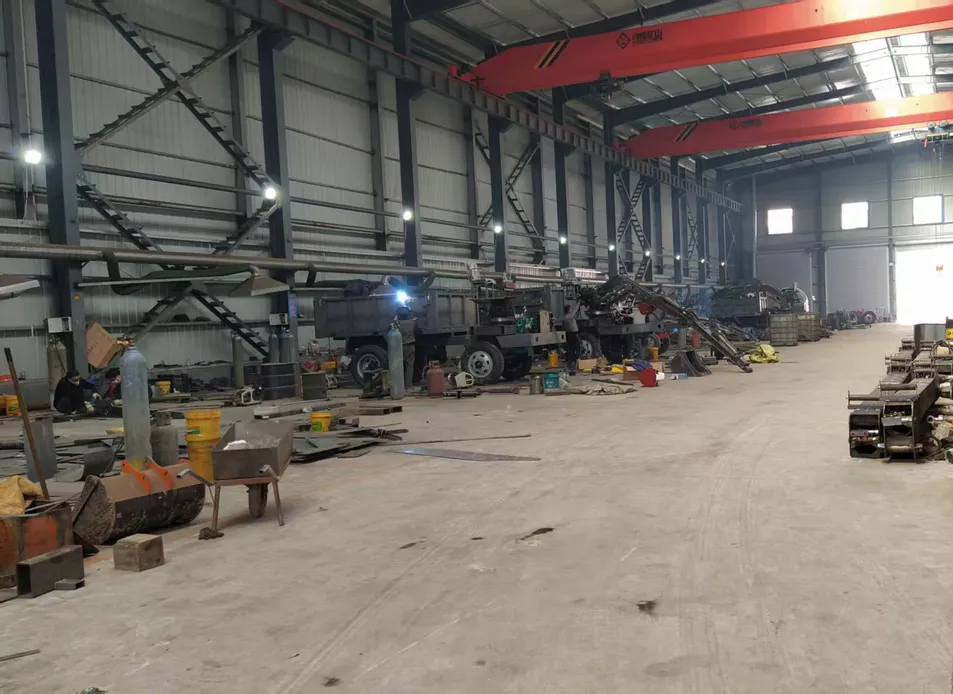

Machine Quality

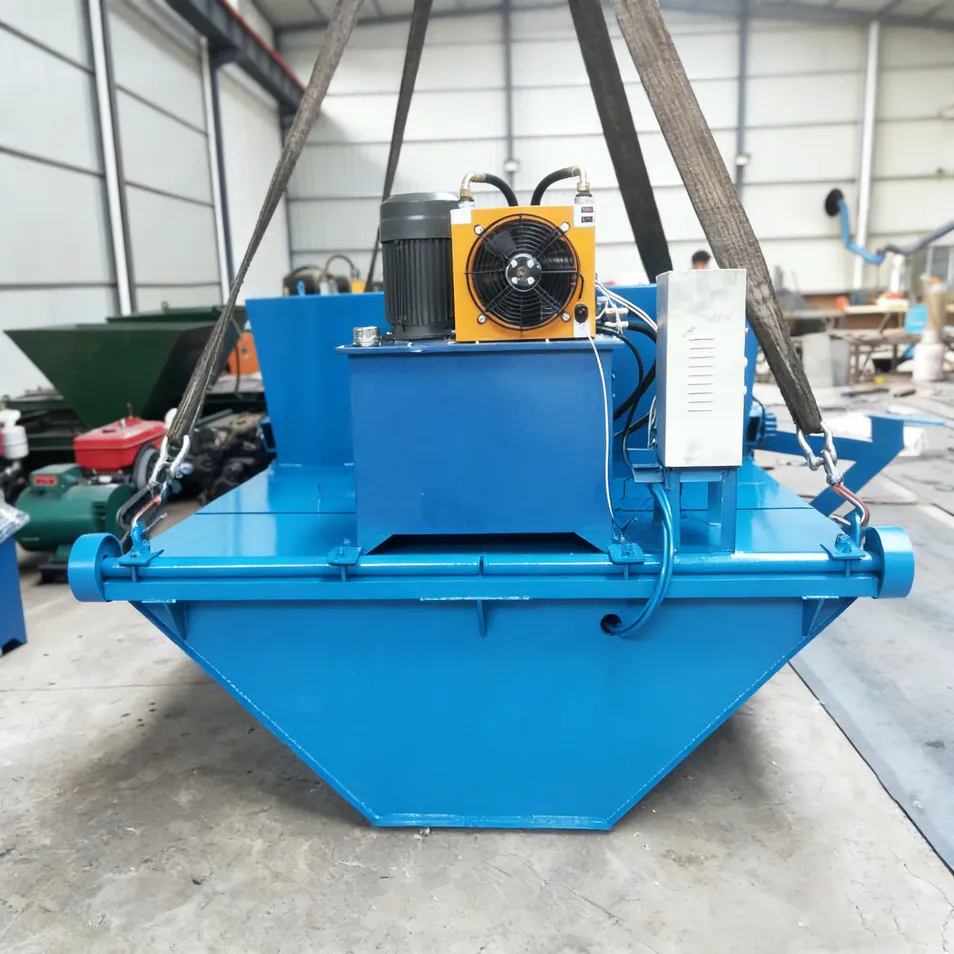

Other Products
Frequently Asked Questions
What’s the lead time for orders?
Standard models ship in 15–30 days; customized units require 30–45 days.
Do you provide after-sales service overseas?
Yes, we provide 24/7 technical assistance and have partnered service centers in key regions.
Can I request a customized bucket or channel size?
Absolutely! We offer tailored attachments and machine configurations to meet specific project requirements.
What documents do you provide for export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
How do I place an order?
Please contact our team via the inquiry form for a formal quote, followed by a Purchase Order (PO) confirmation.
What is the standard warranty period?
The standard warranty is 12 months or 2,000 operating hours, whichever comes first, with optional extensions up to 36 months.
