Concrete Slip forming Road Curb Machine Driveway Curbing Engine for Road Machinery Projects
• The Curb Cadet will slipform concrete curb with an option to extrude asphalt. It is self-propelled and compact in size for easy loading and transporting from job-to-job.
• The manual travel control, manual three-point grade control, cross auger directional controls, engine controls, vibrator control dial, cross-auger speed control dial, and warning light are all located on the control panel for easy access.
• A manual steering assembly with control panel provides the operator with front wheel steering. Mobility is achieved with a hydraulically driven, rear-mounted track.
• The coordinated stop switch provides automatic on/off control of vibrator synchronized with forward travel.
• Paving speed of up to 40 feet per minute (12.2 mpm) and an auxiliary speed of 93 feet per minute (28.3 mpm).
• Molds are easily interchangeable and can accommodate configurations within a 12 inch wide by 14 inch high section.
• Equipped with E-stops on every corner, operator's horn, and back-up alarm for maximum safety.
| Model | LYS-4 |
| Road Kurb Size Range | Width ≤ 600mm, Height ≤ 400mm |
| Fuel | Diesel |
| Power | 8KW |
| Start-up mode | Electric start, single-cylinder diesel engine |
| Radiating way | Water cooling |
| Curbs molding way | Dry plastic concrete - High strength |
| Paving speed | 1-4m/min |
| Dimension | 2400*1700*1100mm |
| Weight | 1100KG |

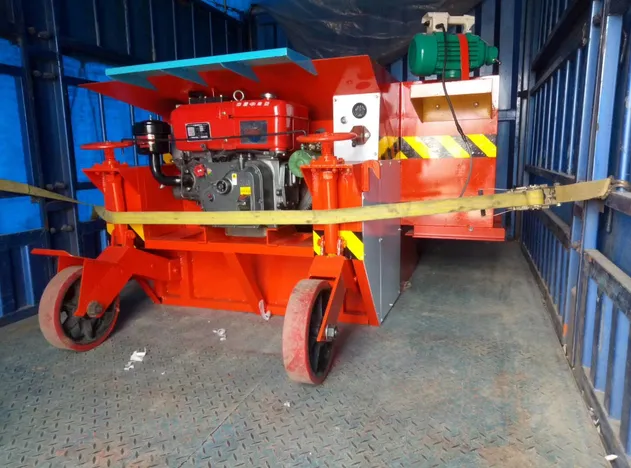

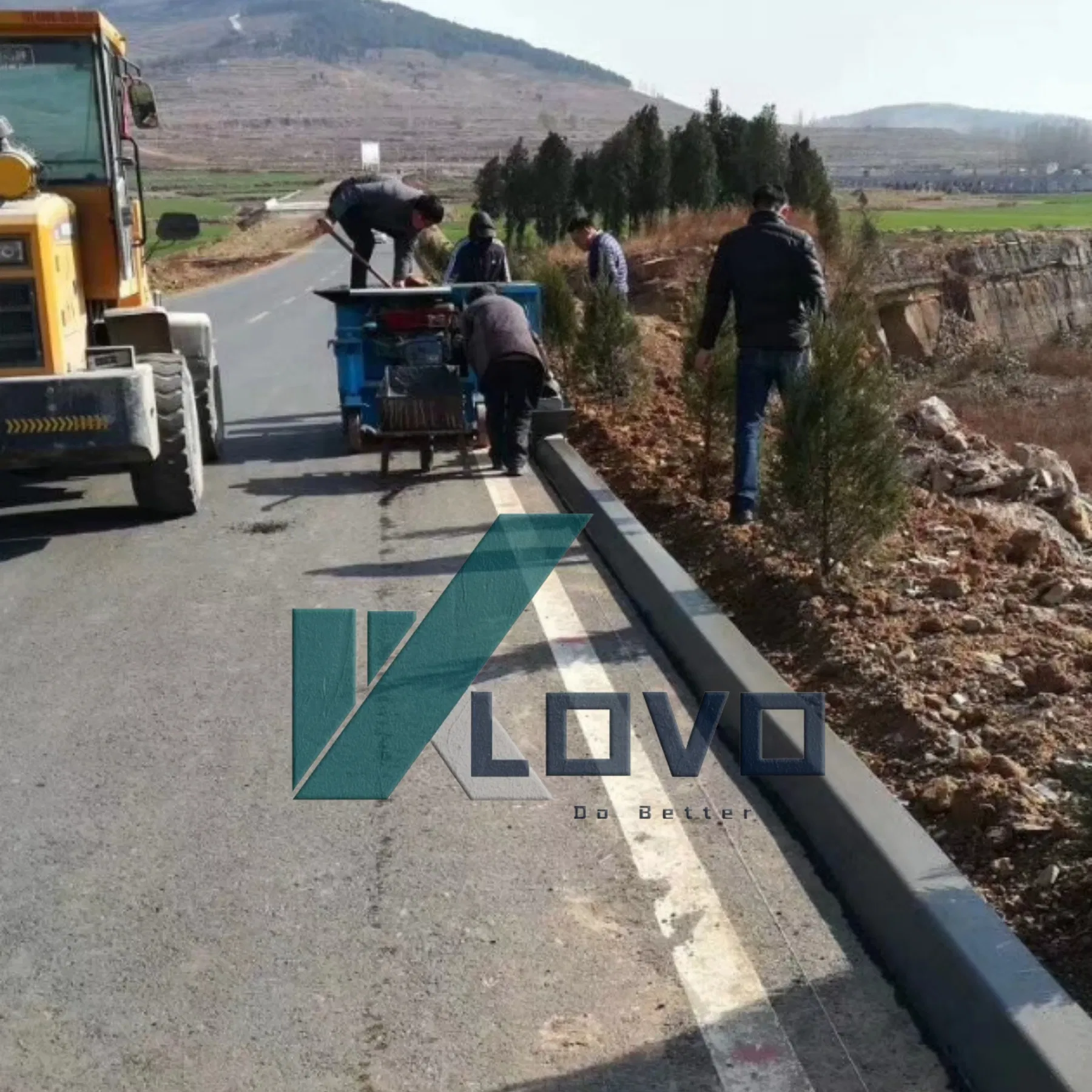

📍Compact and easy to operate, used for curb forming in recreational green spaces, community gardens, etc. Features a spiral feeding hopper where counterforce drives the machine's backward movement.

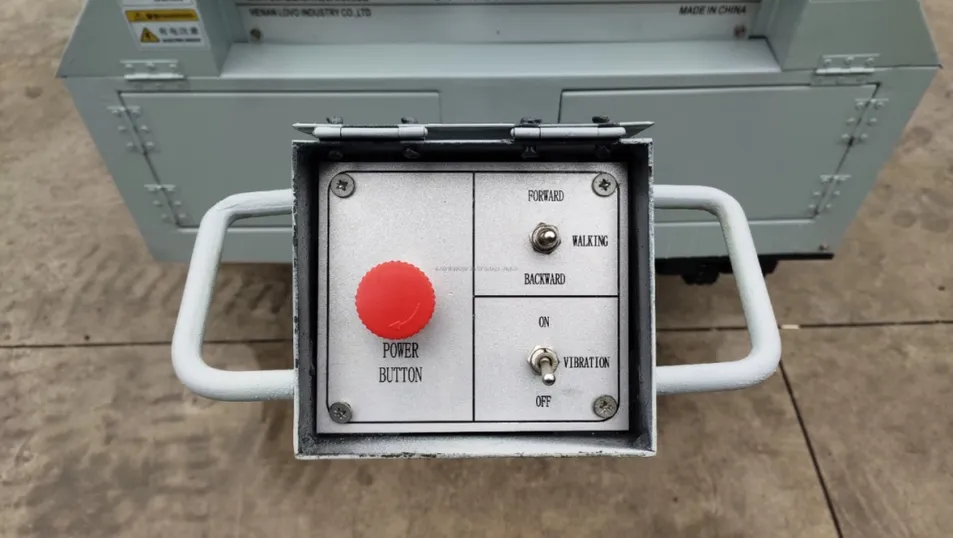

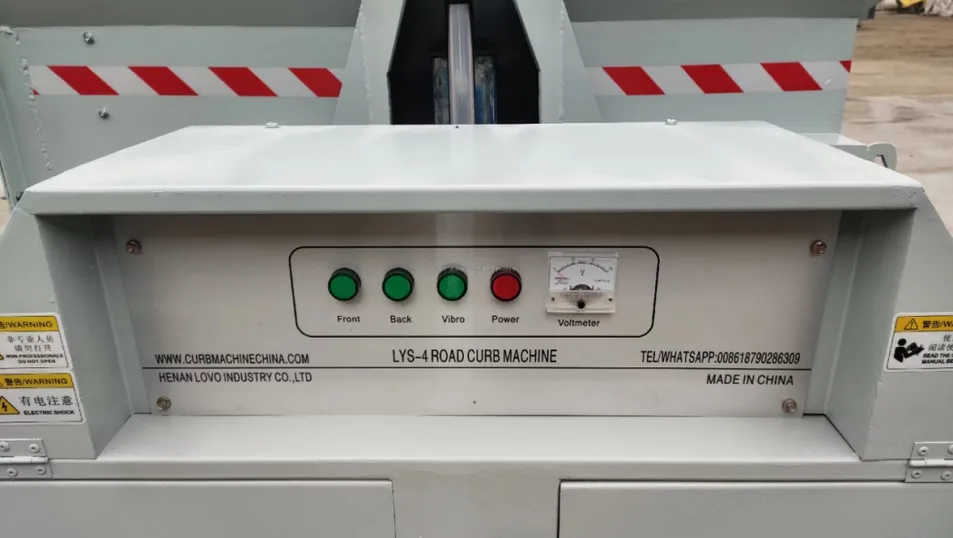

📍Button operation controls forward, backward, vibration, and power monitoring.
The LYS-4 model can produce road curbs with a width up to 600mm and a height up to 400mm.
Yes, the molds are easily interchangeable and can be designed and customized based on your specific requirements to fit your project's profile.
The machine is powered by a reliable single-cylinder water-cooled diesel engine with an electric start system.
The paving speed ranges from 1 to 4 meters per minute, allowing for efficient road construction progress.
Yes, it is designed as a compact and mobile unit, making it easy to load and transport for various road machinery projects.
The machine is equipped with emergency stop (E-stop) buttons on every corner and the handle, along with an operator's horn and back-up alarm for site safety.
