| Model NO. | 2-45 | Customized | Available |
| Automatic Grade | Semiautomatic | Type | Brick Making Machine |
| Key Features | Cement Brick Machine / Concrete Brick Making Machine | ||
| Capacity | 600PCS/Shift | Engine Power | 1.1kw |
| Specification | 103*80*108 cm | HS Code | 8400847480 |

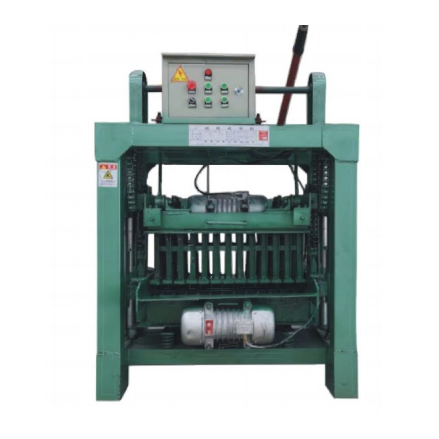

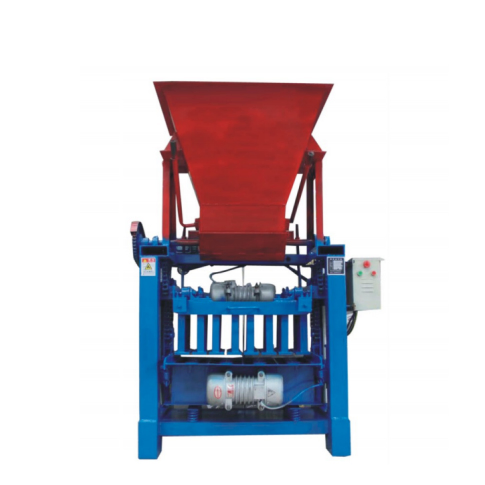

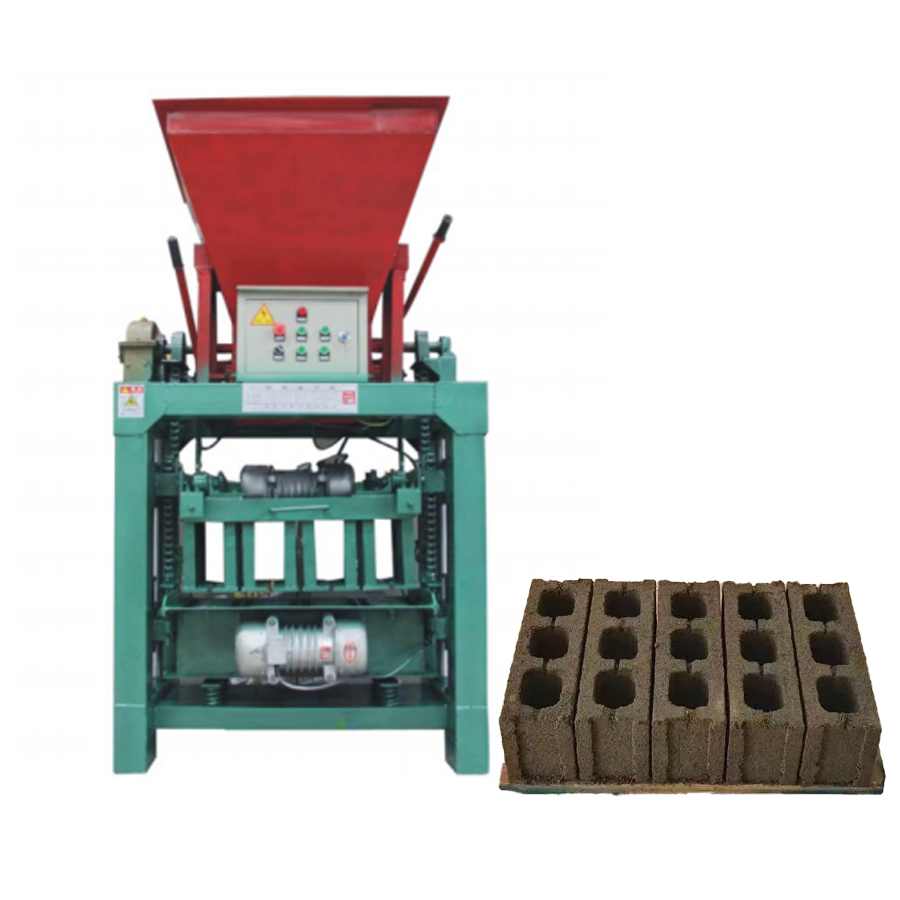

A cement brick-making machine is a specialized mechanical piece of equipment that uses cement as the core raw material, combined with aggregates such as sand, gravel, fly ash, and construction waste. It produces various types of cement-based bricks through a series of semi-automated processes such as mixing and molding.
Cement (10%-20%), Sand/Gravel/Stone Powder (30%-50%), Fly Ash/Slag (20%-40%). Solid waste utilization can reach up to 75%.
| Item | Specification |
|---|---|

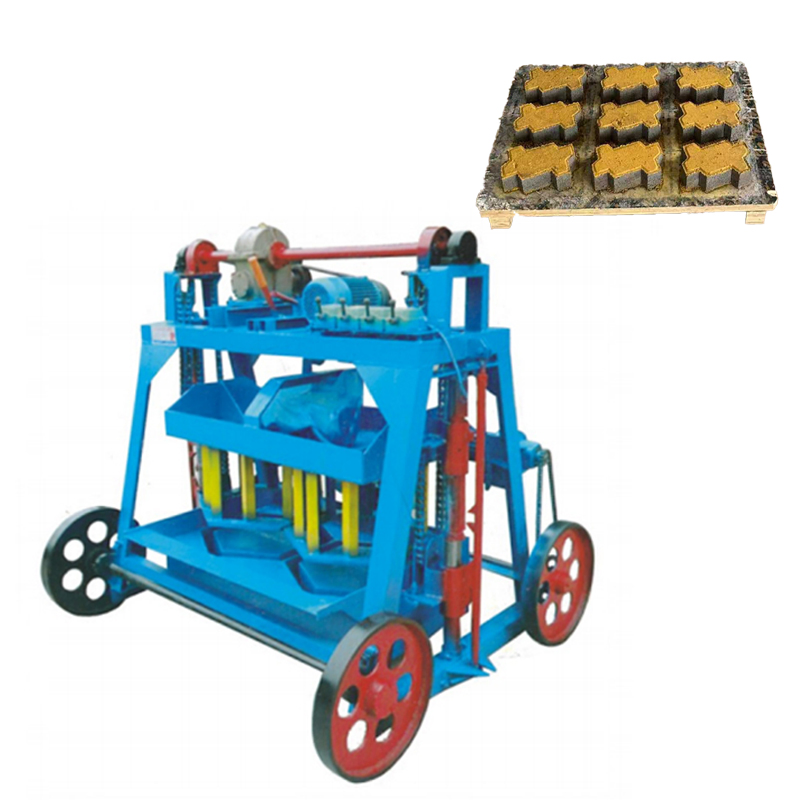

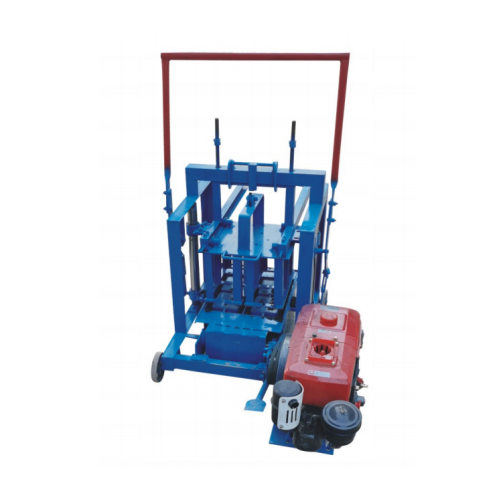

| Model | 2-45 Small Mobile Brick Machine |
| Molding Cycle | 45 seconds |
| Equipped Power | 1.1 kW |
| Standard Brick Output (240×53×115mm) | 3600 pcs |
| Hollow Brick Output (390×190mm) | 600 pcs |
| Packing Size | 1030×800×1080 mm |
| Machine Weight | 200 kg |
| Required Operators | 1-2 workers |
| Applicable Voltage | 110V / 220V / 380V |

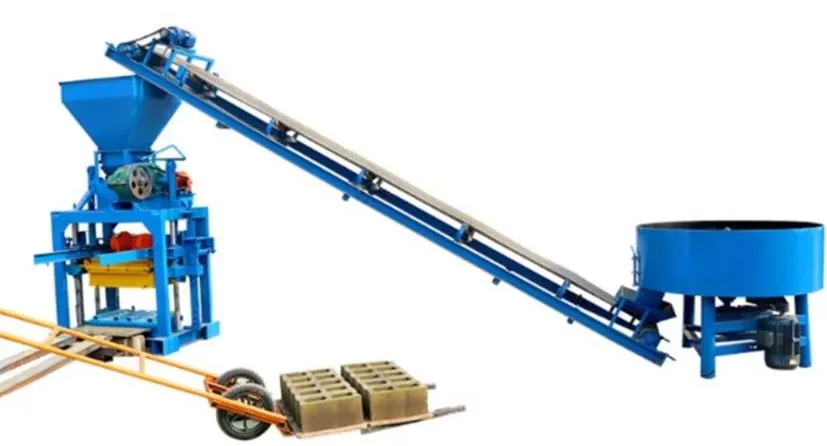

Operating Process:
1. Raw Material Mixing: Batching and blending into a semi-dry mixture.

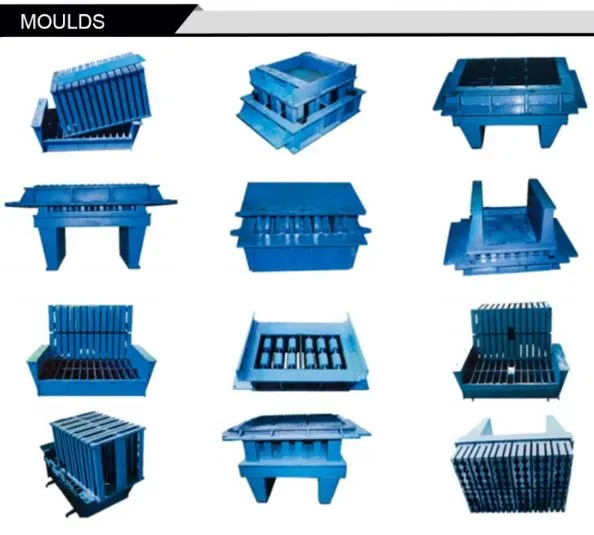

2. Material Feeding: Filling the mold cavities.
3. Compaction: High hydraulic pressure combined with high-frequency vibration.
4. Demolding: The machine moves forward leaving bricks on the ground.
5. Curing: Natural curing for 7 to 28 days.
Our commitment lies in providing efficient, eco-friendly, and stable solutions for non-fired cement brick machinery globally, serving building material manufacturers and construction firms with technical prowess and reliable manufacturing scale.
