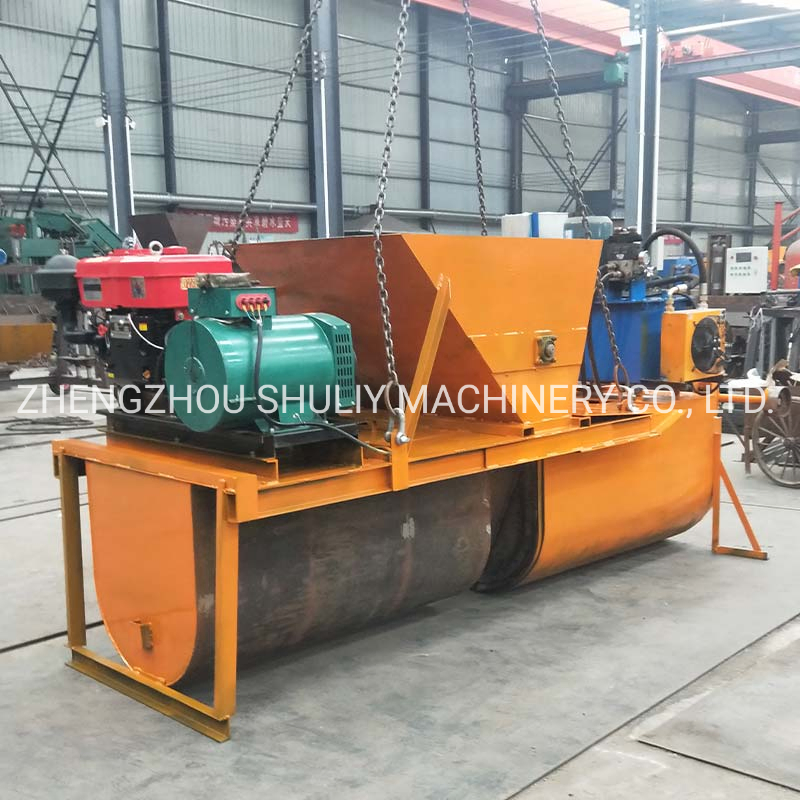

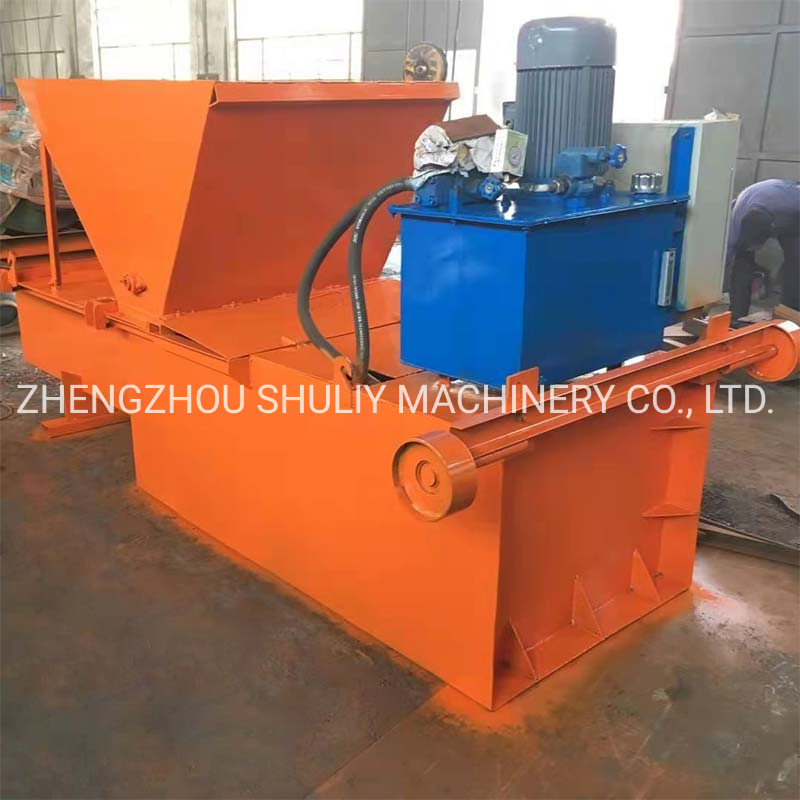

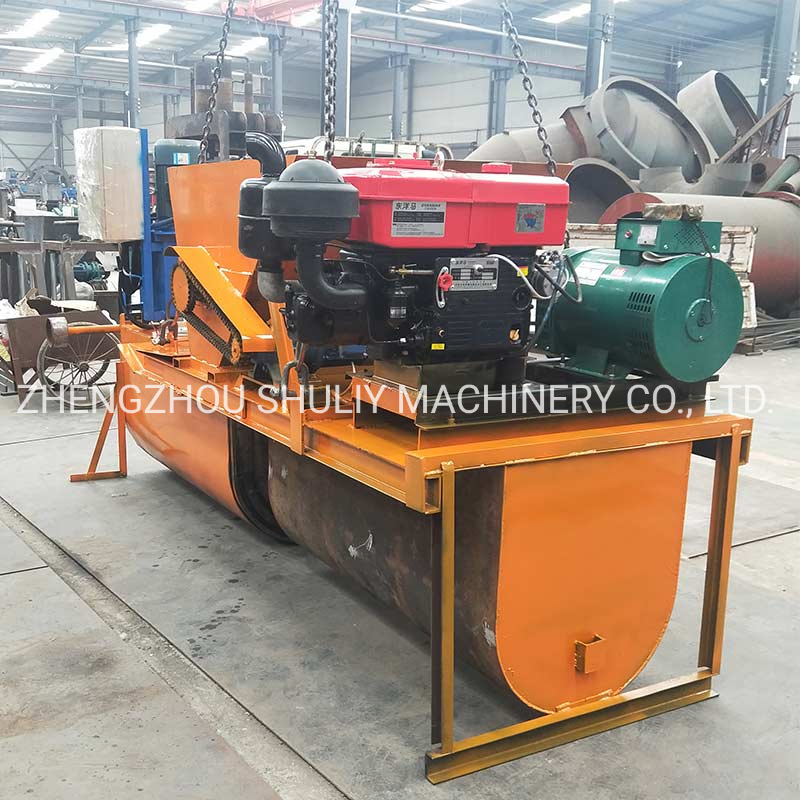

U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
1 / 5
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment
U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment

U Shaped Concrete Automatic Ditch Channel Lining Machine Cast in Place Channel Forming Equipment

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
SL
Automatic Grade
Automatic
Type
Hydroforming
Lining Thickness
60-160mm
Lining Speed
5-11m/H
Power
20.5kw
Slope
1:2 / 1:3 / 1:3.5
Production Capacity
50000 Pieces Per Year
Drain Forming Machine Overview
Drain forming machine for sale

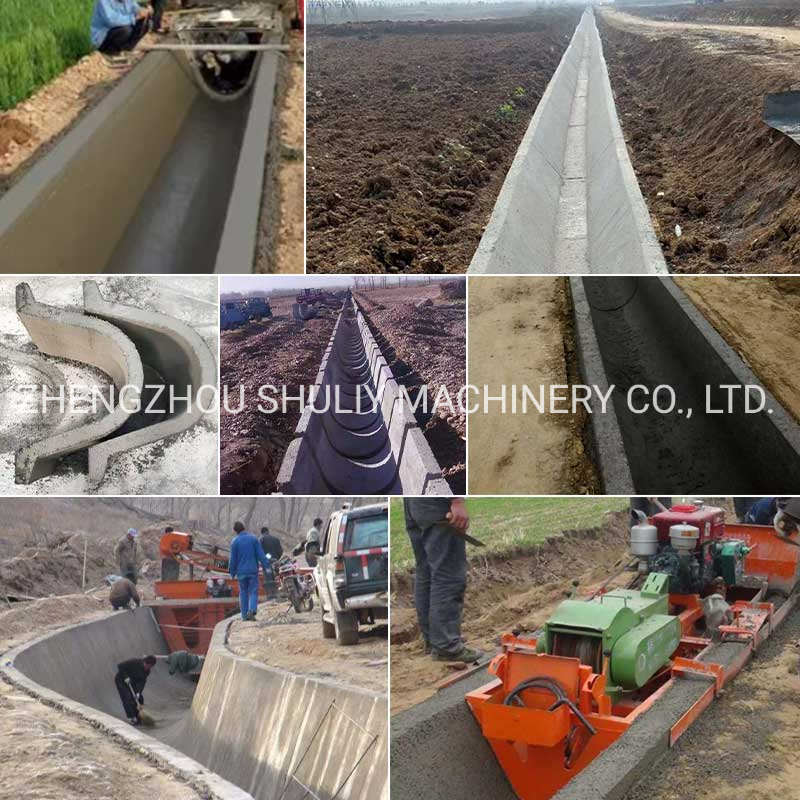

Our equipment can complete 200-600 meters of canal construction daily. It is equipped with specialized trenching buckets and expansion joint tools. This mechanized solution is ideal for building diversion and drainage canals. Its versatility allows for U-shaped farmland irrigation channels as well as large trapezoidal drainage channels for high-speed railways and expressways.

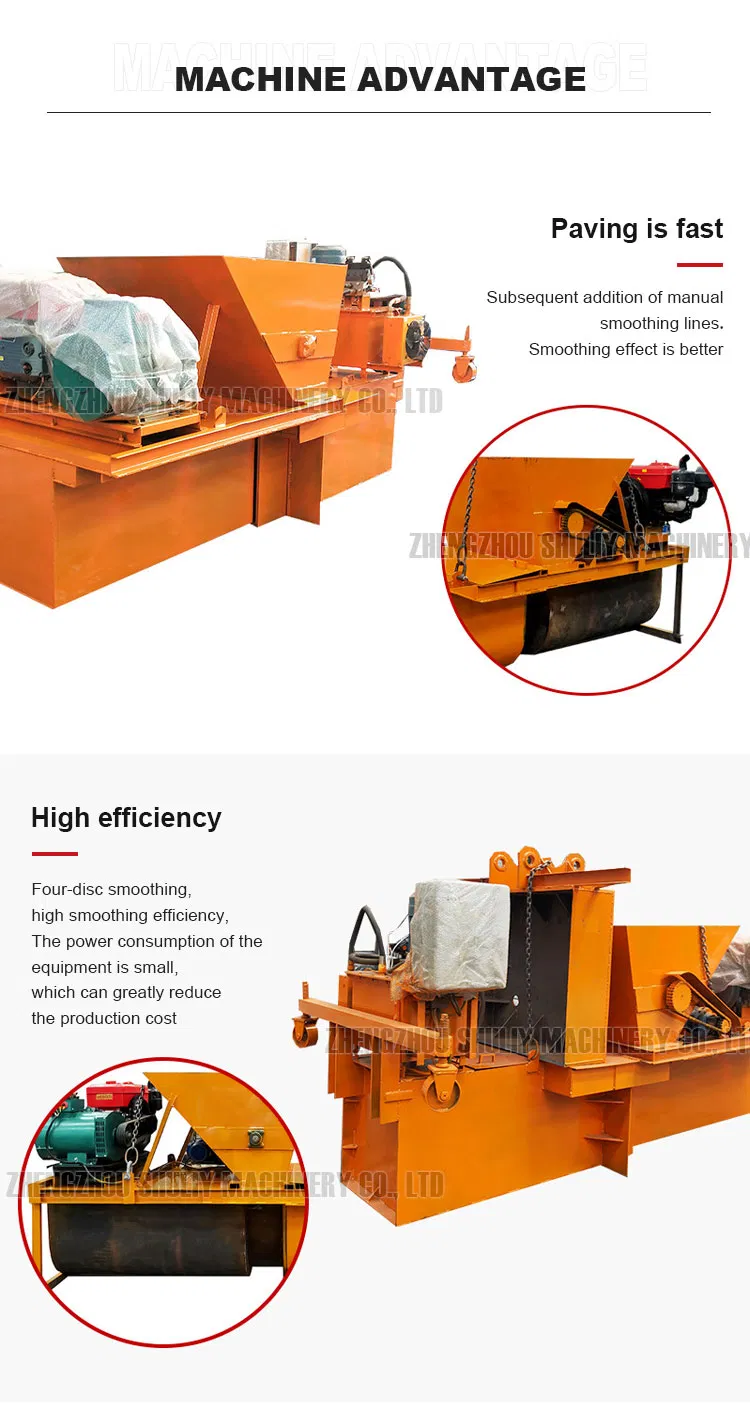

Key Features
  • High-speed paving capabilities.
  • Unique automatic feeding for even spreading.
  • Smooth control system with safe operation.
  • Four-disc smoothing system for superior finish.
  • Low power consumption to reduce production costs.

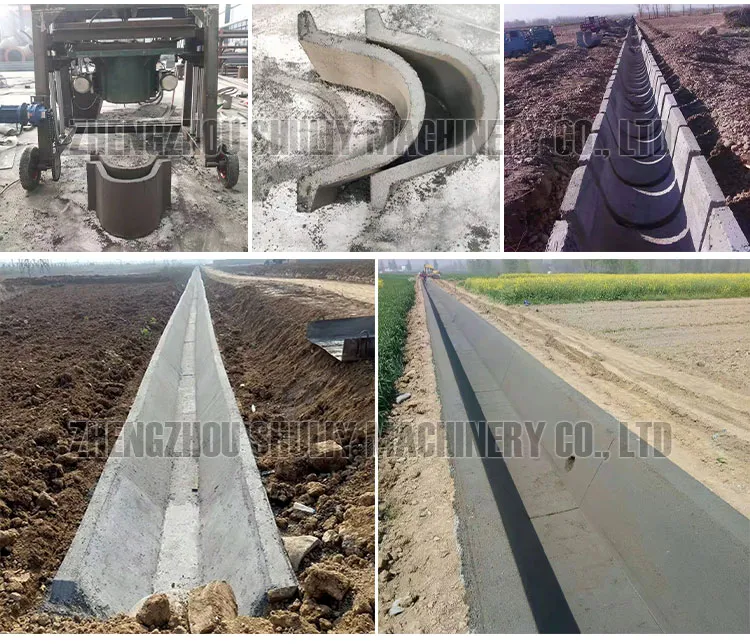

Concrete Ditch Channel Lining Machine

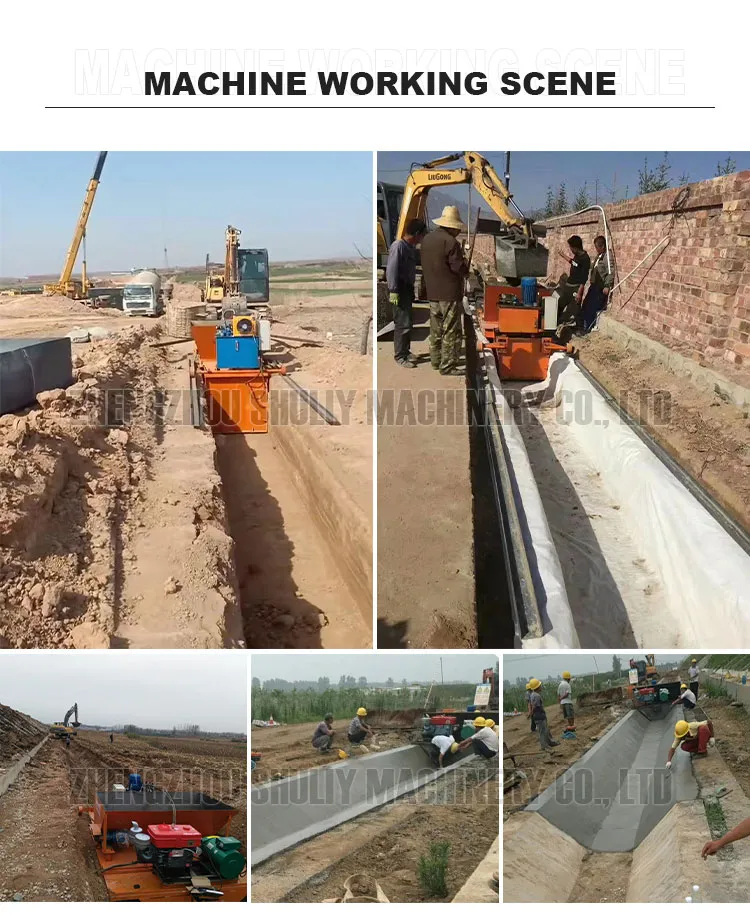

Channel Forming Equipment Detail
Technical Parameters
Parameter Item Specifications
Adapt to Slope Ratio 1:2, 1:3, 1:3.5
Adapt to Slope Length 21.87m, 30.9m, 35.61m
Material Speed 1.25m/min
Lining Walking Speed 0.2-1.2m/min
Lining Speed 5-11m/h
Lining Thickness 60-160mm
Total Power 70.5kw

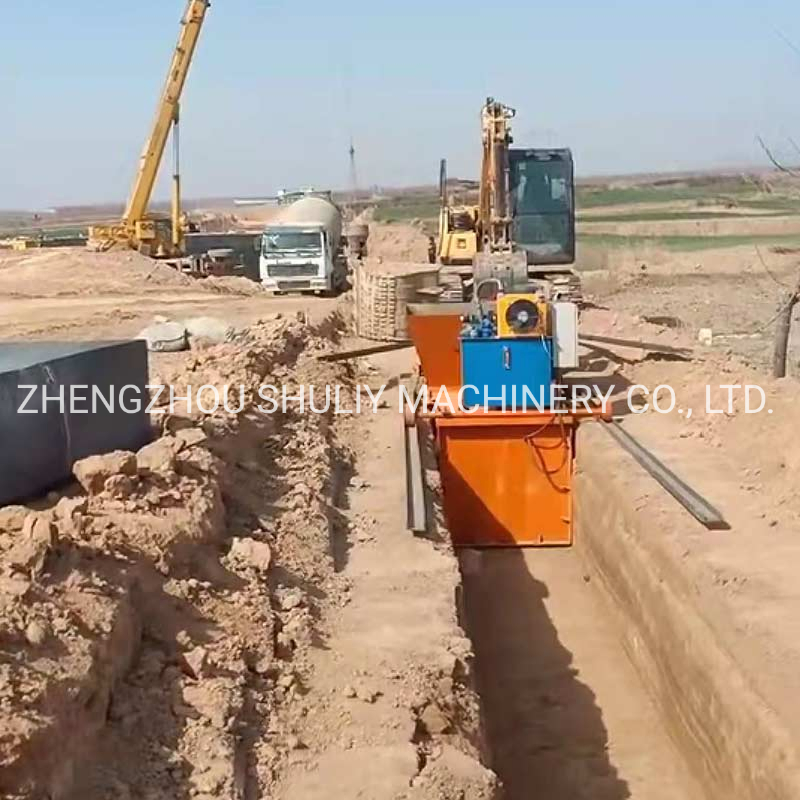

Machine Operation

Operational Efficiency: Only two workers are required to operate the machine. One manages the dough collection while the other handles shrinkage seams. A 500-meter canal can be completed with minimal effort.

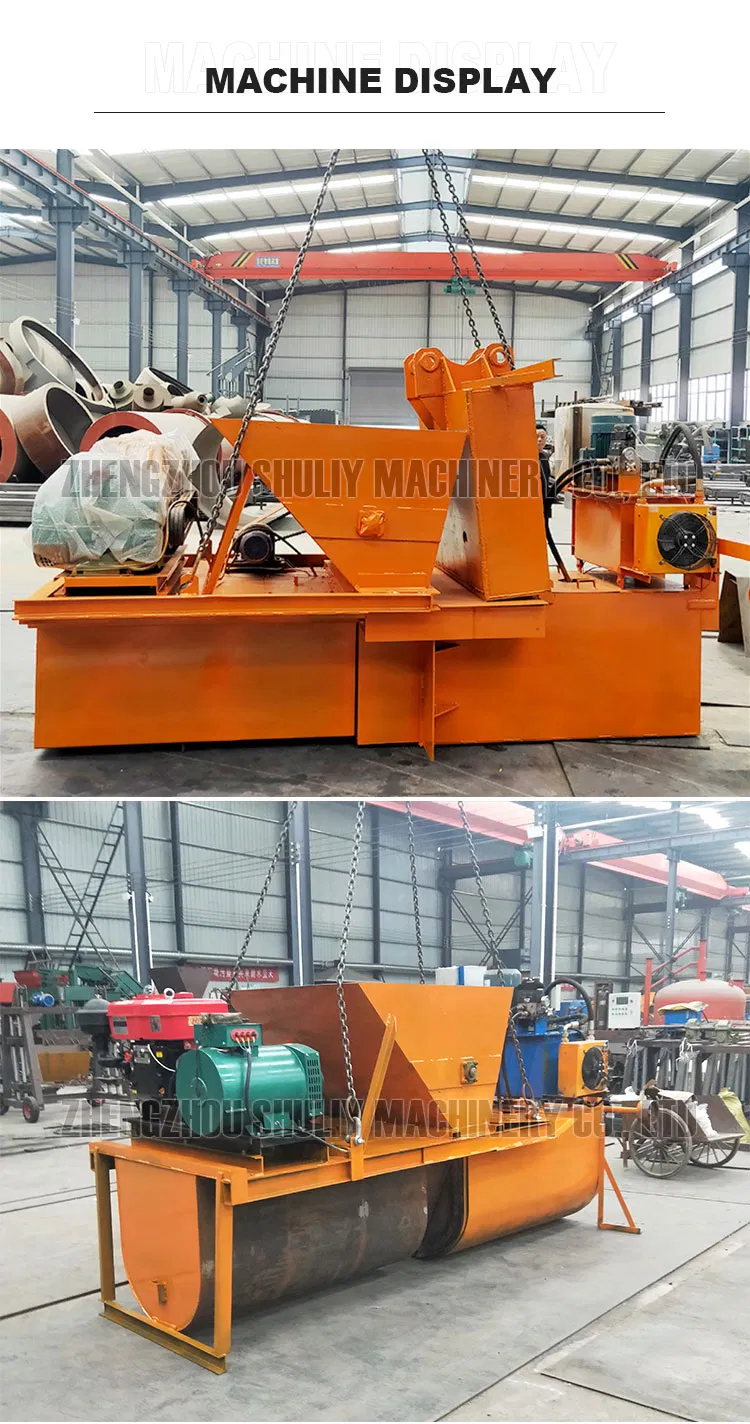

Canal Construction 1

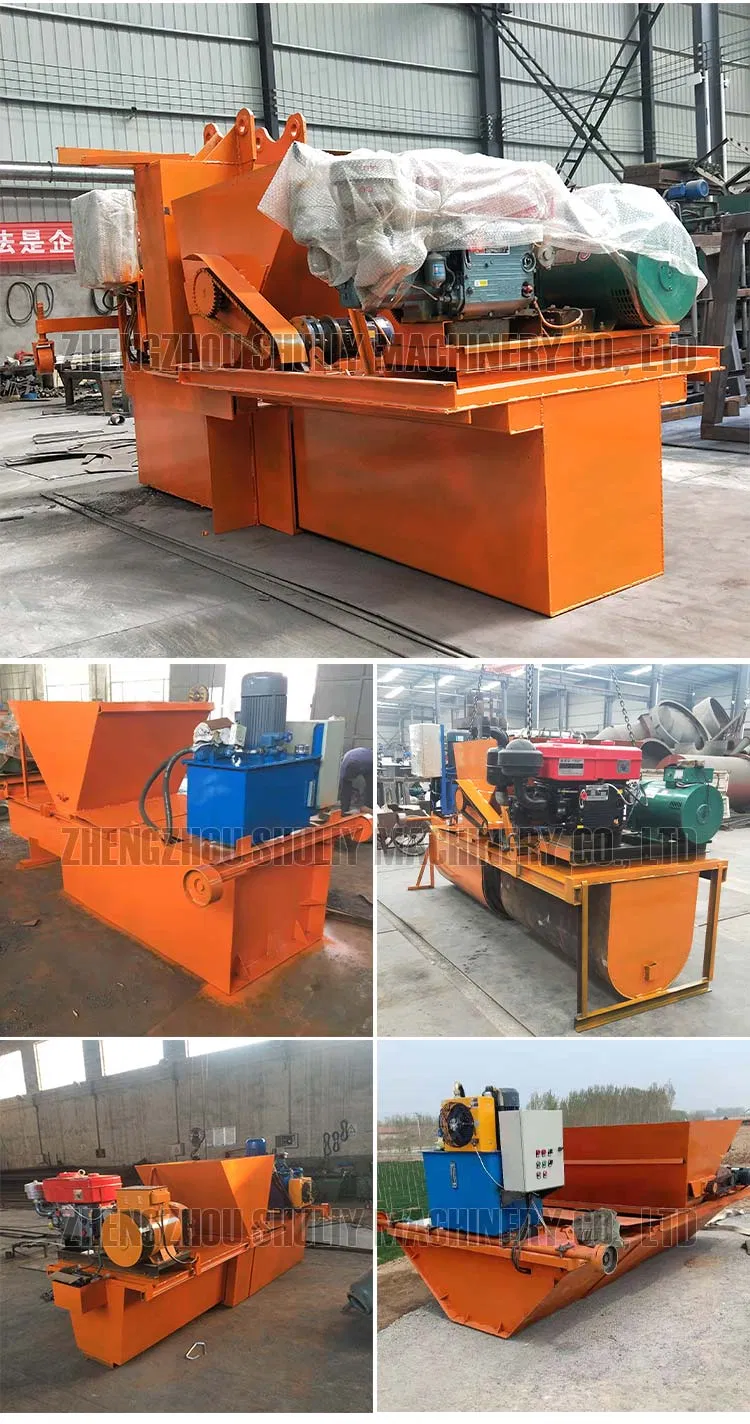

Canal Construction 2
Project Overview
Equipment Testing
Frequently Asked Questions
Why should I choose this machine for canal projects?
With over 15 years of manufacturing experience, our machines are designed for high durability and efficiency, capable of completing up to 600 meters of construction per day, significantly reducing labor costs.
Are you the direct manufacturer of this equipment?
Yes, we are a manufacturer. Direct factory sales allow us to offer more competitive pricing. Customers are always welcome to visit our facility for live equipment demonstrations.
How can I verify the quality before purchasing?
You can send sample materials to us for testing at no extra charge. We will provide a video of the machine processing your materials, or you can visit us to test it personally.
Do you provide installation and training support?
Yes. Based on your requirements, we can dispatch professional engineers to guide the installation and provide comprehensive training on machine operation.
What support is available for international visitors?
We provide full logistics support including airport or high-speed rail station pickup and hotel arrangements for clients visiting our factory in China.
What types of canals can this machine form?
It is highly versatile, suitable for U-shaped farmland irrigation channels and large trapezoidal drainage channels used alongside railways and expressways.
