RP603 6m Asphalt Road Paver Machine Small Paver Price

1 / 5

RP603 6m Asphalt Road Paver Machine Small Paver Price

Customization:	Available
After-sales Service:	1 - Year Warranty
Warranty:	1 - Year Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.

RP603

Type

Paver

Object

Asphalt Concrete Pavement

Moving Type

Mobile

Product Capacity

400t/H

Certification

ISO9001: 2000

Basic Paving Width

2.7-4.75m

Max. Paving Width

Max. Pave Thickness

260mm

Hopper Capacity

13000kg

Weight

19000kg

HS Code

8479102100

Product Overview

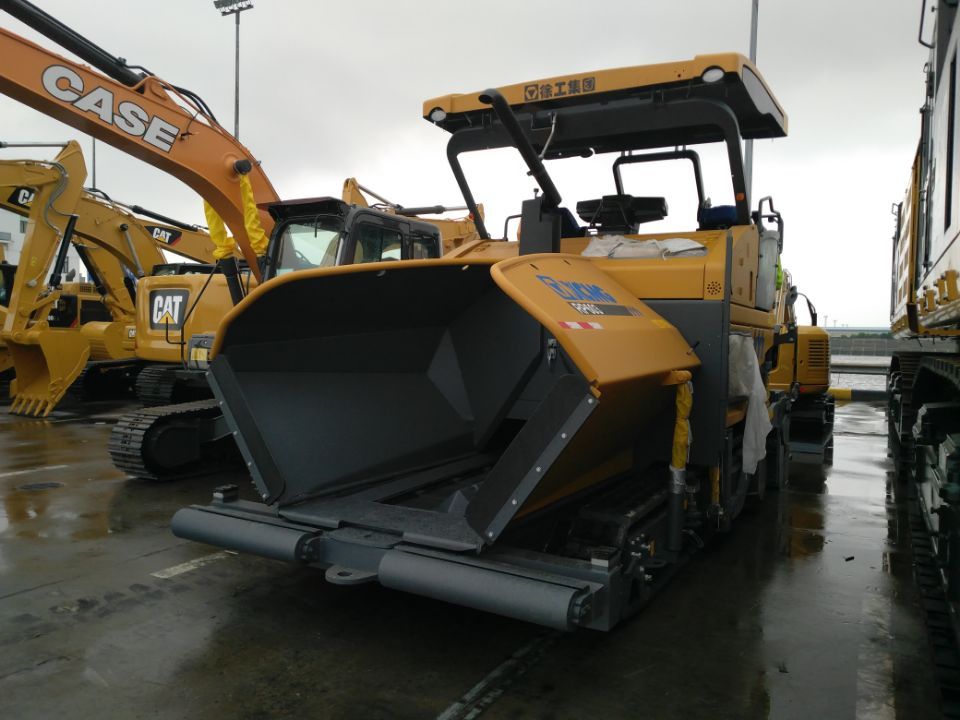

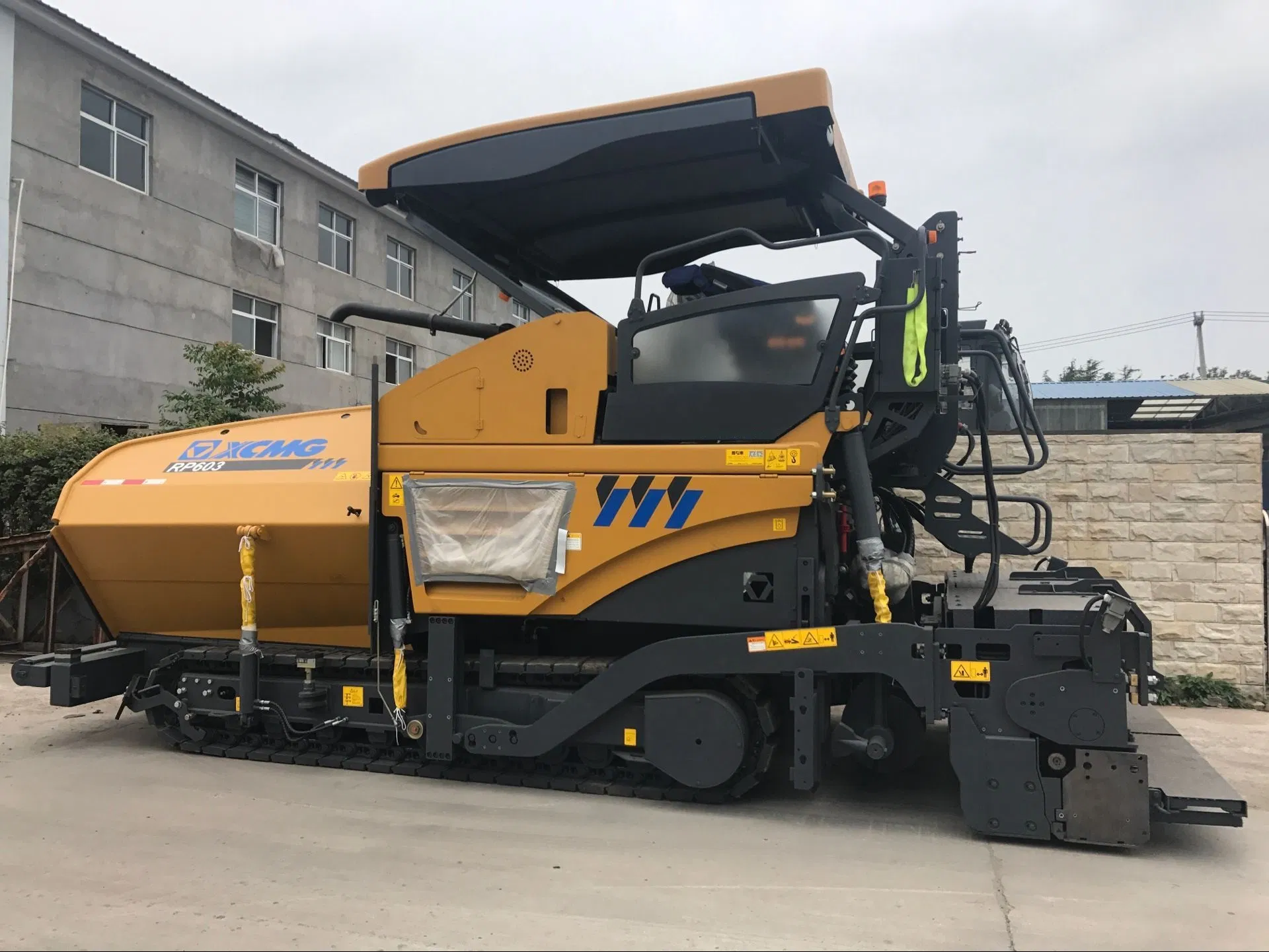

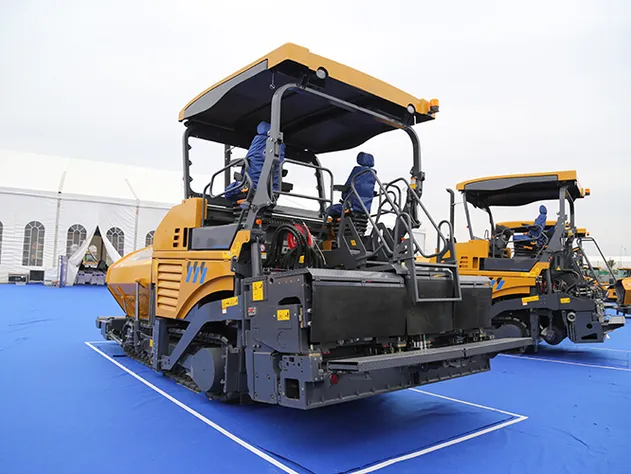

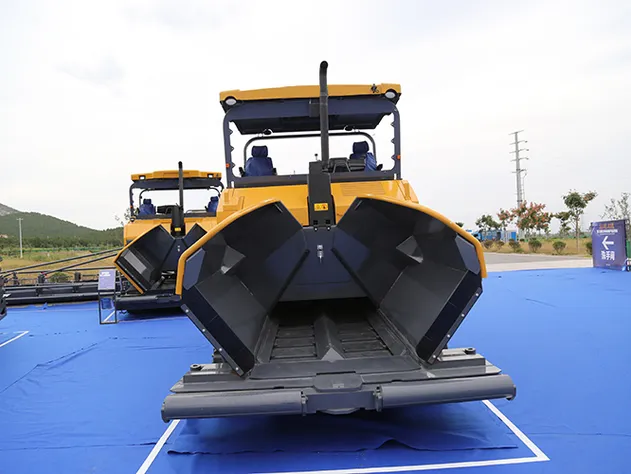

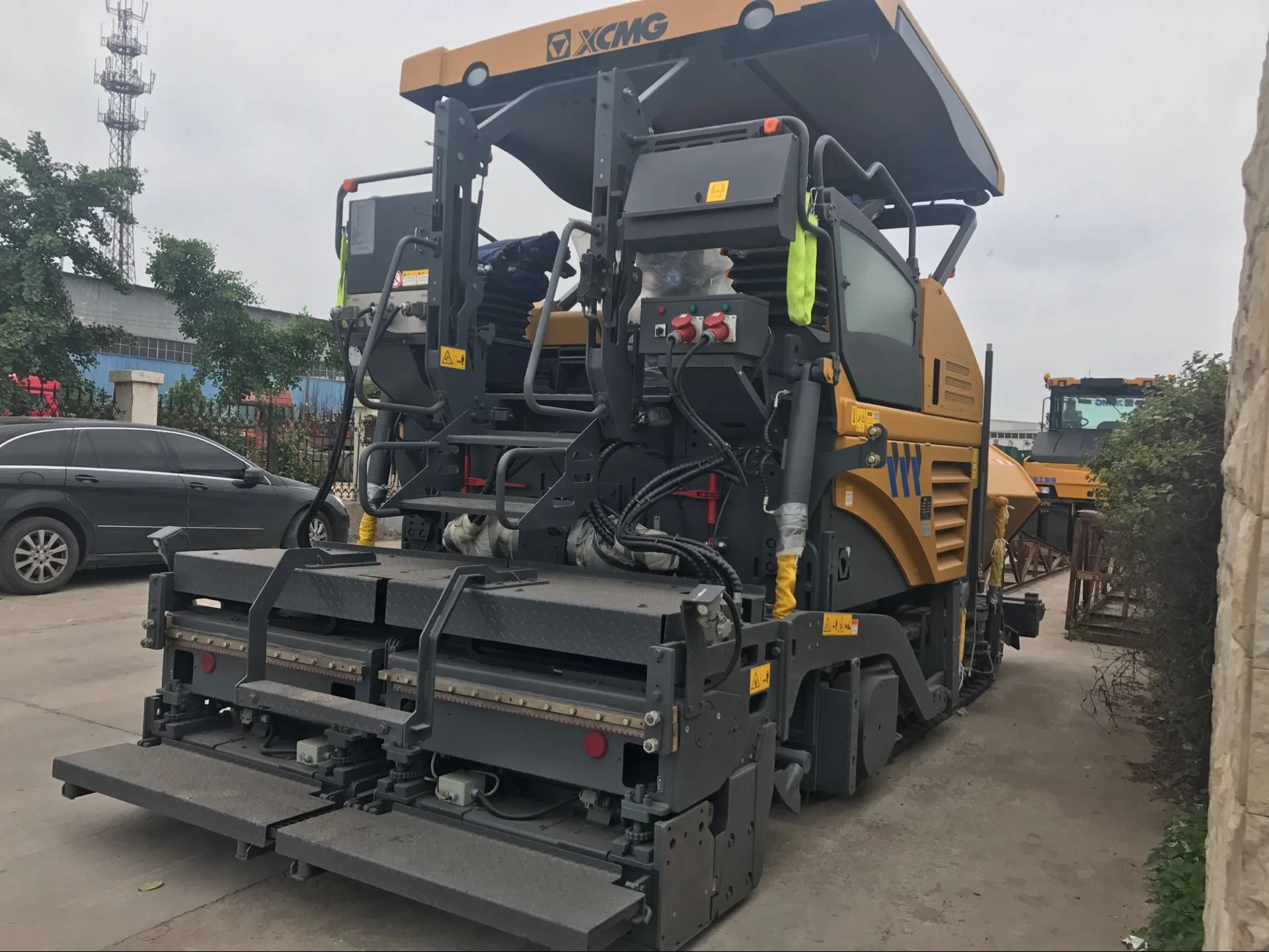

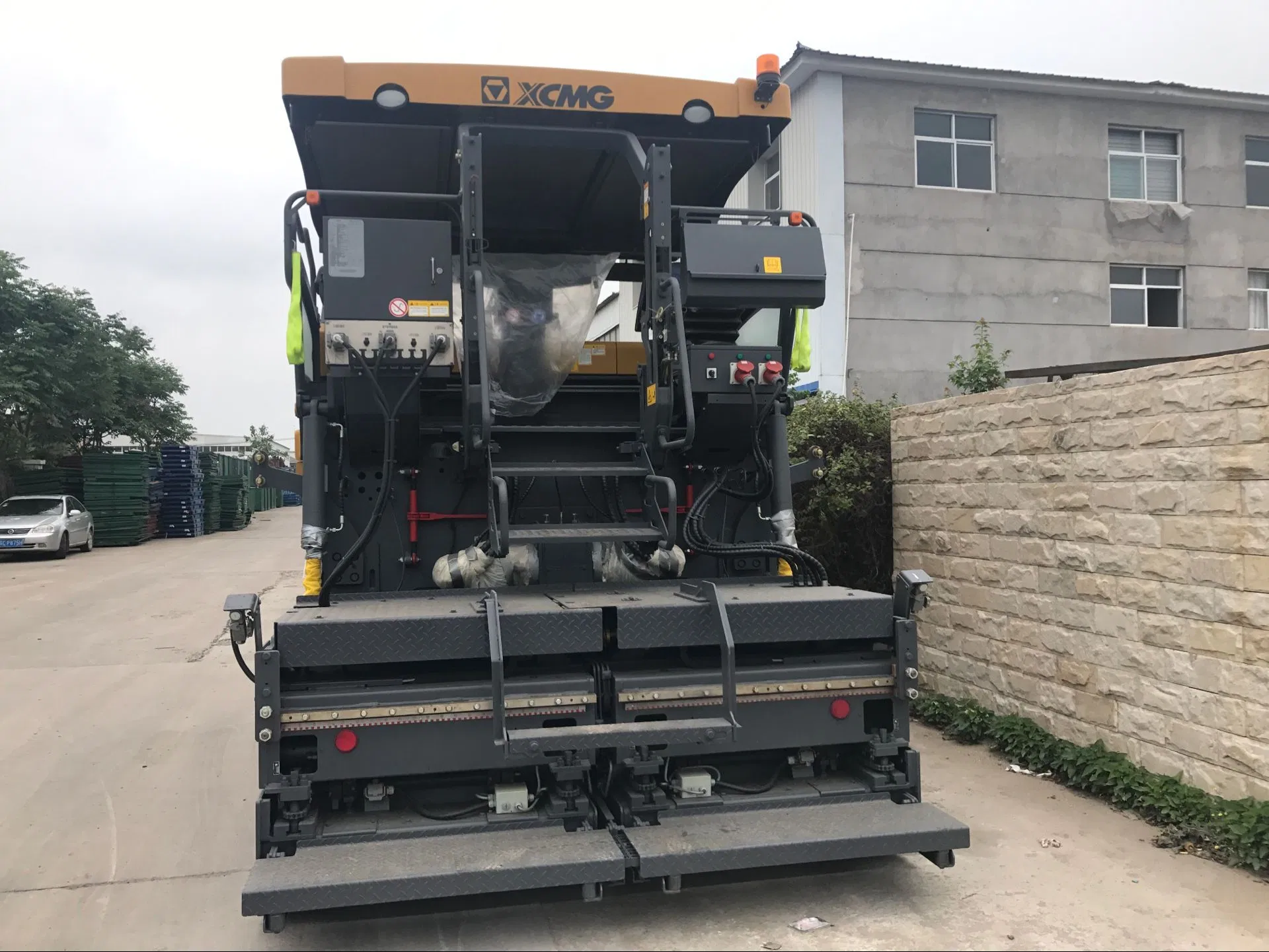

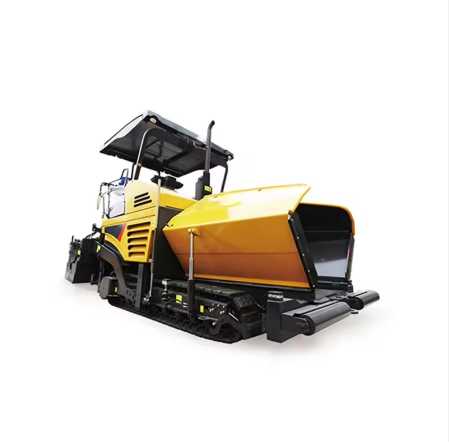

RP603 6m Asphalt Road Paver Machine

The RP603 paver is designed for high-performance construction of highway asphalt pavement. It is versatile across various grades and gradations of asphalt concrete materials. Equipped with an electric heating hydraulic telescopic screed, it excels in urban construction and municipal maintenance projects.

Advanced Control: Features full hydraulic drive and micro-computer control for automatic material leveling.
Efficient Power: Powered by a SC4H water-cooled engine (103kw/2200rpm) for reliable output.
Flexibility: Pavement width adjustable from 2.5m to 6.0m with a large 13t hopper design.
Precision Leveling: CAN bus technology based control system ensures accurate thickness and slope control.
Performance: Vertical flatness reaches 3mm/3m with a transverse gradient within 0.02%.

Technical Specifications

Description	Unit	Parameter Value
Dimension	mm	6590 × 2600 × 3942
Weight	kg	19000
Driving Speed	m/min	0-15
Basic Pave Width	m	2.7-4.75
Maximum Pave Width	m	6
Maximum Layer Thickness	mm	260
Maximum Paving Speed	m/min	15
Hopper Capacity	kg	13000
Maximum Laydown Rate	t/h	400
Rated Power	kw/rpm	103 / 2200

Support & Warranty

Standard Warranty
12 months or 2,000 operating hours (whichever comes first).

Global Support
24/7 technical assistance and prompt spare parts supply.

Operator Training
Professional on-site or remote operation and maintenance training.

Manufacturing & Logistics

Frequently Asked Questions

What is the maximum paving width of the RP603?

The RP603 paver has a basic paving width of 2.7m to 4.75m, and can reach a maximum paving width of 6 meters with optional extensions.

How much asphalt can the hopper hold?

The machine is equipped with a large capacity hopper that can hold up to 13,000kg (13 tons) of material.

What is the productivity rate of this paver?

The RP603 offers a maximum theoretical productivity (laydown rate) of 400 tons per hour.

What kind of engine powers the RP603?

It is powered by a high-efficiency SC4H water-cooled engine with a rated power of 103kw at 2200rpm.

Does the machine support automatic leveling?

Yes, the machine incorporates a micro-computer control system that realizes automatic control of material levels and leveling for high precision.

What are the transport dimensions of the unit?

The transport dimensions are approximately 6590mm in length, 2600mm in width, and 3942mm in height, weighing 19,000kg.
