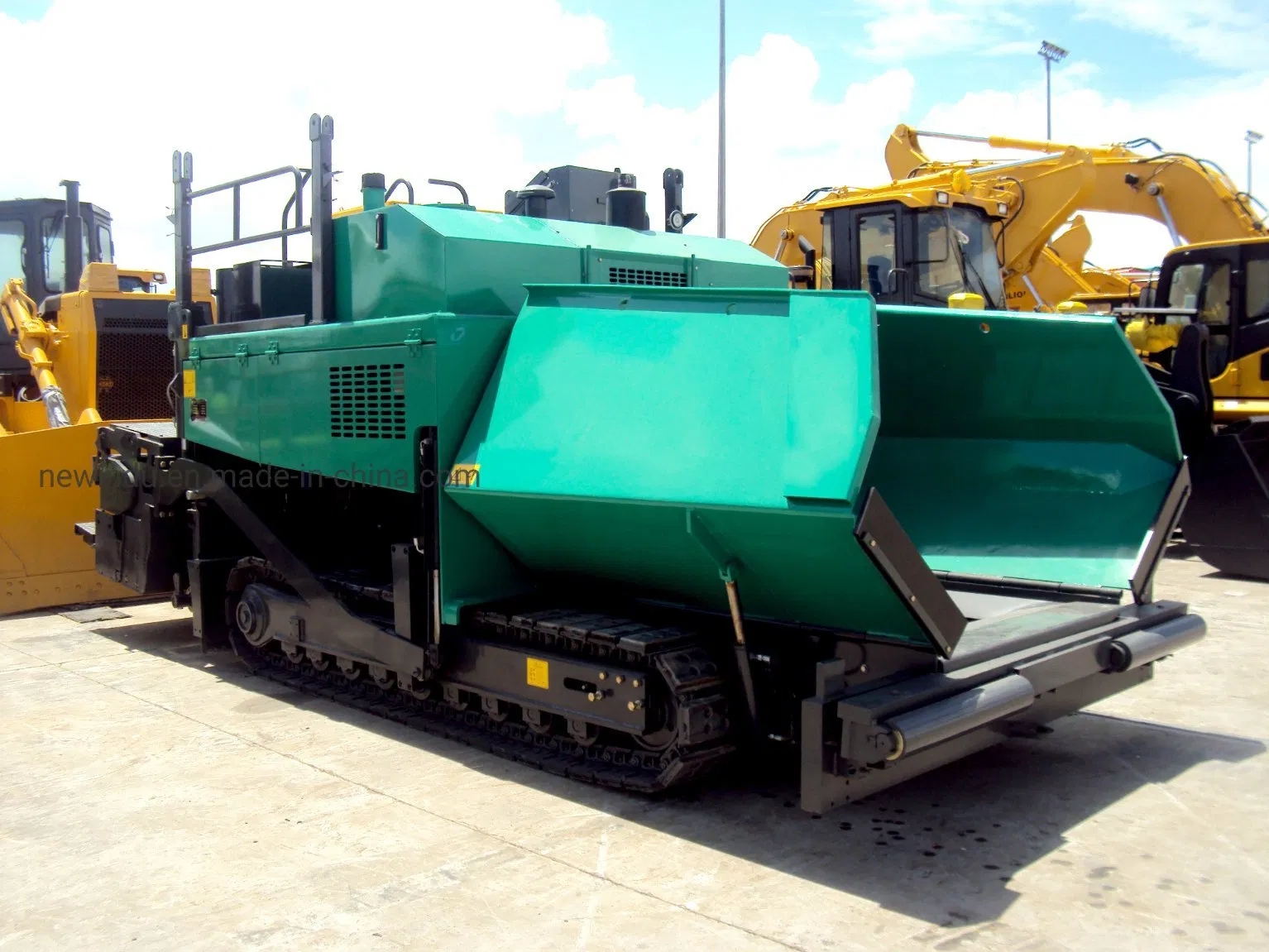

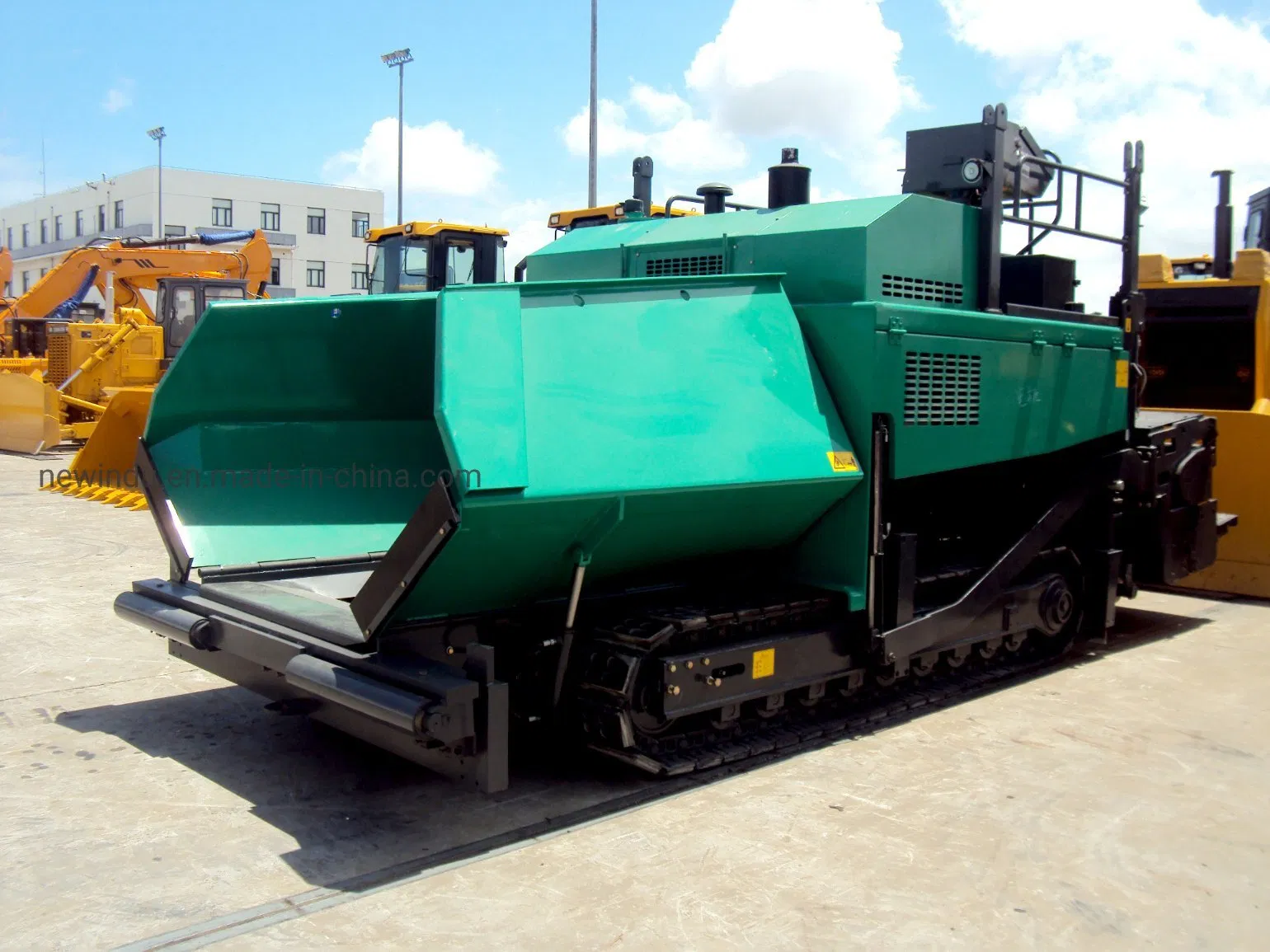

3.5m Small Asphalt Concrete Paver Machine RP355

Customization: Available
After-sales Service: Online Service
Warranty: One Warranty

Product Description

📊

Basic Info

Model NO.RP355
TypeAsphalt Paver
Working MethodMulti-Function Paver
AxleBiaxial Dual-Drum
Grinding Wheel TypeTire Grind
Compaction Depth240t/H
Engine TypeDiesel Engine
Travel Speed30cm/s
Centrifugal Force18KN
CertificationCE
ConditionNew
ProductsAsphalt Concrete Paver

Product Description

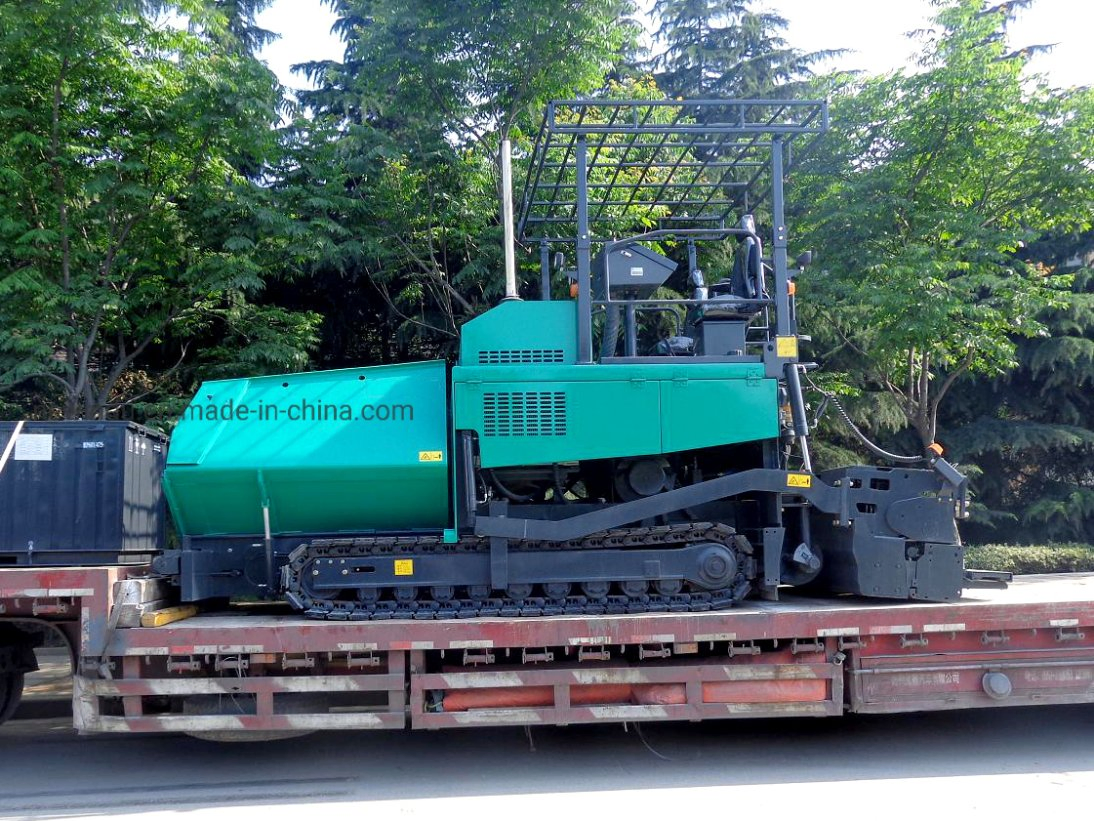

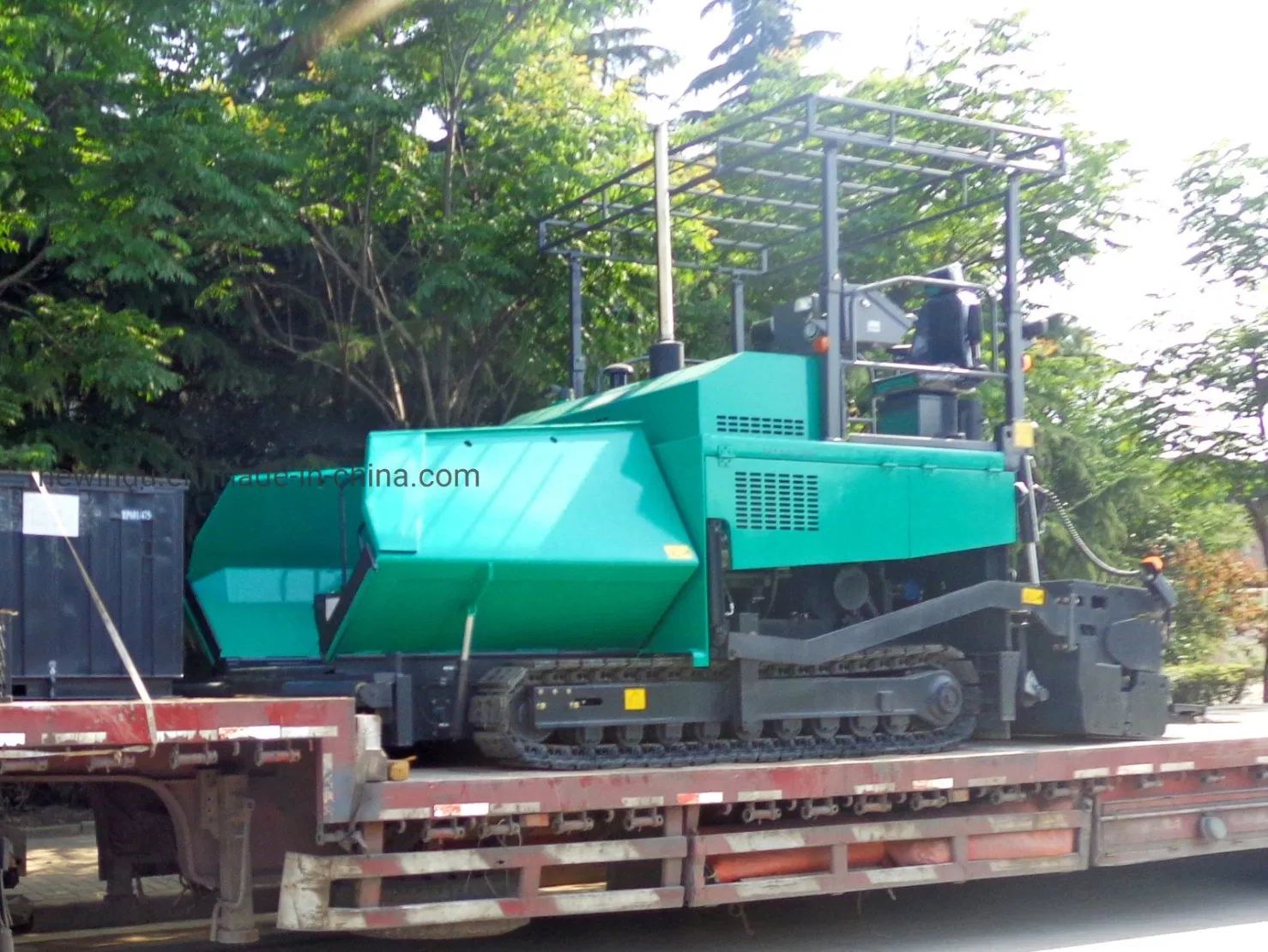

3.5M Small Asphalt Concrete Paver Machine RP355
  • High power + super-long tracks, strong adaptability to working conditions.

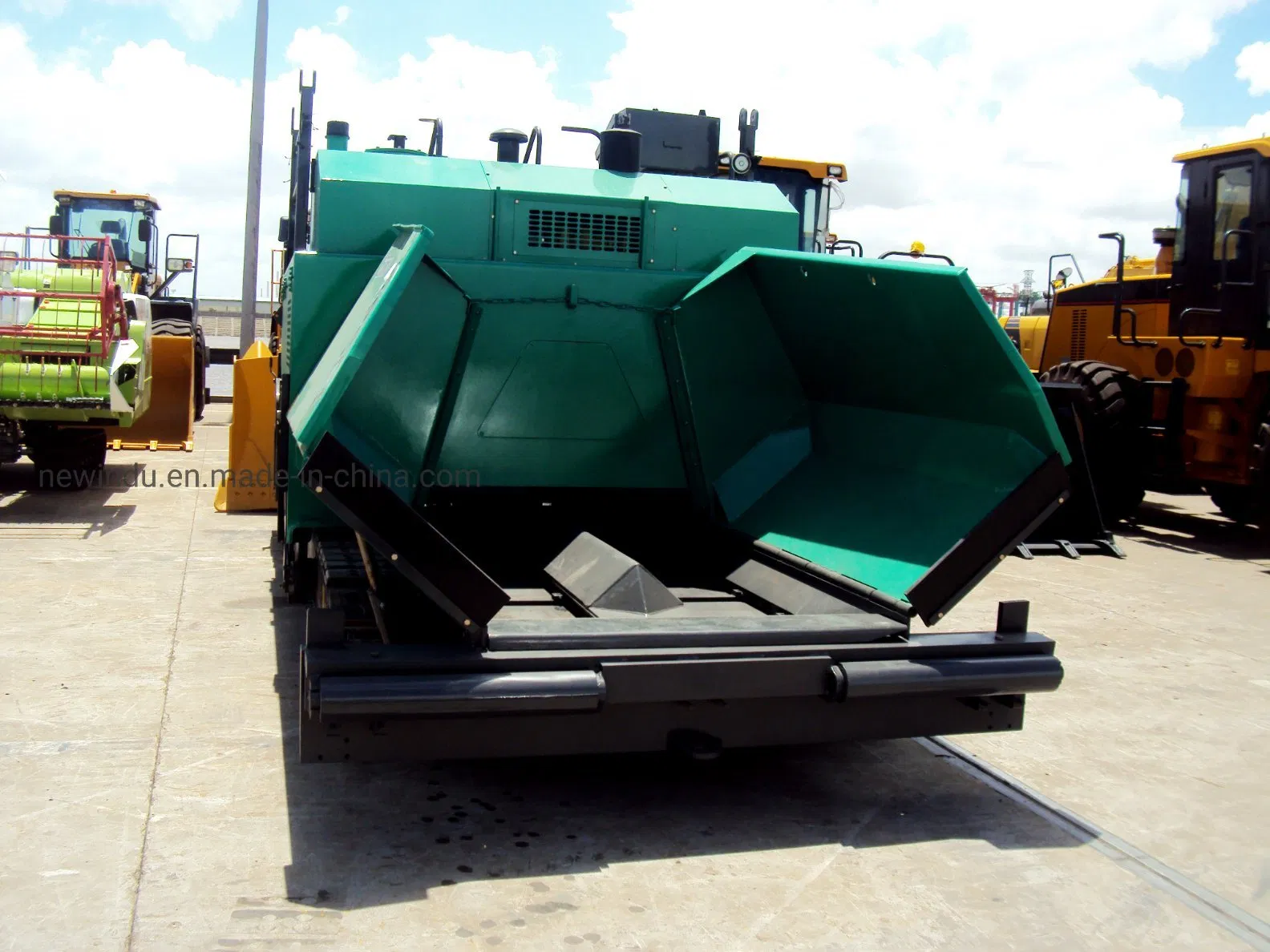

  • Fully upgraded hopper, scraper and auger distribution systems; distribution efficiency improved by 50%.
  • Specially reinforced and more durable material channels.
  • CAN bus digital transmission electric system.

Excellent Paving Performance: High strength screed - the strongest rigid design in the industry features a double layered anti-twist beam design, producing consistently precise results.

Anti-segregation technology: Used in all aspects of material handling. Fully proportional, independent conveyor and auger controls match device speeds with paving speed.

Remote updates and monitoring: Provides real-time technical support and technology update.

📋

Product Parameters

Item Unit RP355 Data
Basic paving widthm1.8
Max paving widthm4
Max paving thicknessmm280
Paving speedm/min0~18
Travel speedKm/h0~21
Hopper capacityt12
Theoretical productivity capacityt/h240
Gradeability%≥20
Pavement evennesssmm≤3
Transverse leveling accuracy%±0.2
Engine model/SC4H
Engine powerkW73.5
Machine weightt11
Overall dimensions (L*W*H)mm6242*4753*3728
🖼

Product Gallery

Frequently Asked Questions

What is the maximum paving width of the RP355?
The RP355 asphalt paver has a basic paving width of 1.8m and can reach a maximum paving width of 4 meters.
What type of engine is used in this machine?
The machine is equipped with a high-performance SC4H Diesel Engine with a rated power of 73.5 kW.
What is the theoretical production capacity?
The RP355 has a theoretical productivity capacity of 240 tons per hour, making it highly efficient for small to medium projects.
Does the machine support remote monitoring?
Yes, it features remote updates and monitoring capabilities that provide real-time technical support and technology updates.
What are the dimensions and weight of the RP355?
The overall dimensions are 6242*4753*3728mm, and the machine weight is approximately 11 tons.
Is the screed design durable?
Yes, it features a high-strength, double-layered anti-twist beam design, which is recognized as one of the strongest rigid designs in the industry.
