RP603 6m Mini Paver Original Design for Small to Medium Projects

Customization:	Available
Warranty:	12 Months
Type:	Mobile

Basic Specifications

Model NO.

RP603

Object

Asphalt Concrete Pavement

Moving Type

Semi-Fixed

Certification

CE

Condition

New

Max Paving Speed

20m/Min

Max Travel Speed

3km/H

Paving Width

2.5~4.75m

Power

129kw

Max Layer Thickness

350mm

Product Description

RP603 6m Mini Asphalt Concrete Paver Crawler Type - Original Quality

Core Configuration: Dongkang Euro II Engine 129kW + Imported Brand Hydraulic System + E475T Screed (Single Vibratory + Electric Heating) + Imported Brand Leveling Sensor / Material Level Sensor + Electronic Control Material Distribution and Lifting.

The RP603 paver is engineered for high-performance highway asphalt pavement construction across various grades. It effectively handles different types and gradations of asphalt concrete materials. Featuring an electric heating hydraulic telescopic screed, this machine is exceptionally suited for urban construction, municipal maintenance, and specialized paving projects.

The machine incorporates full hydraulic drive and micro-computer control, enabling precise automatic material level management and leveling. With its ergonomic operation platform and high automation level, it provides a faster and more intuitive operation experience for operators.

Technical Parameters

Item	Unit	RP603 Data
Basic Pave Width	m	2.5~4.75
Maximum Pave Width	m	6
Maximum Layer Thickness	mm	350
Maximum Paving Speed	m/min	20
Maximum Travel Speed	km/h	3
Hopper Capacity	t	14
Maximum Laydown Rate	t/h	400
Engine Model	-	QSB6.7-C170
Rated Power	kW/rpm	129/2200
Shipping Dimension (LxWxH)	mm	668025003180
Full Weight	t	19

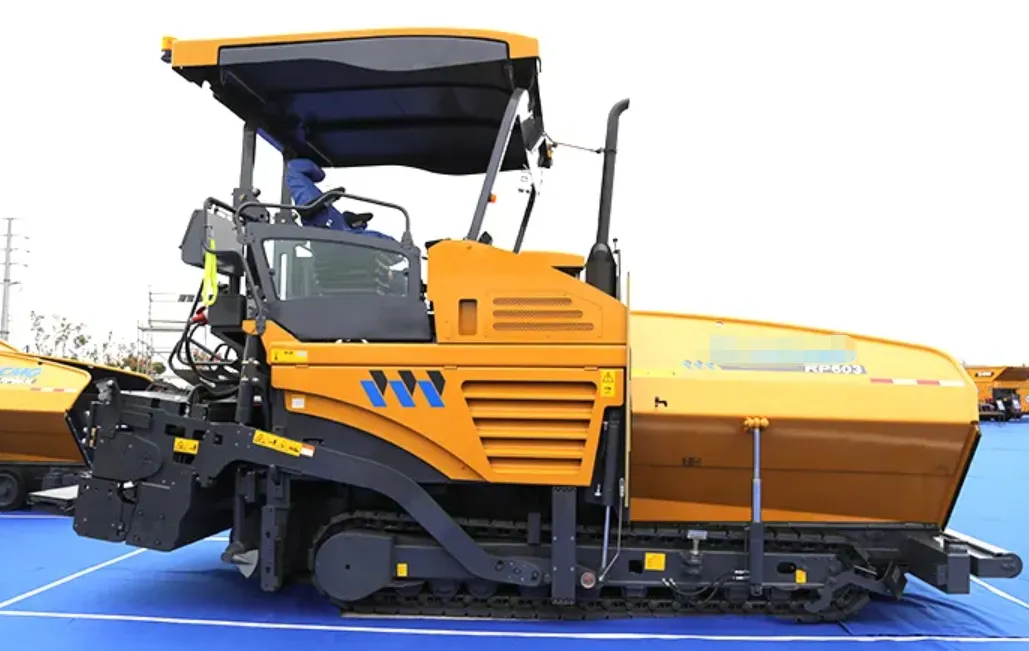

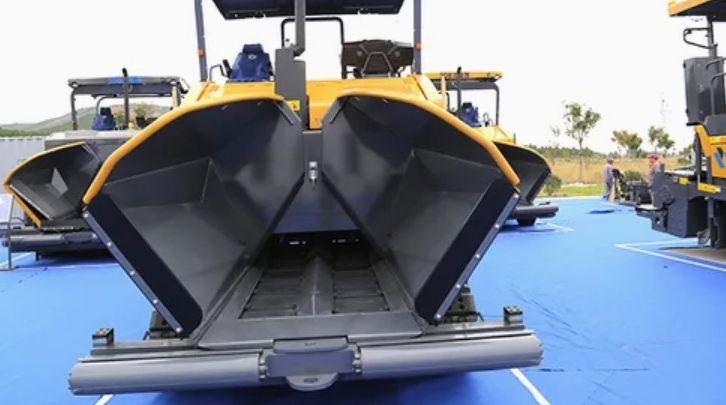

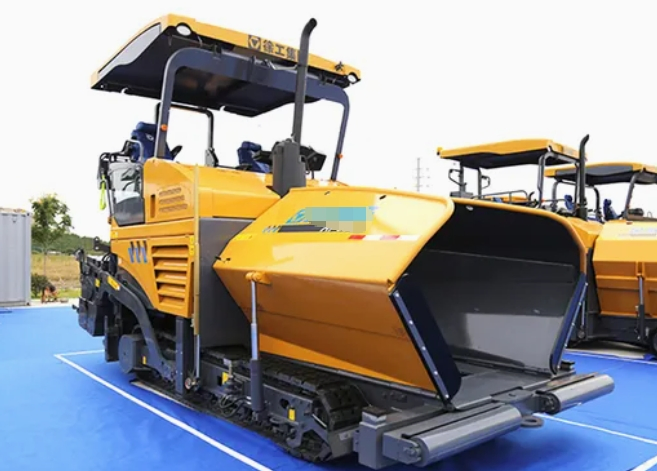

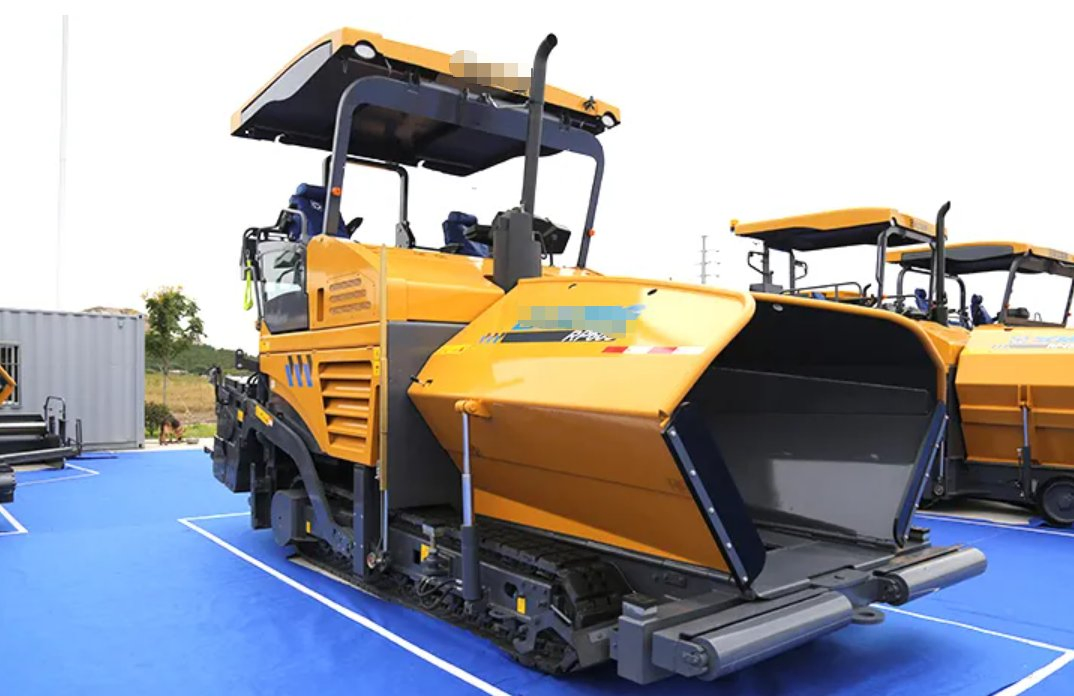

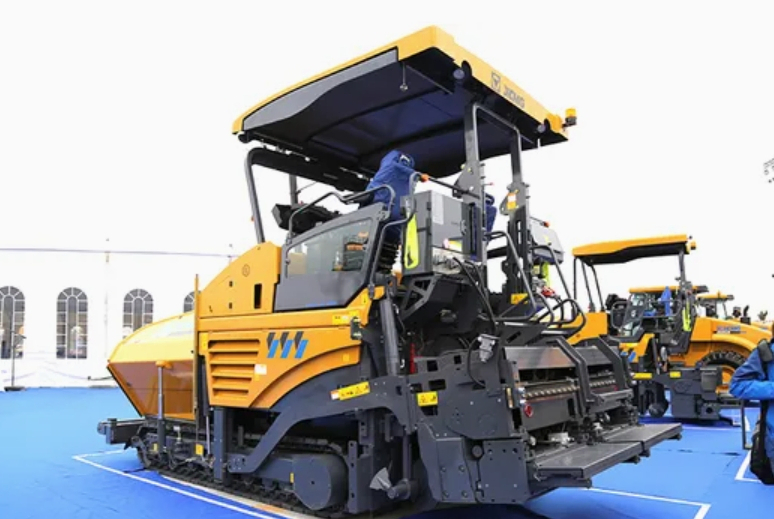

Equipment Showcase

Our Advantages

SGS, CCC, and ISO Quality Certifications
Comprehensive after-sale service system
Over 20 years of manufacturing excellence
Customized product solutions available
Successful exports to 90+ countries globally

Packing & Shipping

Bulk Cargo Shipping
Ro-Ro (Roll-on/Roll-off)
Frame Container Shipping
Standard Container Transport

Available Product Series

We provide a full series of heavy-duty vehicles and machinery including:

Dump & Tractor Trucks
Semi-trailer Series (Container, Cargo, Tipper)
Low Bed & Liquid Tanker Series
Concrete Mixer & LPG Tanks
Road Rollers & Excavators

Frequently Asked Questions

How do you guarantee product quality?

Quality is our core culture. We utilize advanced production technology and a professional management team, maintaining strict quality control from the beginning of the manufacturing process.

Can I purchase a sample to test the quality?

Yes, you can purchase samples for quality testing. Our Minimum Order Quantity (MOQ) is 1 unit.

What is the typical delivery time?

The standard delivery time is within 30 working days after the receipt of your advance payment.

Do you provide quick-wear spare parts?

Yes, we supply a wide range of parts including oil filters, fuel filters, air filters, traction pins, brake pads, bearings, and suspension accessories upon request.

What shipping methods are available for machinery?

We ship via sea (Container or Ro-Ro/Bulk) for international routes, and by road or railway for neighboring regions. Urgent light parts can be sent via express couriers like DHL or Fedex.

How can I ensure safe delivery after payment?

With over 8 years of specialized export experience, we provide regular production photos and updates, and assist in booking the most reliable shipping vessels to ensure smooth delivery.
