Small 4m Asphalt Concrete Paver RP405 Paving Machine

1 / 5

Small 4m Asphalt Concrete Paver RP405 Paving Machine

Customization:	Available
After-sales Service:	Online Video Support
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Information

Model NO.:RP405

Type:Paver

Object:Asphalt Concrete Pavement

Moving Type:Mobile

Mixing Method:Continuous Drum

Automatic Grade:Automatic

Product Capacity:40～400t/h

Certification:ISO9001: 2000, CE

Condition:New

HS Code:8479102100

🏗️

Product Description

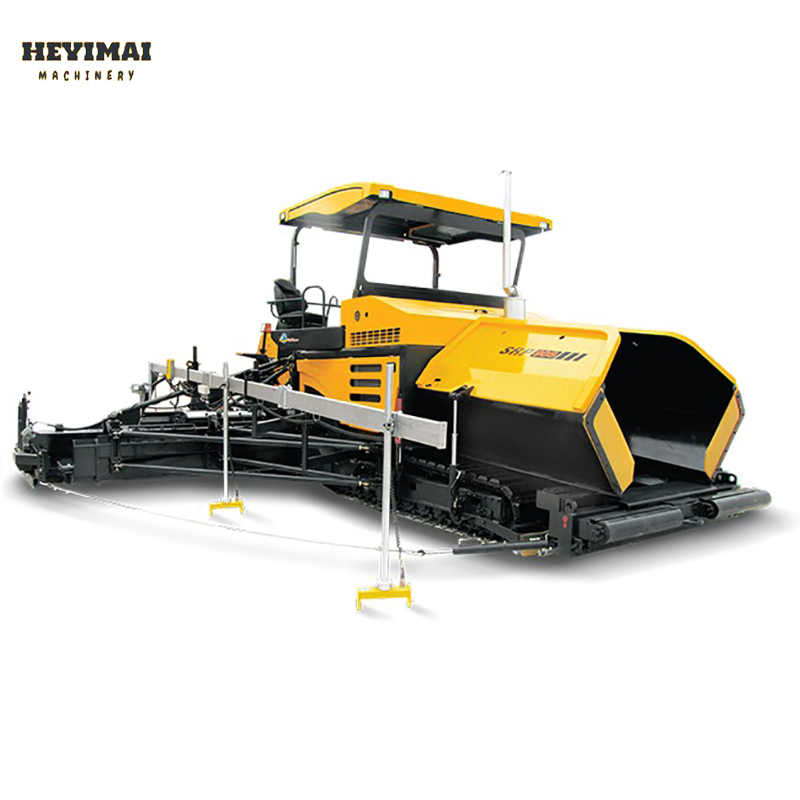

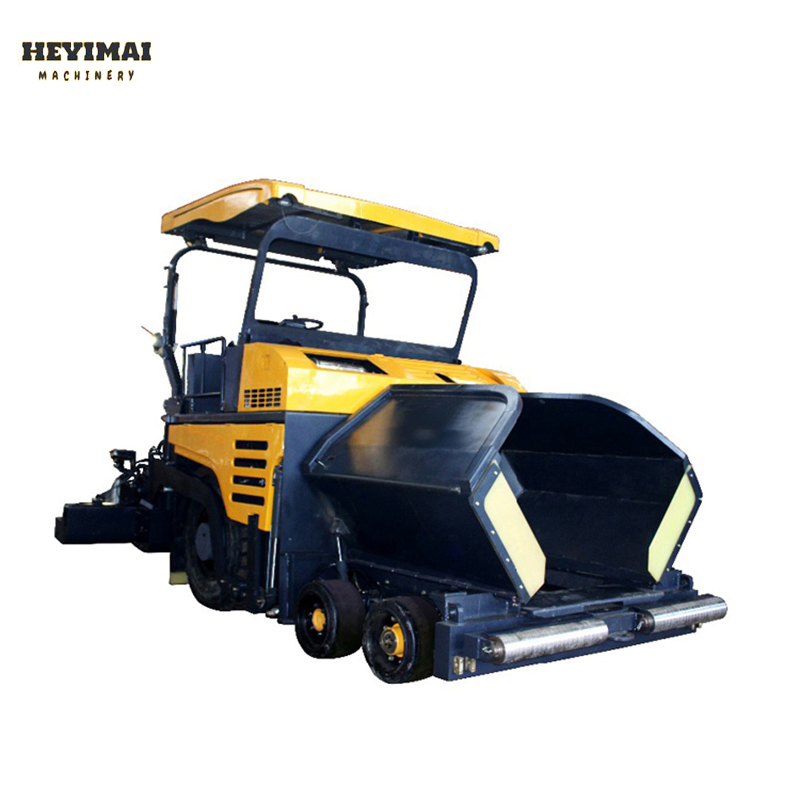

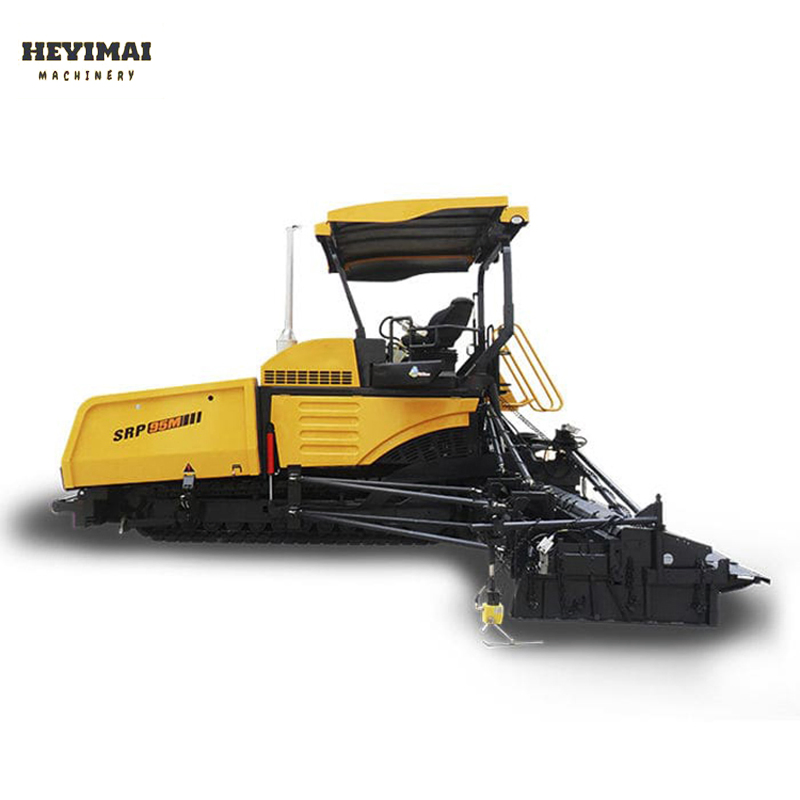

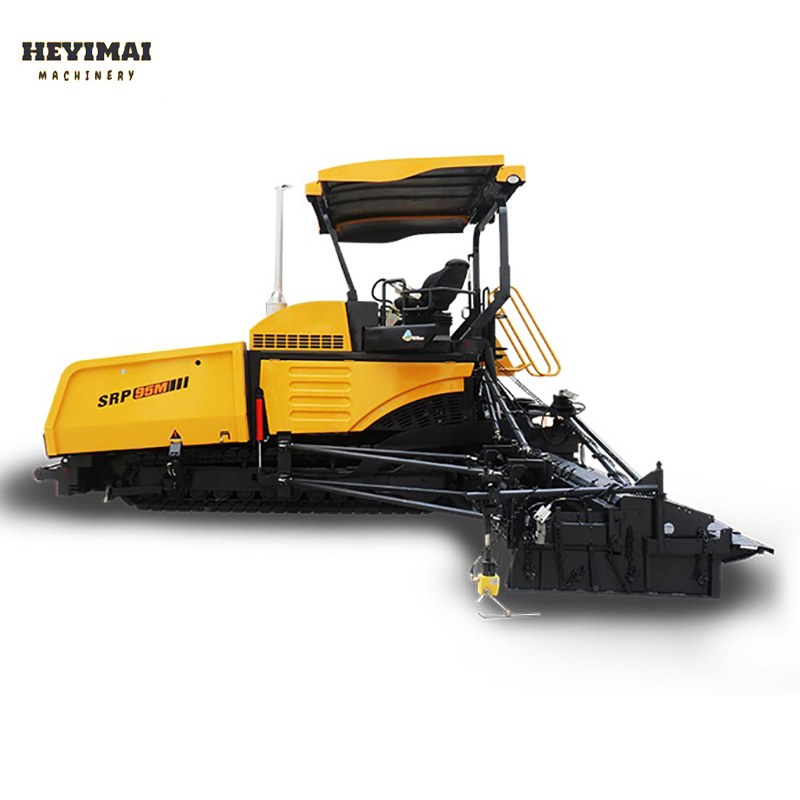

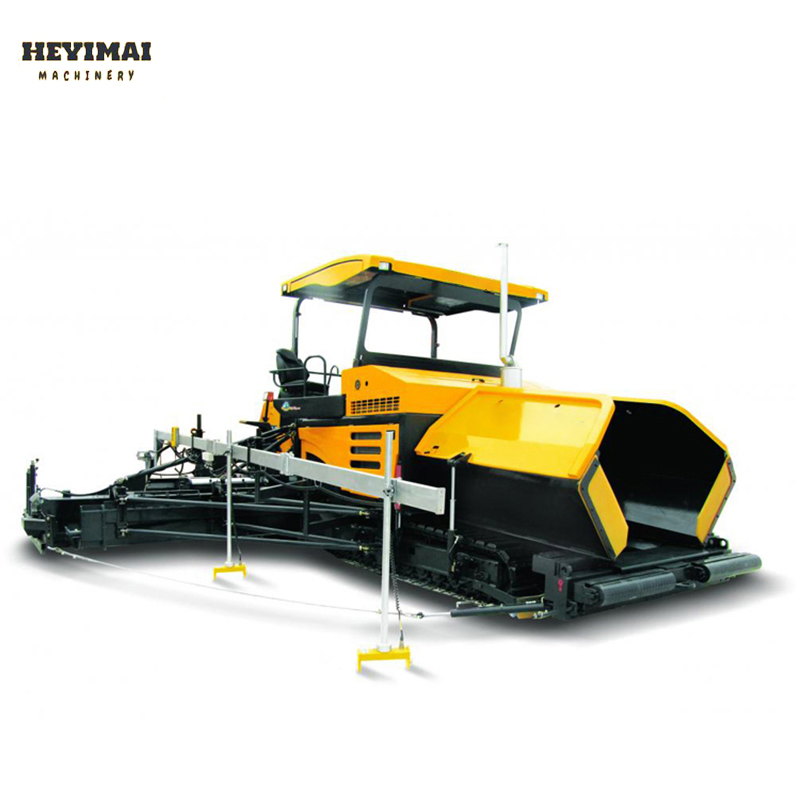

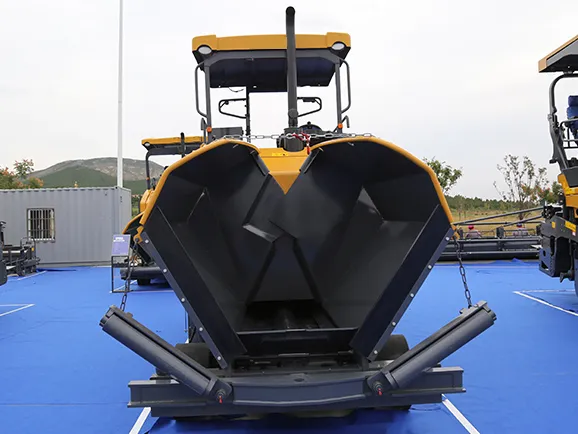

Small 4m Asphalt Concrete Paver RP405 Paving Machine

✔ The machine is miniaturized, with a width of 2m and a length of 5.8m, which satisfies the construction work of urban communities and roadways. With the width limiting device, the minimum paving width is 0.8m, suitable for paving and maintenance of milling "grooves".

✔ It adopts full hydraulic independent drive and crawler type walking device for strong traction. Equipped with 260mm width split crawler shoes, it provides a large grounding area and high adhesion to adapt to different truck specifications.

✔ The hydraulic system utilizes load-sensitive control technology to distribute power output based on functional load, ensuring efficient, energy-saving, stable, and reliable operation.

📊

Technical Parameters

Item	Unit	Specifications (RP405)
Basic Pave Width	m	1.8~3.4
Maximum Pave Width	m	4.5
Maximum Layer Thickness	mm	260
Maximum Paving Speed	m/min	30
Maximum Travel Speed	km/h	3.6
Hopper Capacity	t	12
Maximum Laydown Rate	t/h	300
Engine Model	-	BF4M2012
Rated Power	kW/rpm	75/2000
Shipping Dimension (LxWxH)	mm	558118003152
Shipping Weight	t	11.5

📷

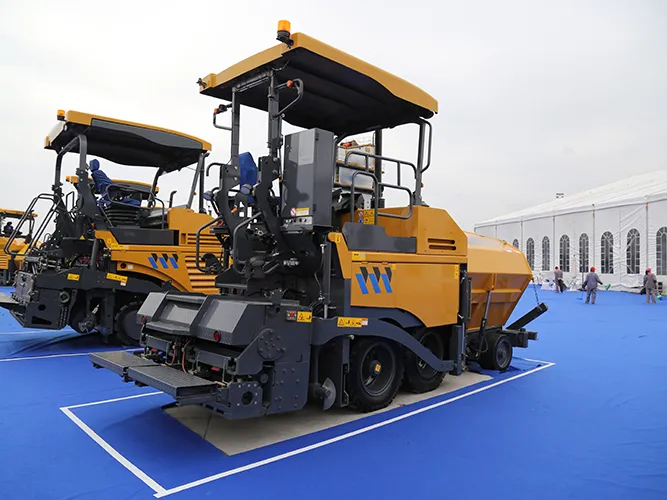

Product Gallery

📜

Certifications & Shipping

🛠️

Professional After-Sales Service

Frequently Asked Questions

How does your pricing compare with manufacturers?

We work as leading dealers for various top China construction machinery factories and are consistently provided with the best dealership rates. Feedback shows our prices are often more competitive than buying directly from manufacturers.

What is the expected delivery time?

For regular machines, we can often arrange immediate delivery within 7 days using our extensive local and national stock resources. In contrast, factory production for new orders typically takes over 30 days.

How quickly do you respond to inquiries?

Our dynamic team operates 24/7. Most inquiries are resolved within 8 hours, providing a much faster response time than standard factory service departments.

How long remains your price valid?

Our prices generally remain stable throughout the year. Adjustments only occur if the USD:RMB exchange rate varies significantly or if factories increase costs due to labor and raw material price hikes.

What logistics methods do you offer for shipment?

80% of shipments go by sea (Container, RoRo, or Bulk) to all continents. For neighboring inland countries, we offer road or railway transport. Urgent light spare parts are handled via international couriers like DHL, TNT, UPS, or FedEx.
