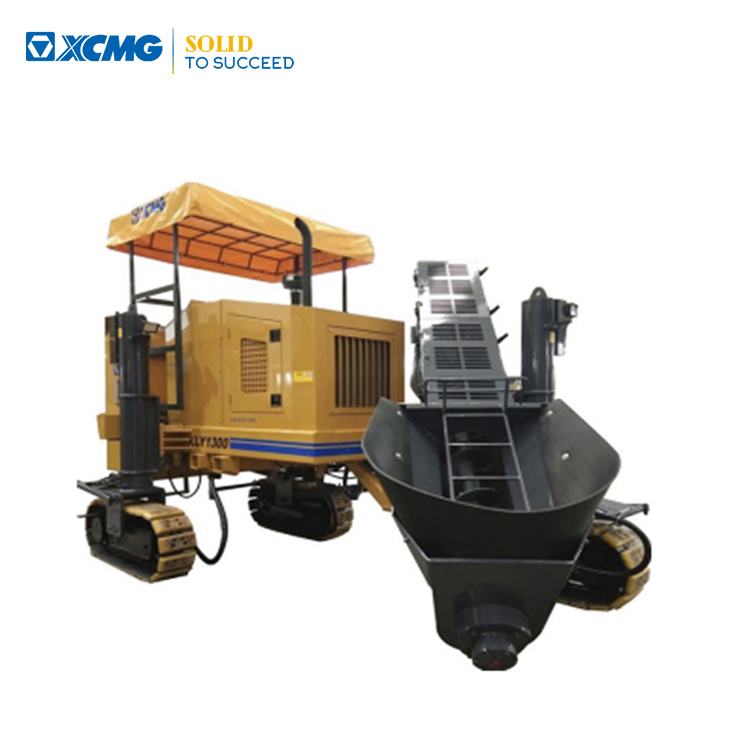

XCMG Manufacturer Xgnc600 Small Concrete Versatile Slipform Paver

Customization: Available
After-sales Service: Overseas Service Center Available
Warranty: 1 Year

Product Description

● Basic Information
Model NO.XGNC600
TypePaver
ObjectCement Concrete Pavement
Moving TypeMobile
Automatic GradeAutomatic
CertificationISO9001: 2000, CE
ConditionNew
Maximum Side Paving Height600mm
Maximum Paving Width600mm
Specification4200x2500x2100mm
OriginChina
Production Capacity10000 Units/Year
● Product Description

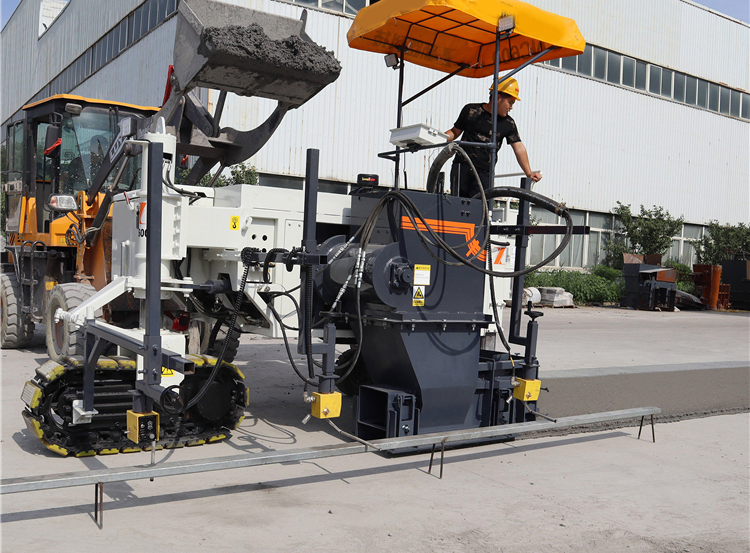

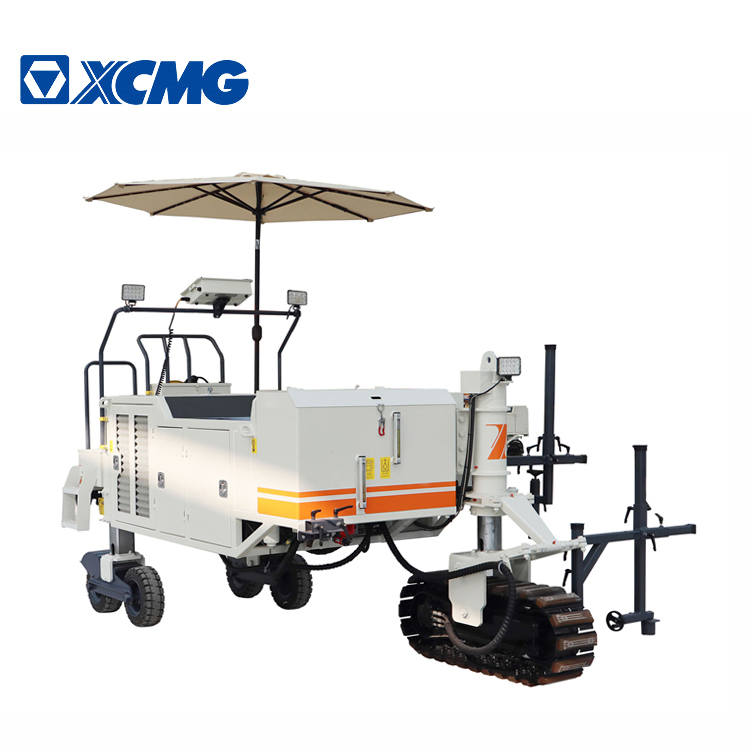

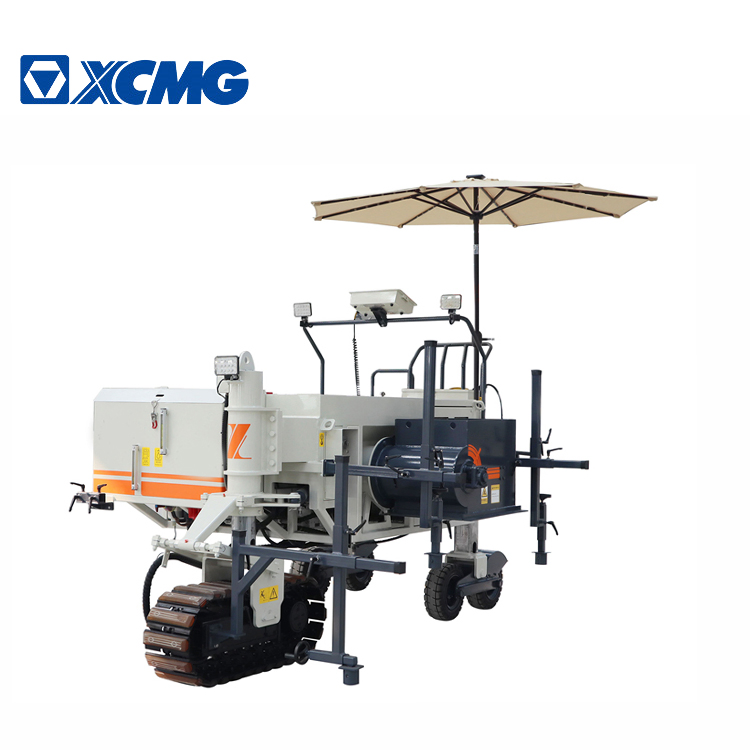

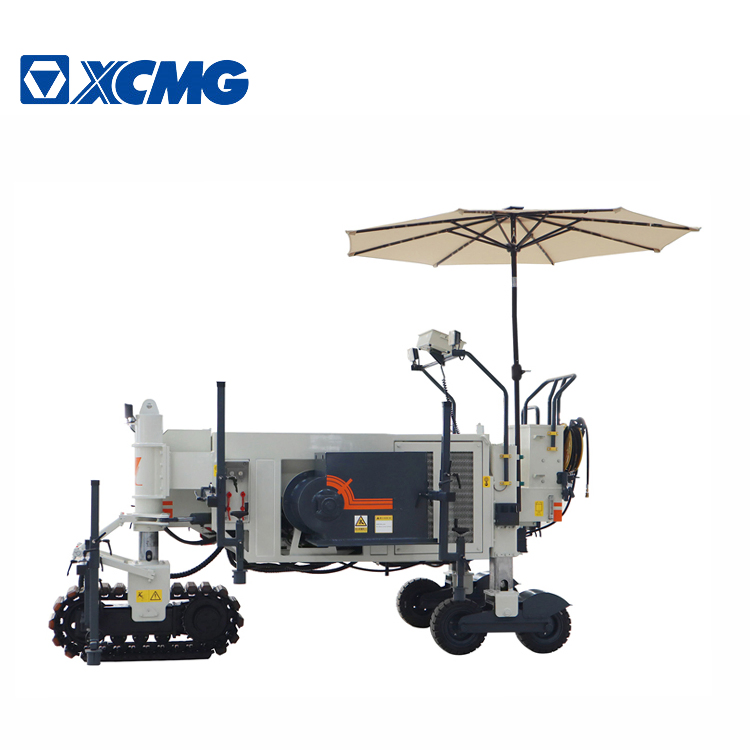

Small Concrete Versatile Slipform Paver

XGNC600 multifunctional slipform paver is a multi-purpose cement concrete construction equipment. It can be used for multiple purposes, and can realize multiple mold configurations. It is widely used in the field of cement concrete structures such as small road drains, gutters, kerbs, shoulder stones, etc., replacing the traditional technology and significantly improving the construction quality and speed of cement concrete structures.

Front crawler walking, hydraulic drive, proportional control two-speed motor and large speed ratio planetary gear reducer ensure paving stability and improve slipform paving quality; The steering ratio of the front track is controlled, and the steering is accurate.

The engine power is strong; The hydraulic system adopts load-sensitive variable control, and supplies oil according to the actual load size and speed, with low oil consumption, energy saving and environmental protection. The humanized design of the operation console, the man-machine interactive control screen and the clear graphical identification symbols make the paver easy to operate.

● Product Parameters
ItemXGNC600
Maximum side paving height600mm
Maximum paving width600mm
Paving speed0~15m/min
Travel speed0~20m/min
Engine modelYCF3050-T302 (Yuchai)
Rated power/speed36.8kW/2400r/min
Diesel tank capacity100L
Track width300mm
Track length1340mm
Climbing capacity≥ 15%
Minimum turning radius3500mm
Outrigger hydraulic lifting stroke430mm
Twister speed0~65r/min
Size of auger feeding device1600mm long, 300mm diameter
Hydraulic vibrator interface2
Vibrating rod frequency0~200Hz
Water tank capacity158L
Transport dimension (L×W×H)4200×2500×2100mm
Operating Weight3200Kg
● Product Display

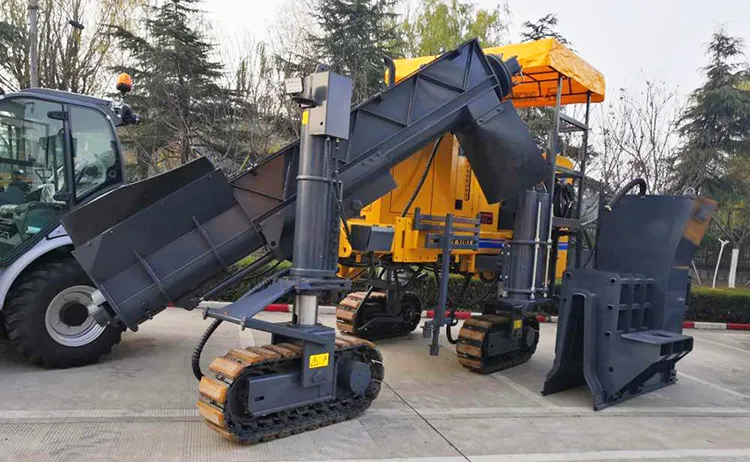

Paver Details 1

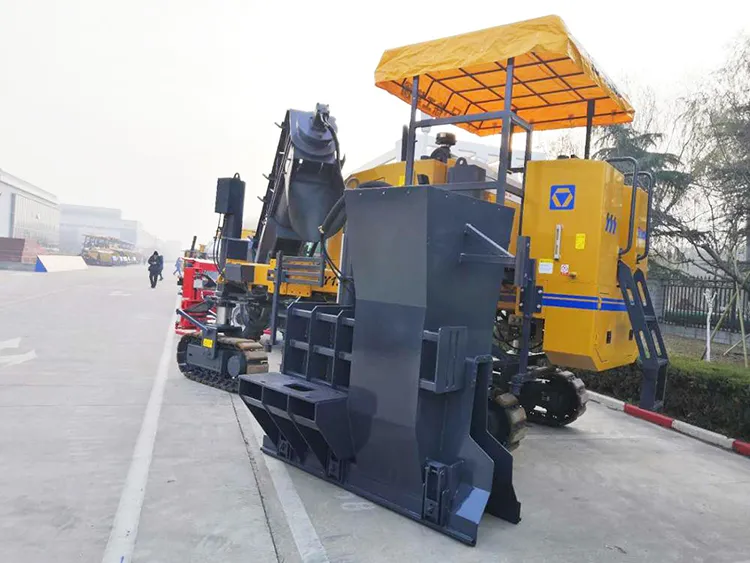

Paver Details 2
Paver Details 3

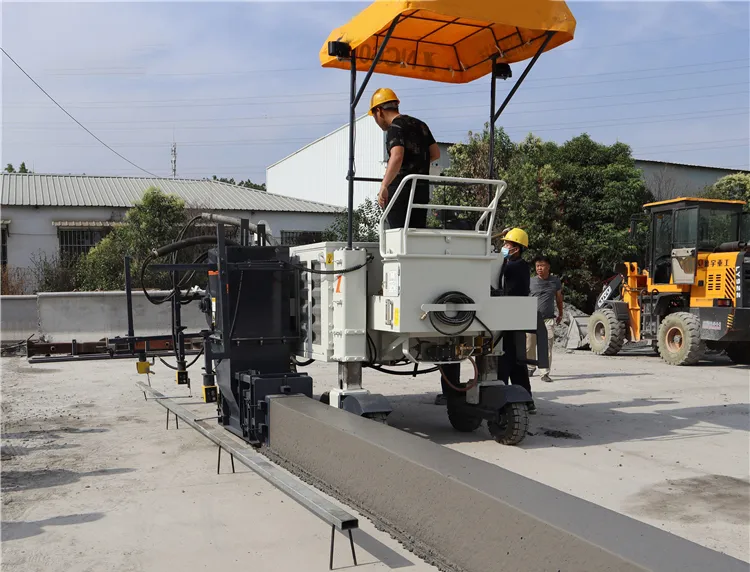

Paver Details 4
● Professional Manufacturing
Factory View 1
Factory View 2
Factory View 3
● Frequently Asked Questions
1. What kind terms of payment can be accepted? For terms of payment, L/C, T/T, D/A, D/P, Western Union could be accepted.
2. What certificates are available for this machinery? For the certificate, we have CE, ISO, Gost, EPA(USA) and CCC.
3. What about the delivery time? Typically 7-30 days after receiving the deposit.
4. What about the warranty time? 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity (MOQ)? The MOQ is 1 pcs.
6. Can it be used for different road structures? Yes, it is widely used for cement concrete structures such as small road drains, gutters, kerbs, and shoulder stones.
