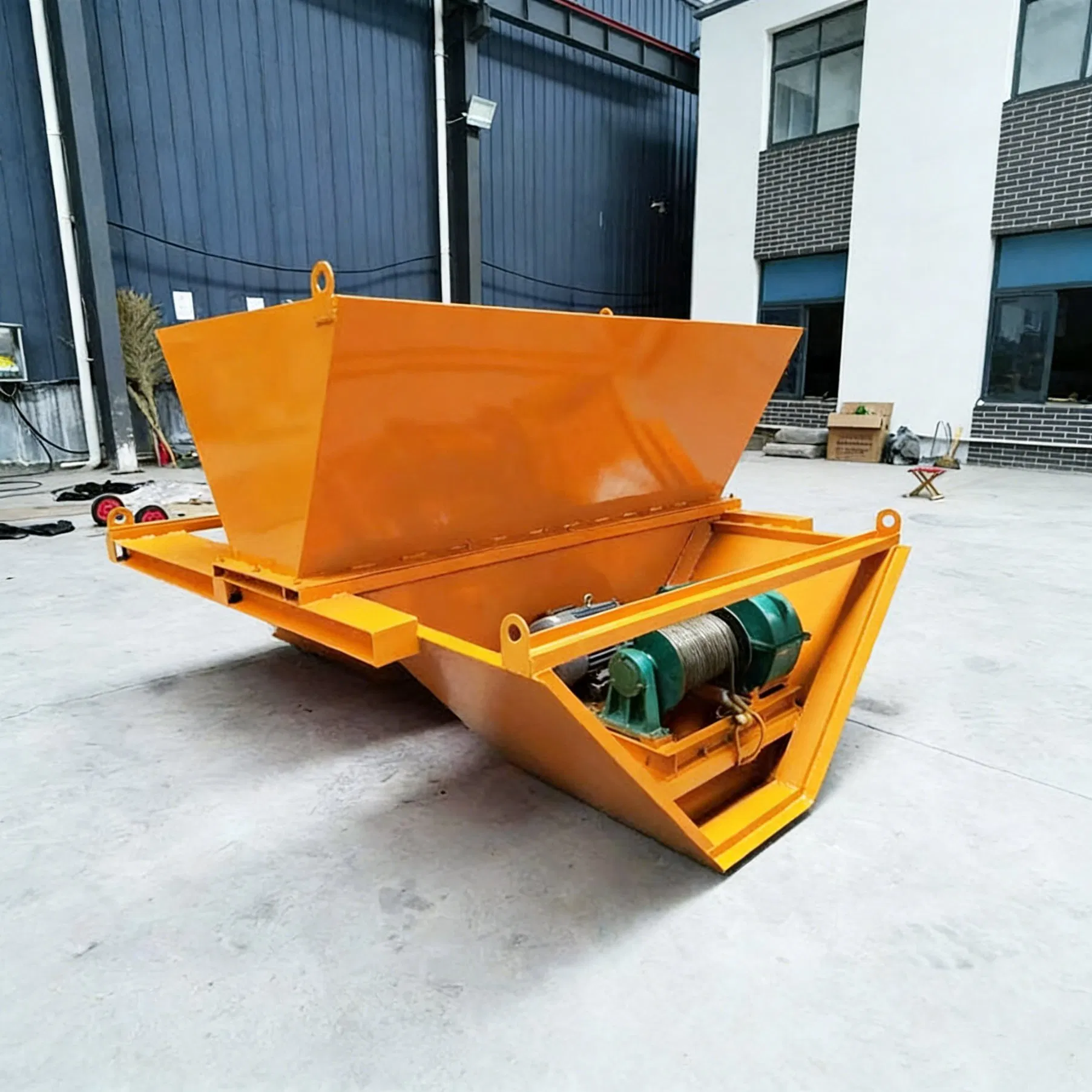

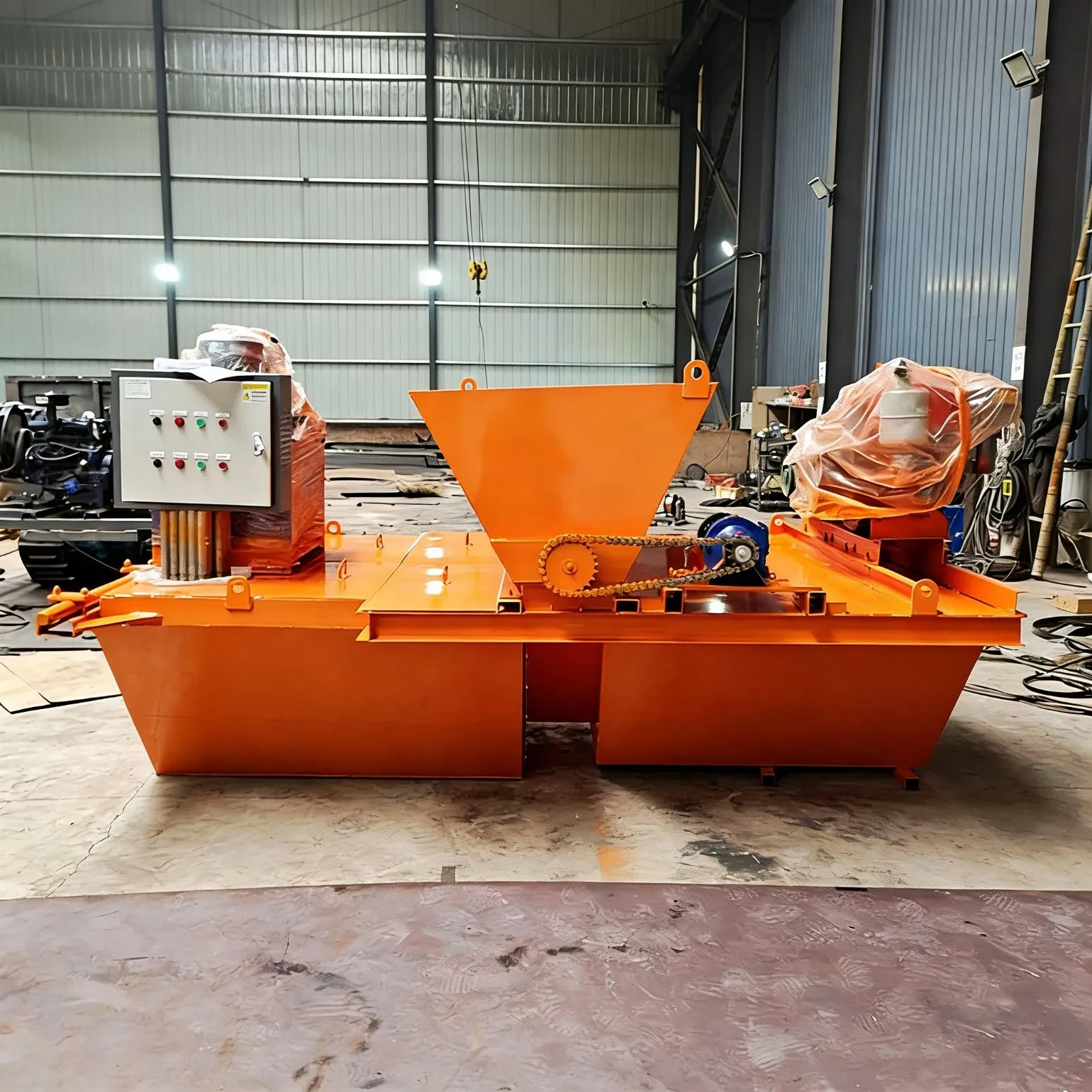

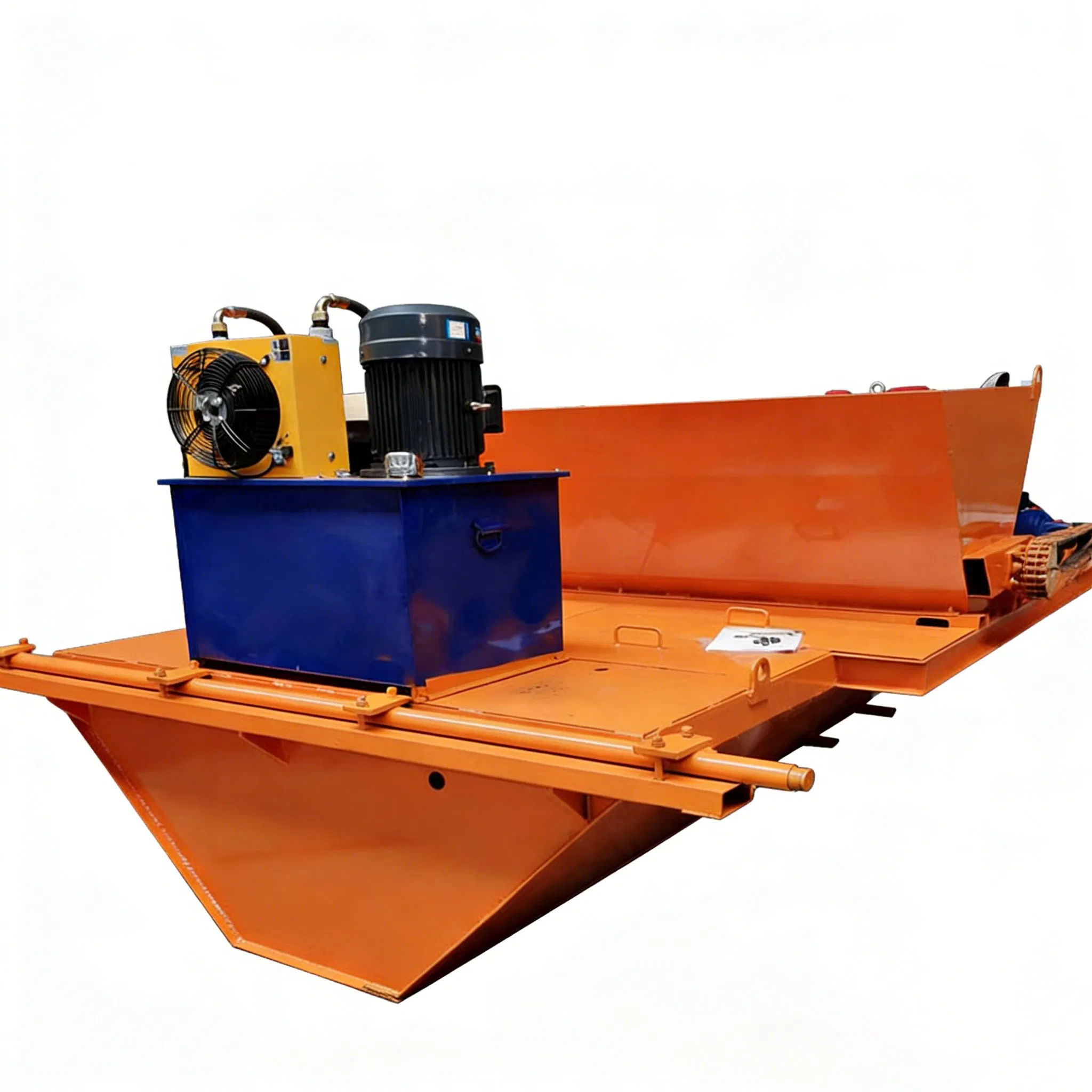

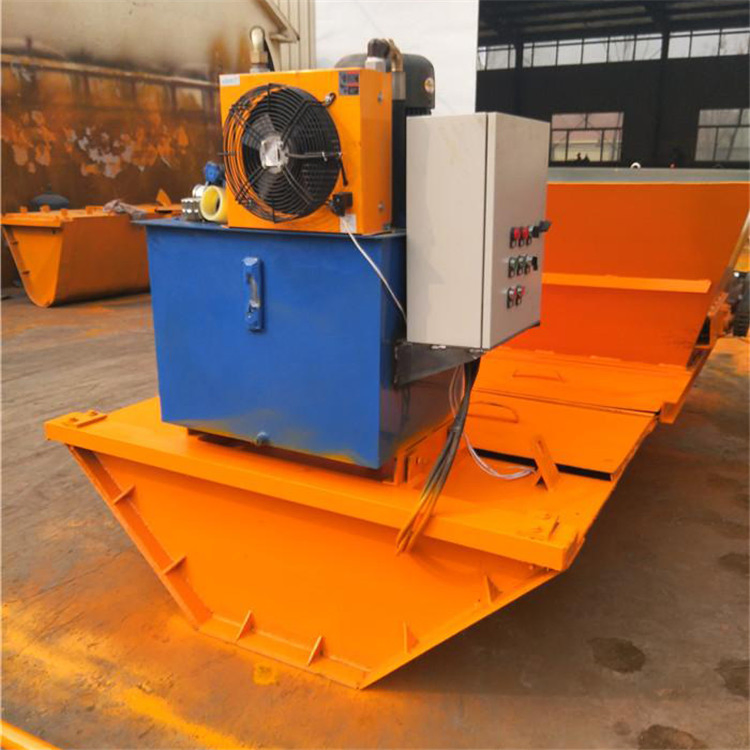

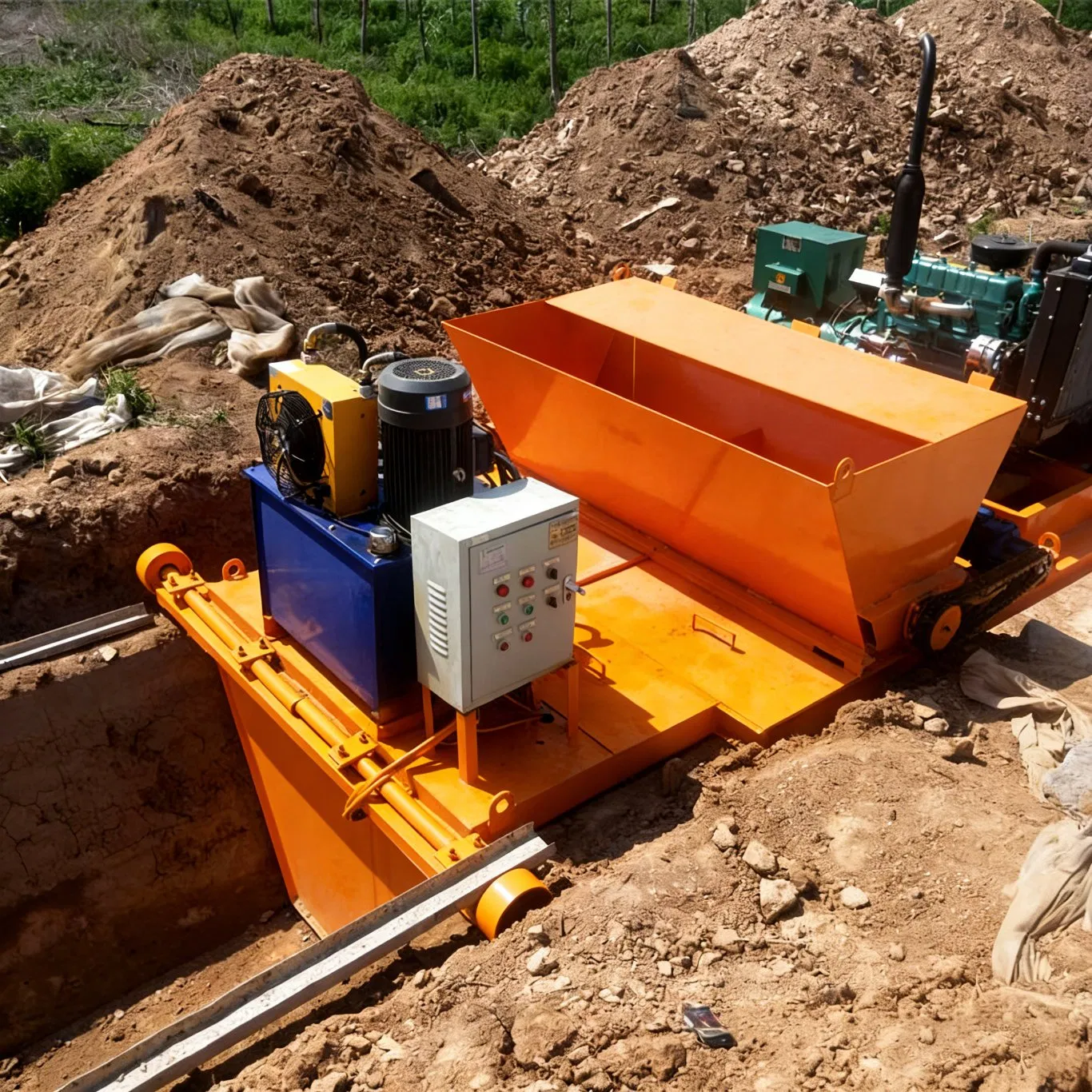

The canal forming machine is a specialized construction equipment used in hydraulic, road, and other engineering projects. It enables the one-time continuous cast-in-place forming of concrete canals (such as U-shaped, trapezoidal, rectangular, etc.), featuring significant advantages including high mechanization, high construction efficiency, and excellent forming quality.
Uses a hydraulic or mechanical propulsion system to feed concrete into a specific shaped forming mold, utilizing high-frequency vibrators for compaction. The equipment advances along a preset track for continuous, one-time forming.
Construction of high standard farmland, irrigation canals, and drainage ditches.
Slope drainage ditches and side ditch lining for highways, railways, and national roads.
Urban drainage network, river management, and drainage facilities for photovoltaic bases.
Front Elevation
Left Elevation

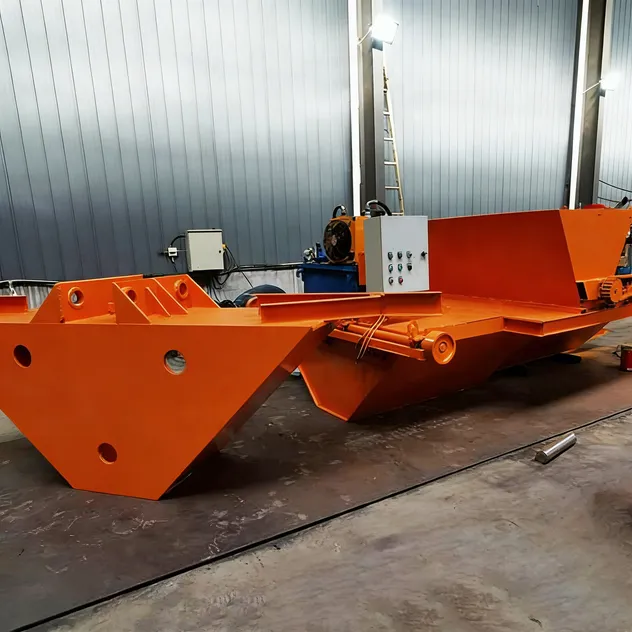

Right Elevation
(Custom configurations available upon request)
| Model | U-shaped | Ladder type | Self-defined type |
|---|---|---|---|
| Operating Weight (kg) | 20,000 | 30,500 | 45,000 |
| Engine Power (kW) | 24 | 15 | 30 |
| Work Ability (m/h) | 40-50 | 40-50 | 40-50 |
| Length (m) | 3.5 | 3.4 | 3.7 |
| Labor Required | 2 | 2 | 2 |
| Width (m) | Customize | Customize | Customize |
