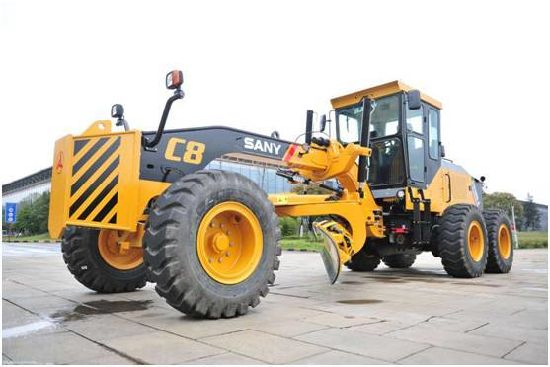

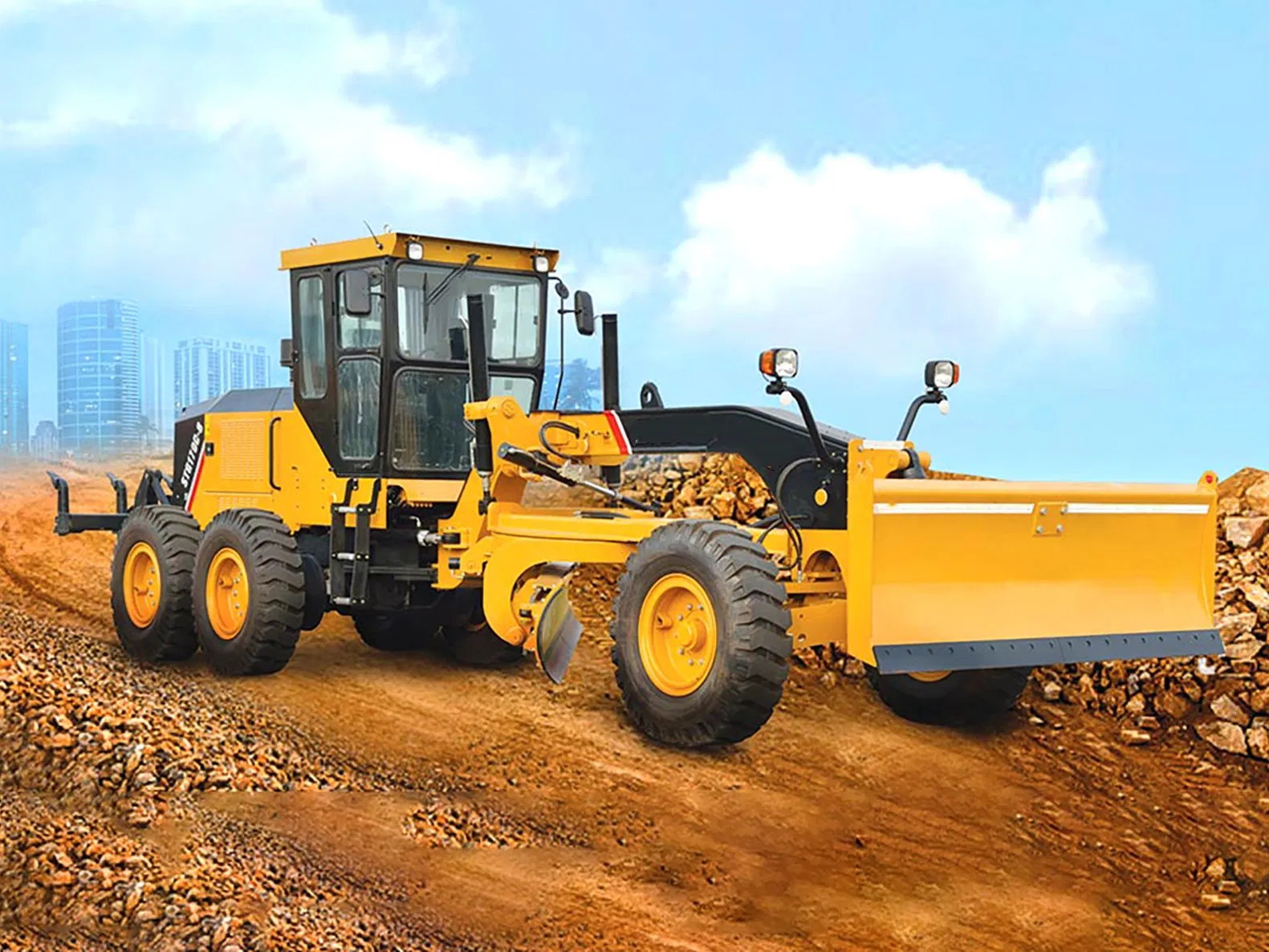

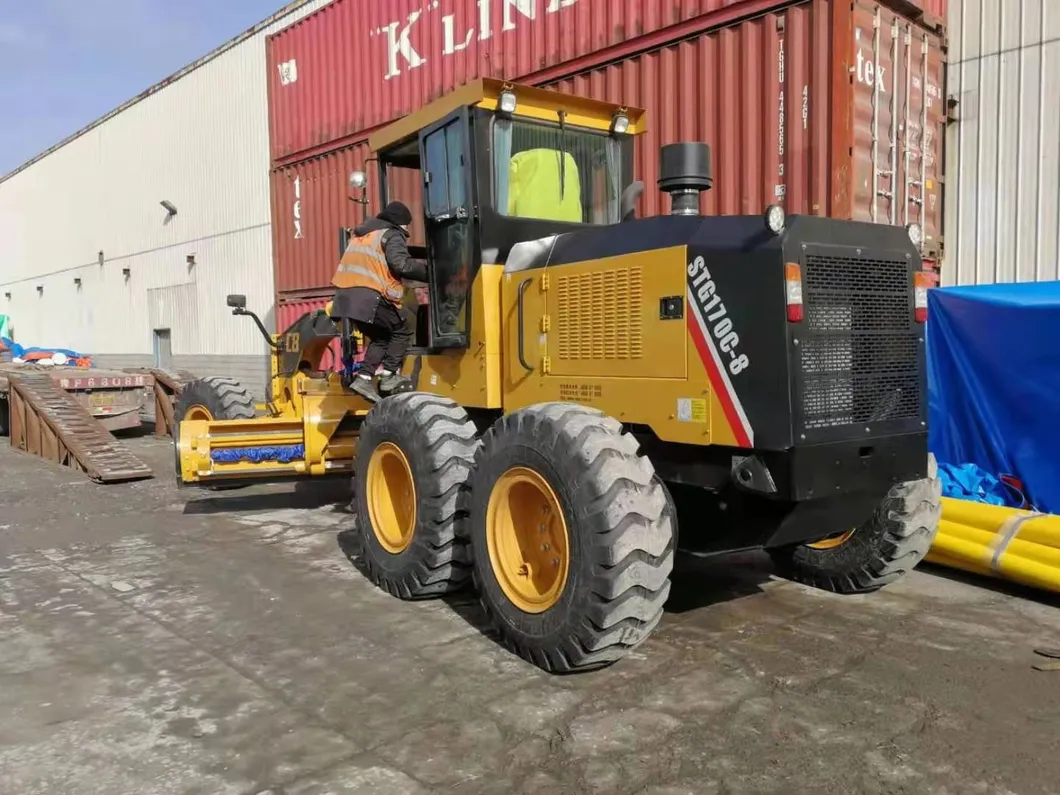

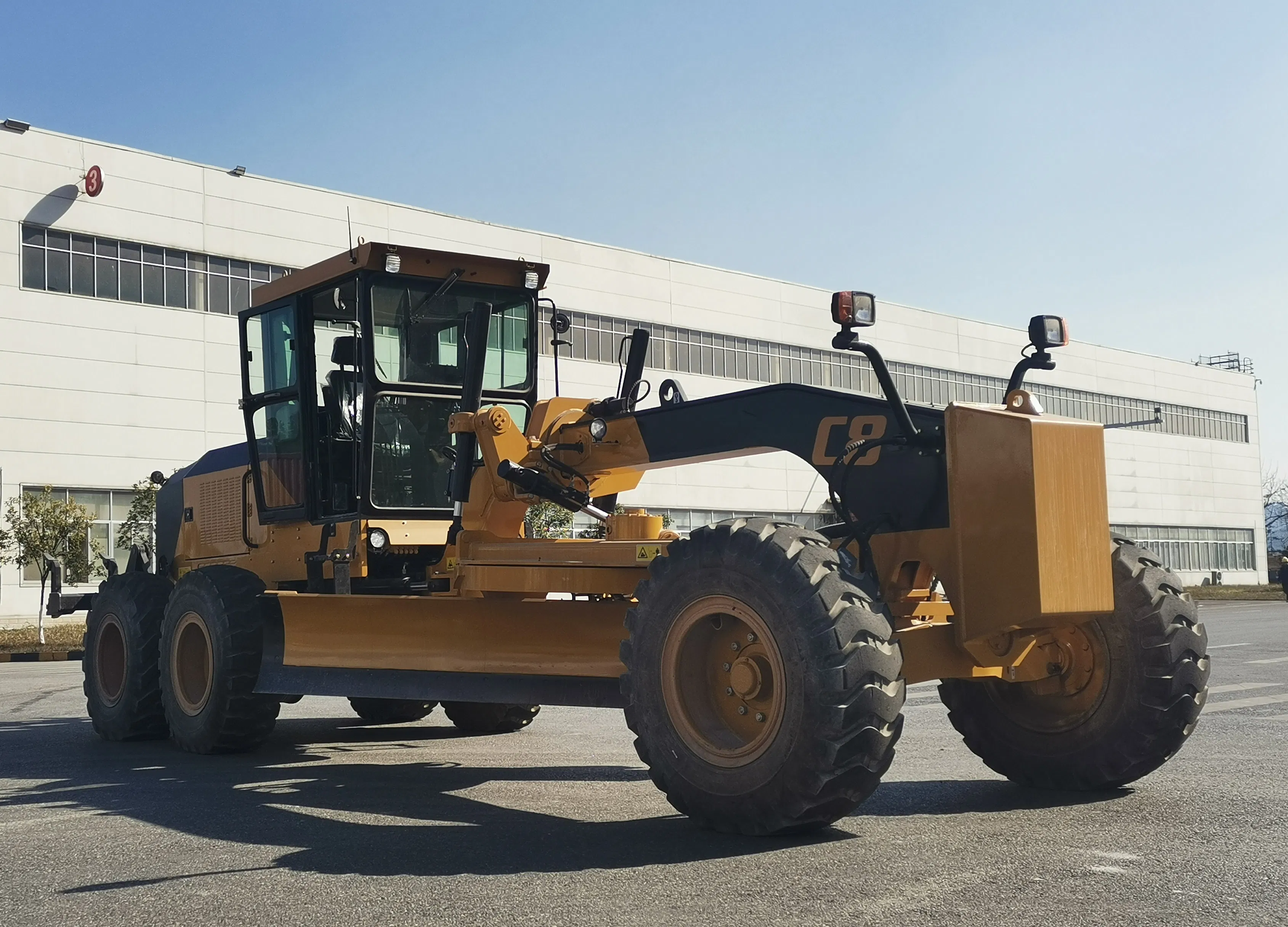

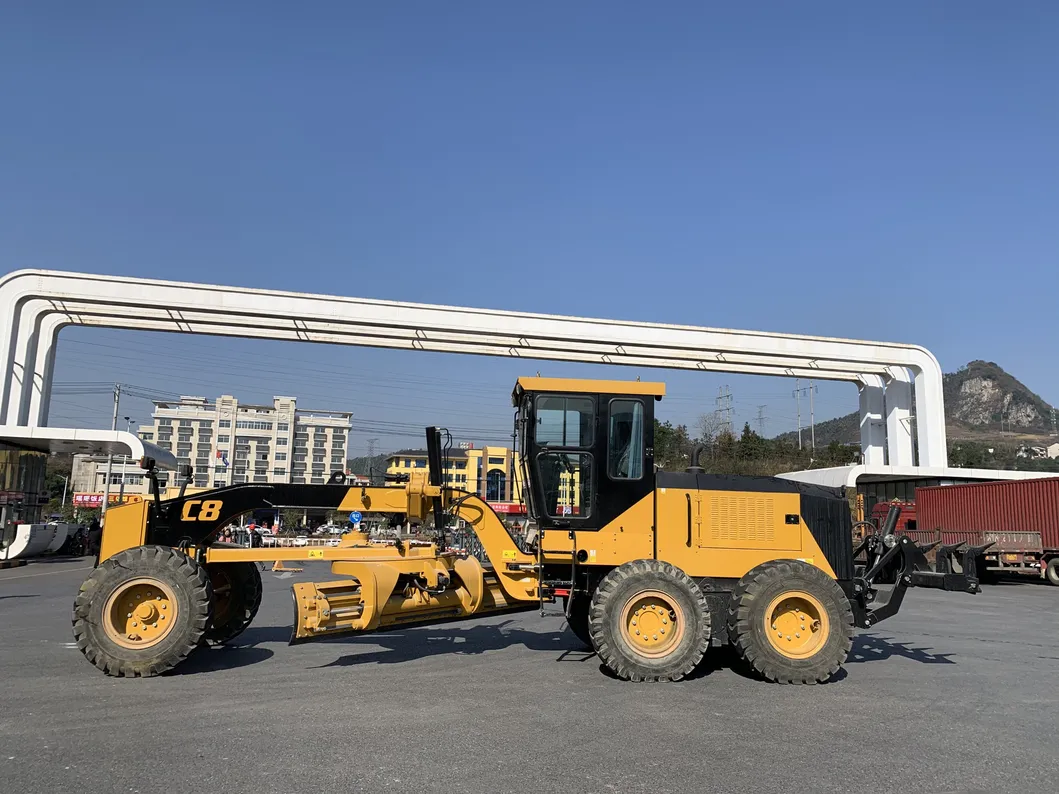

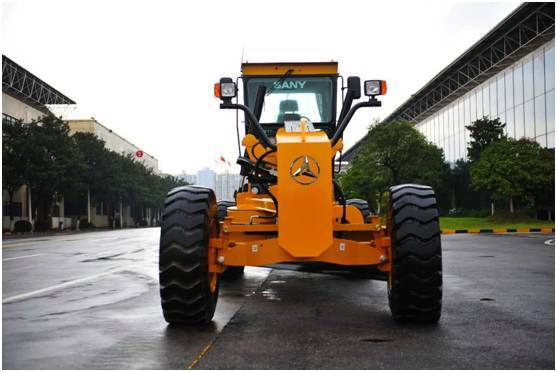

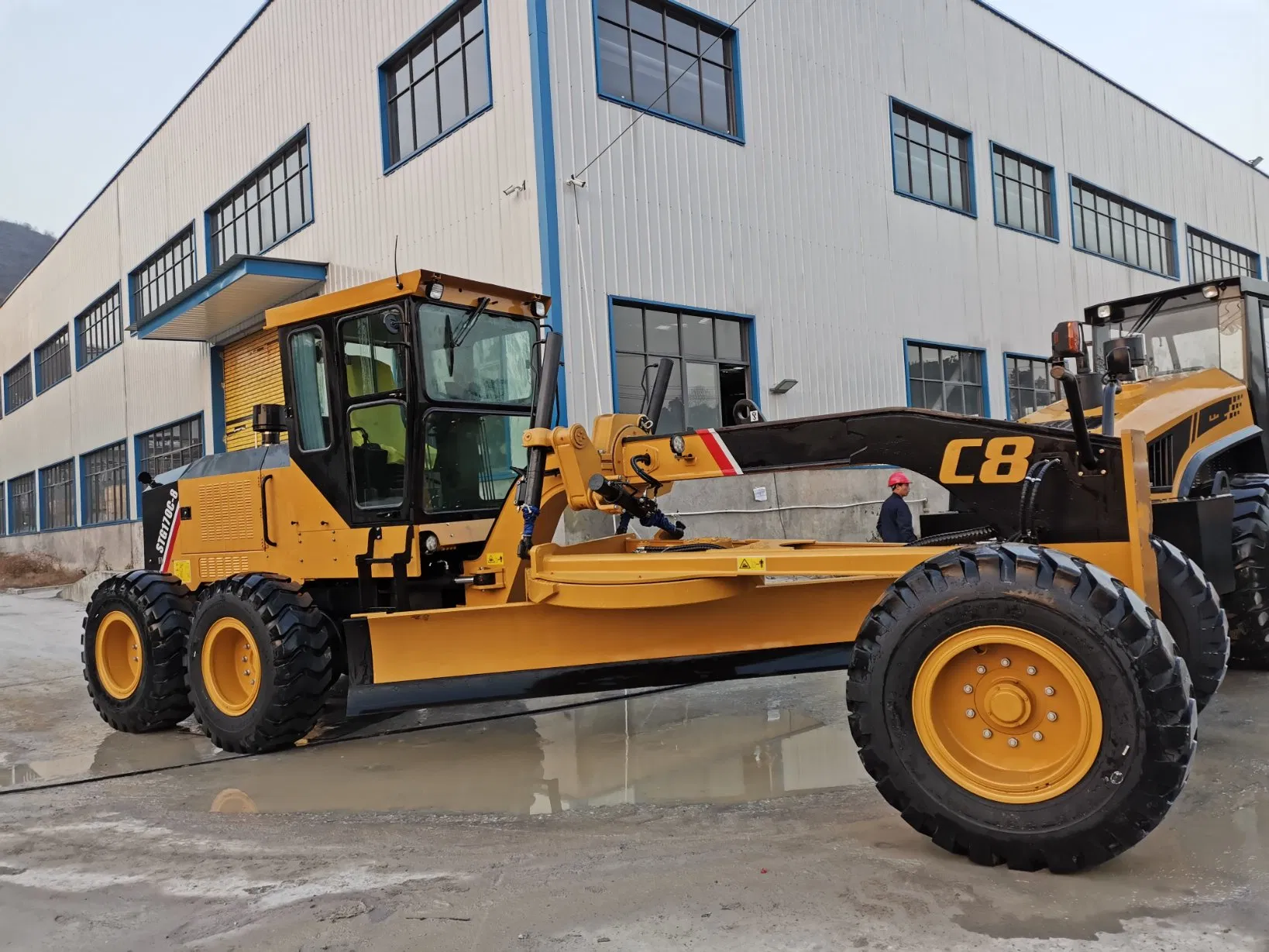

This motor grader is designed for professional road construction and drainage ditch operations. We provide high-quality construction machinery capable of meeting diverse tonnage and purpose requirements.
Mine special heavy duty engine, traction is greater than 10% of similar products; Four-link big tool holder, higher mine operation stability, 515mm lifting height, 5m working width. Mining machine design standards, heavy parts life >10000h, structural parts life >30000h.
FOPS/ROPS hexahedron 75 dB silent cab, 25°C constant temperature driving environment. Dual circuit service brake system. Standard with reverse video, warning light, stereo air conditioning, non-slip maintenance pedal.
Closed rotary bearing turntable, not afraid of sand and stone, no need to adjust the whole life cycle, no wearing parts, reliable and worry. The third generation of maintenance-free slewing support wet brake rear axle, maintenance cycle >1000h. Intelligent cloud system, real-time monitoring of the whole machine status, fault self-diagnosis and maintenance self-prompt.
| Category | Feature | Details |
|---|---|---|
| Power System | Engine Model | WEICHAI WP6G180E330 (China III) |
| Rated Power | 132.5 kW @ 2200 rpm | |
| Peak Torque | 750 Nm | |
| Tank Capacity | Fuel: 350L / Hydraulic: 140L | |
| Dimensions & Weight | Standard Size (L×W×H) | 8775×2740×3348 mm |
| Axle Base | 6310 mm | |
| Operating Weight | 14730 kg | |
| Working Device | Blade Size | 3660mm (12ft) x 620mm |
| Turning Angle | 360° | |
| Blade Tip Range | 25°-75° |
