Orchard Chain Trencher Ditcher Tractor Cable Digging Farm Plough Double Drainage Ditching Saw Blade Ridging Road Paddy Field Pipeline Water Pipe Cable Fence

Customization:	Available
After-sales Service:	1-3 Years
Type:	Chain Trencher

Send Inquiry

Product Description

Basic Specifications

Model NO.

LKJ200 - LKJ1000 Series

Application Field

Agriculture

Max Depth

500-2200mm

Structure

Chain Ditching Machine

Power Source

Tractor

Speed

100-500m/h

Certification

Warranty

1-3 Years

Product Overview

Versatile, Easy, Affordable, Powerful, Reliable

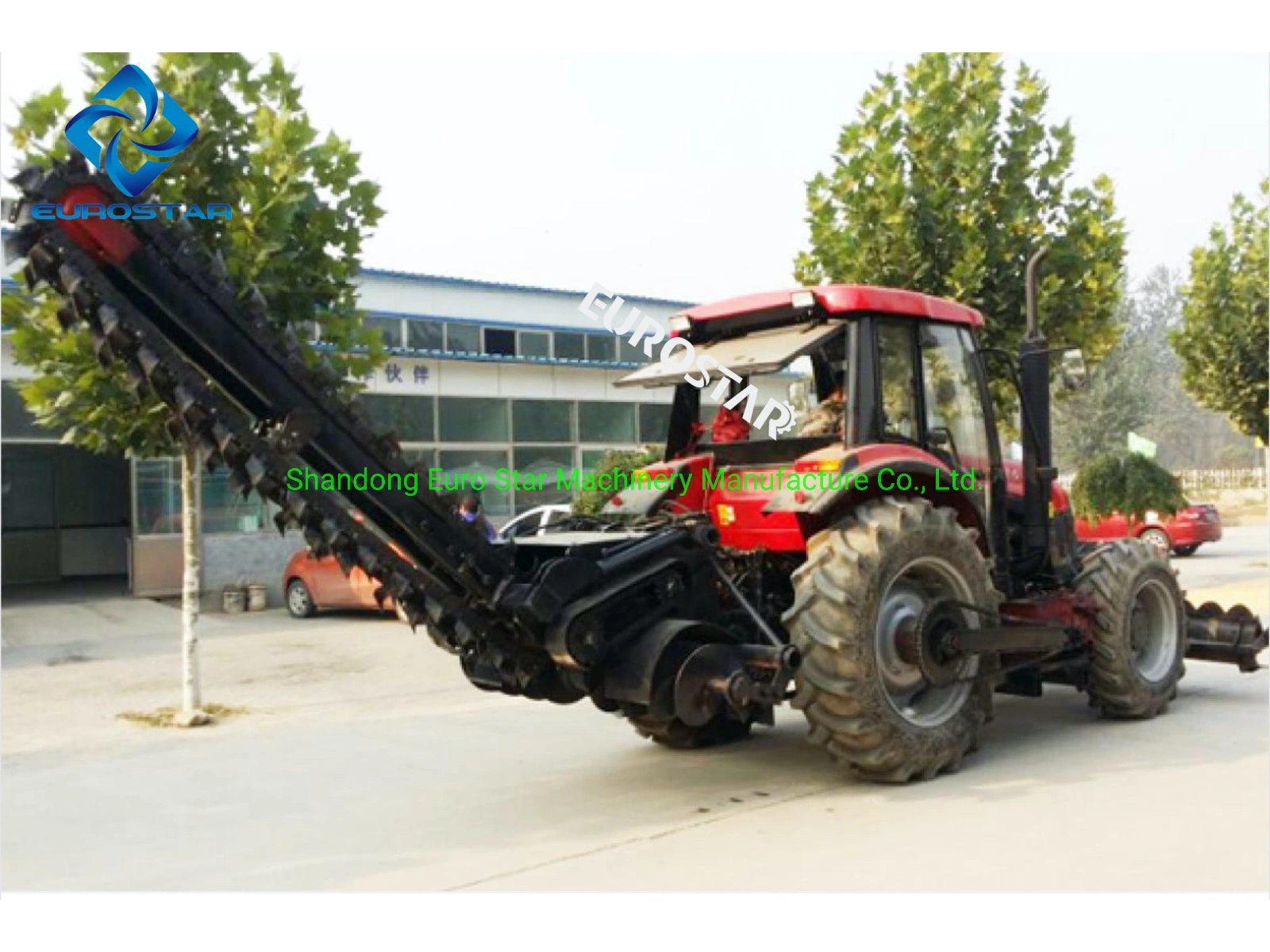

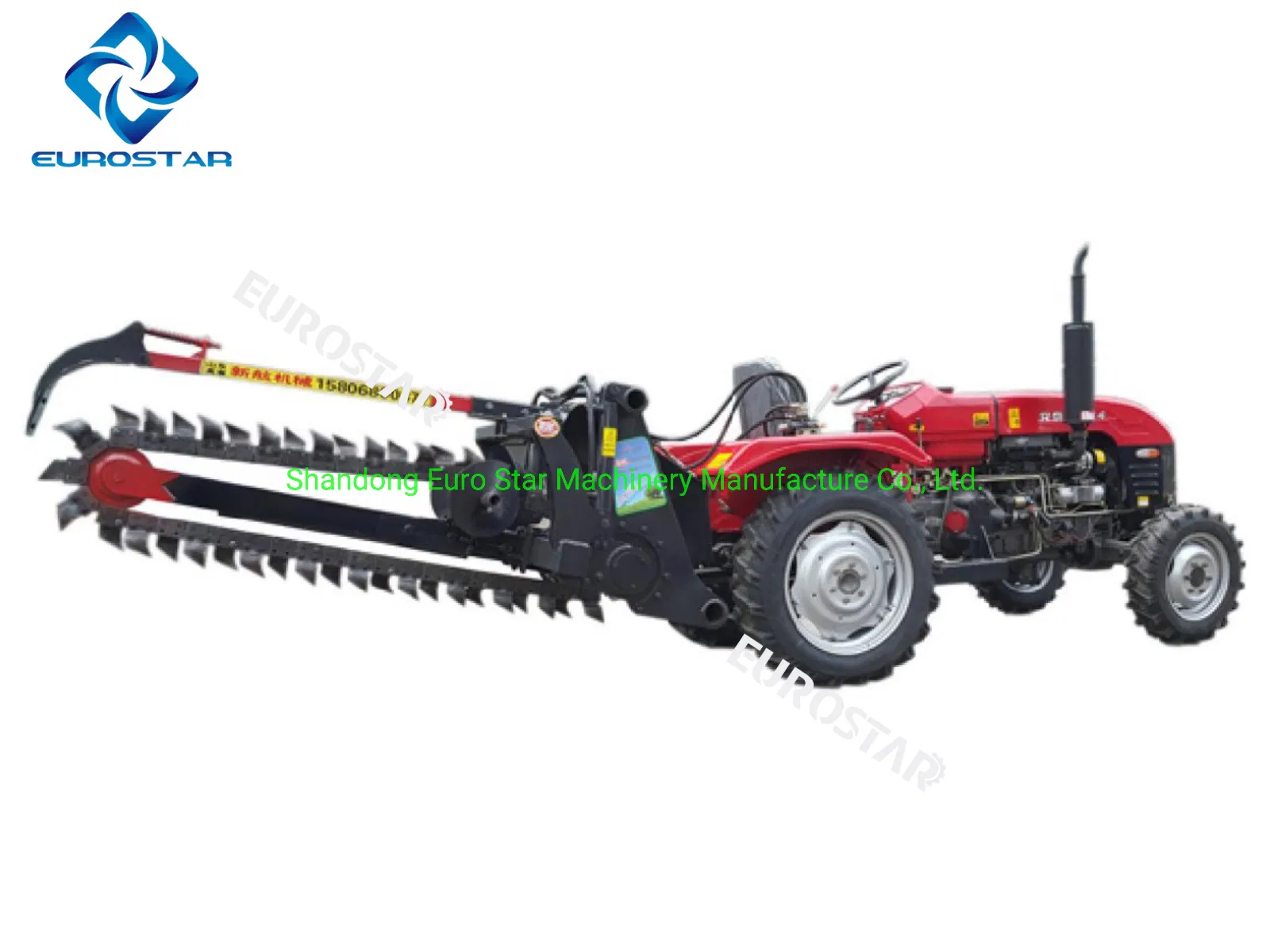

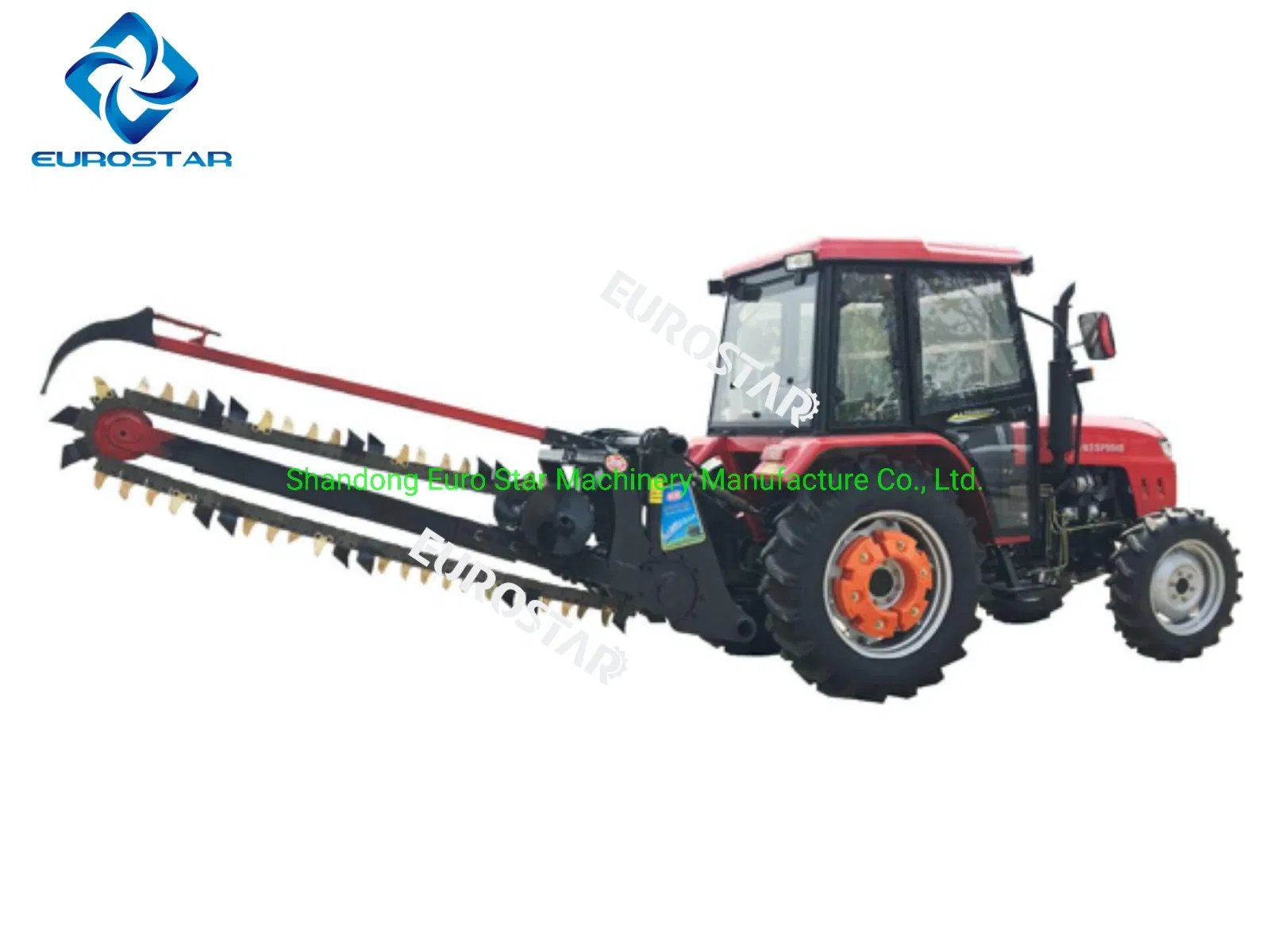

The LKJ series chain ditch digger operates flexibly and is suitable for narrow working width road surfaces. Ditching width and depth can be adjusted according to work requirements. The trench width is the narrowest 120mm, and the trench depth can reach 1500mm-2200mm, which can replace manual and excavator operations to meet different environment needs.

Key Advantages:

Economic Benefit: One ditcher equals the work of dozens of persons or several small excavators.
Precision Performance: Ditches are vertical and even, superior to manual labor.
Durability: Blades and chains adopt special materials for long service life.
High Efficiency: 3-5 times faster than an excavator for deep and narrow trenches.

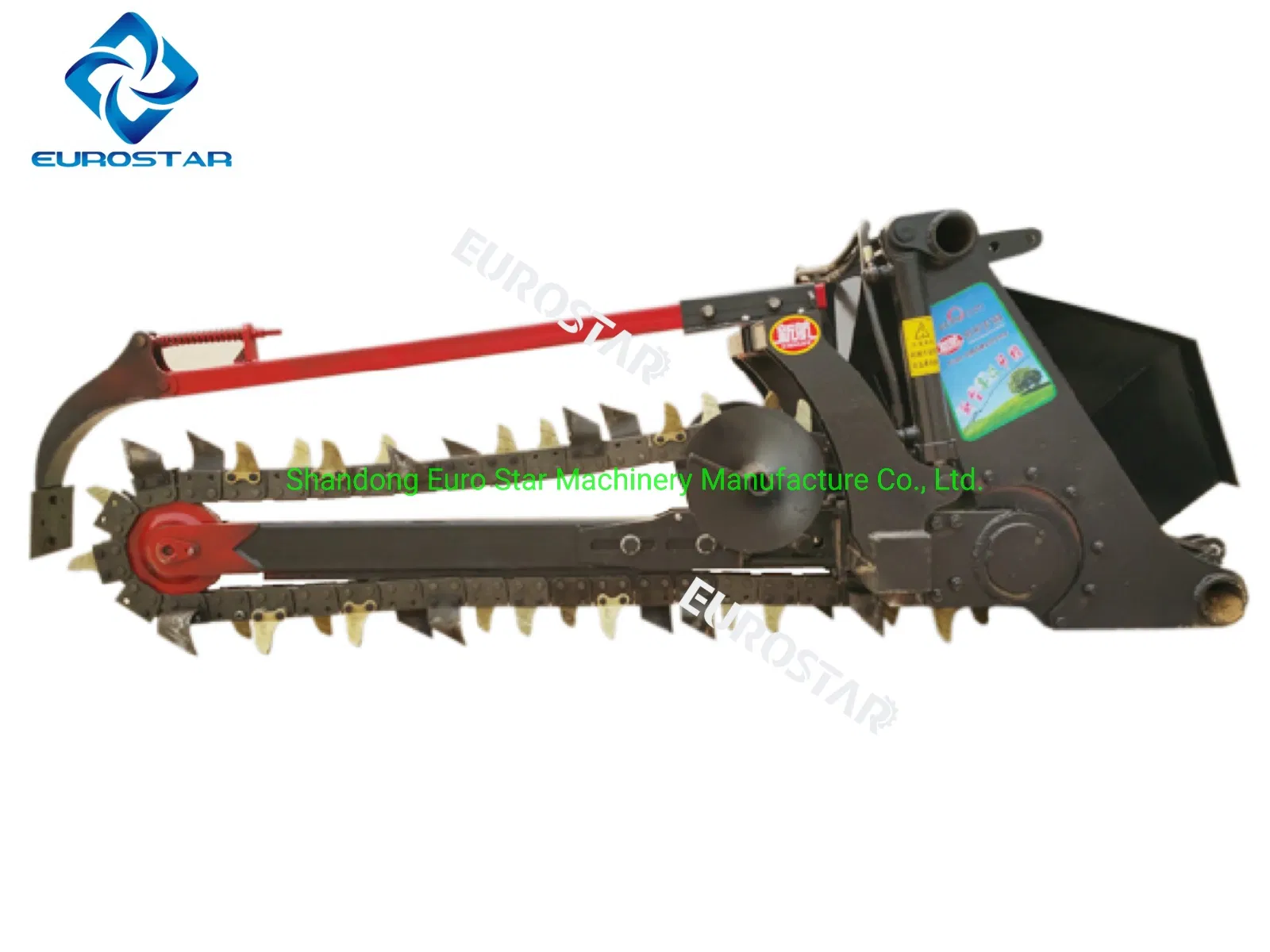

Chain Trencher Technical Parameters

Model	Power (HP)	PTO Speed (r/min)	Width (mm)	Depth (mm)	Efficiency
LKJ200	50-80HP	500-1000	≤150-200	≤1500	120-500M/h
LKJ300	50-80HP	500-1000	≤300	≤1000	120-500M/h
LKJ500	50-80HP	500-1000	≤500	≤500	120-500M/h
LKJ400K	90-110HP	500-1000	≤400	≤1200	120-500M/h
LKJ600K	90-110HP	500-1000	≤600	≤800	120-500M/h
LKJ1000KD	120-220HP	500-1000	≤1000	≤1000	120-500M/h

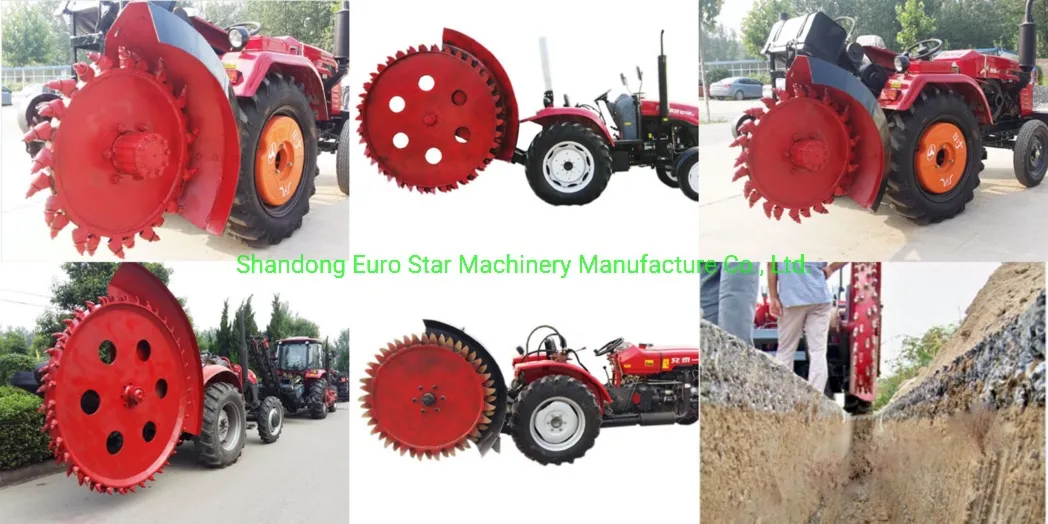

Disc Trencher Technical Parameters

Parameter	PKJ500	PKJ800	PKJ1000	PKJ1200
Supporting Power	50-90HP	50-90HP	100-220HP	100-220HP
Trenching Width (mm)	250-300	80-150	200-250	80-150
Trenching Depth (mm)	≤500	≤800	≤1000	≤1200
Land Efficiency	180-300M/h	180-300M/h	180-300M/h	180-300M/h
Cement Road Efficiency	50-100M/h	50-100M/h	50-150M/h	50-150M/h

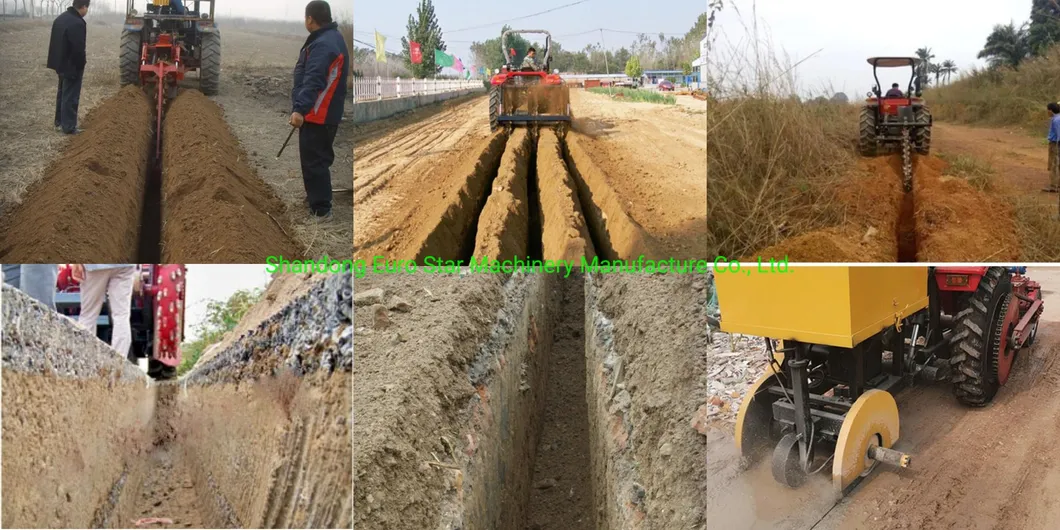

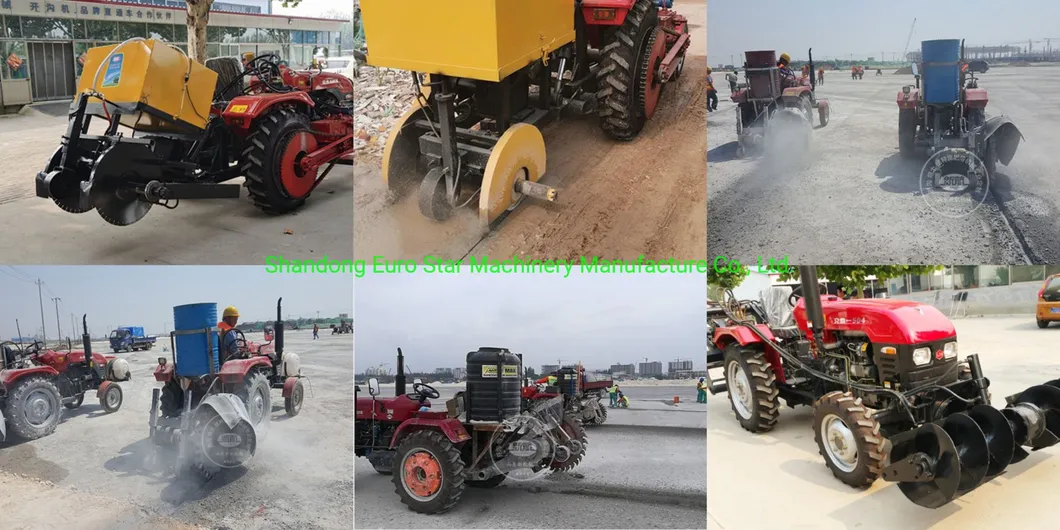

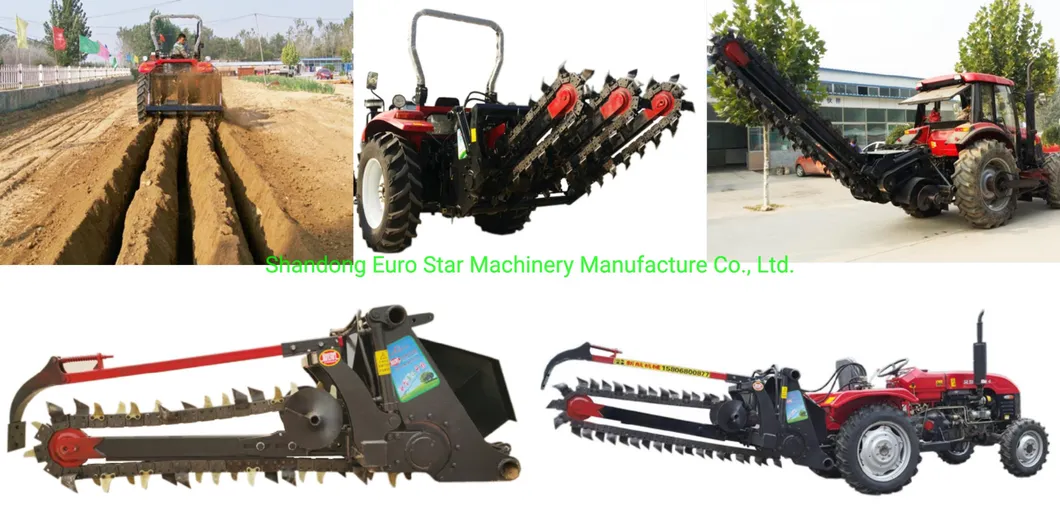

Working Effect & Equipment Display

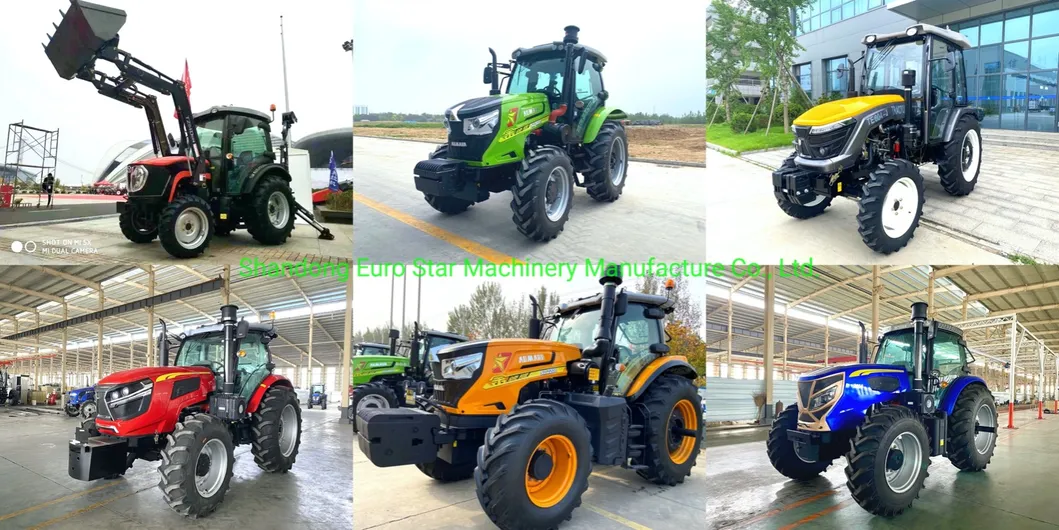

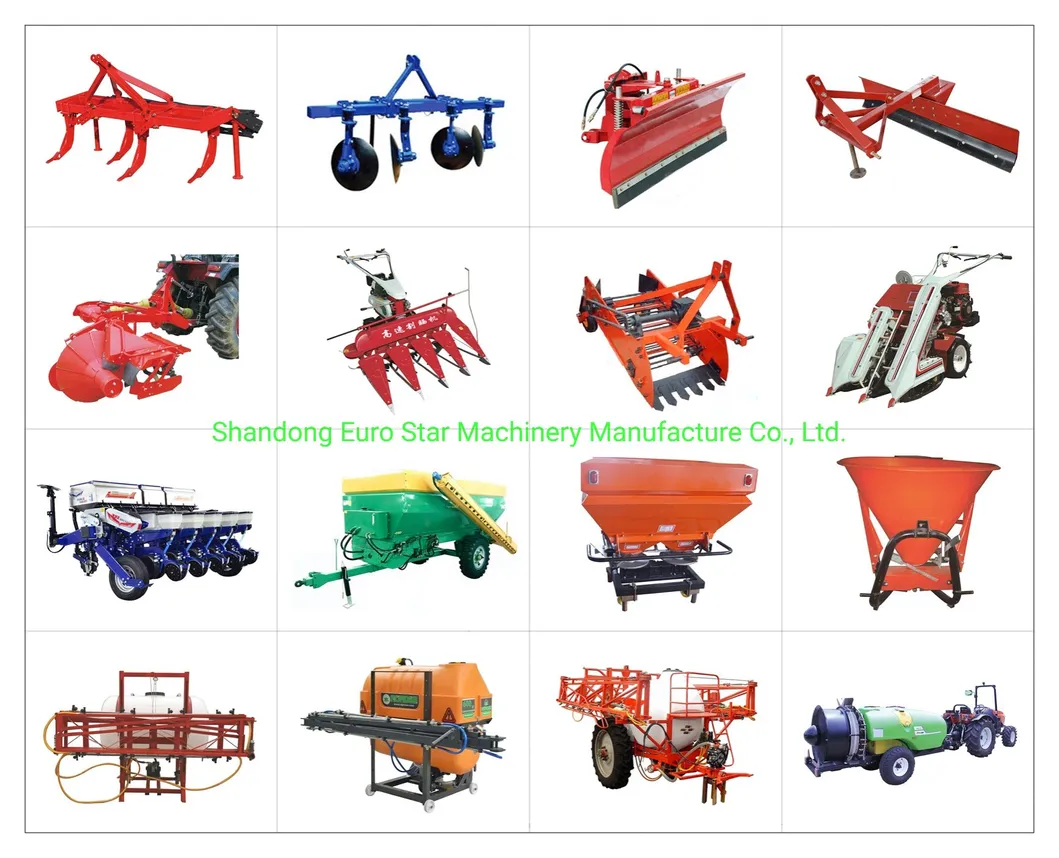

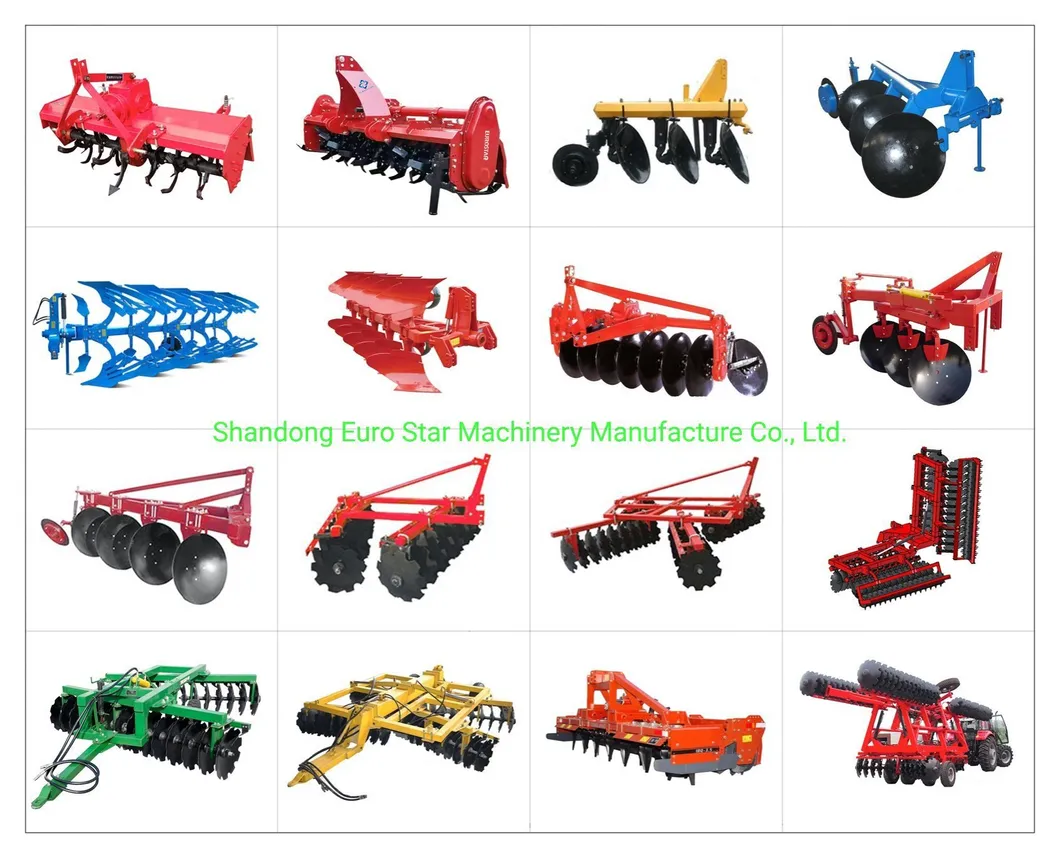

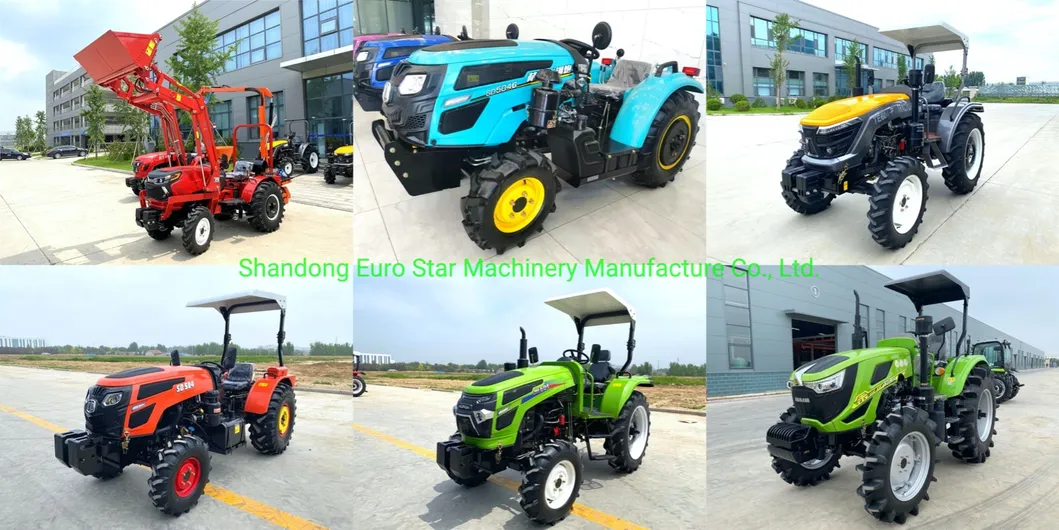

Full Machinery Range

Professional Service Support

Our international service team provides a complete guarantee system including pre-sales, on-sale, and after-sales support.

Stationary & Circuit Service: Standard and professional support.

Spare Parts: 100% original parts with bar-code tracking for accuracy.

Training: Multi-language materials, videos, and remote online training.

Technical Support: Full-process technology coverage.

Product FAQ

What is the main advantage of using a chain trencher over an excavator?

Chain trenchers are 3-5 times more efficient for digging narrow, deep ditches (for pipes or cables). They create vertical, even trenches that are much cleaner than those made by human labor or standard excavators.

Can the trench width and depth be adjusted?

Yes, the ditching width and depth can be adjusted according to specific work requirements. The narrowest width is 120mm, while the depth can reach up to 2200mm depending on the model.

What tractor power is required for the LKJ series?

The required power ranges from 50HP up to 220HP depending on the model. For instance, the LKJ200 operates well with 50-80HP, while the heavier LKJ1000KD requires 120-220HP.

Is the disc trencher suitable for hard surfaces like asphalt?

Yes, our disc trenchers are specifically designed for versatile terrain, with efficiency ratings provided for cement (50-150M/h), asphalt (120-200M/h), and brick pavement (150-230M/h).

What kind of after-sales service is provided?

We provide a comprehensive one-stop service system, including 100% original spare parts, technical training (online or factory-based), and professional technical support throughout the product lifecycle.

How long is the delivery time for orders?

Normal orders typically have a delivery lead time of approximately 20 days. Payment terms include T/T or L/C at sight.
