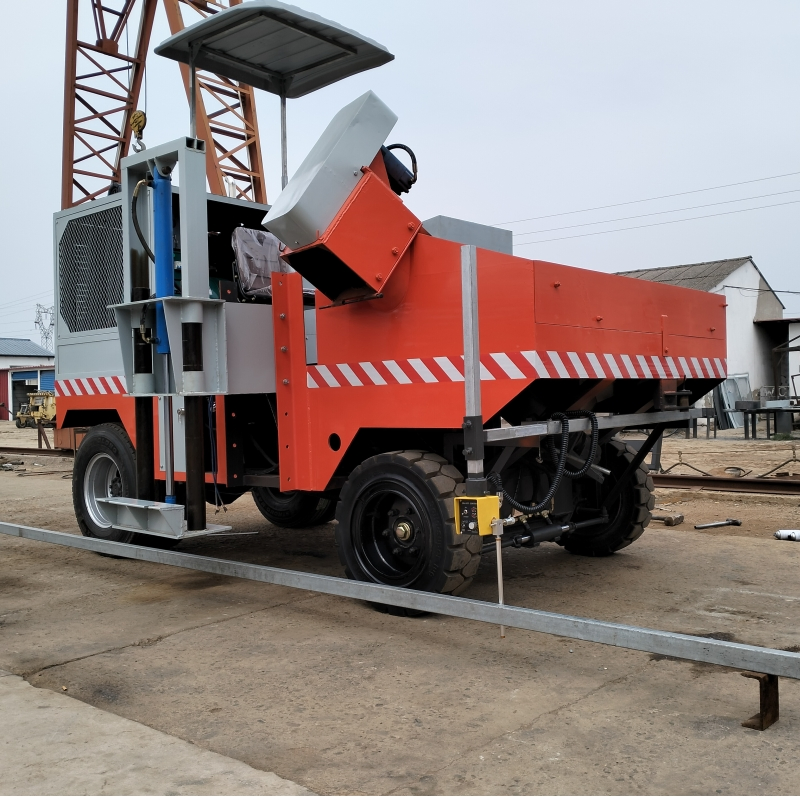

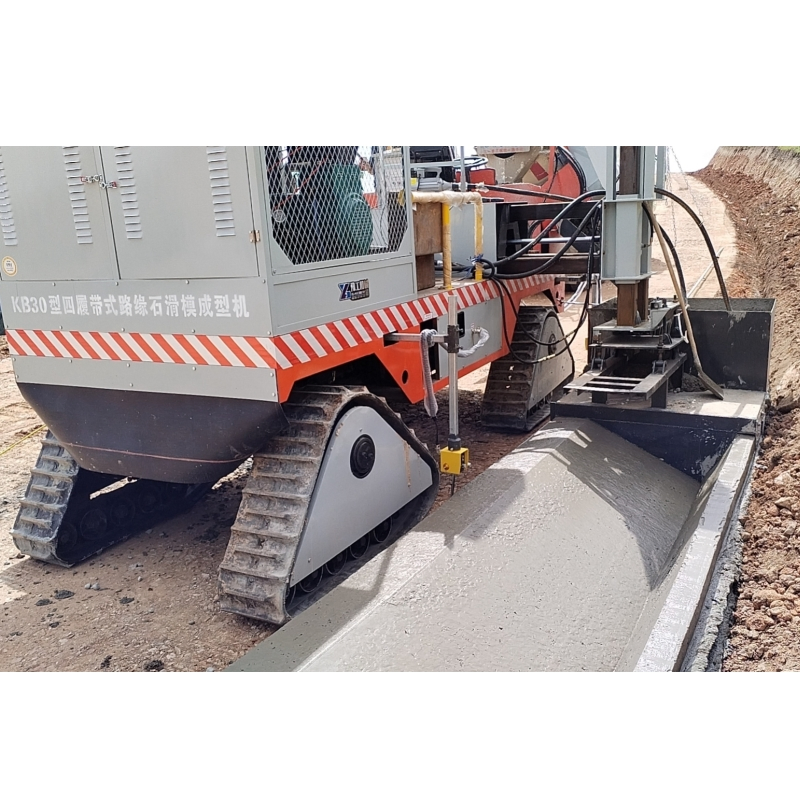

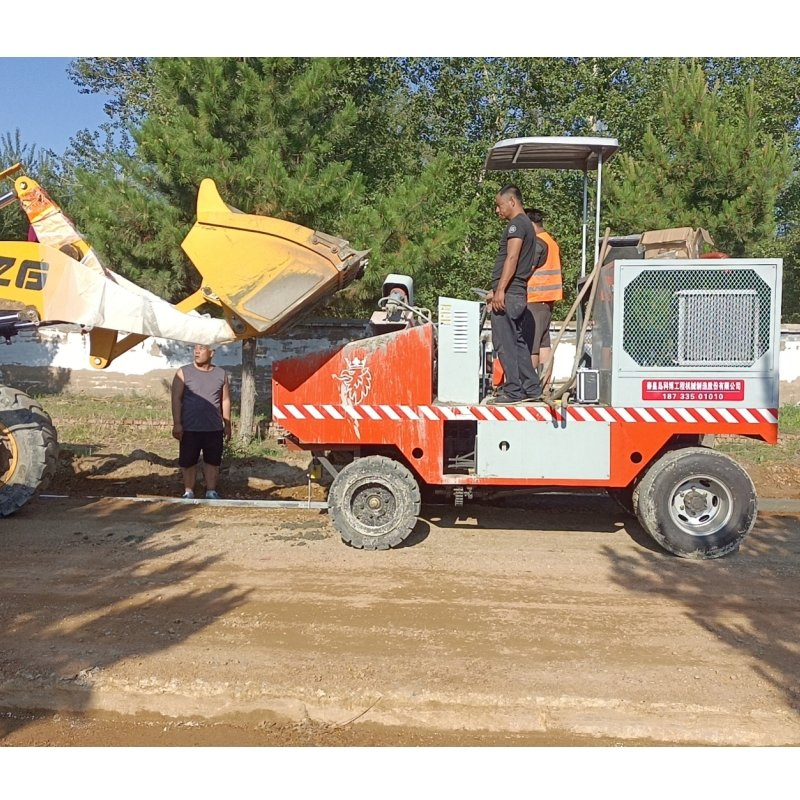

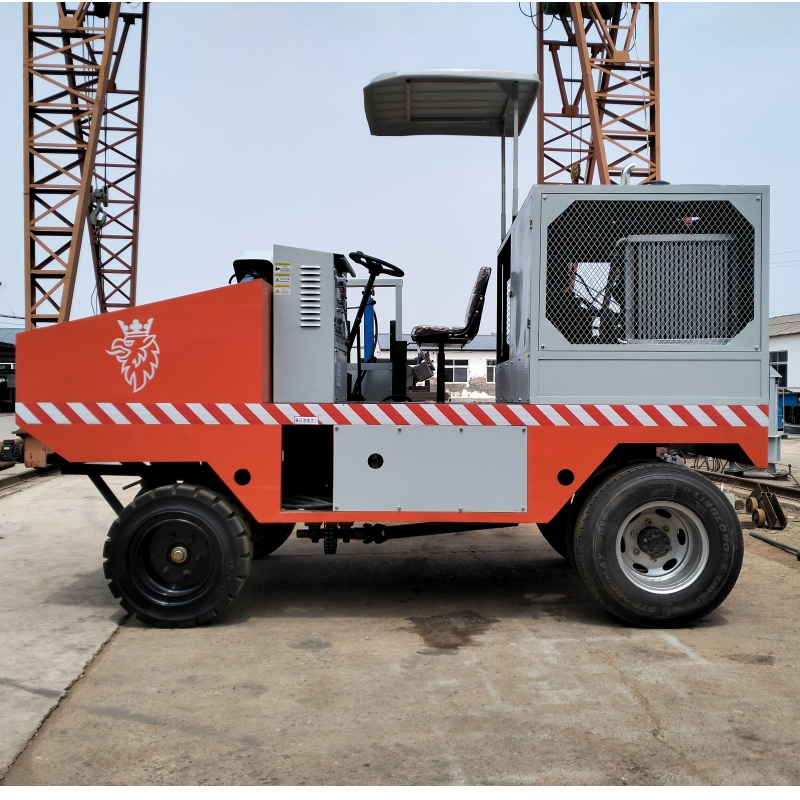

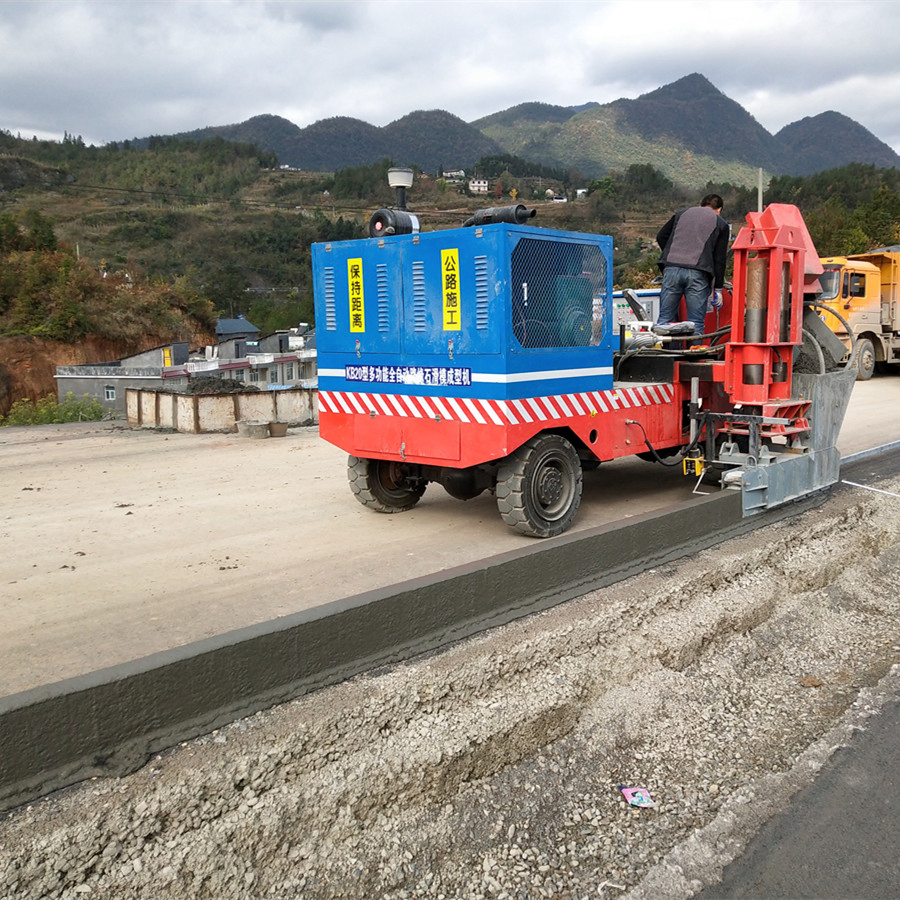

Small Concrete Curb Paver and Gutter Landscape Curbing Kerb Laying Machine Paver

Customization: Available
After-sales Service: 12months
Warranty: 12months

Product Description

📋 Basic Info.
Model NO.
YGCS-130
Type
Paver
Object
Cement Concrete Pavement
Moving Type
Mobile
Mixing Method
Continuous Drum
Automatic Grade
Automatic
Product Capacity
>400t/h
Certification
ISO9001: 2000, CE
Condition
New
Name
Road Kerb Making Machine
Construction Scope
Width1500mm Height700mm
Engine Rated Power
34 HP
Operating Voltage
AC380V
Startup Form
Electric Start
Rated Speed
Water Cooling
Minimum Turning Radius
4500mm
Hopper Volume
0.3m3
Transport Package
FCL
Specification
3600*2400*2200mm
Origin
China
Production Capacity
200sets/Month
⚙️ Product Description

Concrete Curb Stone Forming Machine Curb paving machine road barrier curb paver machine

The fully automatic curb slip form machine adopts a spiral extrusion feeding method and is used for curb concrete forming construction. The machine is compact and is especially suitable for concrete forming construction in leisure green spaces and flower bed curbs in residential areas. It can be used to make highway curb stones, nursery weirs and highway water strips.

Features of Curb and Gutter Machine:

  • High efficiency, beautiful appearance, low cost, and high quality.
  • The formed curb has high impact strength and stability.
  • The hydraulic vibrating bar has a high vibration frequency and large vibration pressure.
  • The machine is easy to operate and can adapt to various construction requirements.
  • It is equipped with a high-pressure cleaning pump, which can clean the machine at any time.

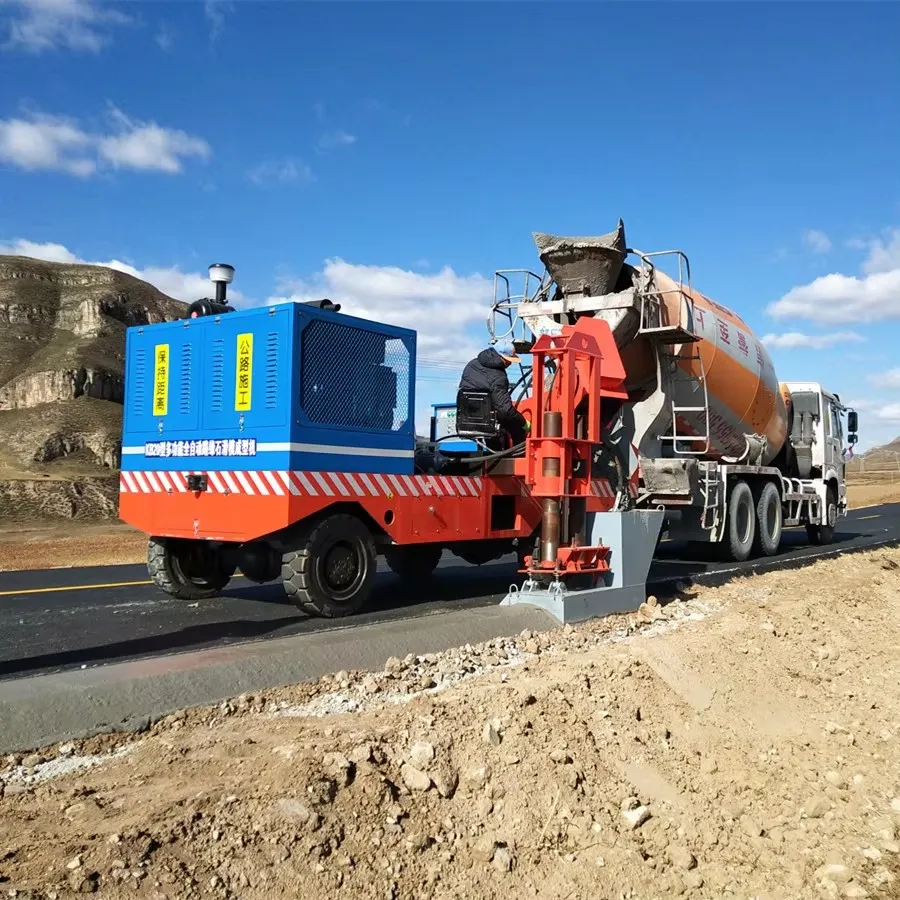

Concrete Curb Paver

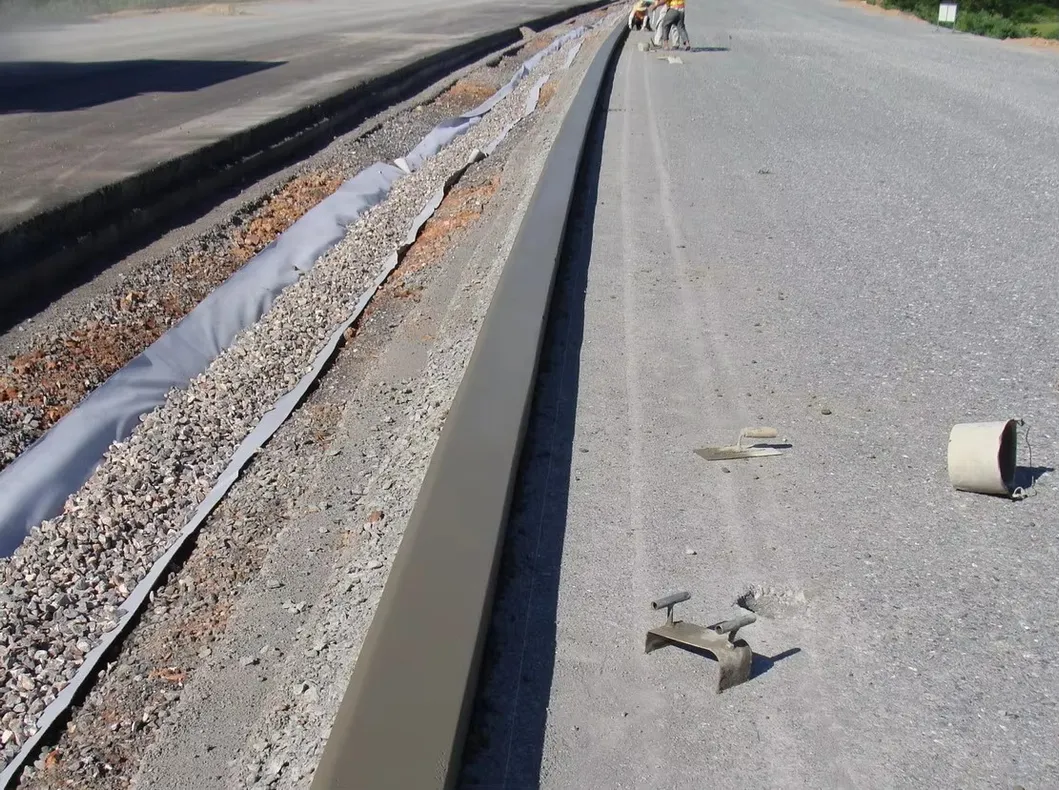

Landscape Curbing Machine
📊 Product Parameters
Model YG-C4 YG-C6 YG-C20
Paveable Curb Size(W*H) 600*400mm 900*500mm 2000*600mm
Paving speed 1-5m/min 1-6m/min 0.9-16m/min
Hopper volume 0.3m3 0.4m3 1m3
Power 8.5KW 12kw 65kw
Empty weight 1000kg 1800kg 6000kg
Dimension 250*185*110cm 330*210*120cm 500*240*280cm

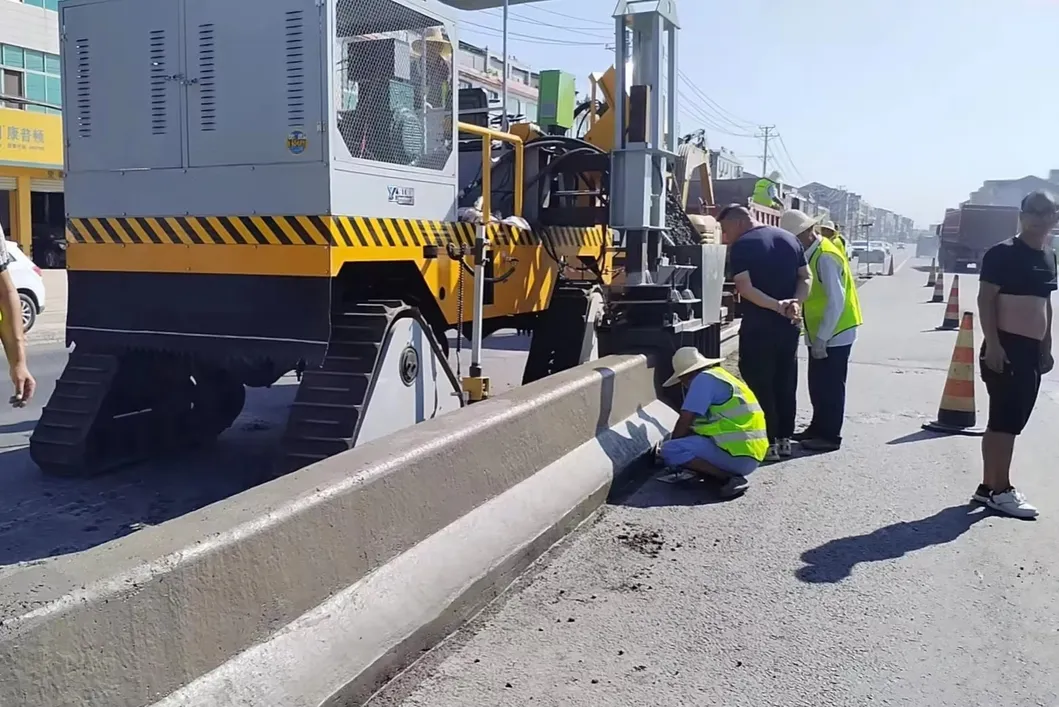

Curb Laying Machine Detail 1

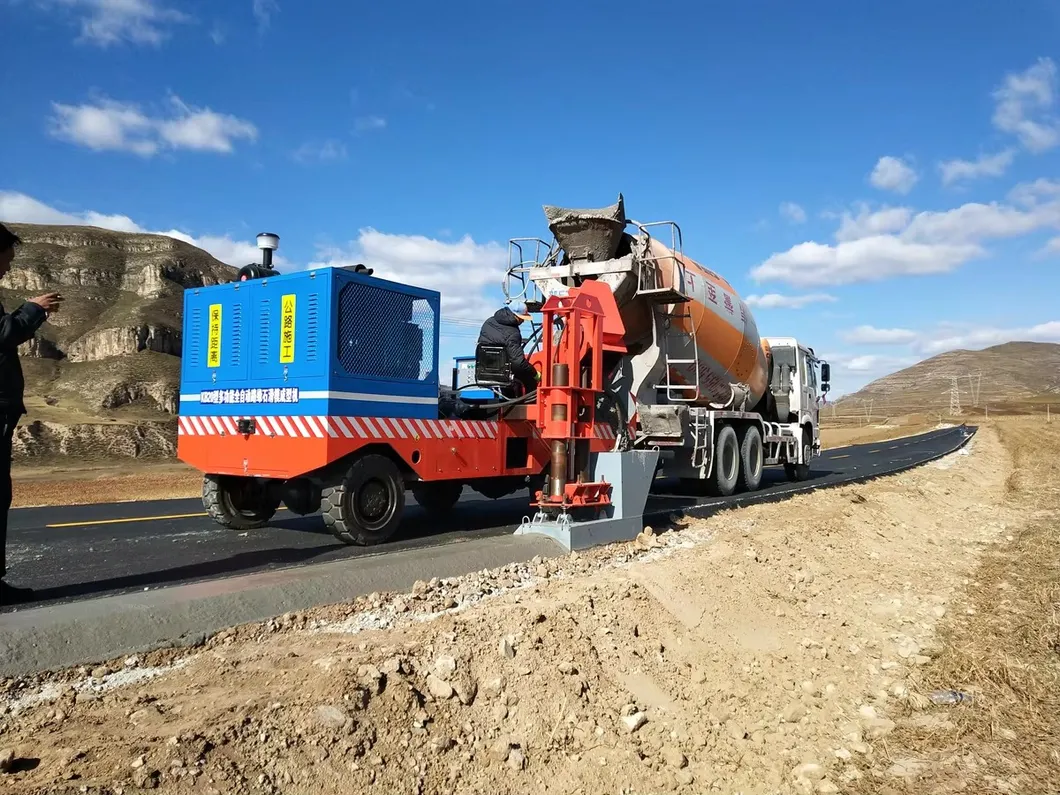

Curb Laying Machine Detail 2

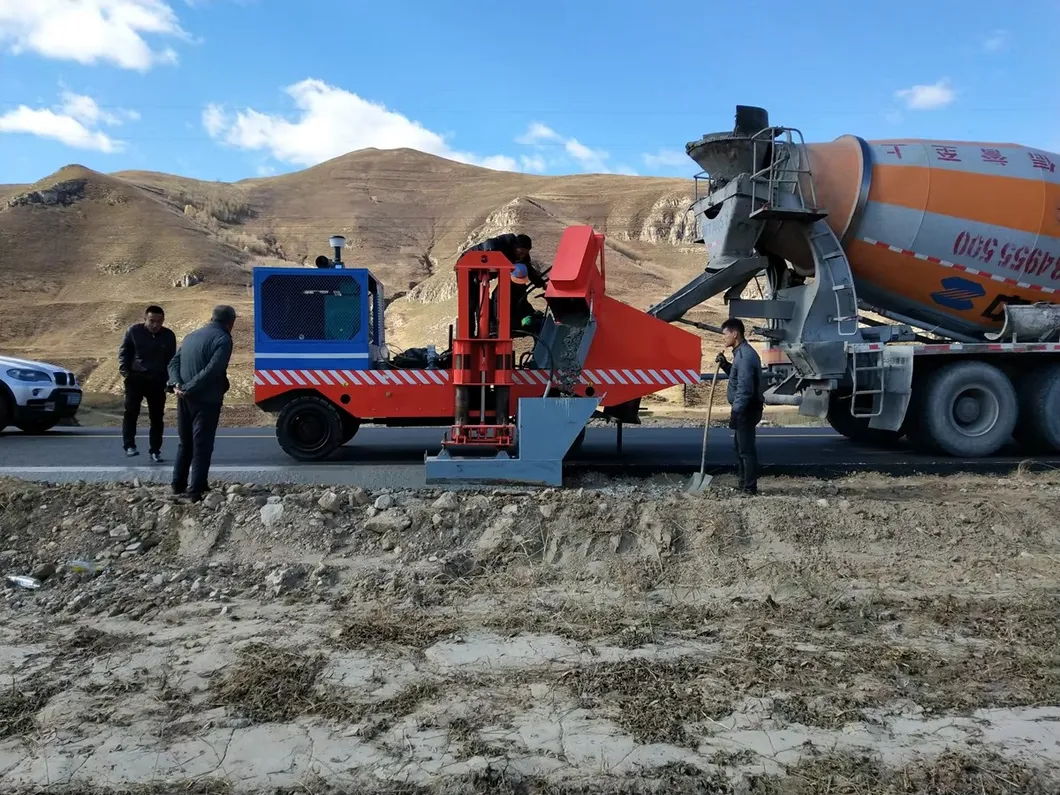

Curb Laying Machine Detail 3

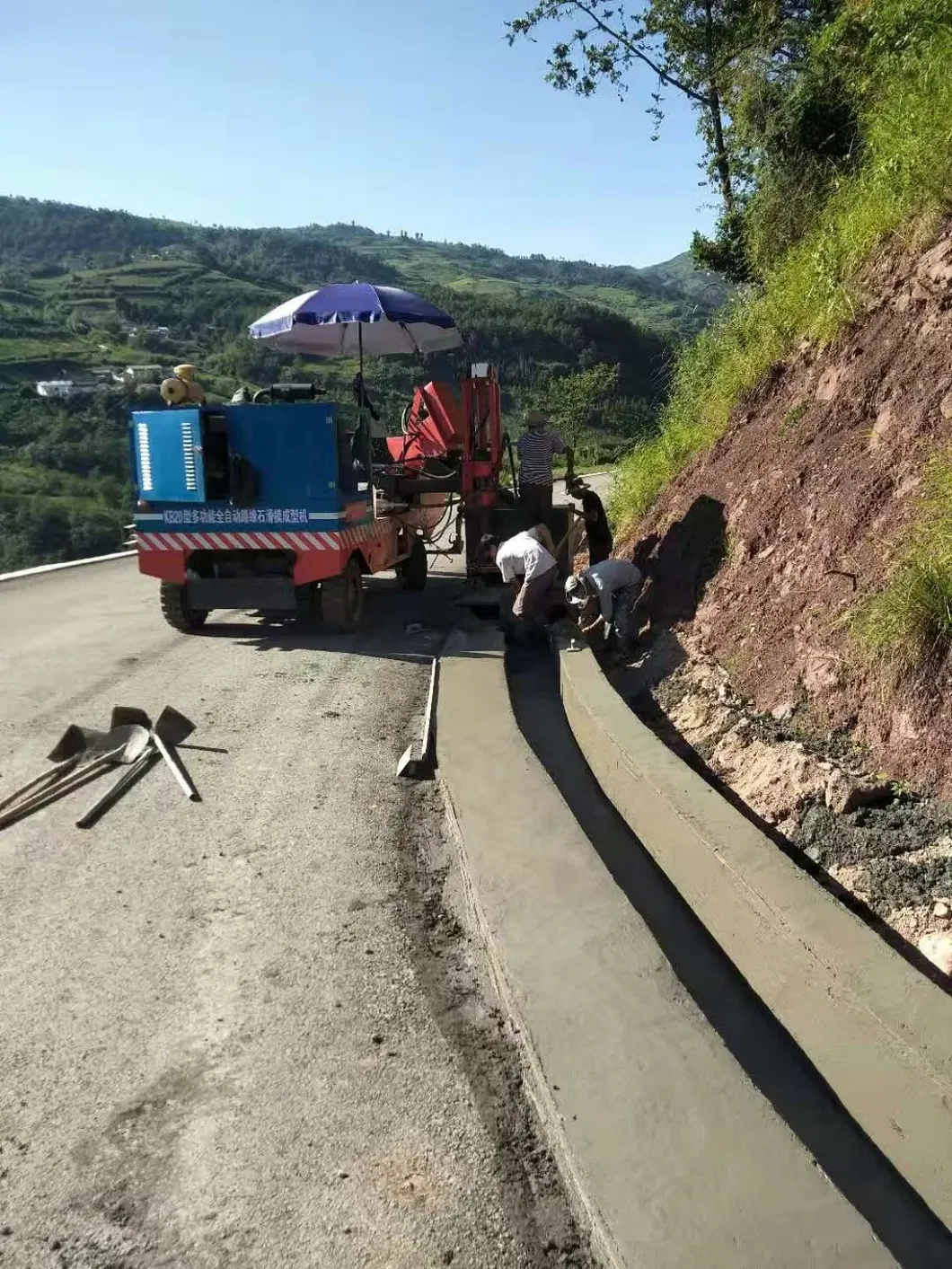

Curb Laying Machine Detail 4

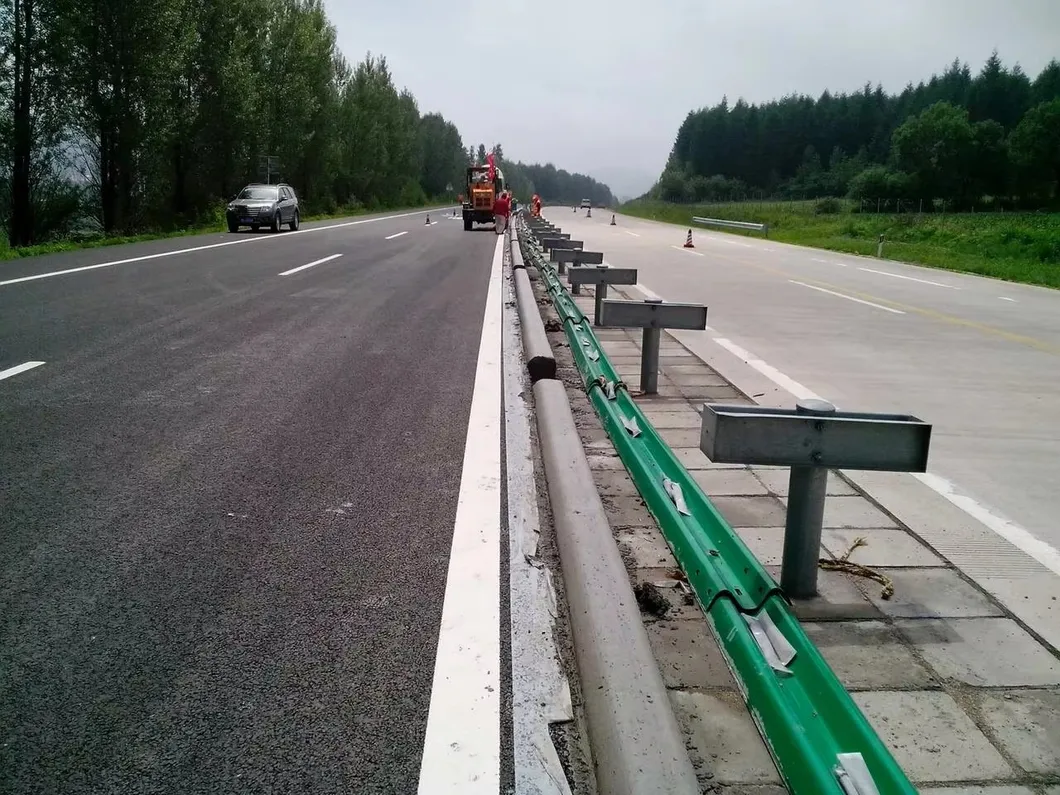

Curb Laying Machine Detail 5
🏭 Production Display
Production Facility 1
Production Facility 2
❓ Frequently Asked Questions
What is the primary application of this curb slip form machine?
It is designed for concrete curb forming construction, including highway curb stones, nursery weirs, flower bed curbs in residential areas, and highway water strips.
What feeding method does the machine use?
The machine utilizes a spiral extrusion feeding method for efficient and continuous concrete forming.
Is the machine suitable for different construction environments?
Yes, its compact design makes it especially suitable for leisure green spaces and residential areas, while its robust power allows for highway applications.
How does the machine ensure the stability of the formed curbs?
The formed curbs have high impact strength and stability due to the high-frequency hydraulic vibrating bar which provides large vibration pressure during the process.
Does the machine require complex maintenance during work?
The machine is designed for easy operation and comes equipped with a high-pressure cleaning pump, allowing for easy cleaning at any time during or after construction.
What are the power requirements for the different models?
Power varies by model: the YG-C4 requires 8.5KW, the YG-C6 requires 12KW, and the heavy-duty YG-C20 requires 65KW.
