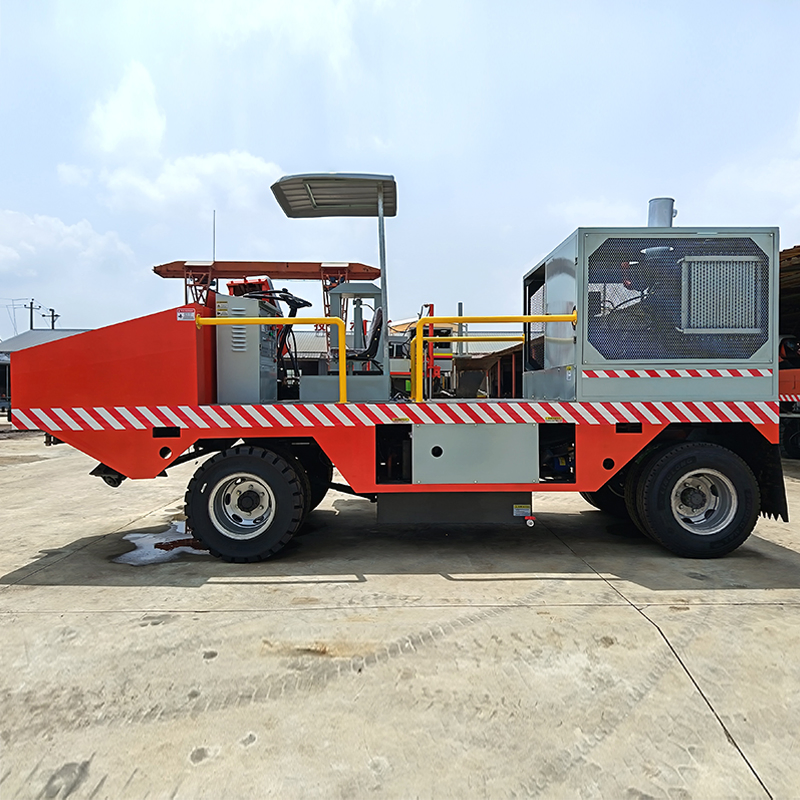

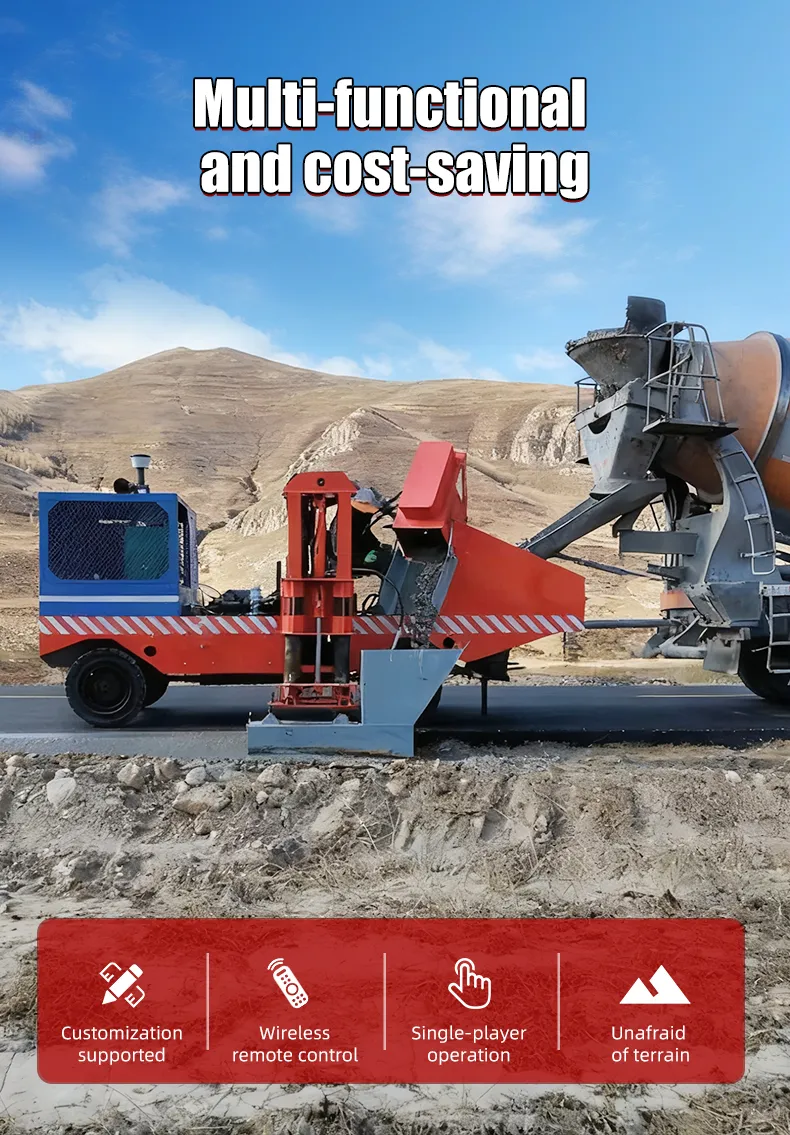

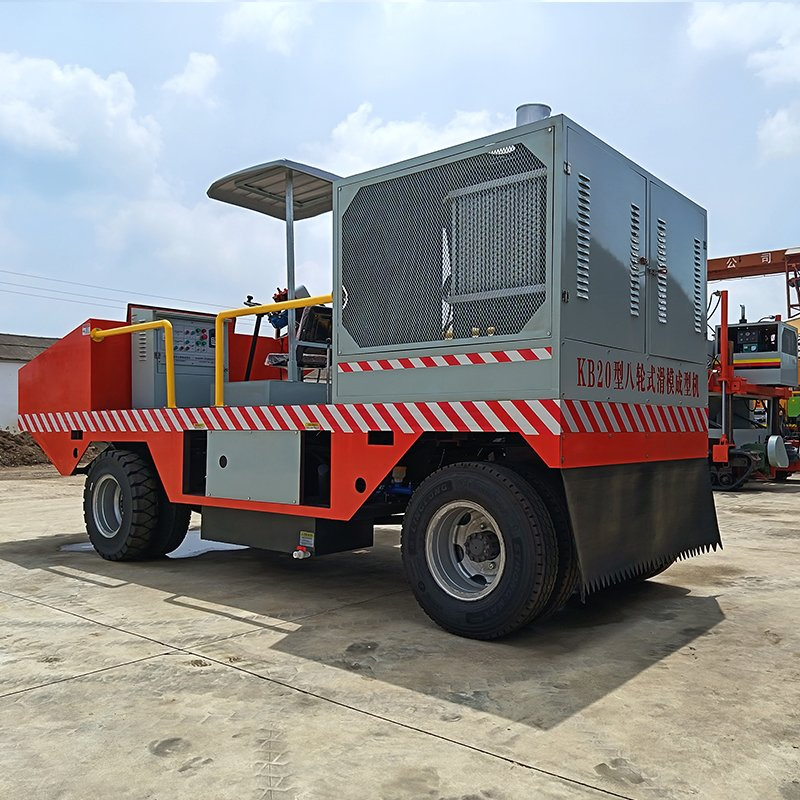

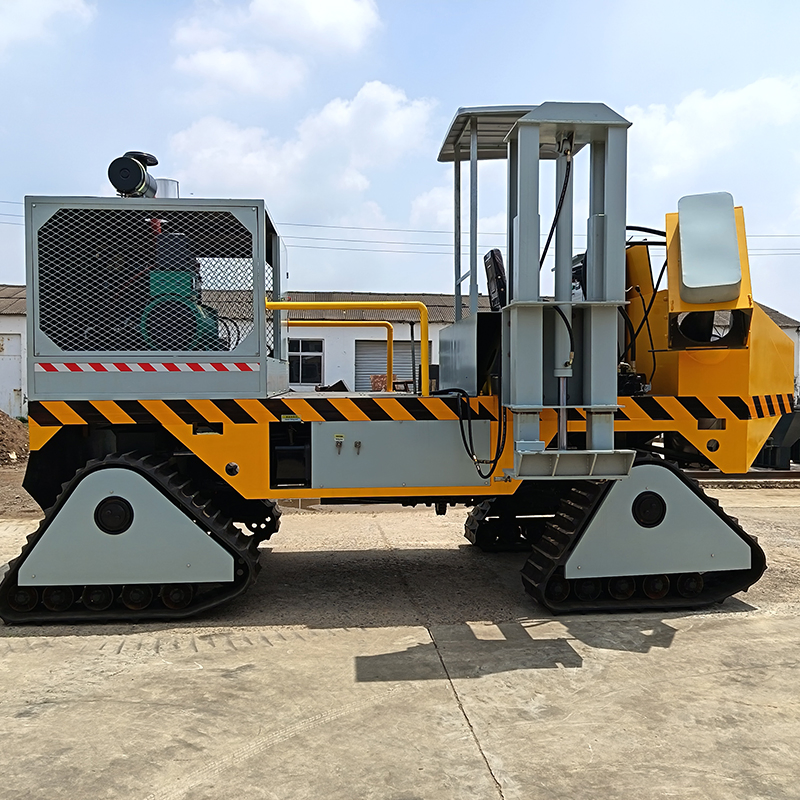

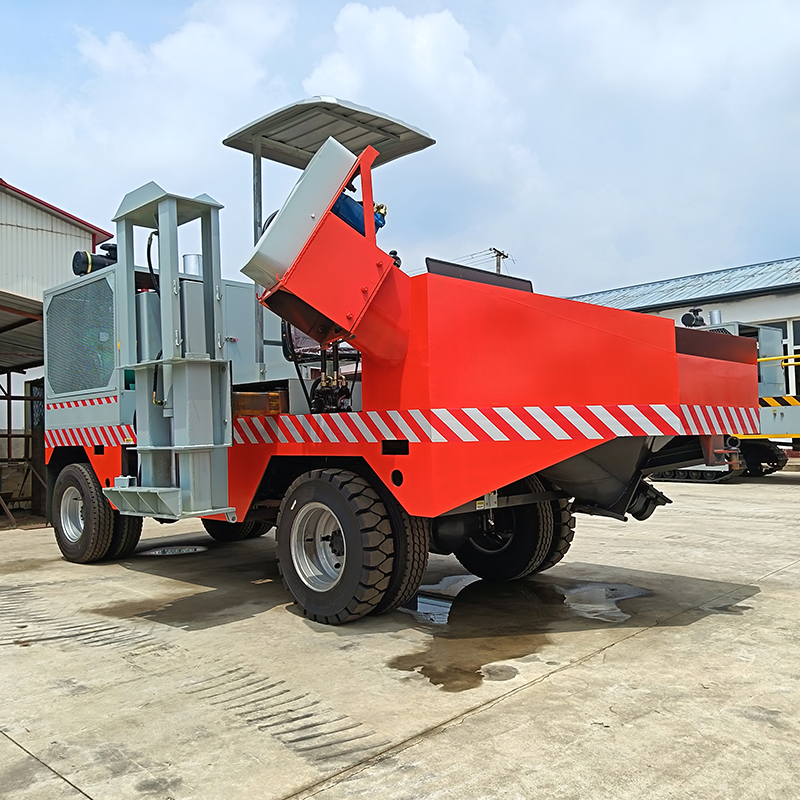

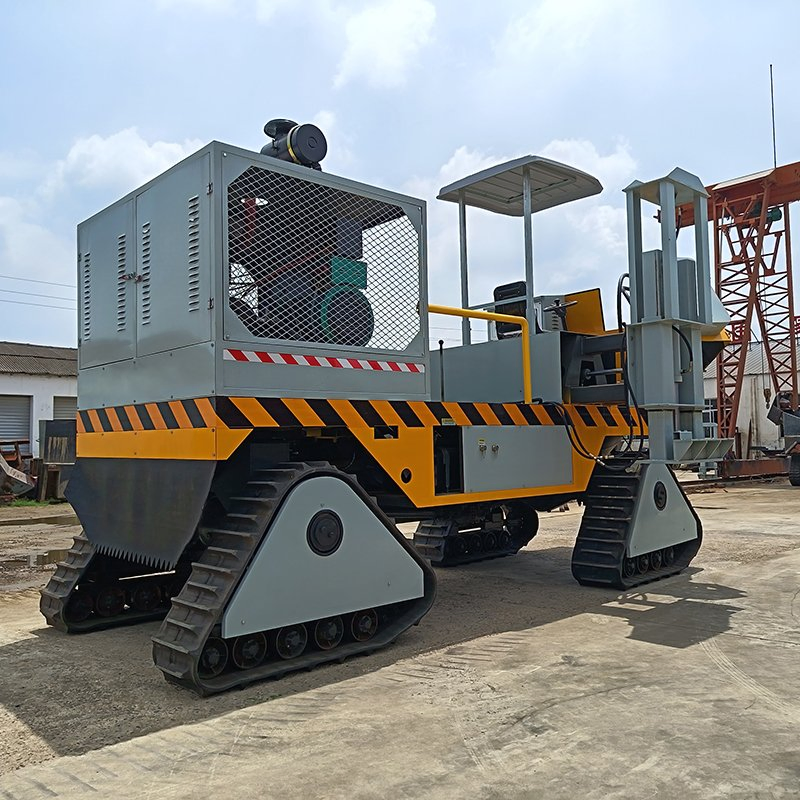

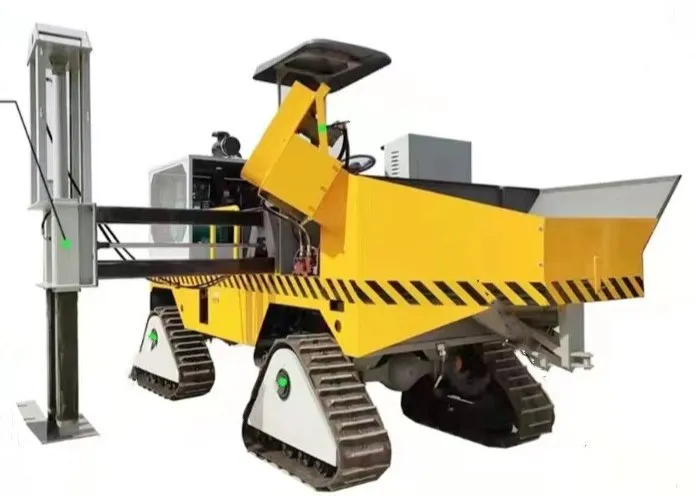

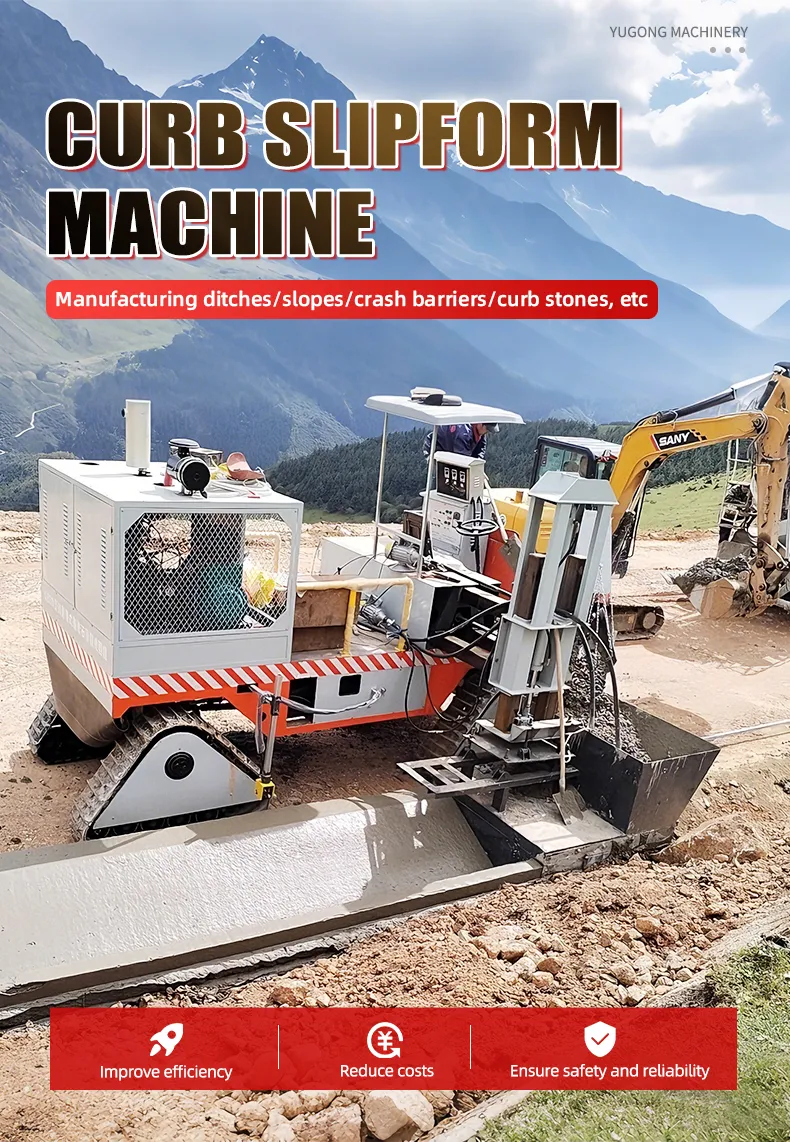

This concrete curb slipform machine is hydraulically driven, realizing continuous on-site slipform forming. It can directly cast concrete components such as curbstone, road shoulder and drainage ditch.
Compared with traditional precast installation, its efficiency is several times higher with greatly reduced labor cost. It is widely used in municipal roads, highways, park roads, and rural roads.
| Model | YG-C15 | YG-C20 | YG-C30 |
|---|---|---|---|
| Paveable Curb Size (W*H) | H≤700mm, W≤1500mm | H≤600mm, W≤2000mm | H≤1100mm, W≤2000mm |
| Paving Speed | 1-10m/min | 1-10m/min | 1-10m/min |
| Hopper Volume | 0.3m³ | 1m³ | 1m³ |
| Power | 34kw | 65kw | 65kw |
| Empty Weight | 3500kg | 6000kg | 7000kg |
| Dimension (mm) | 3600*2400*2200 | 5000*2400*2800 | 5200*2400*2800 |
Our automation machinery division specializes in automated concrete road curb manufacturing equipment, offering cement slipform pavers and curbing machines for industrial, garden and road applications. We leverage advanced production facilities and rigorous quality control protocols to ensure compliance with international standards.
