Drainage Corrugated Pipe Making Hole Machine for Open Holes on Corrugated Pipe

Customization:	Available
Warranty:	>12 Months
Product Type:	PP PE PVC

Technical Specifications

Model NO.YRF-perforator

Screw No.Single-screw

AutomationAutomatic

ComputerizedComputerized

CertificationCE, ISO9001:2008, SGS

CustomizedCustomized

ConditionNew

BelongPlastic Pipe Machinery

ColorGreen (Customizable)

Motor BrandSiemens

ContactorSchneider

Machine Material304 Stainless Steel

ObjectPlastic Corrugated Pipes

InveterABB

TypeCorrugated Pipe Perforator

NameDrainage Corrugated Pipe Making Hole Machine

Transport PackageFilm Packing, Standard Sea Freight Packing

Specification500kg/h - 3000kg/h

OriginChina

HS Code8477800000

Production Capacity11 Sets Per Year

Product Description

Drainage Corrugated Pipe Making Hole Machine for Open Holes on Corrugated Pipe

This corrugated pipe making hole machine is used to perforating holes on the plastic corrugated pipe. It has the characteristic of reasonable design, a high degree of automation, and can be used both online and offline. The holes on the corrugated pipe are smooth and completely free of residual waste.

Key Features & Capabilities

Online Perforating: Supports online automatic perforating with a processing range of OD50mm to OD250mm.

Flexible Hole Count: The number of holes can be randomly selected from 2 to 8 (depending on pipe size and location).

Fully Adjustable: Perforating sizes are adjustable with a maximum configuration of 8 holes.

Safe Construction: Employs a fully enclosed design ensuring highly safe and reliable operation.

Eco-Friendly Cutting: Holes are cut into clean strips, eliminating dust pollution, facilitating easy cleaning and recycling.

Hole Geometries: Rectangle type holes ranging from 12mm x 1.1mm to 30mm x 3mm, evenly distributed within 360°, 270°, 180°, or 90°.

Advanced Electronics: Controlled by a SIEMENS PLC system featuring an intuitive touch screen interface alongside high-end ABB and Siemens components.

Three Main Types Available:

Pneumatic perforating type perforator machine.
Mechanical perforating type perforator machine.
Saw web perforating type perforator machine.

Processing Range and Models

Model	Diameter (mm)	No. of Perforating Holes	Hole Size	Type of Perforator
YRF-110	50mm - 110mm	2, 4, 6	13mm x 1mm - 30mm x 3mm	Can operate both Online and Offline
YRF-160	110mm - 160mm	2, 4, 6, 8
YRF-250	160mm - 250mm	2, 4, 6, 8

Applications & Benefits

The drilled holes are spaced around the full 360-degree circumference of the pipe, allowing both water and air to flow freely. Placing the holes strategically in the valleys of the corrugations prevents clogging and guarantees high performance drainage. Highly suitable for varying conditions with hole sizes ranging from 10mm x 1mm to 30mm x 3mm.

Common Applications:

Highway longitudinal, horizontal drainage and water permeability.
A variety of highway retaining walls on the back and vertical ditches, horizontal drainage.
Tunnel and underground drainage systems.
Municipal engineering, water purification plants, sewage plants, and landfills.
Golf courses, playgrounds, parks, and other recreational green space drainage.
Slope development, soil and water conservation.
Site preparation and underground drainage.
Arid land farmland groundwater collection, maintenance, and utilization.

Performance & Characteristics:

Drainage Safety

Located inside the trough, the orifices are kept clear due to interactions between crests and filter fabrics, avoiding blockages.

Corrosion Resistance

High-quality robust plastic configuration that completely avoids rusting compared to soft spring drains.

Strength & Flexibility

A unique double-corrugated structure keeps the product strong under external pressure without structural deformation.

Highly Economical

Extremely cost-effective when compared to other traditional drainage options of the same caliber.

Excellent Drainage

Tubes buried at 0.5-1.0 meters easily handle heavy rainfall (50mm) without surface water accumulation.

Long-Term Investment

Boasting low weight, high mechanical strength, and superb flexibility, with a prolonged service life of 30 to 50 years.

Product Gallery

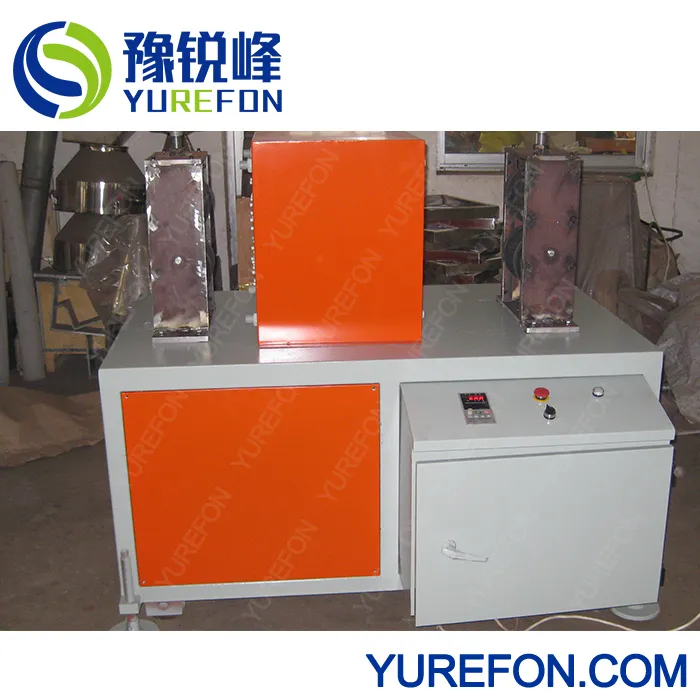

Drainage Corrugated Pipe Making Hole Machine Detail 1

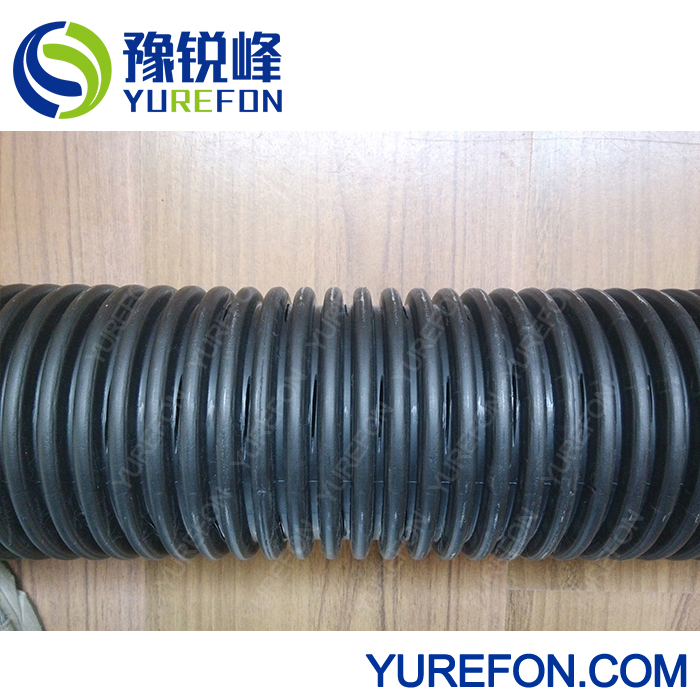

Drainage Corrugated Pipe Making Hole Machine Detail 2

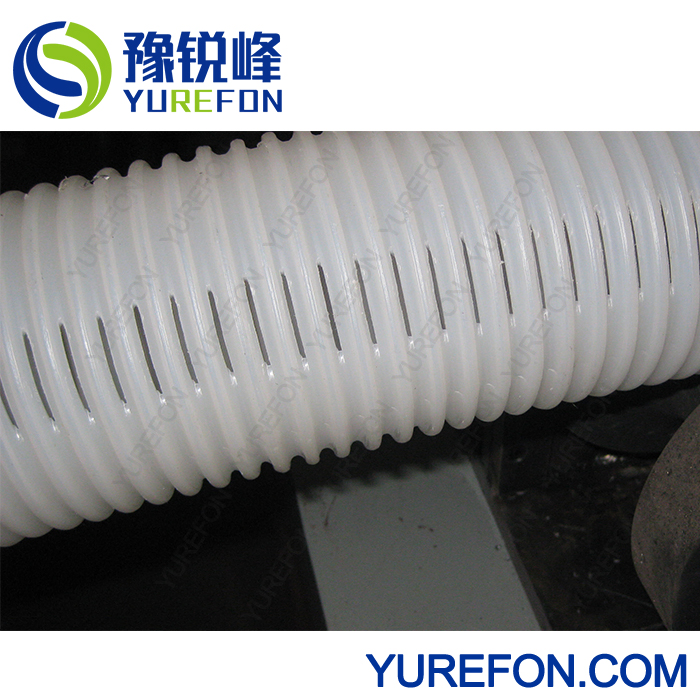

Drainage Corrugated Pipe Making Hole Machine Detail 3

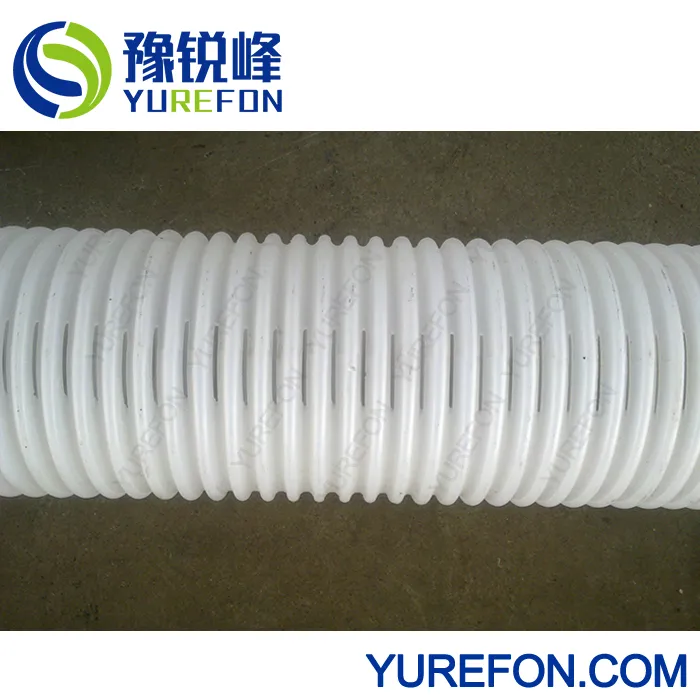

Drainage Corrugated Pipe Making Hole Machine Detail 4

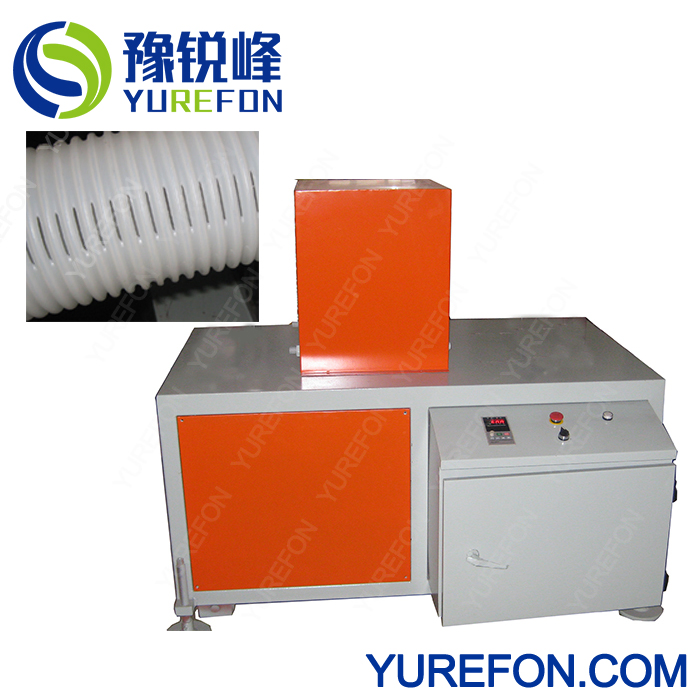

Drainage Corrugated Pipe Making Hole Machine Detail 5

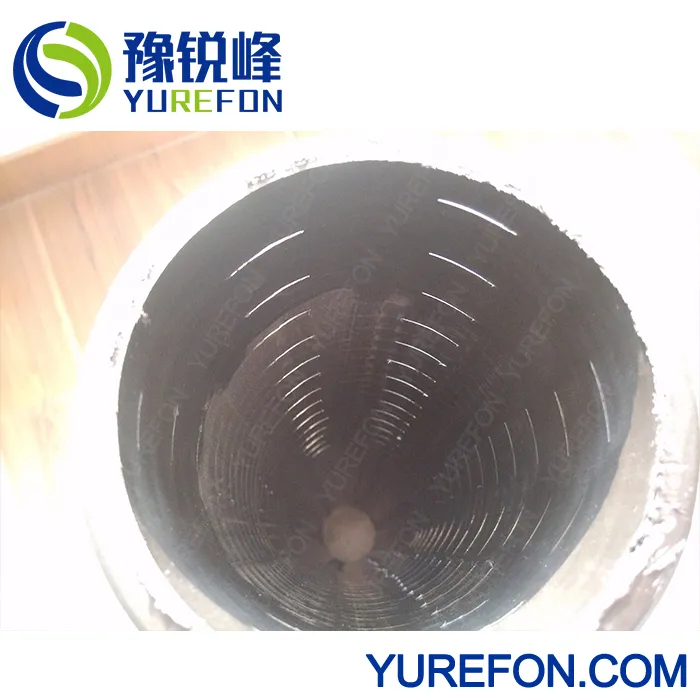

Drainage Corrugated Pipe Making Hole Machine Detail 6

Frequently Asked Questions (FAQ)

What is the primary application of the corrugated pipe perforating machine?

It is designed to automate the process of perforating precise drainage holes on plastic corrugated pipes. The perforated pipes are extensively used for water collection, soil conservation, and drainage systems in highways, tunnels, subways, waste landfills, golf courses, and agricultural irrigation.

What pipe diameters can this machine process?

The machine covers a broad processing range of outer diameters (OD) from 50mm up to 250mm. Standard models include YRF-110 (50-110mm), YRF-160 (110-160mm), and YRF-250 (160-250mm).

Does the machine support online operation on an extrusion line?

Yes, the machine features high automation and is designed to operate both online directly with an active extrusion line or offline as a standalone processing station.

Are the hole patterns and dimensions customizable?

Yes. The machine produces rectangular slots with sizes ranging from 12mm x 1.1mm to 30mm x 3mm. You can select between 2 to 8 holes, which can be evenly distributed along the pipe circumference within 360°, 270°, 180°, or 90° intervals.

What kind of control system and electrical components does the machine use?

The machine is equipped with a premium electronic control system featuring a SIEMENS PLC and a SIEMENS touch screen HMI. Other critical electrical components are sourced from globally recognized brands like ABB and Schneider to ensure stability and longevity.

How does it prevent dust pollution during the cutting process?

The machine cuts clean rectangular strips instead of grinding the plastic. Because the waste is cut into physical strips rather than powder, there is no dust pollution generated, making it easy to keep the workspace clean and recycle the remaining plastic.
