Double Wall Corrugated Pipe Plastic Corrugated Pipe Hole Making Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Technical Specifications

Model

pipe hole making machine

Automation

Automatic

Computerized

Certification

CE, SGS

Condition

New

Name

Plastic Double Wall Corrugated Pipe Perforator

Motor

Siemens

Inverters

ABB

Core Part

PVC Extruder

Screw Type

38CrMoAl

Cutting Type

Saw

Control System

Omron / Schneider

Capacity

125kg/h

Origin

China

⚙️

Product Overview

This corrugated pipe perforator machine is designed for perforating holes on Double wall plastic corrugated pipes. It features a high degree of automation and can be operated both online and offline. The resulting holes are smooth and free of residual material.

Key Features:

Automatic on-line or off-line perforation
Perforating range: OD50mm ~ OD250mm
Randomly select 2 to 8 holes
Fully enclosed design for safety and reliability
Adjustable perforation sizes
Rectangular hole types (12mm x 1.1mm to 30mm x 3mm)
No dust pollution; easy to clean and recover strips
International brand components (Siemens, ABB)

🖼️

Visual Display

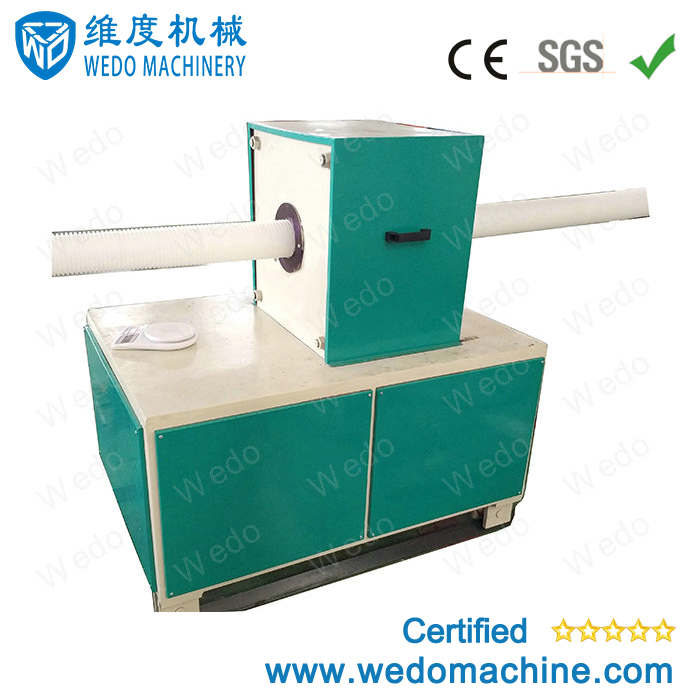

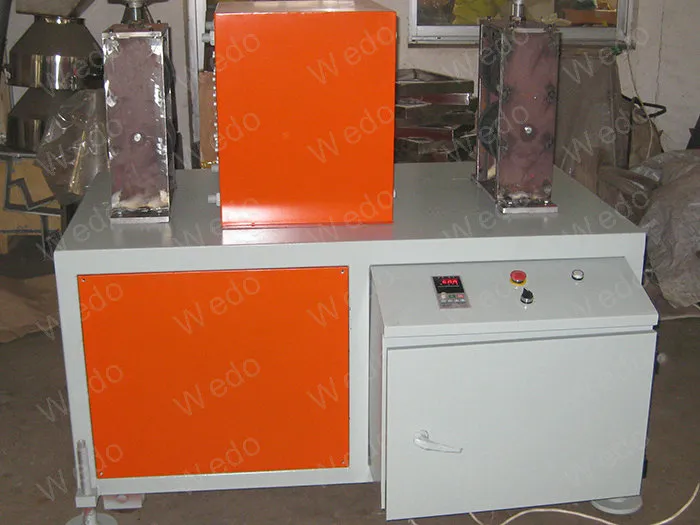

Overview of Plastic Corrugated Pipe Perforator

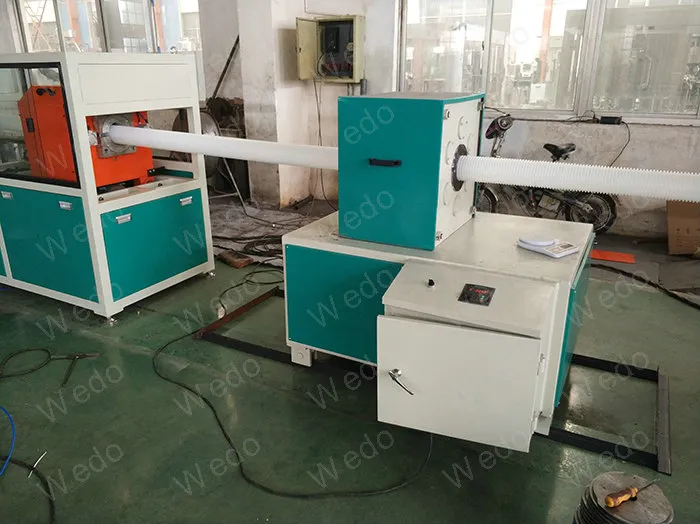

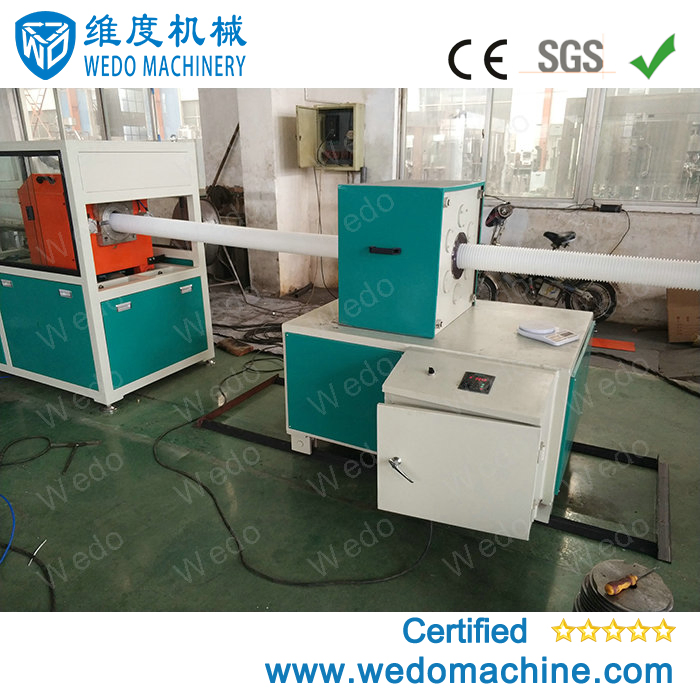

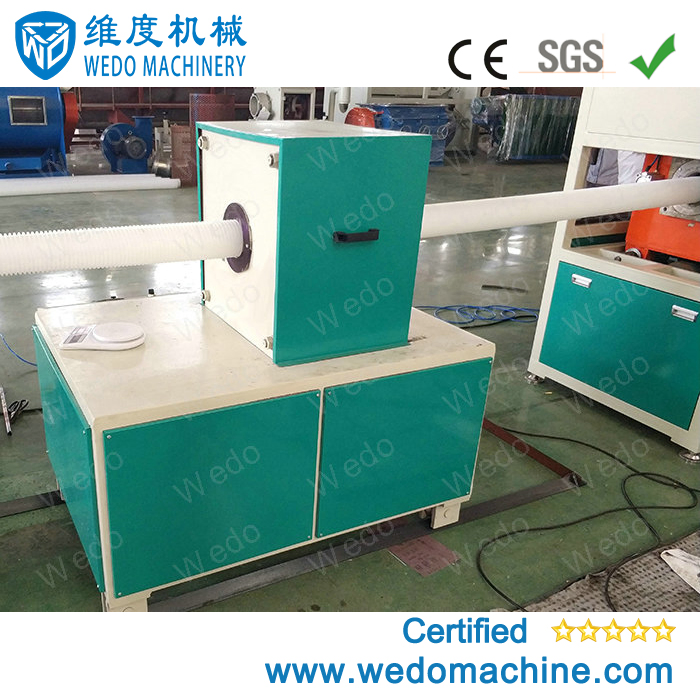

Online Perforating Process

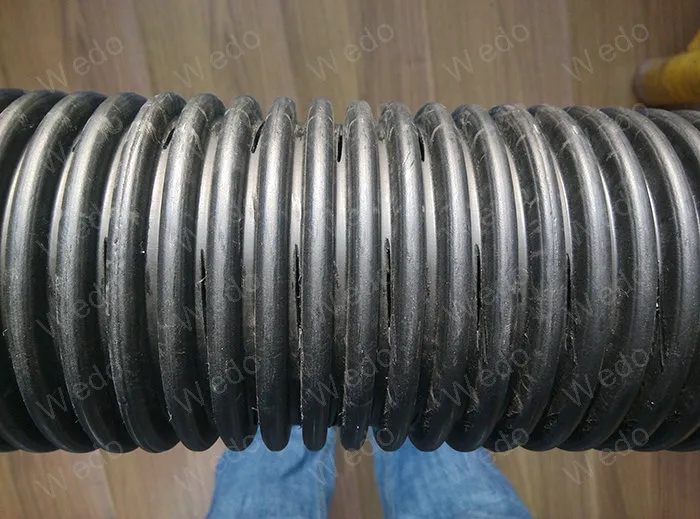

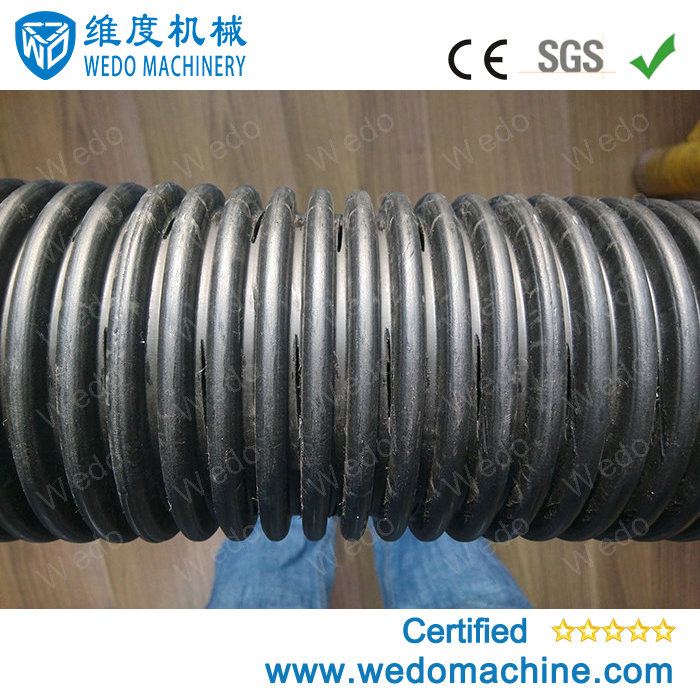

Finished Perforated Corrugated Pipe

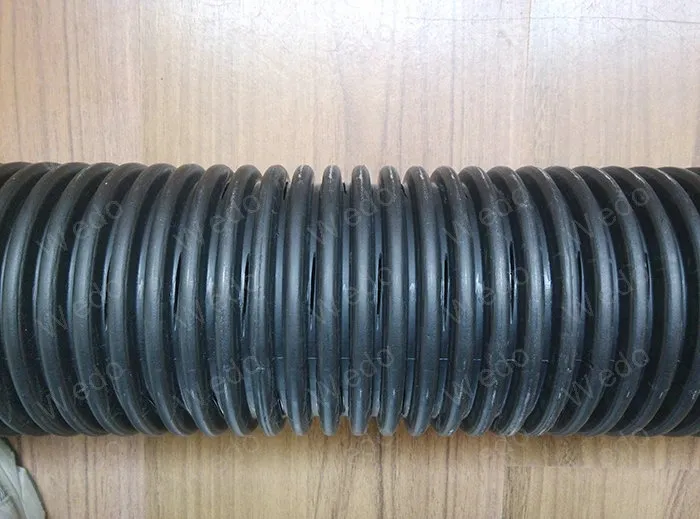

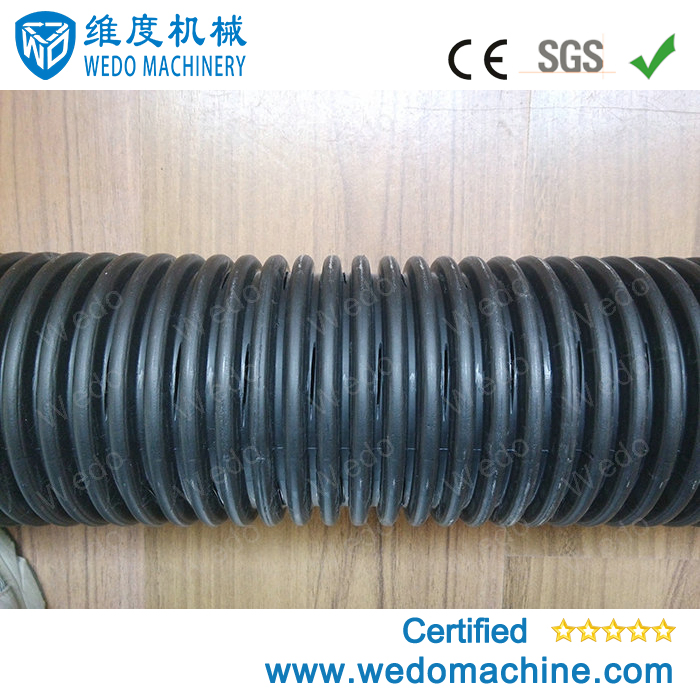

Detailed View of Perforated Holes

Perforated Pipe Samples

📊

Processing Range & Models

Model	Diameter (mm)	No. of Holes	Hole Size	Operation Type
WD-110	50mm-110mm	2, 4, 6	13mm x 1mm - 30mm x 3mm	Online & Offline
WD-160	110mm-160mm	2, 4, 6, 8
WD-250	160mm-250mm	2, 4, 6, 8

Available Perforator Types: Pneumatic type, Mechanical type, and Saw web type.

🌍

Applications & Benefits

Wide Range of Uses:

Highway longitudinal and horizontal drainage
Tunnel and underground drainage systems
Municipal water purification and sewage plants
Golf courses, playgrounds, and recreational green drainage
Soil and water conservation for slope development
Agricultural groundwater collection

Performance Characteristics:

• Drainage Safety: Non-clogging orifice design ensures smooth water permeability.

• Corrosion Resistance: High-grade plastic construction prevents rust.

• Structural Strength: Double-corrugated structure resists external pressure deformation.

• Long Service Life: Durable materials offer a service life of 30-50 years.

🛠️

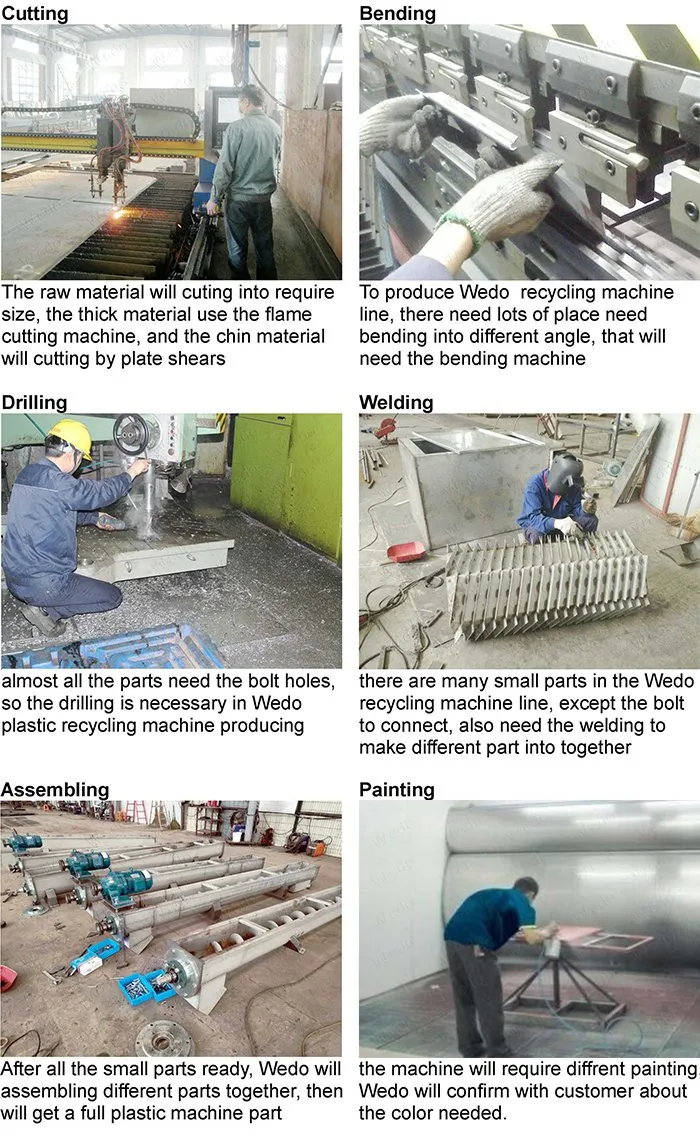

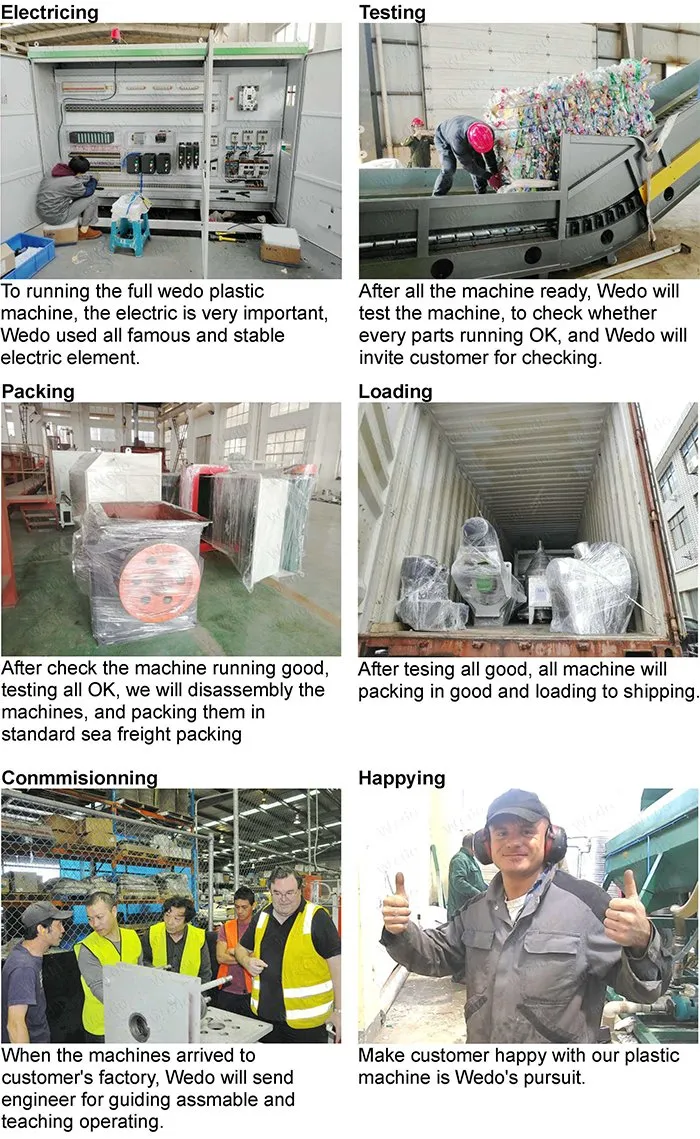

Manufacturing & Quality

Our production process follows strict steps to ensure every machine is delivered with high quality and reliability.

❓

Frequently Asked Questions

What pipe diameters can this machine handle?

The machine covers a range from OD50mm to OD250mm across different models (WD-110, WD-160, and WD-250).

Can the machine operate directly with an extrusion line?

Yes, it is designed for both online automatic perforation during extrusion and offline standalone operation.

How many holes can be perforated at once?

The number of holes is adjustable and can be randomly selected from 2 up to a maximum of 8 holes.

What is the shape and size of the holes?

The machine produces rectangular holes with sizes ranging from 12mm x 1.1mm up to 30mm x 3mm.

What core components are used in the machine?

We use high-quality international brands including Siemens motors, ABB inverters, and Omron or Schneider control systems.

What are the main types of perforation methods available?

We offer three types: Pneumatic perforating, Mechanical perforating, and Saw web perforating.
