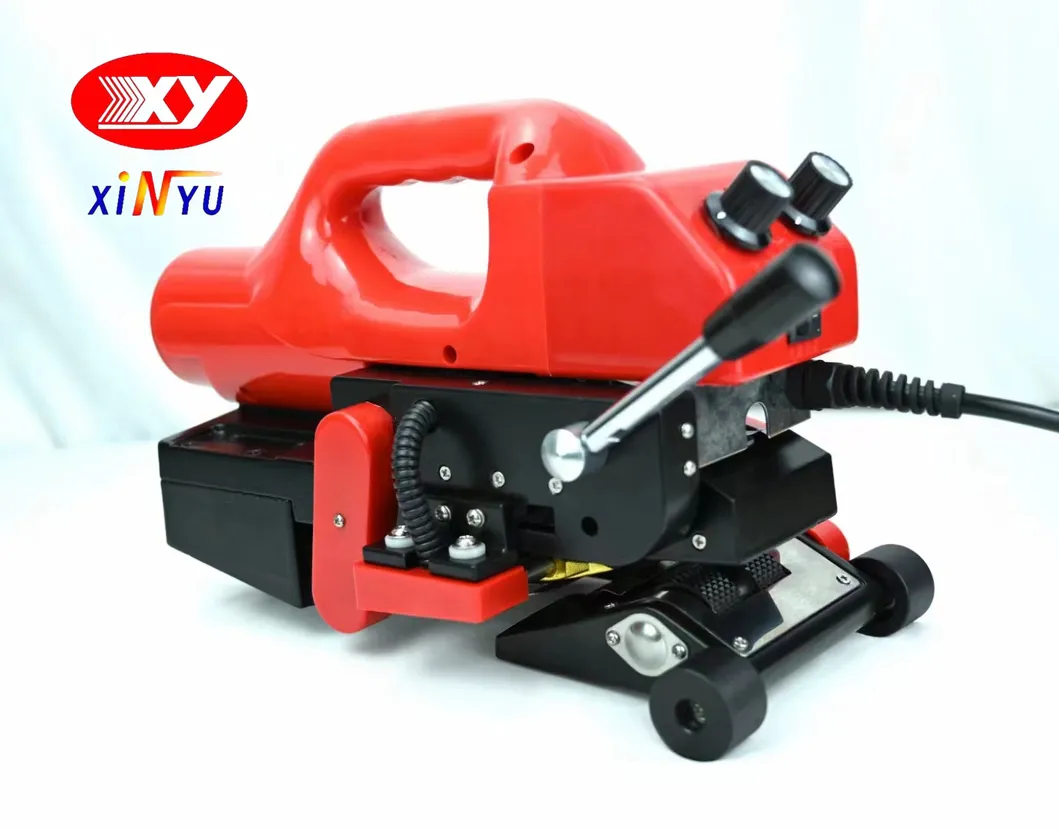

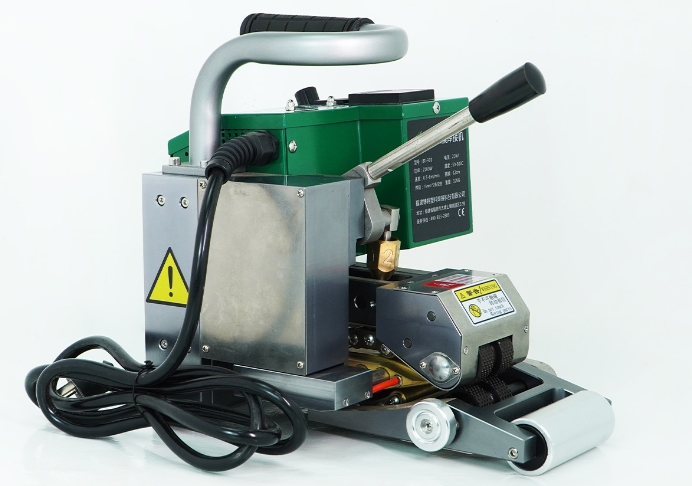

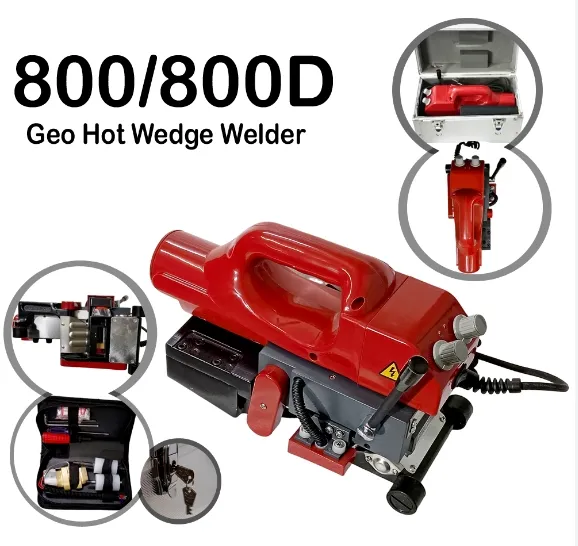

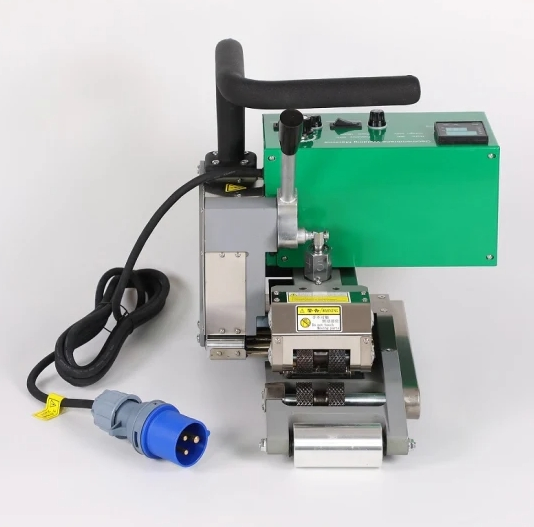

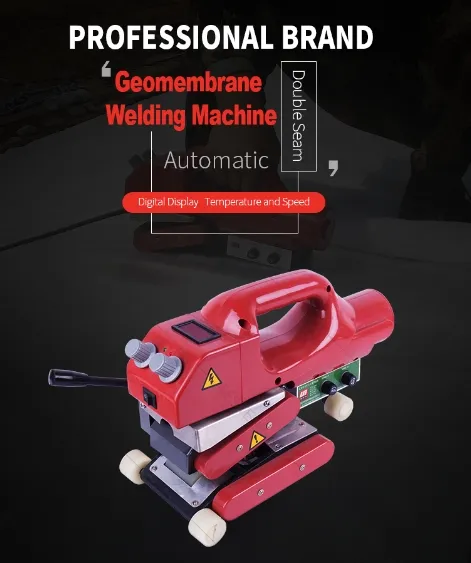

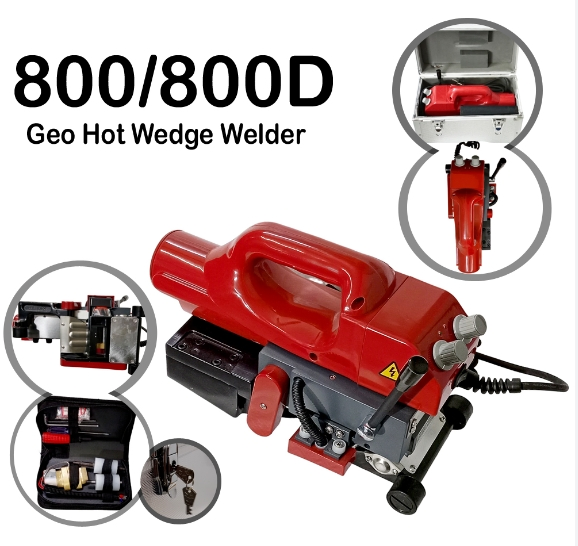

The WT800 series geomembrane welding machine is a high-performance tool designed for welding various thermal-fused materials, including PE, PVC, HDPE, EVA, and PP. Engineered for precision and durability, it handles materials of different thicknesses with ease.
Equipped with PID automatic thermostatic control, this machine ensures high accuracy and minimal temperature fluctuations. The speed control utilizes a PWM automatic voltage and speed regulation circuit, powered by a DC servo motor. This combination provides significant output torque and exceptionally stable operation, maintaining constant speeds even under variable road loads or vertical creeping conditions.
| Parameter | Details |
|---|---|
| Voltage | 220V or 110V |
| Frequency | 50/60Hz |
| Power | 800W or 1000W |
| Welding Speed | 0.5 - 5 m/min |
| Heating Temperature | 0 - 450°C |
| Material Thickness | 0.2mm - 1.5mm (PVC: up to 2.0mm) |
| Overlap Width | 10cm (Customizable) |
| Welding Width | 12.5mm × 2, interior cavity 12mm |
| Seam Strength | ≥85% base material (tensile resistant) |
| Weight | 5 kg |
| Insulation Class | Class II |

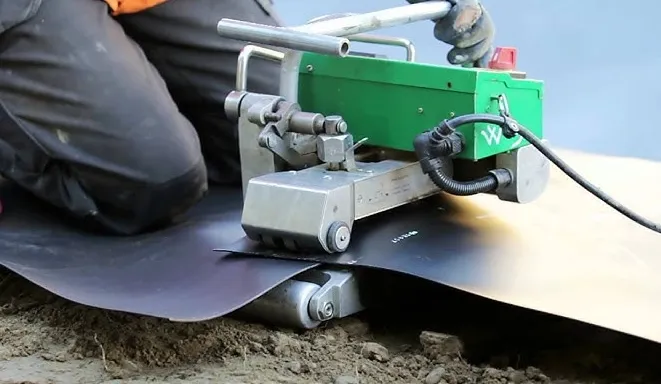

This series is extensively used in major engineering projects requiring high-quality waterproof sealing:
| Category | Available Products |
|---|---|
| Geogrid | Biaxial PP, Uniaxial PP/HDPE, Fiberglass, Polyester, Steel Composite |
| Geotextile | Non-woven PP/PET, Woven Geotextile |
| Geomembrane | HDPE, LDPE, Composite variants |
| Fiberglass | Chopped strand mat, Woven roving |
| Other Materials | Geocell, Geonet, 3D Geomat, Drainage board, Weed control mat |

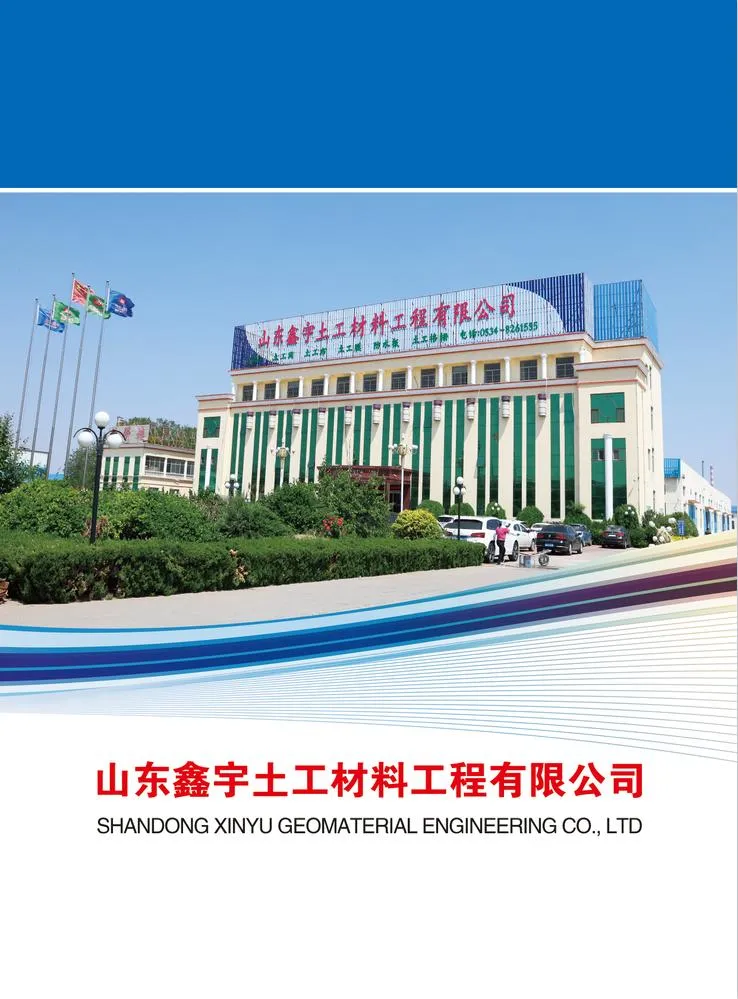

Our manufacturing facility spans over 200,000 square meters and features 20 advanced computer numerical control production lines. We are a specialized producer of geotechnical materials, adhering strictly to international quality systems. Every product undergoes rigorous sampling and acceptance by technical supervision departments to ensure compliance with national and global standards.
