Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
1 / 5
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line
Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line

Plastic Filter Ditch Pipe Extrusion Production Machine, Mesh Seepage Drainage Pipe Extrusion Line

Warranty: 1year
Product Type: PE Geocomposite Drain Pipe\Net\Sheet
Screw No.: Single-screw
Send Inquiry

Product Description

Basic Specifications
Model NO.
SJ90
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, TUV
Condition
New, Under The Order
Material
PE HDPE PP
Processing Period
40-60 Days
Delivery Period
30 Days
Technical Support
Permanent
Dimension (M)
27 * 3.5 * 2.5
Weight
18t
Output
150kg/H
Production Capacity
50 Sets/Year
HS Code
8477209000
Product Introduction & Applications

PP PE Geocomposite Drain Pipe Sheet Extrusion Line

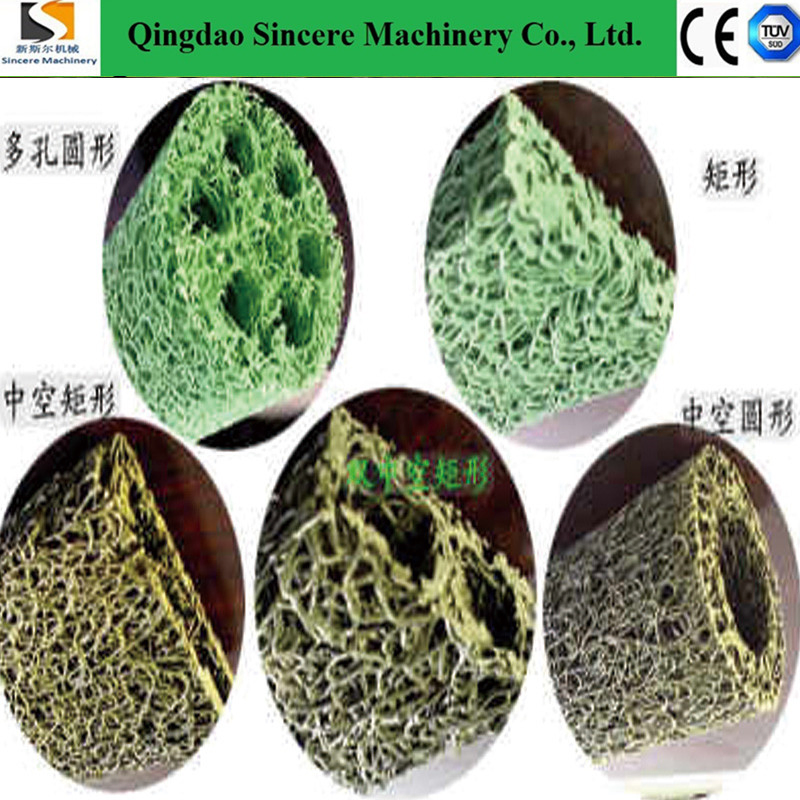

Geocomposite blind drain pipe is constructed from a plastic core and an outer filtering cloth. In a hot-melting state, it is formed into a specialized 3D network structure available in both rectangular and round shapes. This high-performance pipe offers exceptional drainage capability, high pressure resistance, and is lightweight.

Primary Applications:

  • Highway and roadway subgrade drainage
  • Retaining wall moisture control
  • Landfill leachate collection systems
  • Roof garden drainage layers
  • Building foundation protection
  • Underground agricultural irrigation
Technical Parameters
Water harvesting part65% ~ 75%
Drainage efficiency25% to 35%
Main aperture> 3mm
Main hole area> 7.5mm²
Opening rate (expanded)> 8000 / square meter
Ring stiffness> 1.0Kpa
Extrusion Production Components

This multi-purpose production line is capable of manufacturing PP/PE plastic blind ditches or water seepage boards using various molding designs. The complete line includes:

  • Single screw extruder SJ90
  • Precision plastic fiber extrusion mould
  • Stainless steel cooling tank
  • Heavy-duty haul-off machine

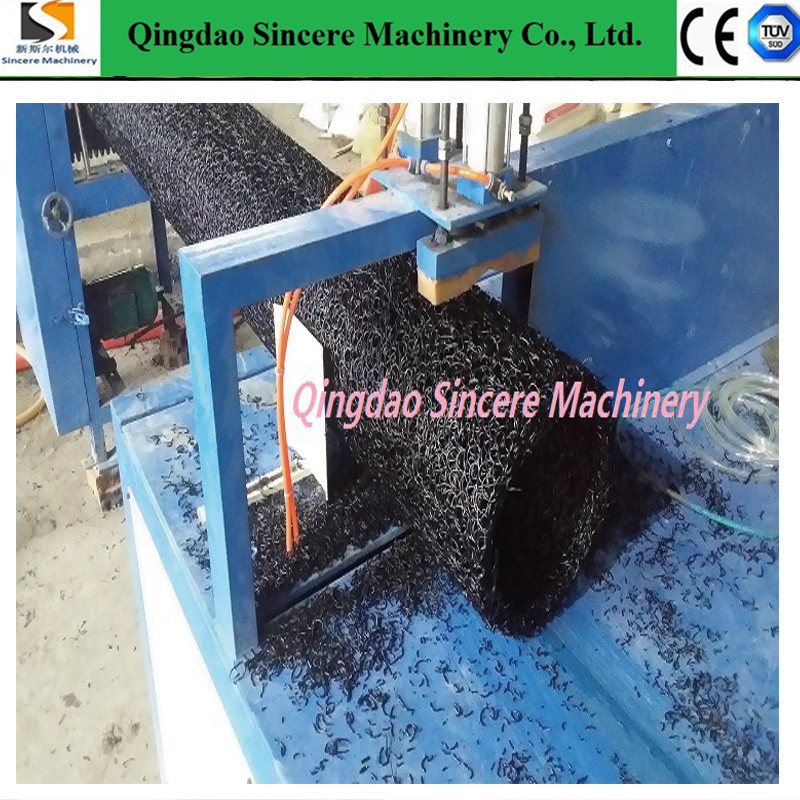

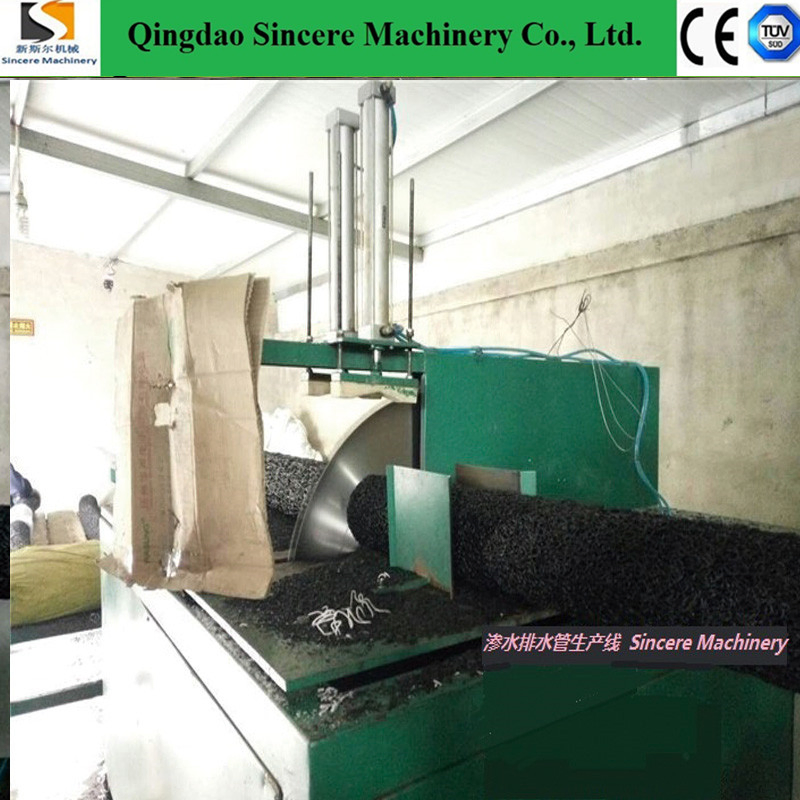

  • Automatic cutting machine
Product & Machine Display

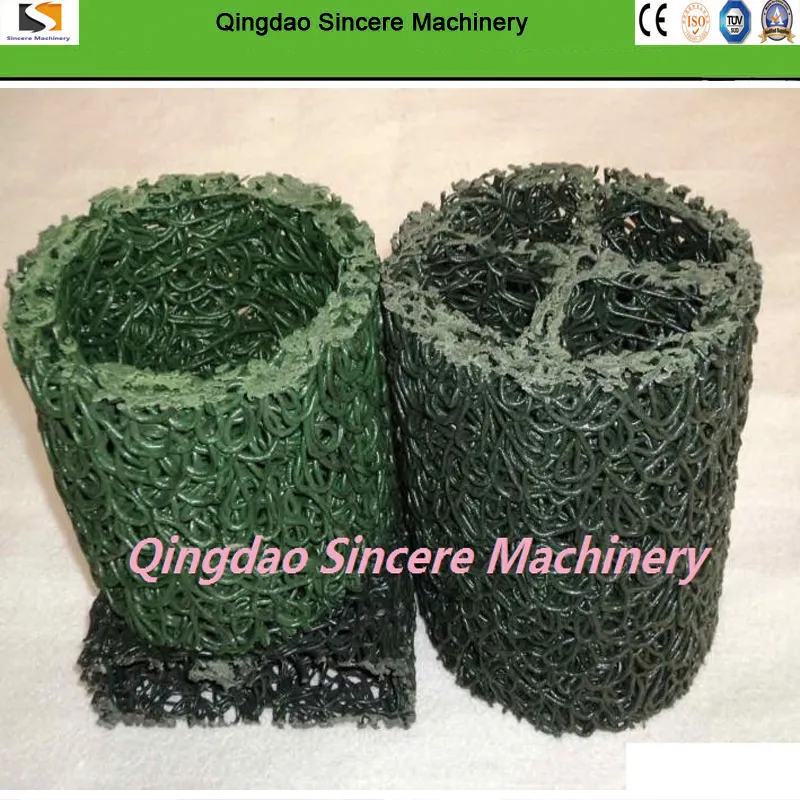

Geocomposite Pipe Detail

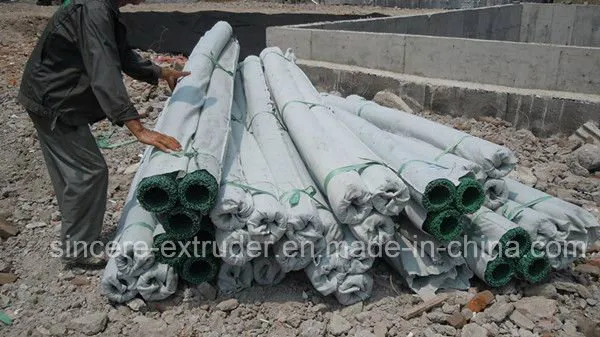

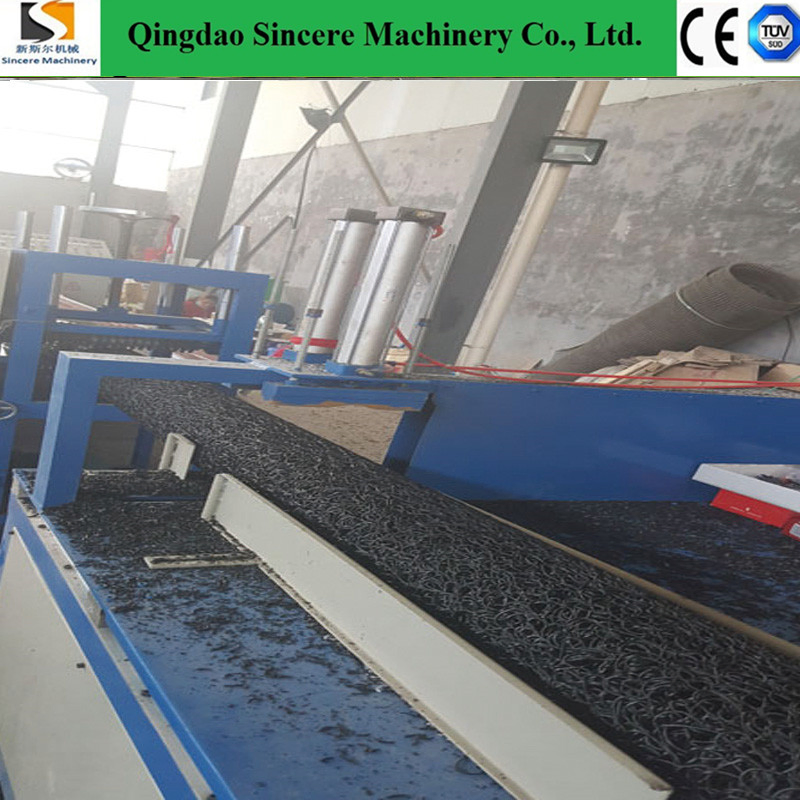

Extrusion Line Overview

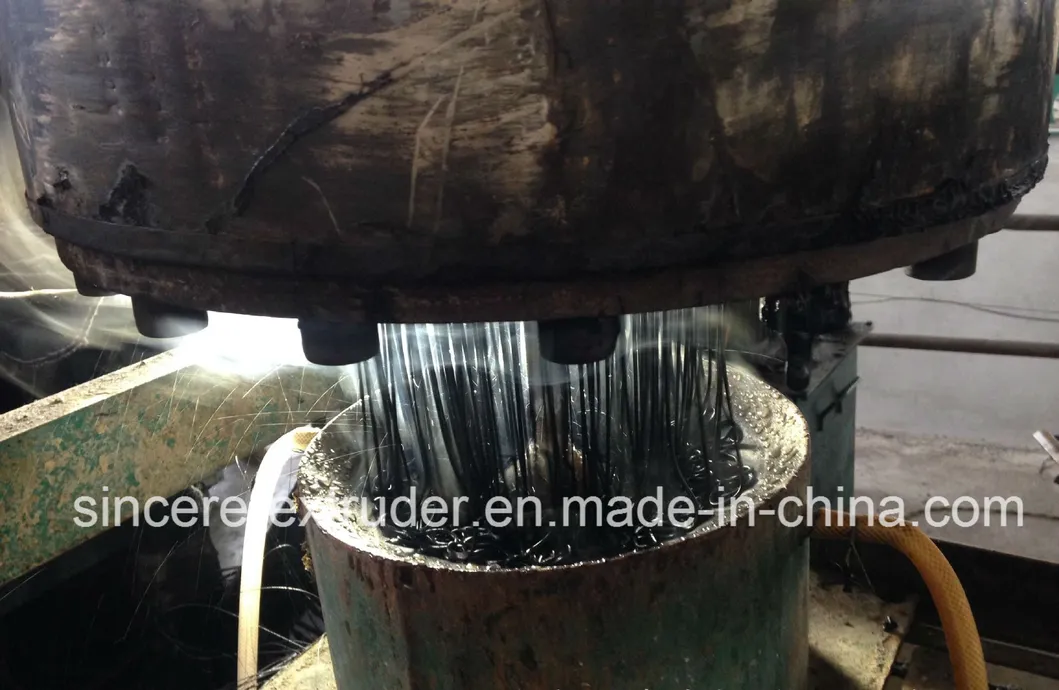

Production Process

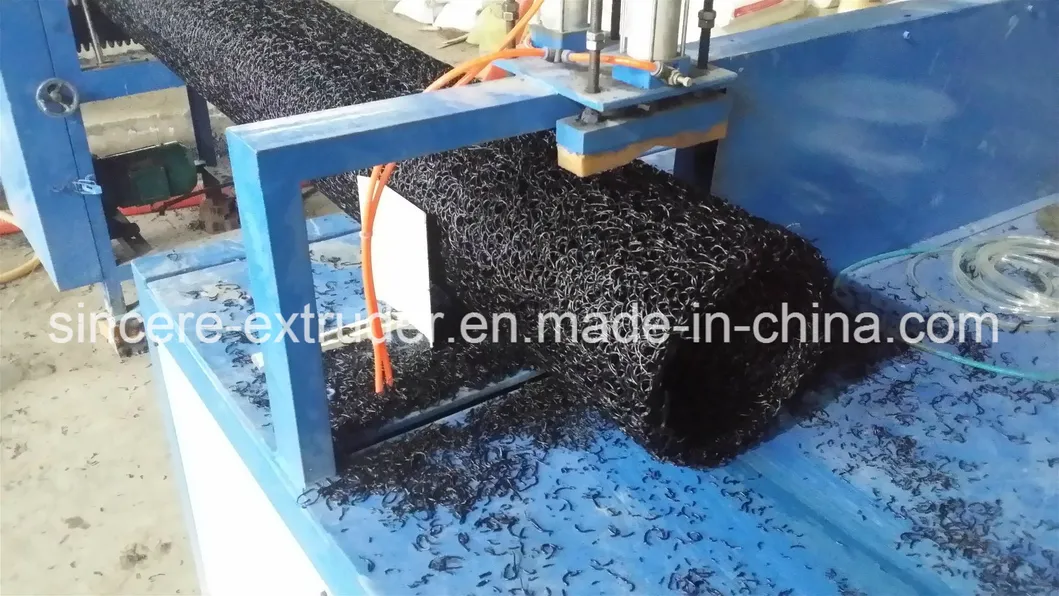

Machine Modules

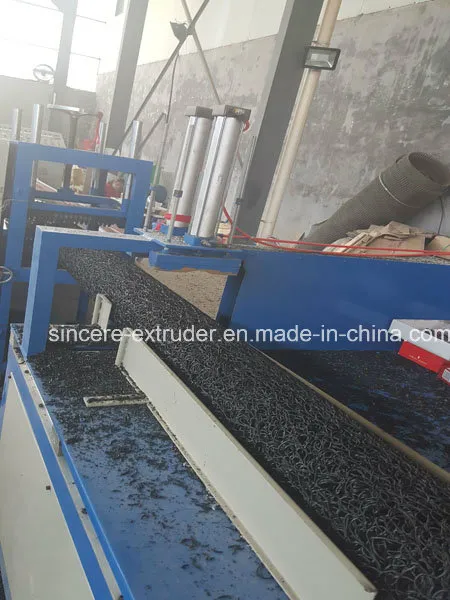

Pipe Samples

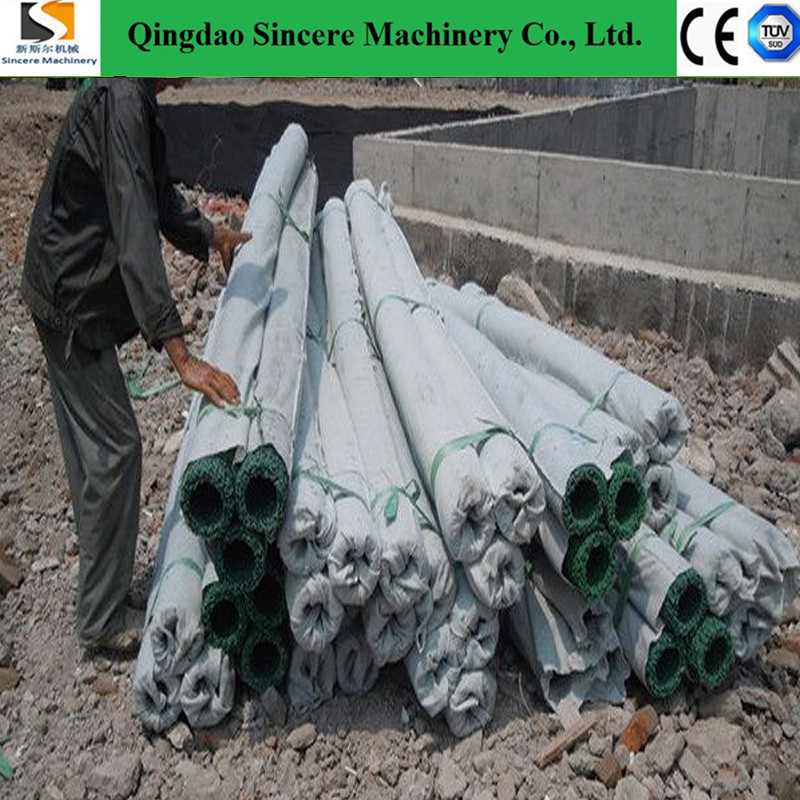

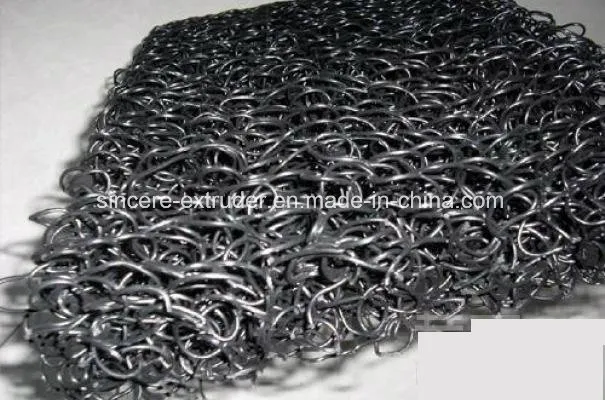

Final Product Application
Frequently Asked Questions
What materials can this extrusion line process?
The machine is specifically designed to process PP, PE, and HDPE plastic materials for geocomposite drainage products.
What is the production output of the SJ90 model?
The SJ90 single screw extruder provides a stable output of approximately 150kg per hour.
How long is the processing and delivery period?
The typical processing period for the machine is 40-60 days, followed by a delivery period of approximately 30 days.
What kind of technical support is provided after purchase?
We offer permanent technical support and can send experienced engineers to your site to handle machine installation and testing.
Can this machine produce different shapes of drainage pipes?
Yes, the production line is multi-purpose. It can produce both rectangular and round shapes or water seepage boards by changing the molding design.
What are the key technical advantages of the geocomposite pipes produced?
The pipes feature high pressure resistance, a high water harvesting rate (65%-75%), and an opening rate of over 8000 per square meter, making them ideal for civil engineering projects.
