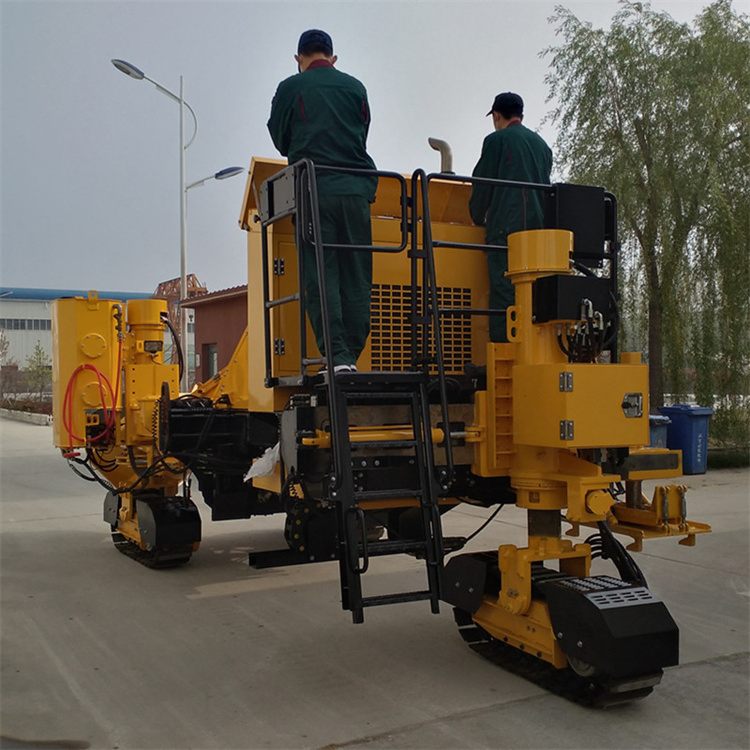

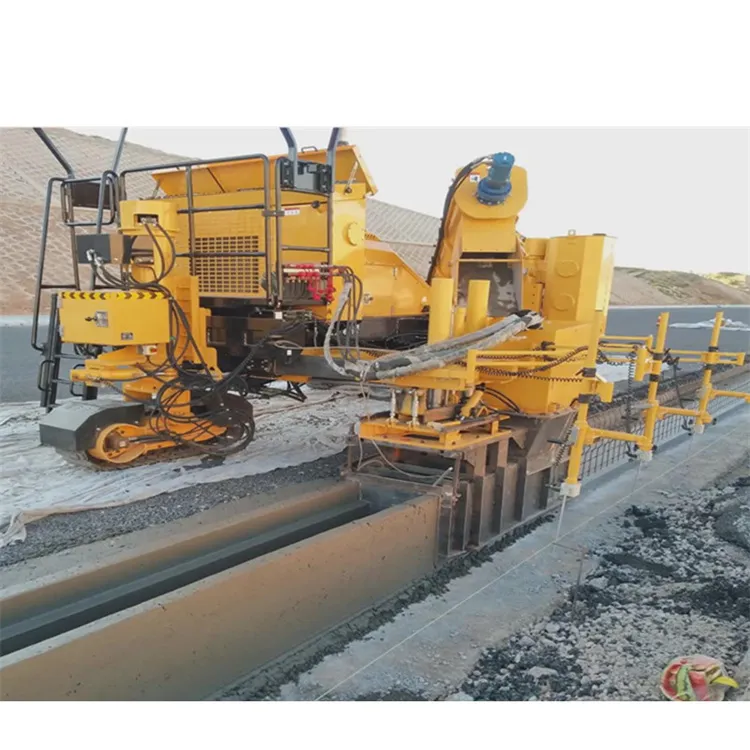

Automatic Asphalt Concrete Curb  Road Paver Machine  For Construction Machines

ℹ️

Basic Information

Model NO.	LDHM41	Type	Paver
Object	Cement Concrete Pavement	Moving Type	Mobile
Mixing Method	Intermittent Compulsory	Automatic Grade	Semi-Automatic
Product Capacity	40～400t/h	Certification	ISO9001: 2000, CE
Condition	New	Working Type	Diesel Engine, liquid cooled, four cylinder
Work Speed	0-15m/Min	Power	97kW/2200rpm
Fuel tank volume	120L	Transport size	6975x2500x3420mm
Package Weight	11, 700kg	HS Code	8474802000

🏗️

Product Description

Automatic Asphalt Concrete Curb Road Paver Machine For Construction

🛠️

Detailed Features

✔With great function controller and automatic calculation, suitable for various projects.
✔Equipped with imported brand CUMMINS diesel engine.
✔Includes imported Danfoss hydraulic variable plunger pump for stepless speed control.

✔Features U.S.A hydra force brand hydraulic control valve for intelligent function management.
✔High frequency and strong power hydraulic rod.
✔Crawler walking mechanism with automatic tension cylinder to increase life of the belt.

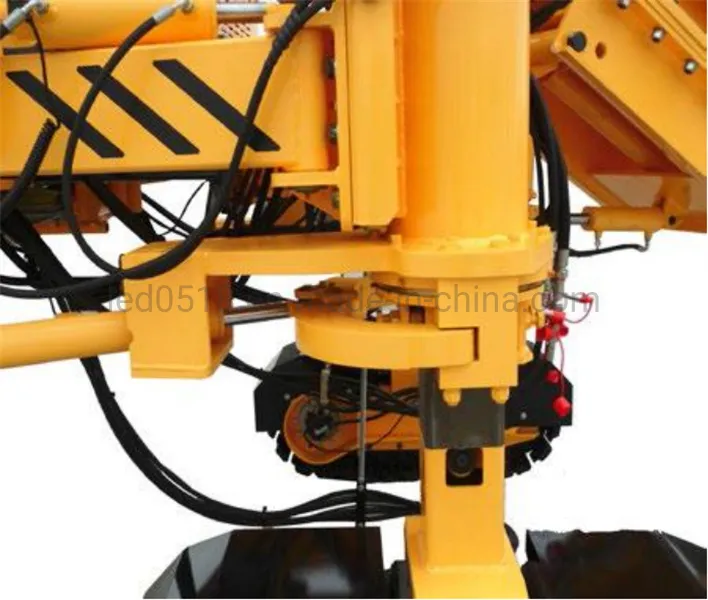

✔Patented steering system, flexible and convenient for operation.

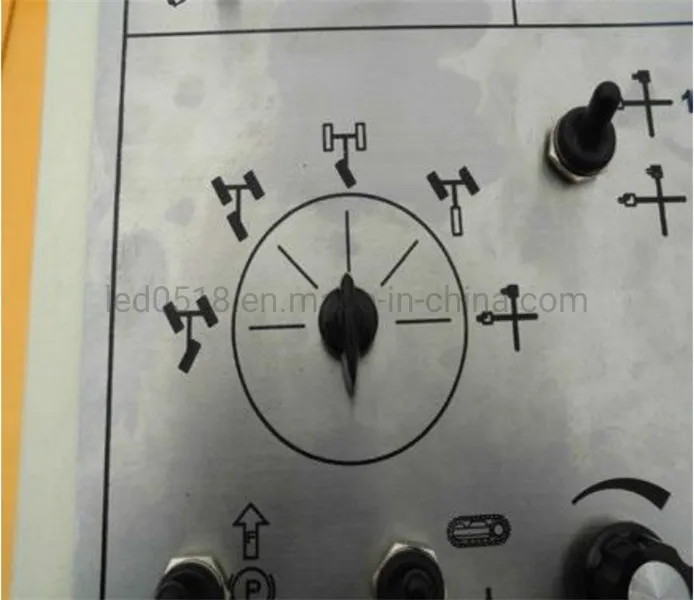

✔Multiple walking modes with quick-switch capability.

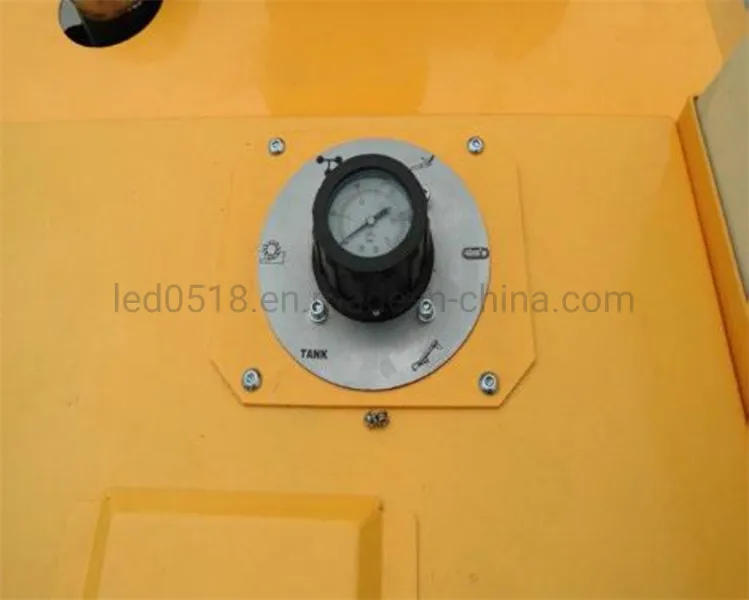

✔Pressure monitors for real-time supervision of each work mechanism.

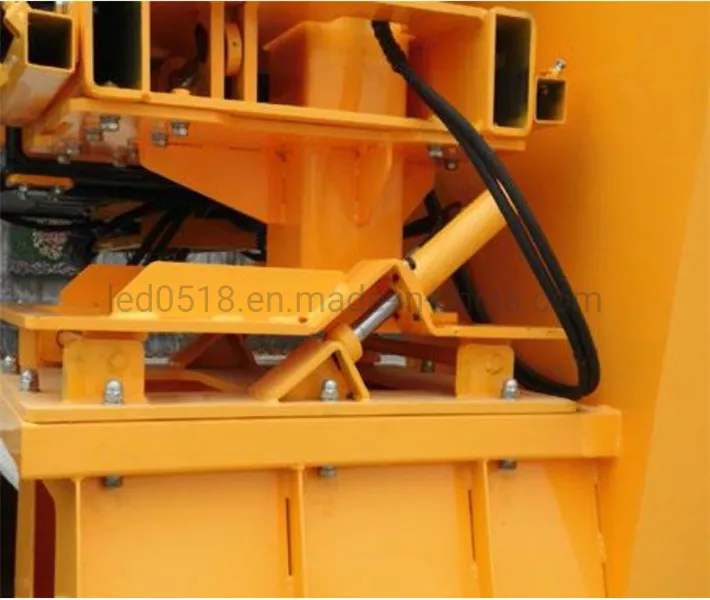

✔Hydraulic mold hanging and dismantling for labor-saving work.

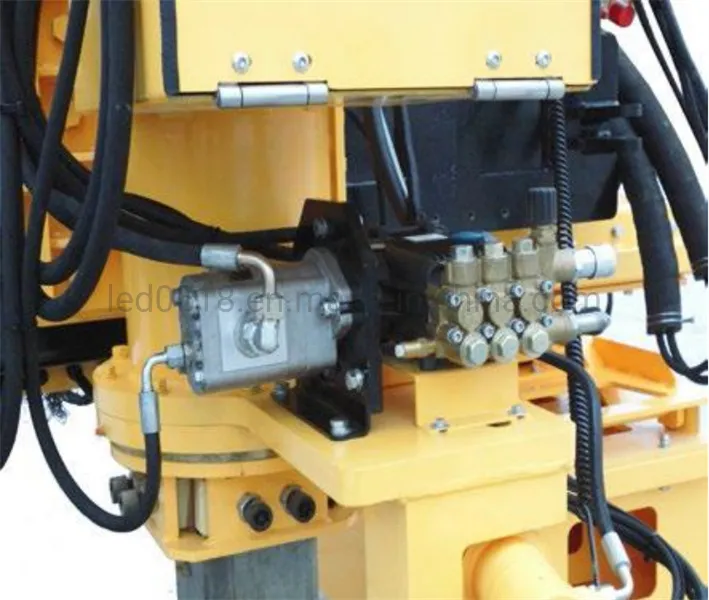

✔Includes high-pressure washing pump for immediate machine cleaning.

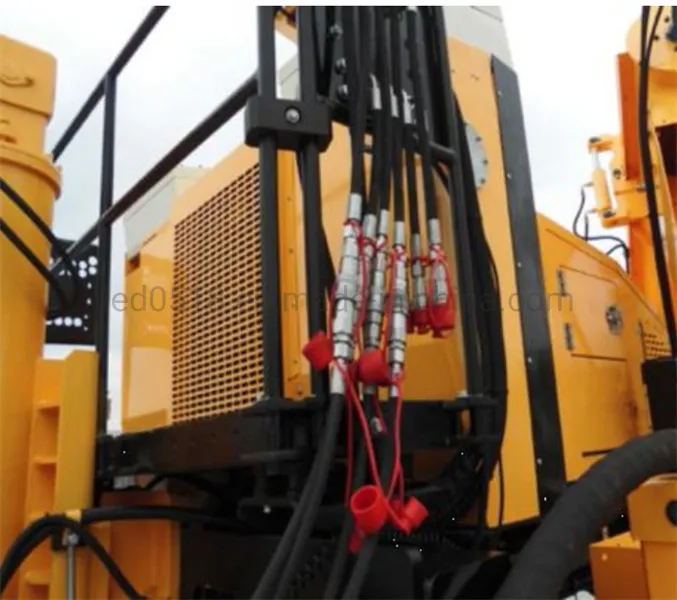

✔Italy brand quick plugs for external hydraulic connections, ensuring no oil leaks.

📊

Product Parameters

Technical Specifications - LDHM41
Engine
Model	Cummins 4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kw/2200rpm
Engine oil volume	9L
Traveling System
Traveling mode	By crawler
Driving mode	By hydraulic
Steering mode	Collaborative/Yaw/Front wheel/Rear wheel/Automatic
Working speed	0-15m/min
Mold Adjustment
Mold traverse adjustment	1000mm
Mold height adjustment	400mm
Max. width/height of mold	1300mm / 1300mm
Volume & Dimensions
Fuel tank / Hydraulic tank	120L / 280L
Transport size	6975x2500x3420mm
Weight	11700kg

🌐

Product Application

Widely used in highway and municipal road curbs molding projects. Perfect for efficient and high-quality construction demands.

🔗

Related Models

LDHM31

LDHM31 Side View

LDHM21

LDHM11

🏢

Quality Assurance

❓

Frequently Asked Questions

What is the primary use of the LDHM41 paver?

The LDHM41 is specifically designed for molding highway and municipal road curbs using cement concrete or asphalt.

What type of engine powers this machine?

It is powered by a high-performance CUMMINS 4BTA 3.9 diesel engine, which is liquid-cooled and features a four-cylinder design for reliable power.

What are the available steering modes?

The machine features a patented steering system with multiple modes, including Collaborative, Yaw, Front wheel, Rear wheel, and fully Automatic steering.

Is the mold size adjustable for different projects?

Yes, the mold height can be adjusted up to 400mm and traverse adjusted up to 1000mm, with a maximum mold width and height of 1300mm.

How is the machine cleaned after work?

It comes equipped with a hydraulic high-pressure washing pump, allowing for easy and efficient cleaning of the machine at the construction site.

Does the machine offer variable speed control?

Yes, thanks to the imported Danfoss hydraulic variable plunger pump, the machine can be driven at a stepless speed, with a working speed range of 0-15m/min.
