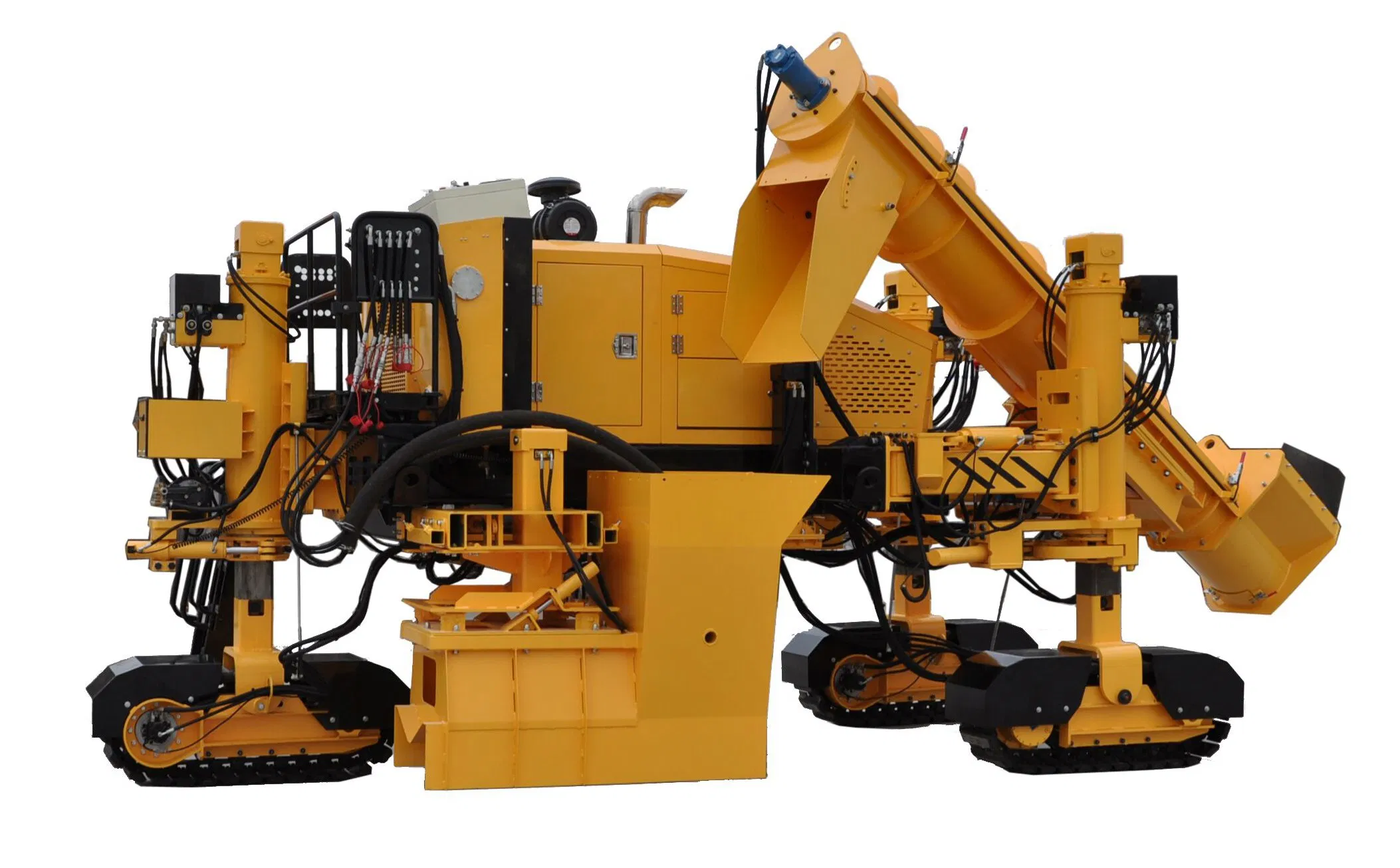

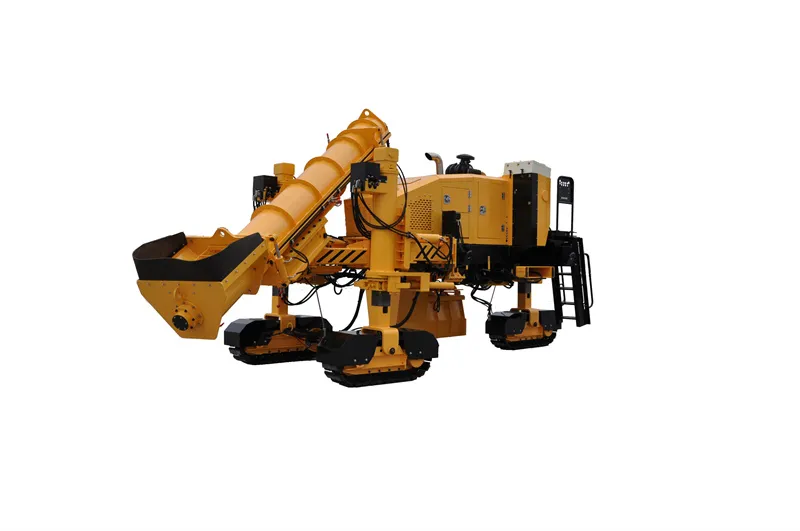

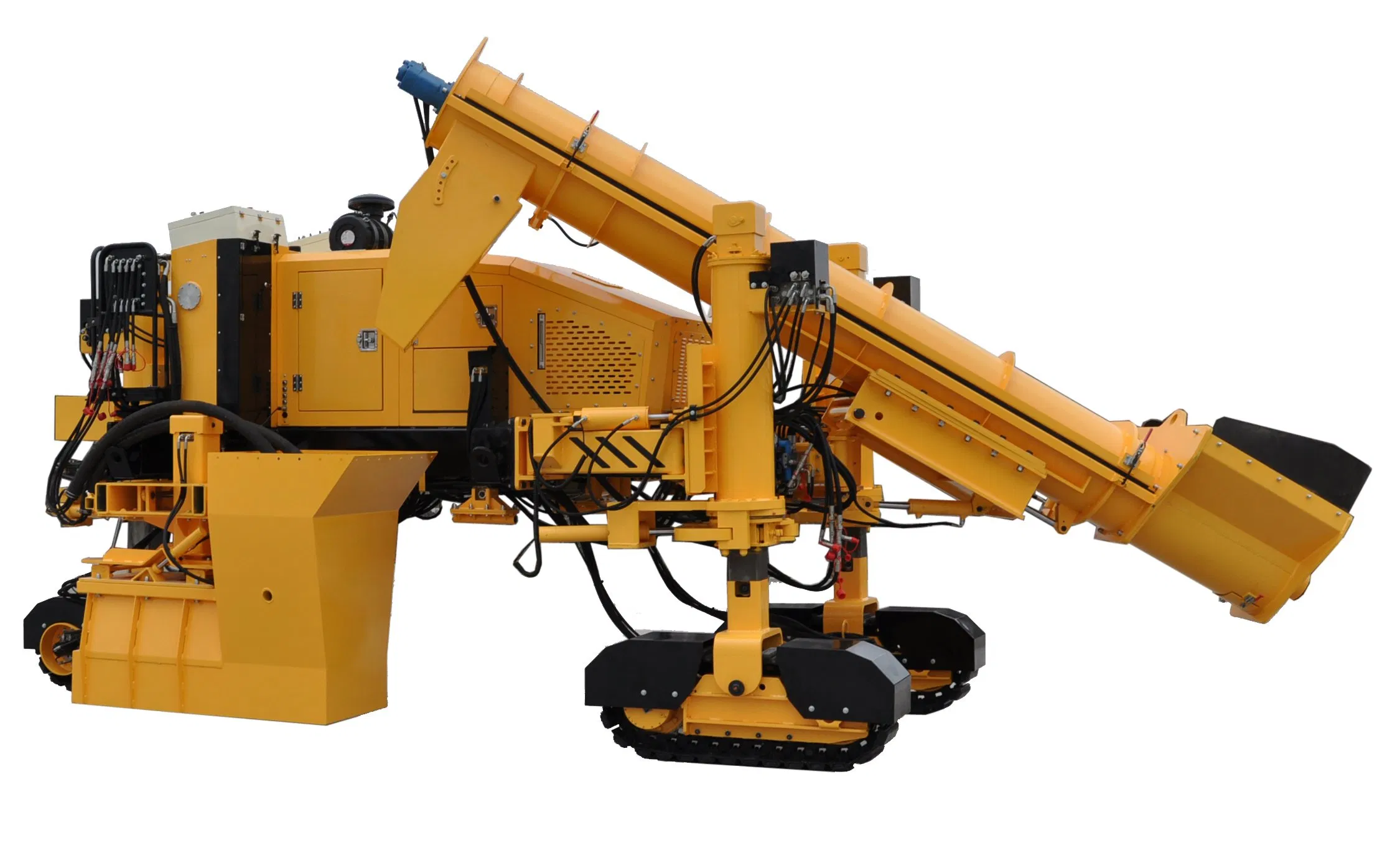

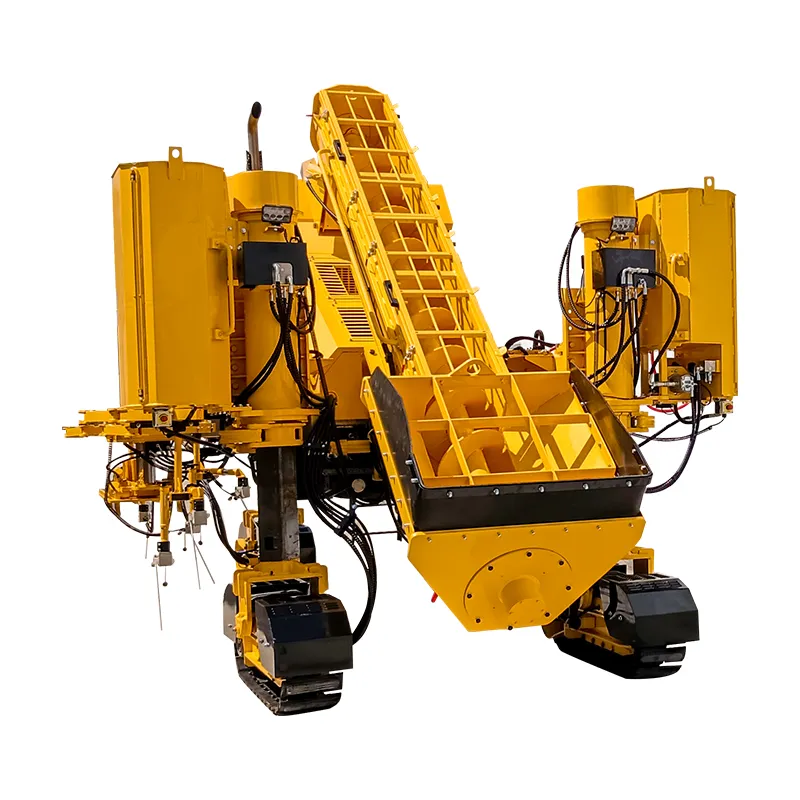

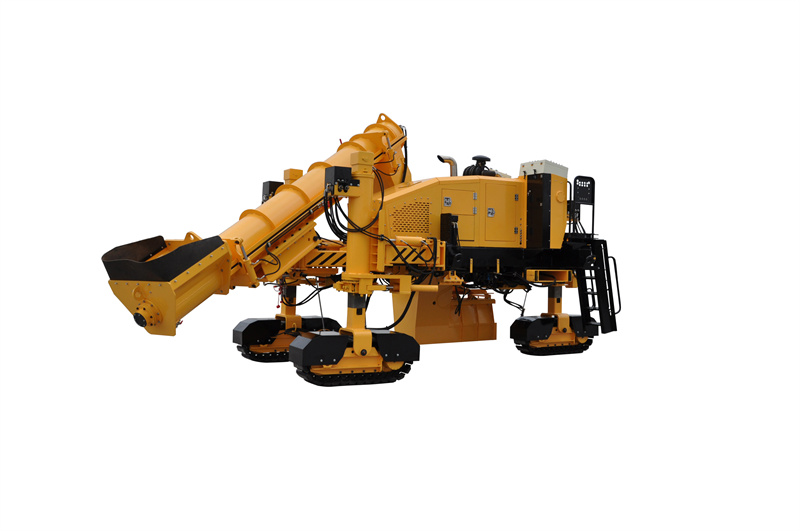

Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
1 / 5
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine

Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.LDHM41
TypePaver
ObjectCement Concrete Pavement
Moving TypeMobile
Mixing MethodIntermittent Compulsory
Automatic GradeSemi-Automatic
Product Capacity40～400t/h
CertificationISO9001: 2000, CE
ConditionNew
Working TypeDiesel Engine, liquid cooled, four cylinder
Work Speed0-15m/Min
Power97kW/2200rpm
Fuel tank volume120L
Transport size6975x2500x3420mm
Package Weight11,700kg
Product Description
Concrete Slip-form Paver Machine Barrier Wall Slipforming Paving Laying Machine
Concrete Slip-form Paver Machine
Barrier Wall Slipforming
Paving Laying Machine
Concrete Machine Detail
Detailed Photos
Photo 1
Photo 2
Photo 3
✔ 1. With great function controller, and automatic calculation, suitable for kinds of projects
✔ 2. With imported brand CUMMINS diesel engine
✔ 3. With imported Danfoss hydraulic variable plunger pump, drives machine in stepless speed
Photo 4
Photo 5
Photo 6
✔ 4. With U.S.A hydra force brand hydraulic control valve, to control each function intelligently
✔ 5. With hydraulic rod, high frequency, and strong power
✔ 6. The crawler walking mechanism with automatic tension cylinder increases life of the crawler belt
Photo 7
Photo 8
Photo 9

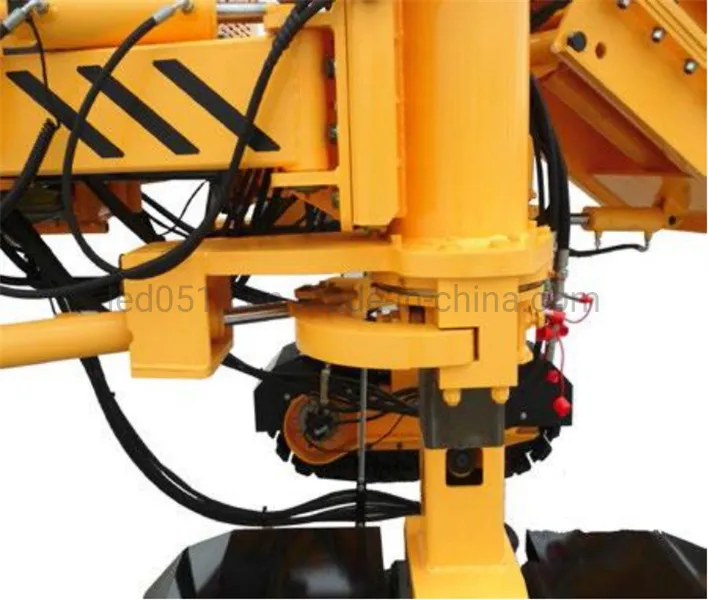

✔ 7. With patented steering system, flexible and convenient

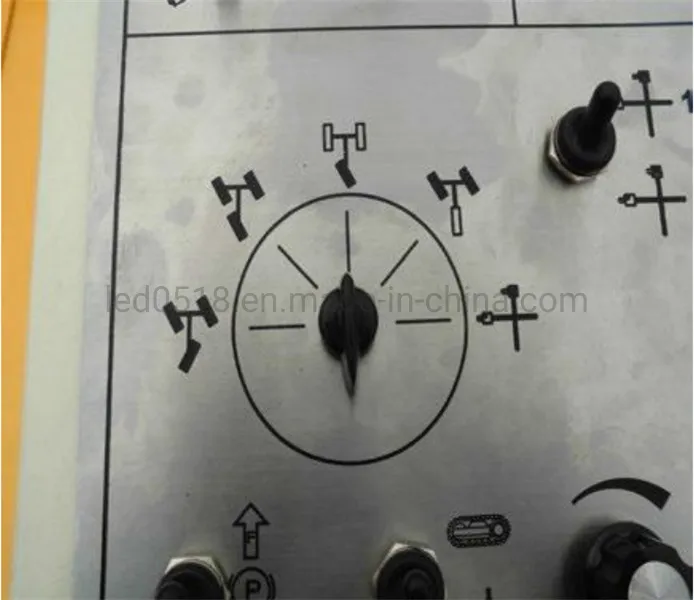

✔ 8. With kinds of walking modes that can quickly switch

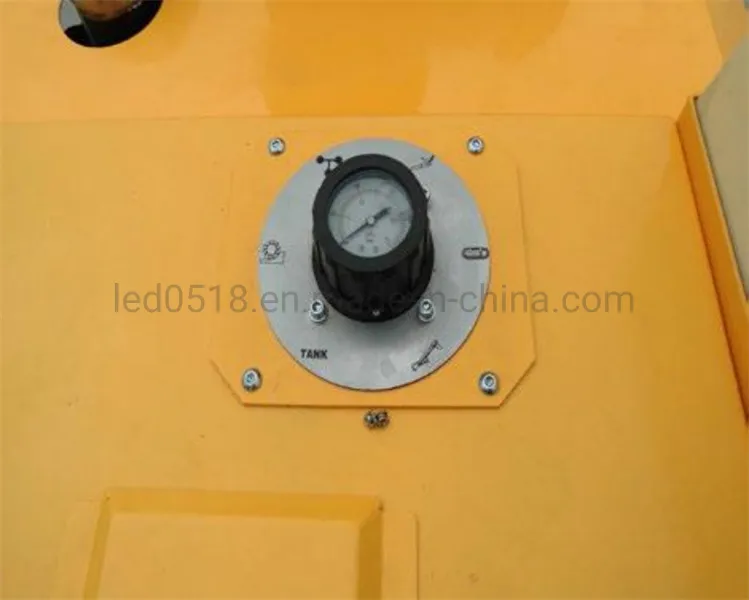

✔ 9. With pressure monitors for each work mechanism to supervise in real time
Photo 10
Photo 11
Photo 12

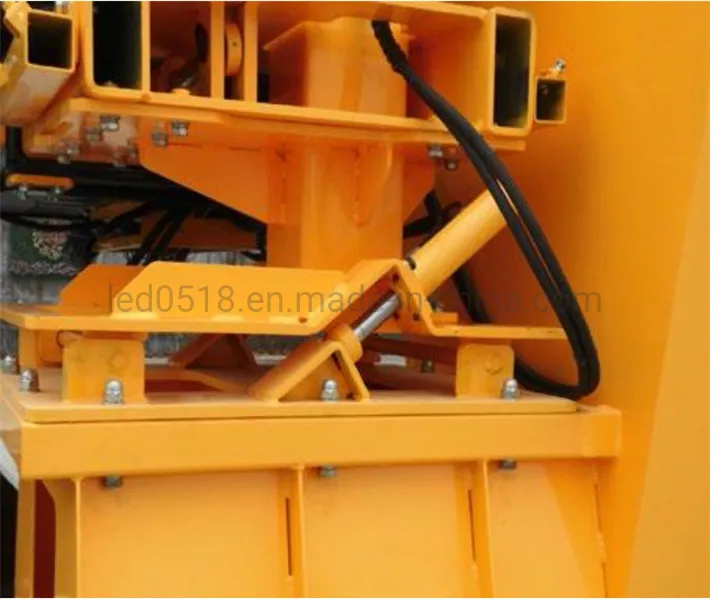

✔ 10. The mold hanging, dismantle hydraulically, easy work and labor-saving

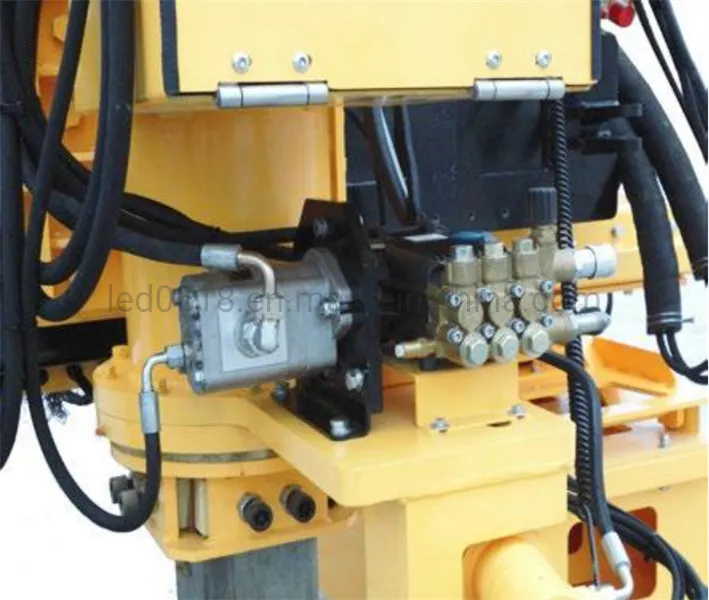

✔ 11. With hydraulic high pressure washing pump can clean the machine any time

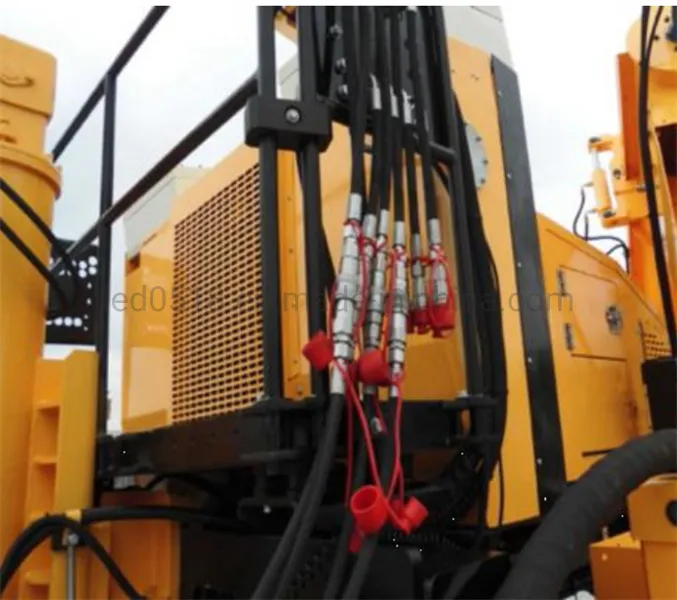

✔ 12. With Italy brand quick plugs for external connections of hydraulic powers, smooth insertion, and extraction, no oil leak
Product Parameters
ModelLDHM41
Engine
ModelCummins 4BTA 3.9
TypeDiesel Engine, liquid cooled, four cylinder
Power97kw/2200rpm
Engine oil volume9L
Traveling system
Traveling modeBy crawler
Driving modeBy hydraulic
Steering modeCollaborative / Yaw / Front wheel / Rear wheel / Automatic
Traveling speed0-30m/min
Working speed0-15m/min
Mold
Mold traverse adjustment1000mm
Mold height adjustment400mm
Max. height of the mold1300mm
Max. width of the mold1300mm
Vibrating rod
Hydraulic vibrating rod port4
Volume
Fuel tank volume120L
Hydraulic tank volume280L
Water tank volume120L
Machine height adjustment
Hydraulic height adjustment980mm
Mechanical height adjustment300mm
Dimension
Transport size6975x2500x3420mm
Weight11700kg
Product Application

Widely used in highway and municipal road curbs molding.

Application 1
Application 2
Application 3
Application 4
Related Products

LDHM31

LDHM31 Model
LDHM31 View

LDHM21 & LDHM11

LDHM21 Model
LDHM11 Model
Company Profile
Production Process
Frequently Asked Questions
1. What is the main application of the LDHM41 Paver?
The LDHM41 is a specialized concrete slip-form paver widely used for molding barrier walls and highway or municipal road curbs with high efficiency.
2. What type of engine does this machine use?
It is equipped with a high-performance Cummins 4BTA 3.9 diesel engine, which is liquid-cooled and features a four-cylinder design for reliable power.
3. How fast can the LDHM41 operate?
The machine offers a traveling speed of 0-30m/min and a dedicated working speed range of 0-15m/min, allowing for precise control during paving.
4. What are the adjustment capabilities for the molds?
The system allows for a mold traverse adjustment of 1000mm and a height adjustment of 400mm. The maximum height and width for the mold are both 1300mm.
5. Does the machine support automatic steering?
Yes, it features a versatile steering system with multiple modes, including Collaborative, Yaw, Front wheel, Rear wheel, and an Automatic mode for convenience.
6. How is the machine cleaned after use?
The LDHM41 comes with an integrated hydraulic high-pressure washing pump, enabling operators to clean the machine thoroughly at any time on the job site.
