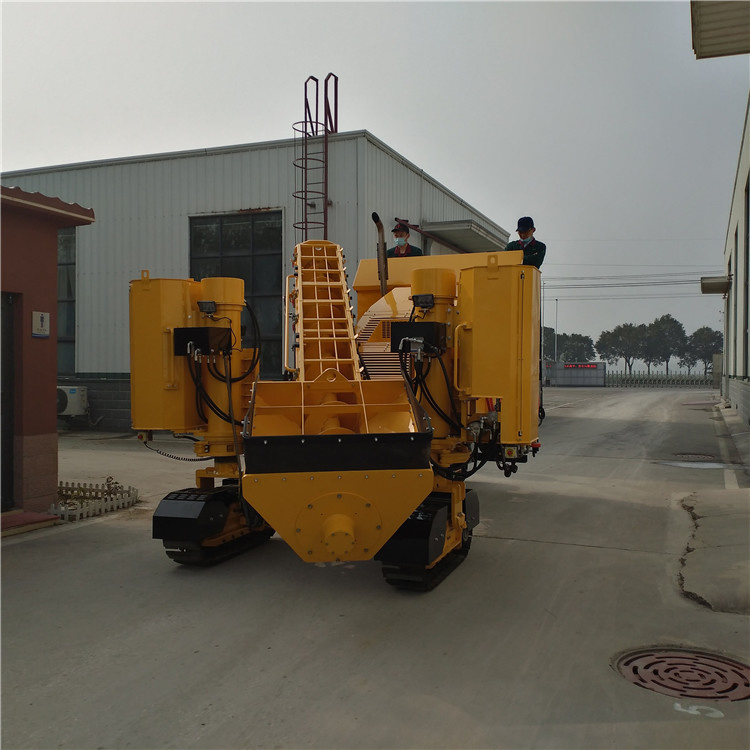

Cement Borders Paving Laying Machine Slip-form Paver Block Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	LDHM41
Type	Paver
Object	Cement Concrete Pavement
Moving Type	Mobile
Mixing Method	Intermittent Compulsory
Automatic Grade	Semi-Automatic
Product Capacity	40～400t/h
Certification	ISO9001: 2000, CE
Condition	New
Work Speed	0-15m/Min
Power	97kW/2200rpm
Fuel tank volume	120L
Transport size	6975x2500x3420mm
Package Weight	11,700kg

Product Description

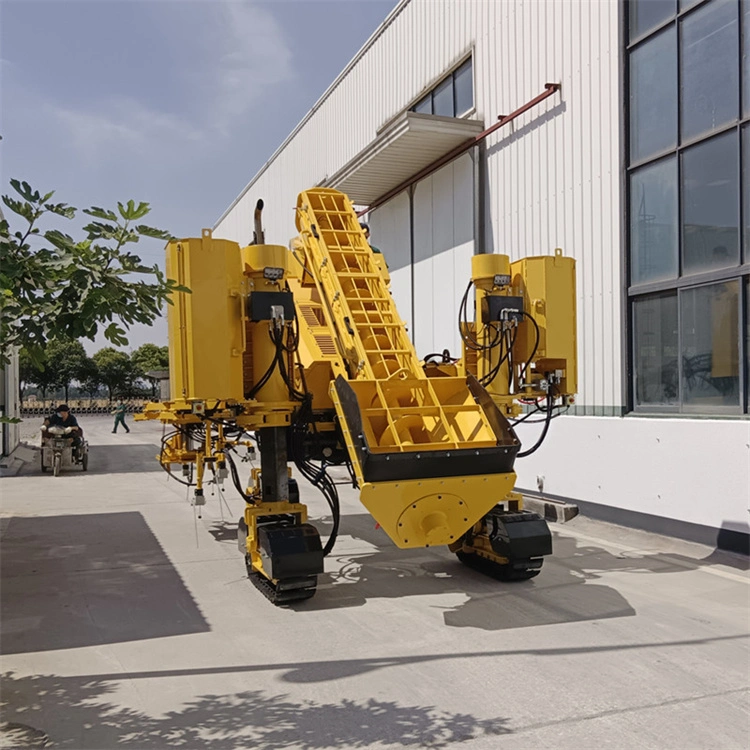

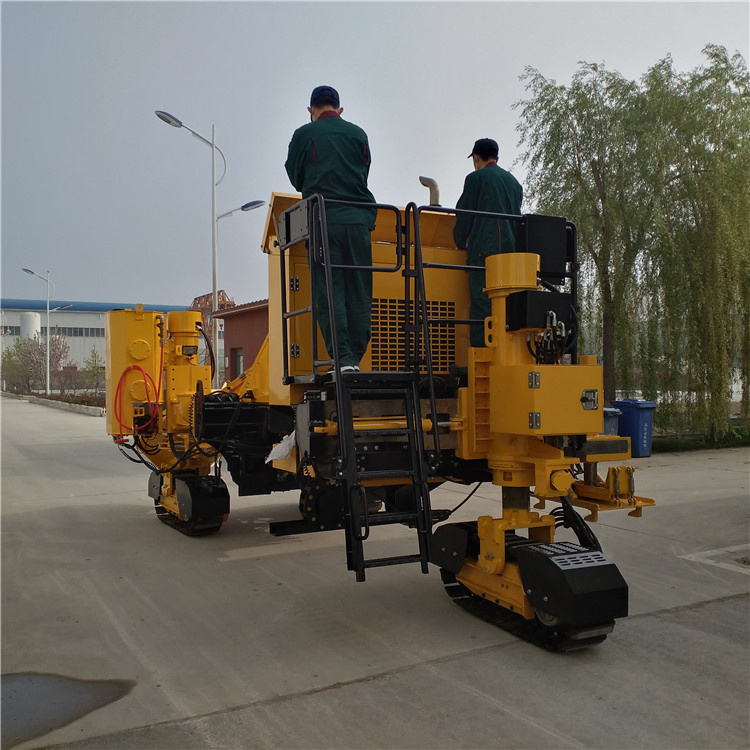

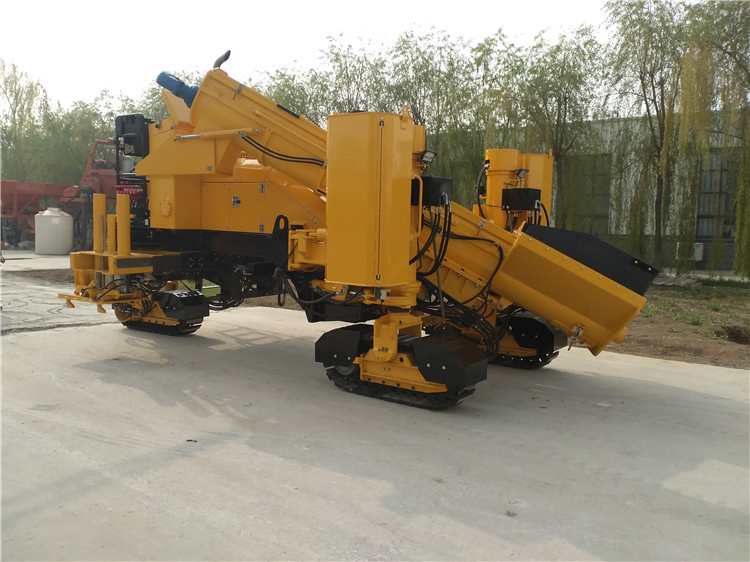

Cement Borders Paving Laying Machine Slip-form Paver Block Machine

Key Features & Advantages

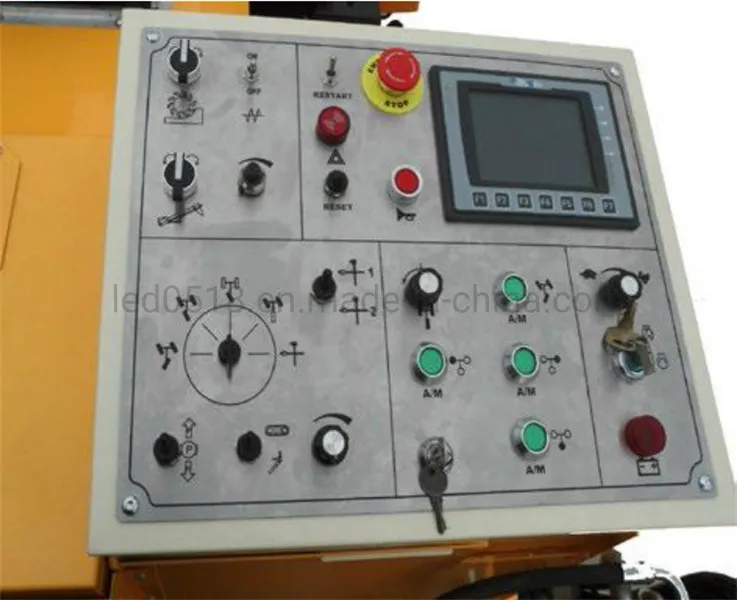

✔ 1. With great function controller and automatic calculation, suitable for kinds of projects.

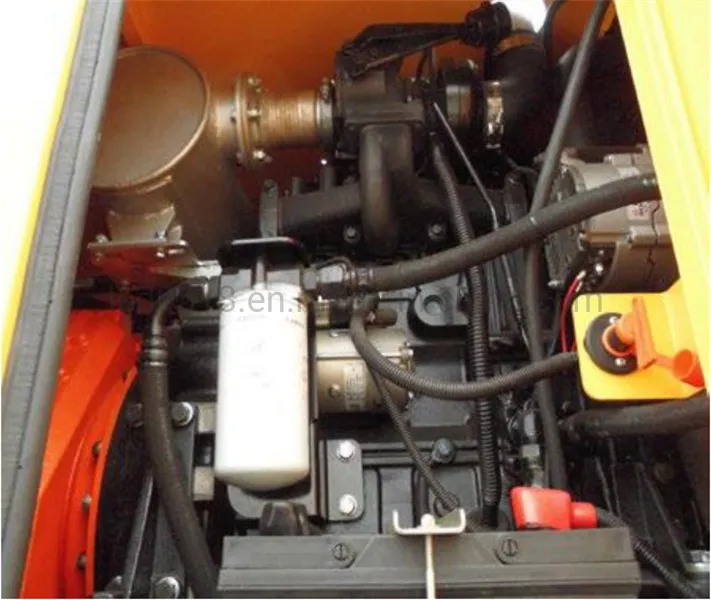

✔ 2. Equipped with imported brand diesel engine for reliable power.

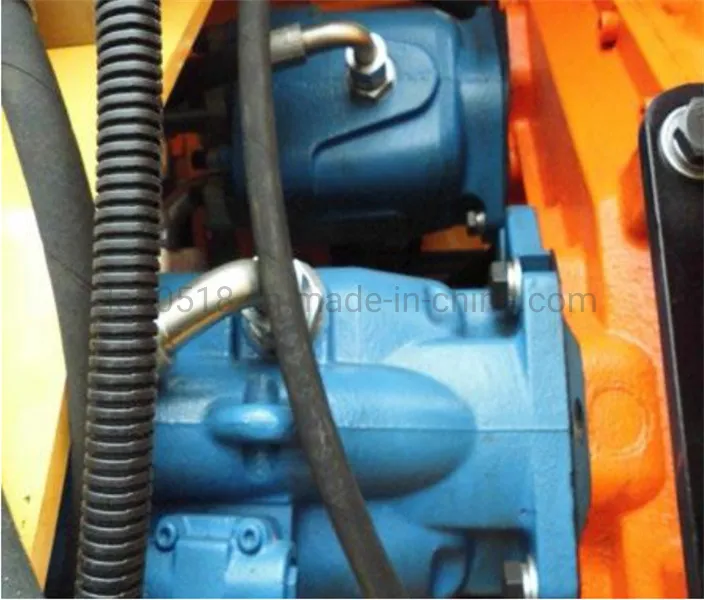

✔ 3. With imported hydraulic variable plunger pump, drives machine in stepless speed.

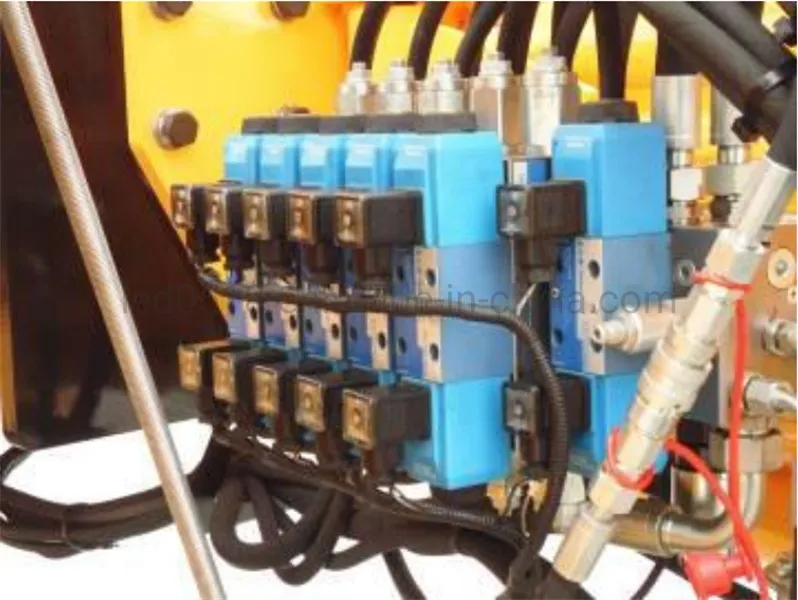

✔ 4. Uses premium brand hydraulic control valve to control each function intelligently.

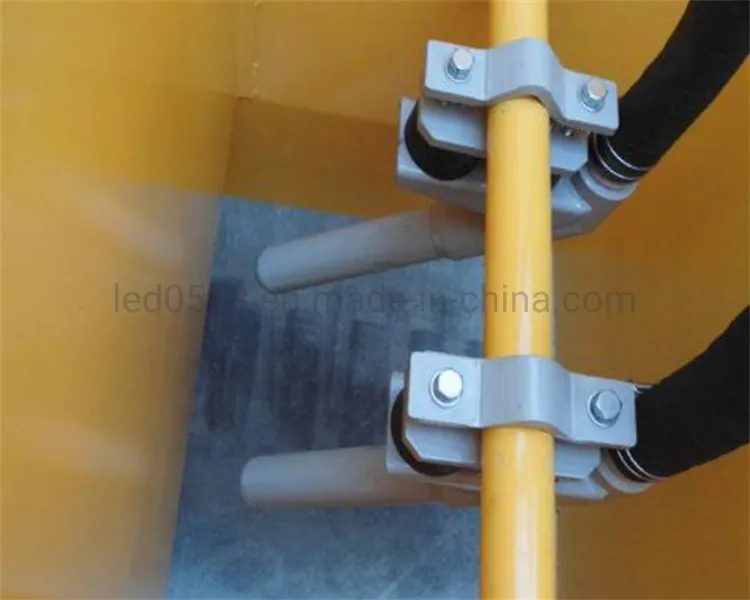

✔ 5. With hydraulic rod, high frequency, and strong power for efficient paving.

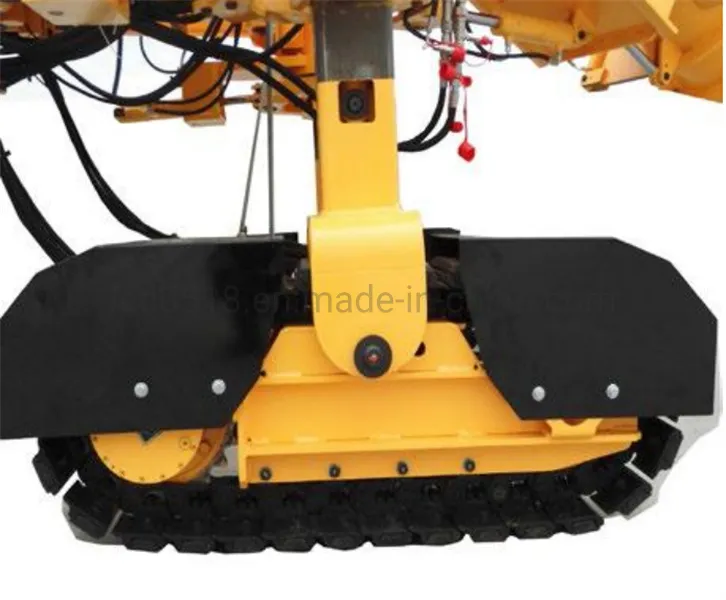

✔ 6. The crawler walking mechanism with automatic tension cylinder increases life of the belt.

✔ 7. Features a patented steering system that is flexible and convenient.

✔ 8. Multiple walking modes that can be switched quickly for different terrains.

✔ 9. Pressure monitors for each work mechanism to supervise operations in real time.

✔ 10. Hydraulically dismantled mold hanging for easy work and labor-saving operation.

✔ 11. Built-in hydraulic high-pressure washing pump for easy cleaning.

✔ 12. Quick plugs for external connections ensure no oil leak and smooth insertion.

Technical Parameters

Engine System
Model	4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kw/2200rpm
Engine oil volume	9L
Traveling System
Traveling mode	By crawler
Driving mode	By hydraulic
Steering mode	Collaborative/Yaw/Front wheel/Rear wheel/Automatic
Traveling speed	0-30m/min
Working speed	0-15m/min

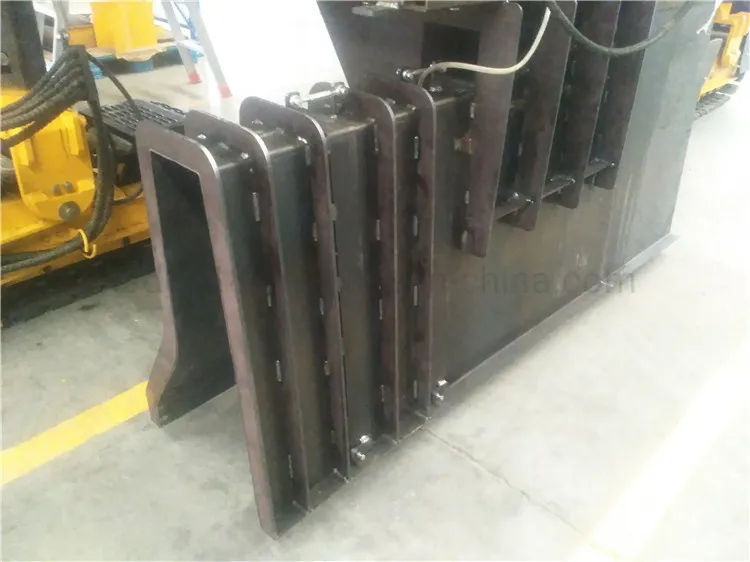

Mold & Vibration
Mold traverse adjustment	1000mm
Mold height adjustment	400mm
Max. height of the mold	1300mm
Max. width of the mold	1300mm
Hydraulic vibrating rod port	4
Capacities & Dimensions
Fuel tank volume	120L
Hydraulic tank volume	280L
Water tank volume	120L
Transport size	6975x2500x3420mm
Weight	11700kg

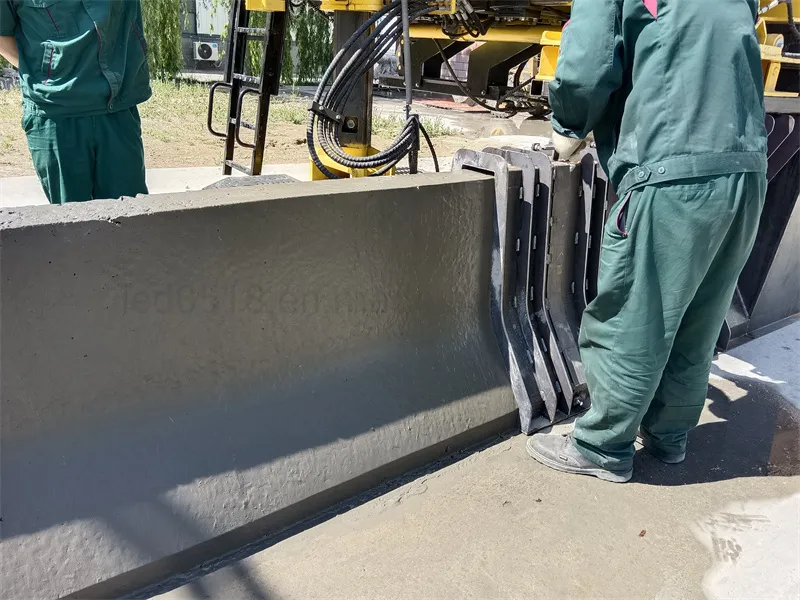

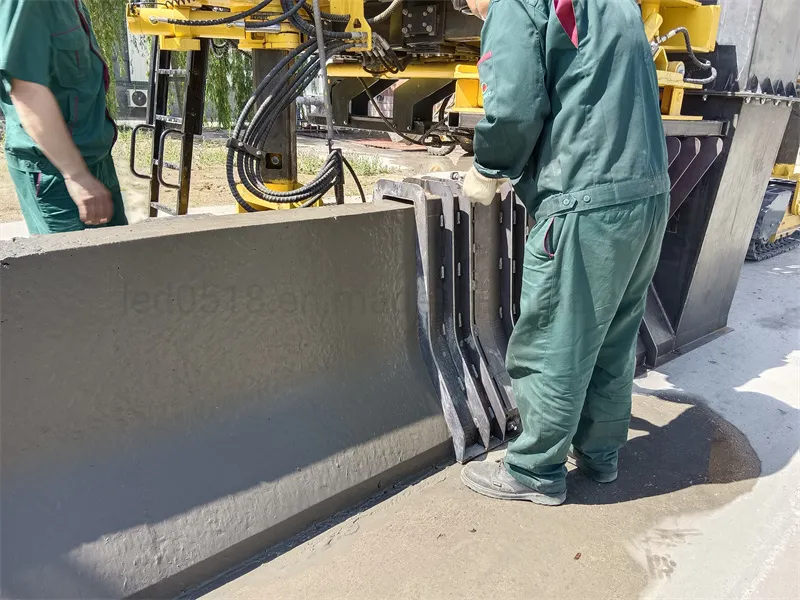

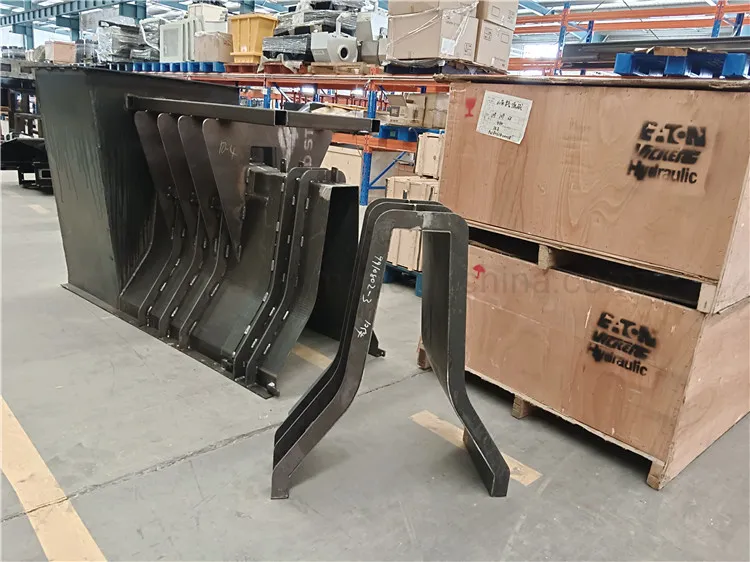

Product Application

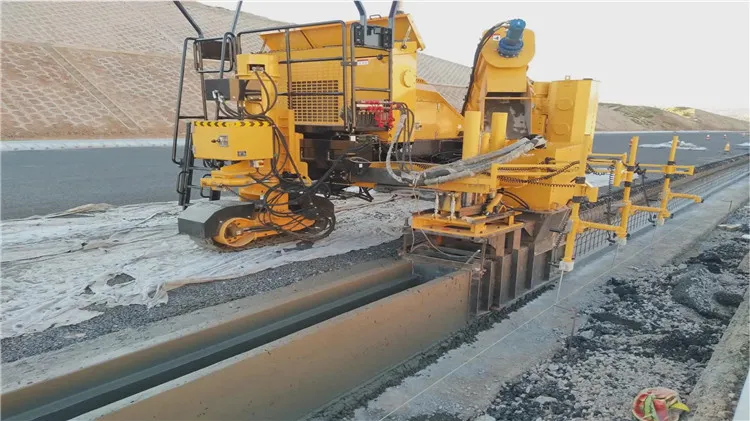

Widely used in highway and municipal road curbs molding projects, providing efficient and high-quality concrete borders.

Related Models

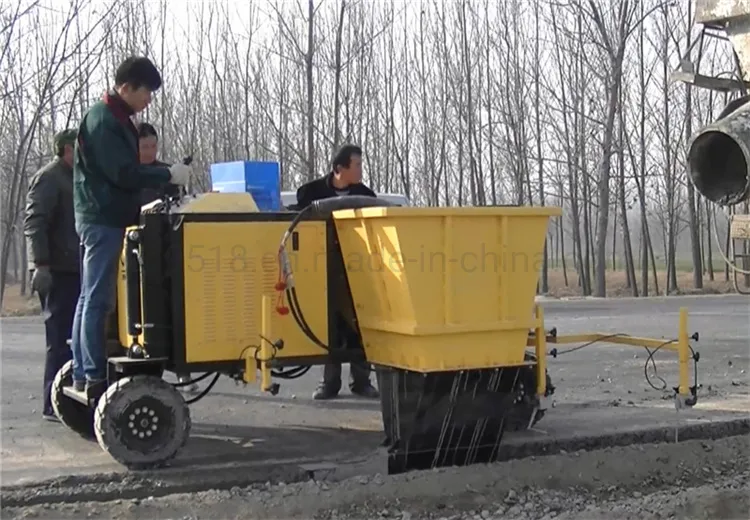

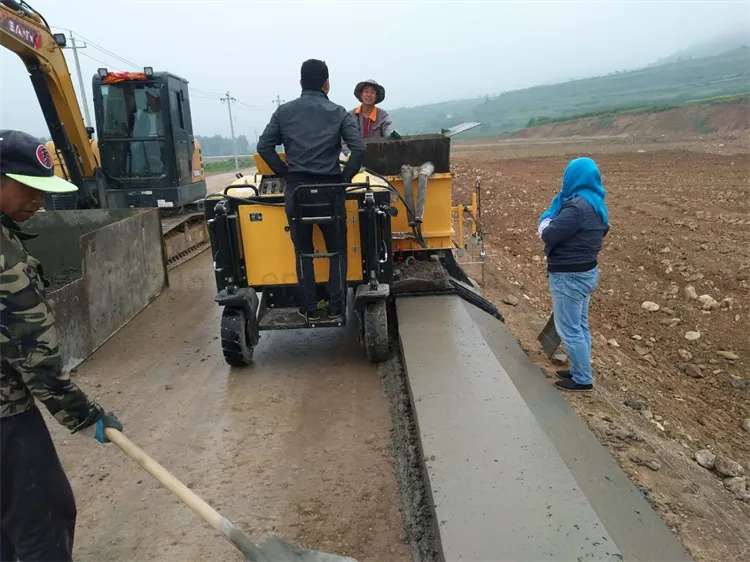

LDHM31

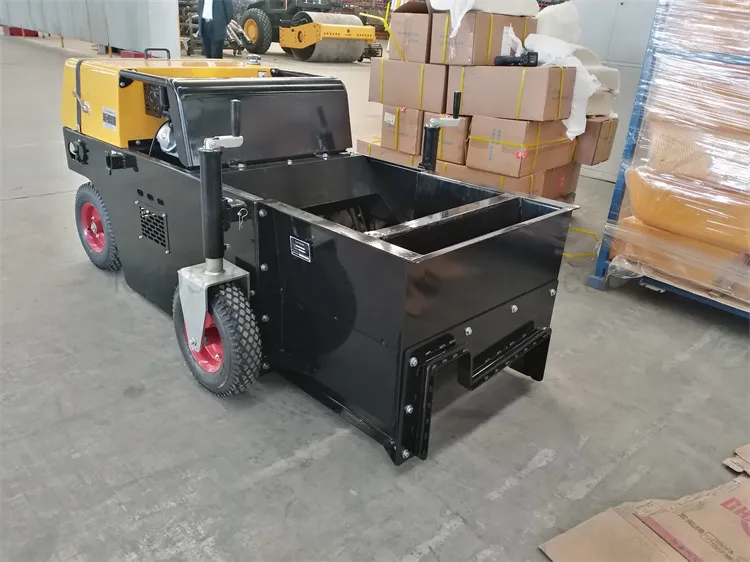

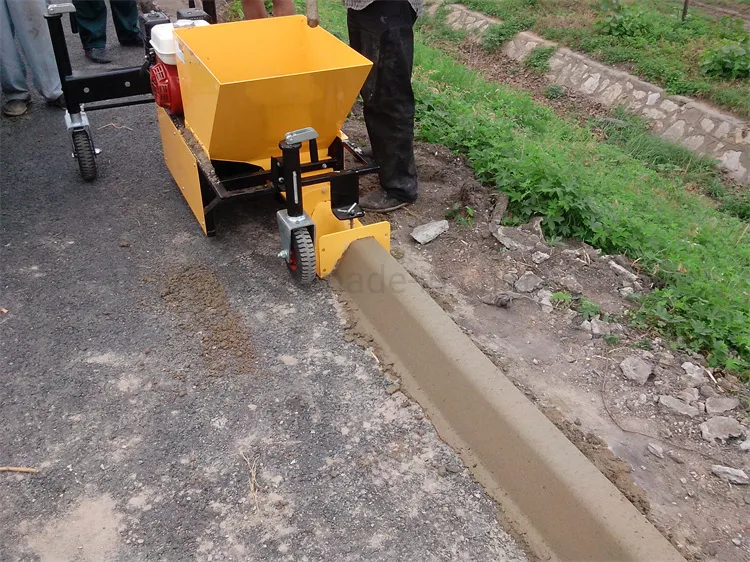

LDHM21 & LDHM11

Production Excellence

Frequently Asked Questions

Q1: What is the maximum paving speed of the LDHM41?

A: The working speed of the LDHM41 ranges from 0 to 15 meters per minute, depending on the project requirements and concrete consistency.

Q2: Can the machine handle different curb sizes?

A: Yes, the mold can be adjusted or replaced according to specific project needs, with a maximum mold width and height of 1300mm.

Q3: How is the machine steered during the paving process?

A: The machine features multiple steering modes including Collaborative, Yaw, Front wheel, Rear wheel, and an Automatic mode for precision tracking.

Q4: What type of engine powers this slip-form paver?

A: It is powered by a high-performance four-cylinder, liquid-cooled diesel engine with 97kW of power at 2200rpm.

Q5: Is the cleaning process difficult after operation?

A: No, the machine is equipped with an integrated hydraulic high-pressure washing pump, allowing for easy and thorough cleaning at any time.

Q6: What is the benefit of the crawler walking mechanism?

A: The crawler mechanism provides superior stability and traction on various terrains. The automatic tension cylinder ensures optimal belt tension, extending the lifespan of the tracks.
