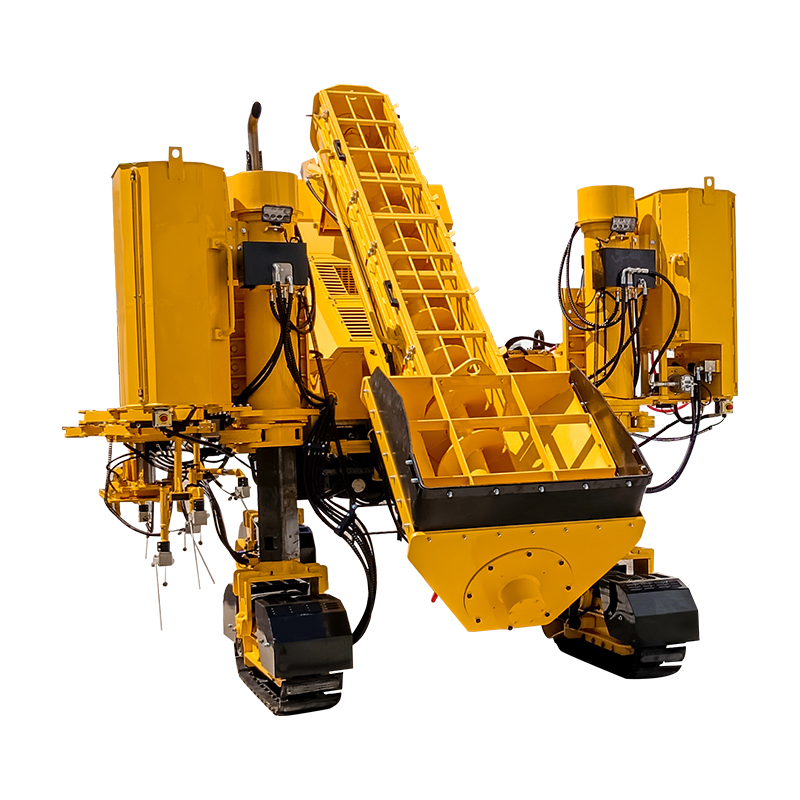

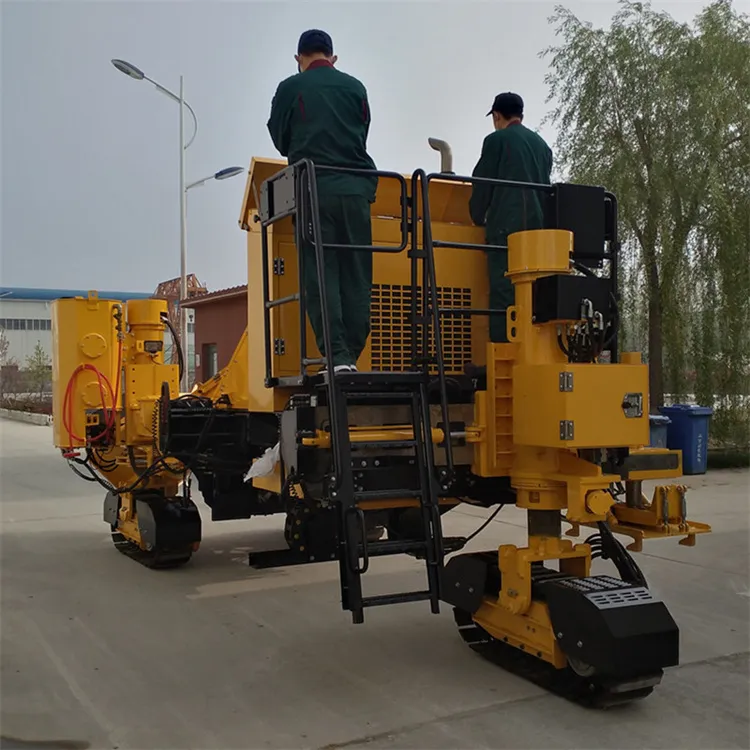

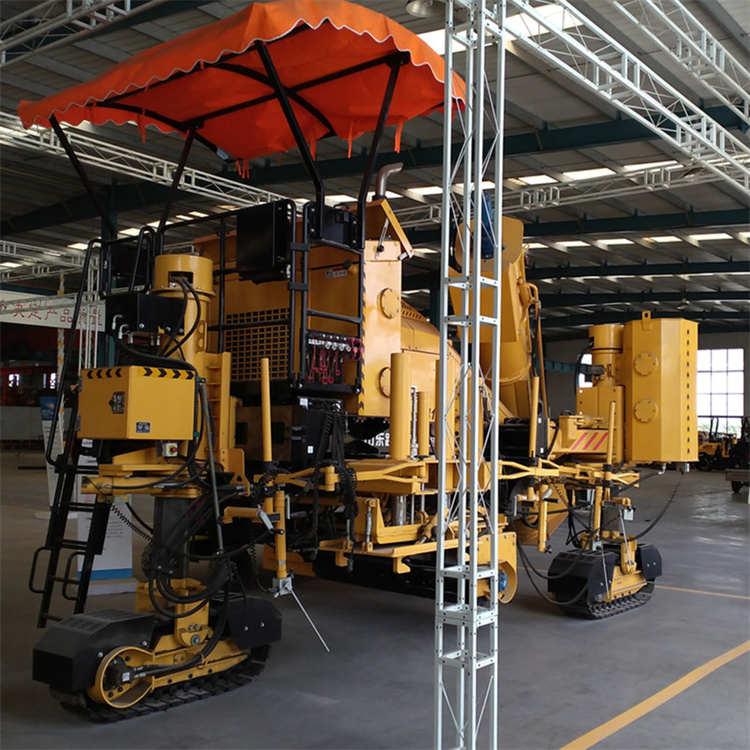

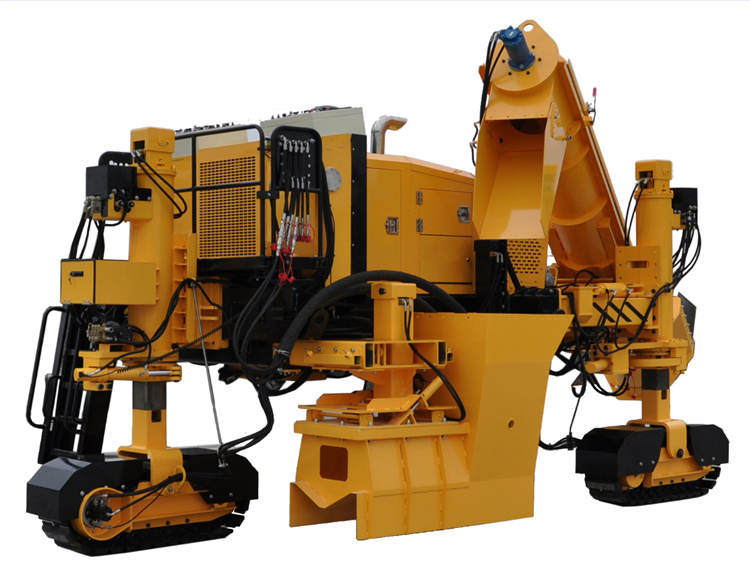

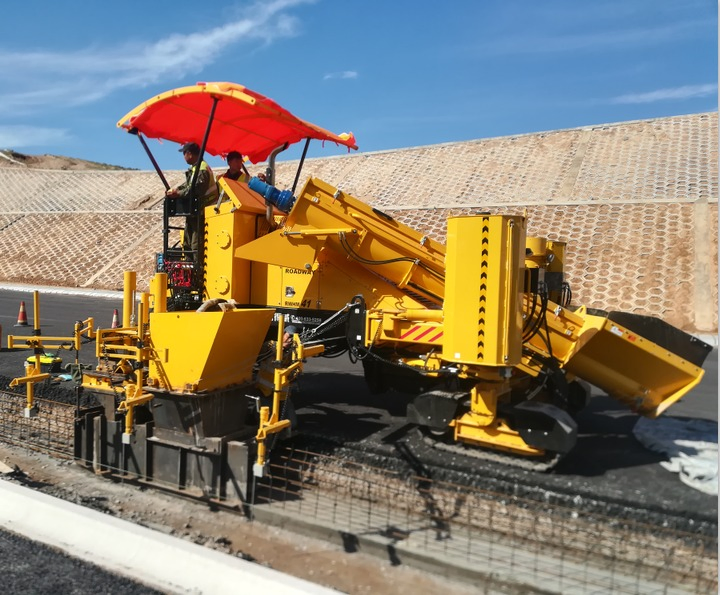

Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
1 / 5
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine
Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine

Ditches Versatile Slip Form Highway Road Concrete Slipform Paver Curb Kerb Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.LDHM41
TypePaver
ObjectCement Concrete Pavement
Moving TypeMobile
Mixing MethodIntermittent Compulsory
Automatic GradeSemi-Automatic
Product Capacity40～400t/h
CertificationISO9001: 2000, CE
Work Speed0-15m/Min
Power97kW/2200rpm
Package Weight11,700kg

Product Description

Ditches Paver Concrete Paver Versatile Slip Form Paver Highway Road Concrete Slipform Paver Curb Kerb Machine
Slip Form Paver 1
Slip Form Paver 2
Slip Form Paver 3

Detailed Features & Photos

Feature Detail 1
Feature Detail 2
Feature Detail 3
1. High-function controller with automatic calculation.
2. Equipped with imported CUMMINS diesel engine.
3. Danfoss hydraulic variable plunger pump for stepless speed.
4. U.S.A Hydra Force hydraulic control valves.
5. High frequency hydraulic rod with strong power.
6. Crawler walking mechanism with automatic tension cylinder.
Technical 1
Technical 2
Technical 3
7. Patented steering system, flexible and convenient.
8. Multiple walking modes with quick switching.
9. Real-time pressure monitors for all mechanisms.
10. Hydraulic mold hanging and dismantling.
11. Integrated high-pressure washing pump.
12. Italian quick plugs for hydraulic connections.

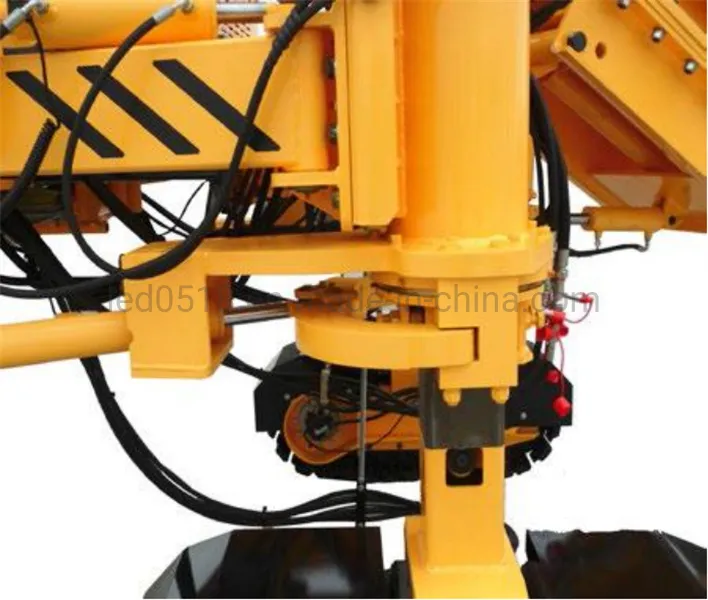

Machine Component 1

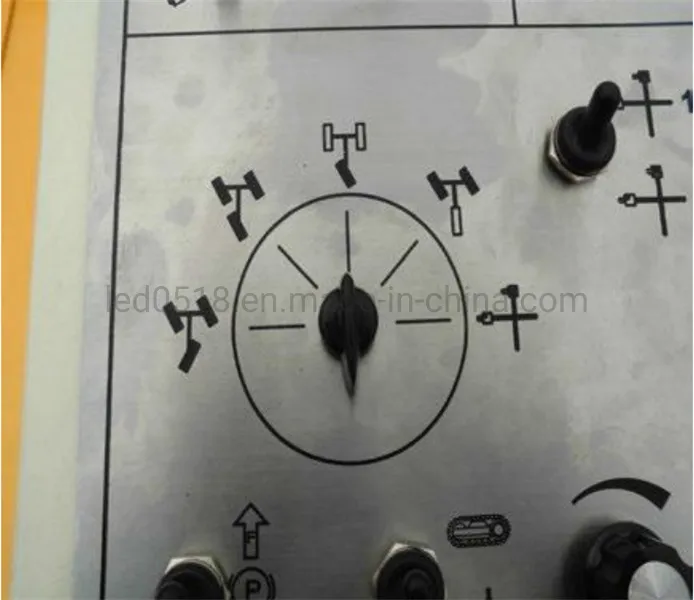

Machine Component 2

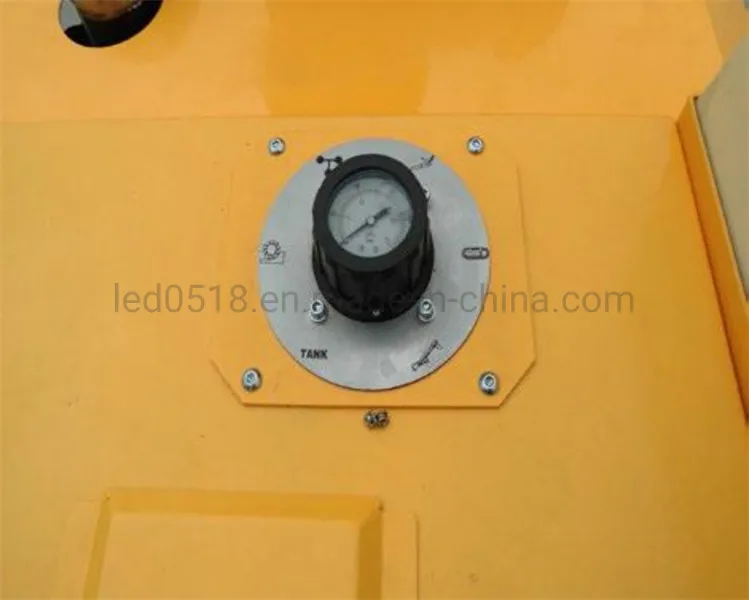

Machine Component 3

Technical Parameters

Engine Specifications
ModelCummins 4BTA 3.9
TypeDiesel Engine, liquid cooled, 4-cylinder
Power97kw/2200rpm
Engine oil volume9L
Traveling System
Traveling ModeBy Crawler
Driving ModeBy Hydraulic
Working Speed0-15m/min
Traveling Speed0-30m/min
Mold Adjustment
Traverse Adjustment1000mm
Height Adjustment400mm
Max Width/Height1300mm x 1300mm
Dimensions & Weight
Transport Size6975x2500x3420mm
Machine Weight11700kg

Product Application

Widely used in highway and municipal road curb molding projects.

Application 1
Application 2
Application 3
Application 4

Related Product Series

LDHM31 / LDHM21 / LDHM11 Series
LDHM31 Model
LDHM31 Details
LDHM21 Model
LDHM11 Model
Company Overview

Frequently Asked Questions

What types of projects is the LDHM41 suitable for?
The LDHM41 is a versatile slipform paver designed primarily for highway ditches, municipal road curbs, and various cement concrete pavement projects.
Does the machine come with an imported engine?
Yes, it is equipped with a high-performance, imported Cummins diesel engine (model 4BTA 3.9) providing 97kW of power.
What is the maximum working speed of this paver?
The machine features a variable working speed ranging from 0 to 15 meters per minute, allowing for precise control depending on project requirements.
Can the mold size be adjusted?
Yes, the machine allows for a mold traverse adjustment of 1000mm and a height adjustment of 400mm, with a maximum mold dimension of 1300x1300mm.
How is the machine cleaned after use?
The LDHM41 includes an integrated hydraulic high-pressure washing pump, enabling operators to clean the machine efficiently at any time on the job site.
Is the walking system stable on uneven terrain?
The crawler walking mechanism is equipped with an automatic tension cylinder, which not only increases the life of the belt but also ensures stability and traction across various ground conditions.
