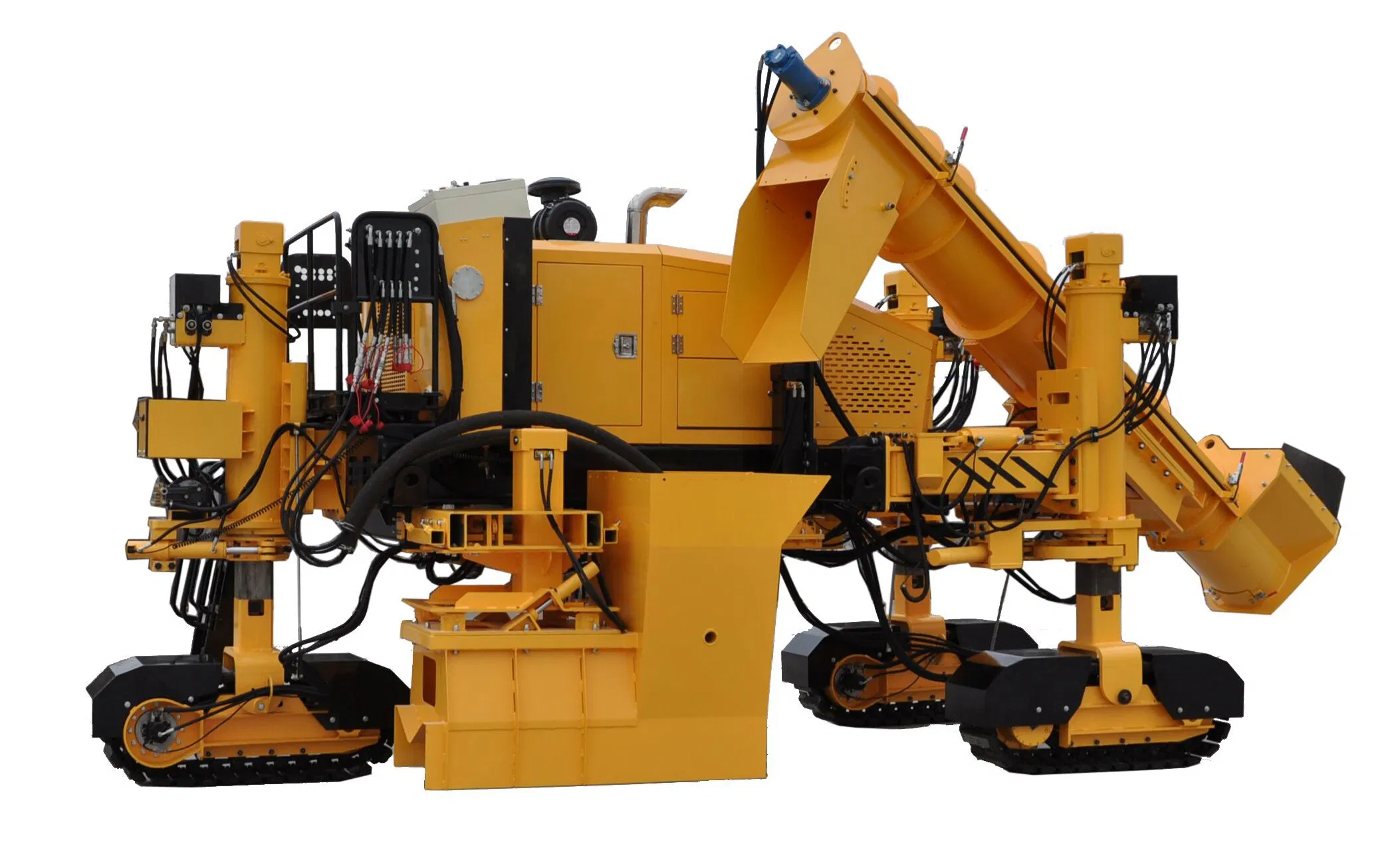

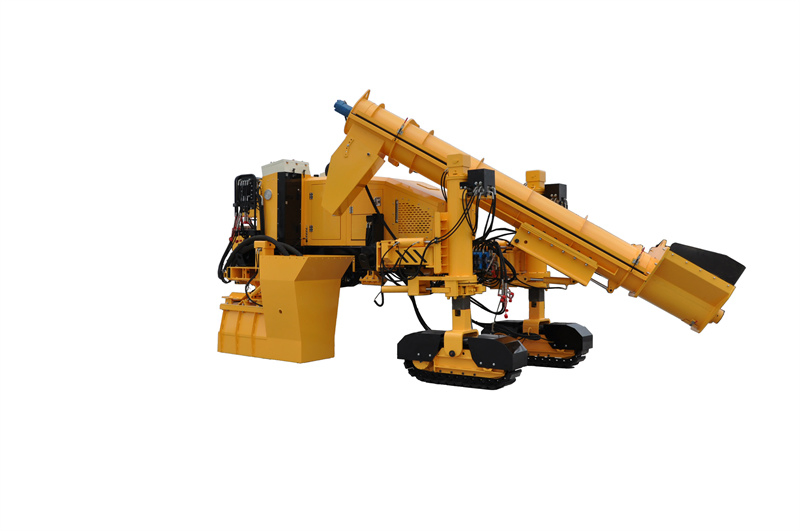

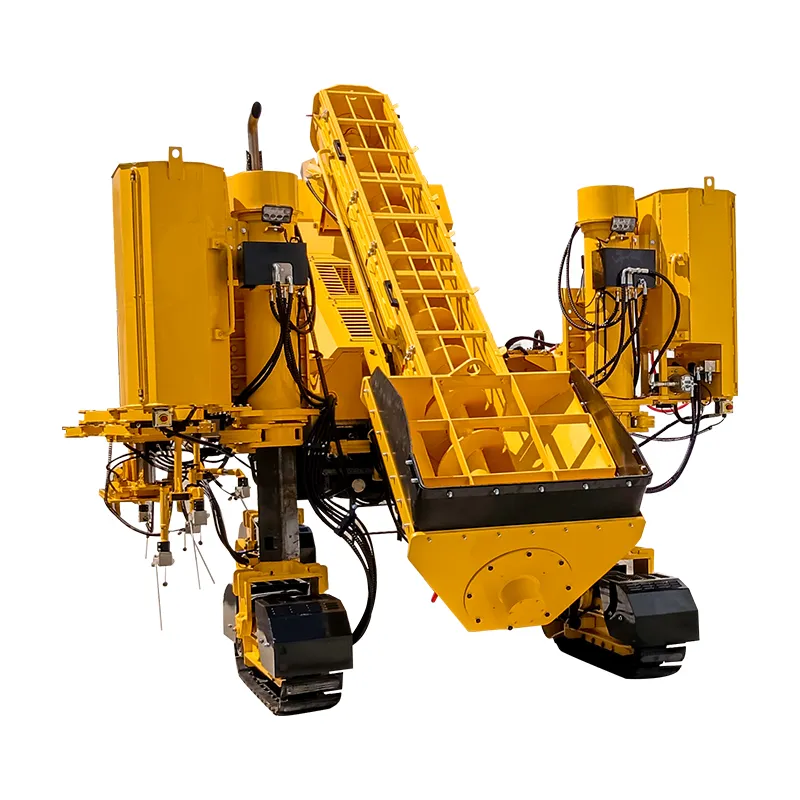

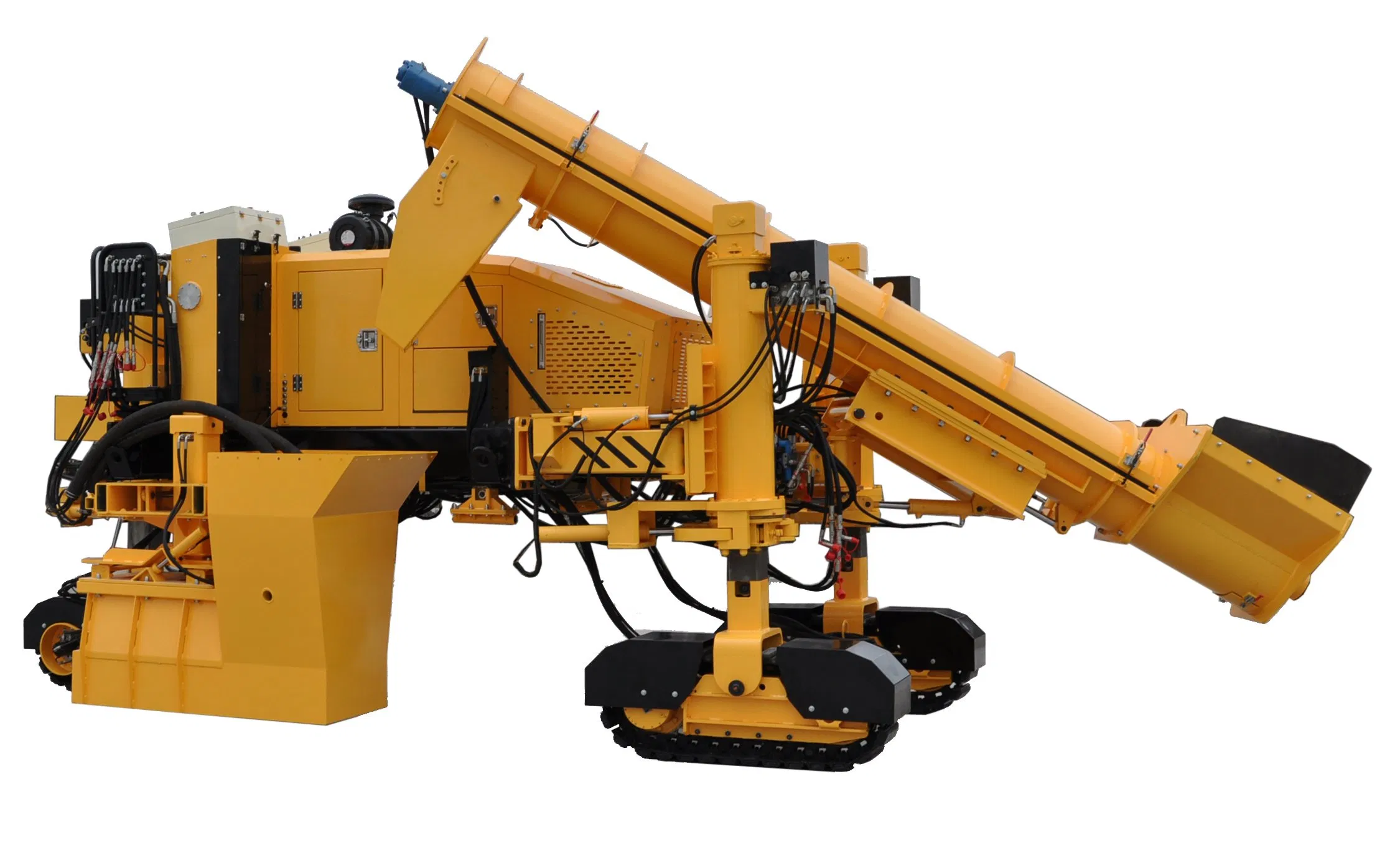

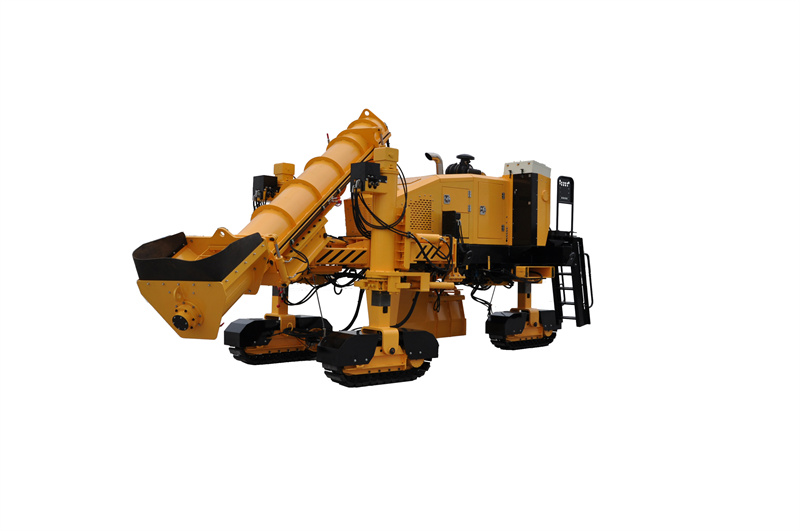

ditches paver Automatic Concrete Curb Slipform Paverfor Road Kerb and Gutter

1 / 5

ditches paver Automatic Concrete Curb Slipform Paverfor Road Kerb and Gutter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	LDHM41
Type	Paver
Object	Cement Concrete Pavement
Moving Type	Mobile / Crawler
Mixing Method	Intermittent Compulsory
Automatic Grade	Semi-Automatic
Product Capacity	40～400t/h
Certification	ISO9001: 2000, CE
Condition	New
Power	97kW/2200rpm
Transport Size	6975x2500x3420mm
Weight	11,700kg

🏗️ Product Description

Automatic Concrete Curb Slipform Paver for Road Kerb and Gutter

⚙️ Key Features & Technical Details

✔ With great function controller and automatic calculation, suitable for various projects.

✔ Equipped with imported brand CUMMINS diesel engine.

✔ Imported Danfoss hydraulic variable plunger pump for stepless speed control.

✔ U.S.A HydraForce brand hydraulic control valves for intelligent function management.

✔ High-frequency hydraulic rod with strong vibration power.

✔ Crawler walking mechanism with automatic tension cylinder to increase belt life.

✔ Patented steering system, highly flexible and convenient.

✔ Real-time pressure monitors for each working mechanism.

✔ Hydraulic mold hanging and dismantling for labor-saving operation.

✔ Integrated hydraulic high-pressure washing pump for easy cleaning.

📊 Product Parameters

Engine Specifications
Model	Cummins 4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kw/2200rpm
Traveling System
Traveling Mode	By crawler
Driving Mode	By hydraulic
Steering Mode	Collaborative/Yaw/Front wheel/Rear wheel/Automatic
Traveling Speed	0-30m/min
Working Speed	0-15m/min
Mold & Adjustment
Mold Traverse Adjustment	1000mm
Mold Height Adjustment	400mm
Max. Height/Width of Mold	1300mm / 1300mm
Volume Capacities
Fuel / Hydraulic / Water Tank	120L / 280L / 120L

🛣️ Product Application

Widely used in highway and municipal road curbs molding projects.

🔗 Related Models

LDHM31 / LDHM21 / LDHM11

Frequently Asked Questions (FAQ)

What is the primary application of the LDHM41 paver?

The LDHM41 is specifically designed for the automatic molding of highway and municipal road curbs, gutters, and cement concrete pavements.

What type of engine powers this concrete curb machine?

It is powered by a high-performance, imported Cummins 4BTA 3.9 diesel engine, which is liquid-cooled and features four cylinders with 97kW power.

How fast can the LDHM41 operate?

The machine features a traveling speed of 0-30m/min and a dedicated working speed of 0-15m/min, controlled via a stepless hydraulic system.

How is the machine cleaned after use?

It comes equipped with an integrated hydraulic high-pressure washing pump, allowing the operator to clean the machine at any time on-site.

Is the steering system adaptable for complex projects?

Yes, the machine features a patented steering system with multiple modes including front wheel, rear wheel, yaw, and automatic collaborative steering for maximum flexibility.

What are the transport dimensions and weight?

The transport size is approximately 6975x2500x3420mm, and the total package weight is roughly 11,700kg.
