Powercurb Concrete Curb Slipform Paver Mc4000 for Road Curb, Barrier and Gutter

1 / 5

Powercurb Concrete Curb Slipform Paver Mc4000 for Road Curb, Barrier and Gutter

Customization:	Available
Type:	Paver
Object:	Cement Concrete Pavement

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

MC4000

Moving Type

Mobile

Mixing Method

Screw

Automatic Grade

Automatic

Product Capacity

40～400t/h

Certification

ISO9001: 2000, CE

Condition

New

Specification

Concrete Extruder

Origin

China

Production Capacity

1000 Sets Per Year

🏗️

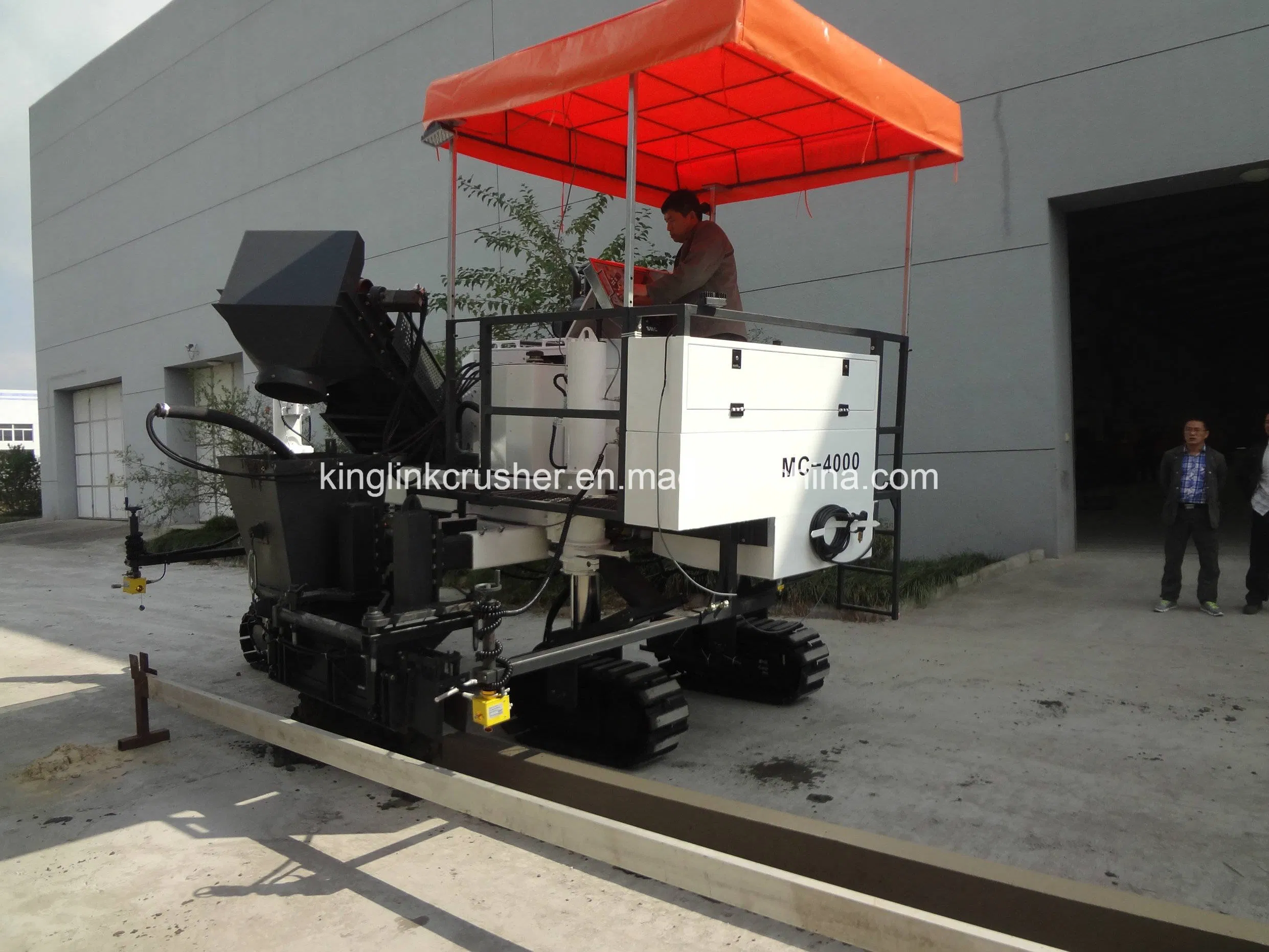

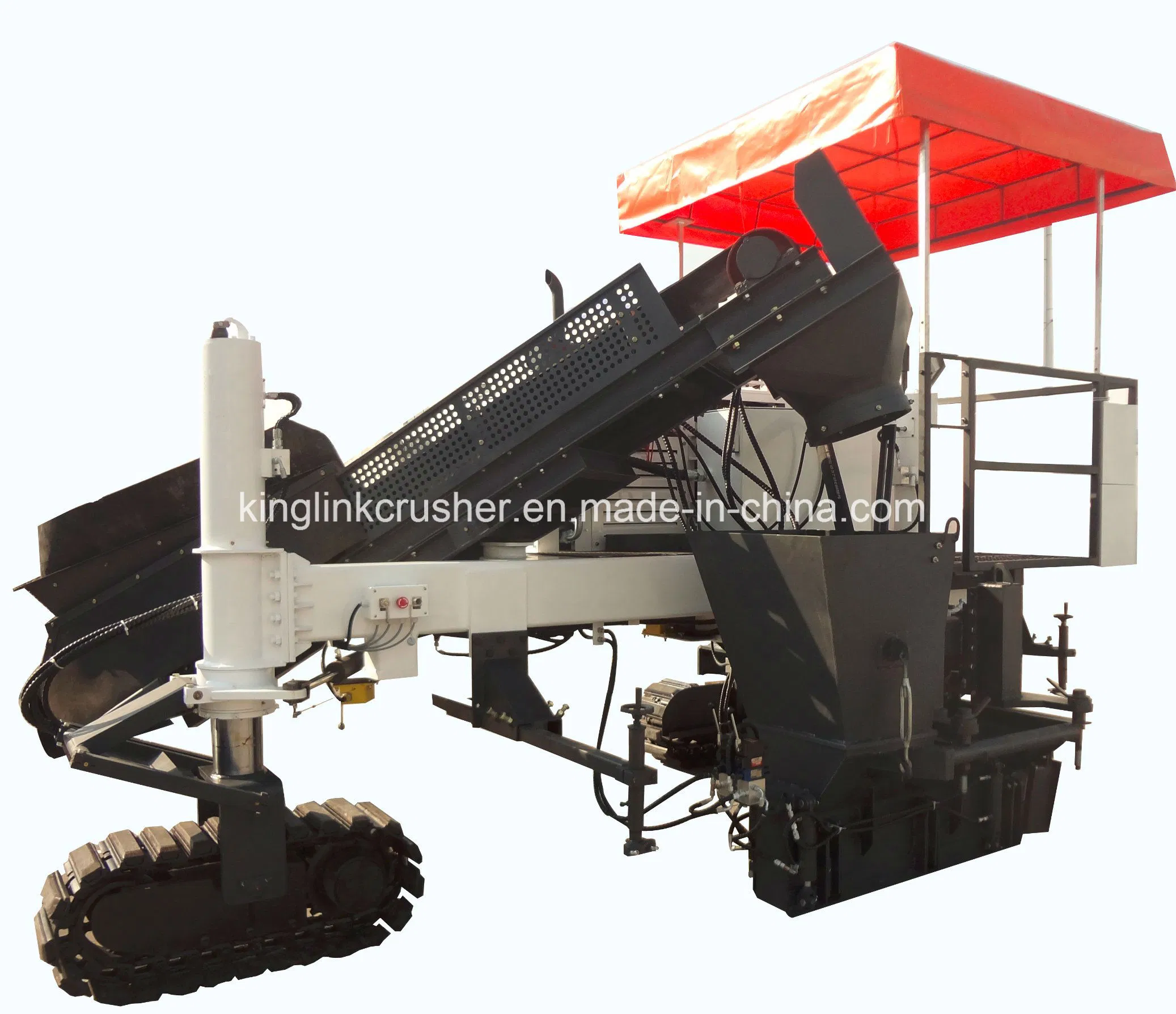

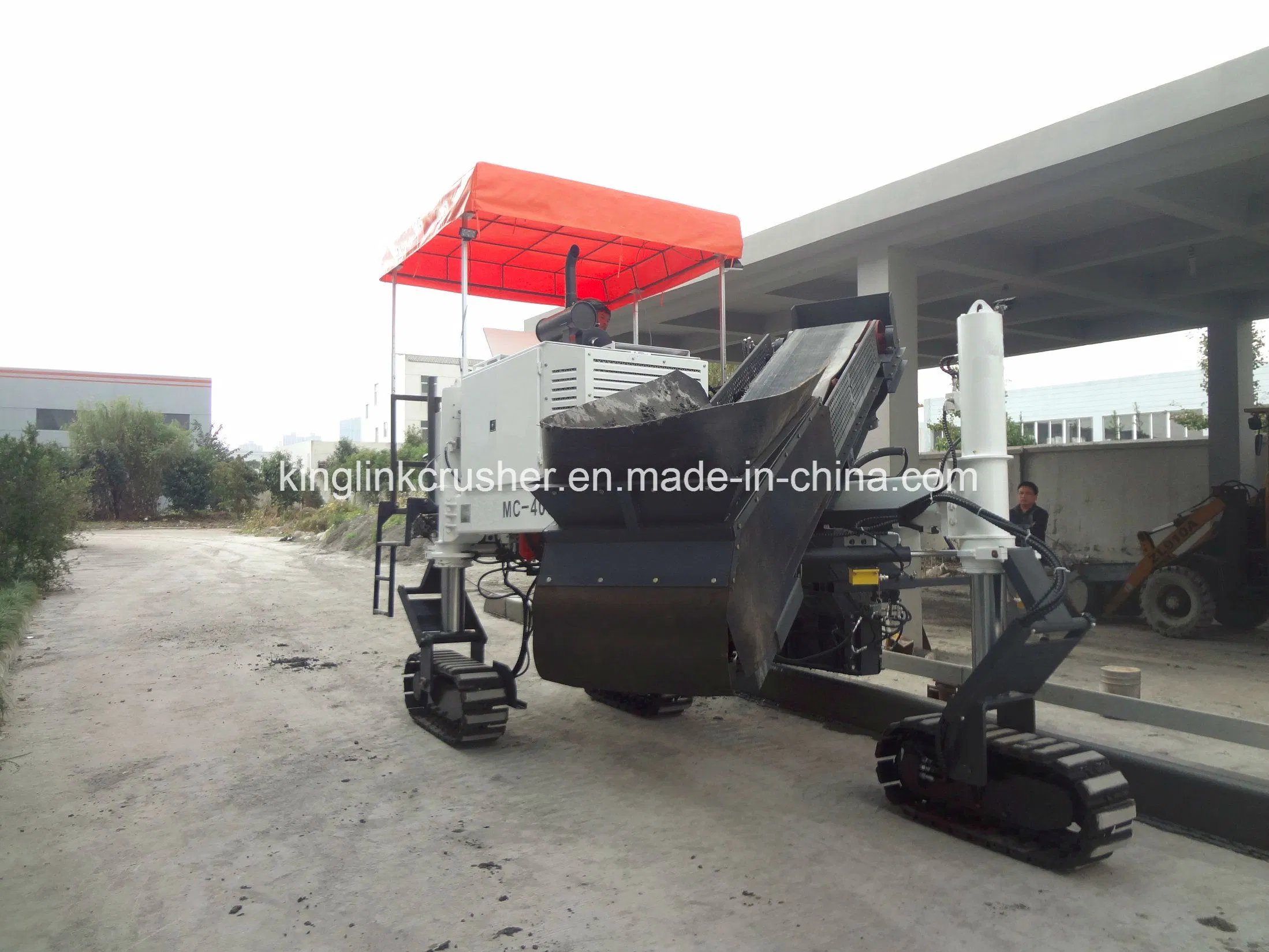

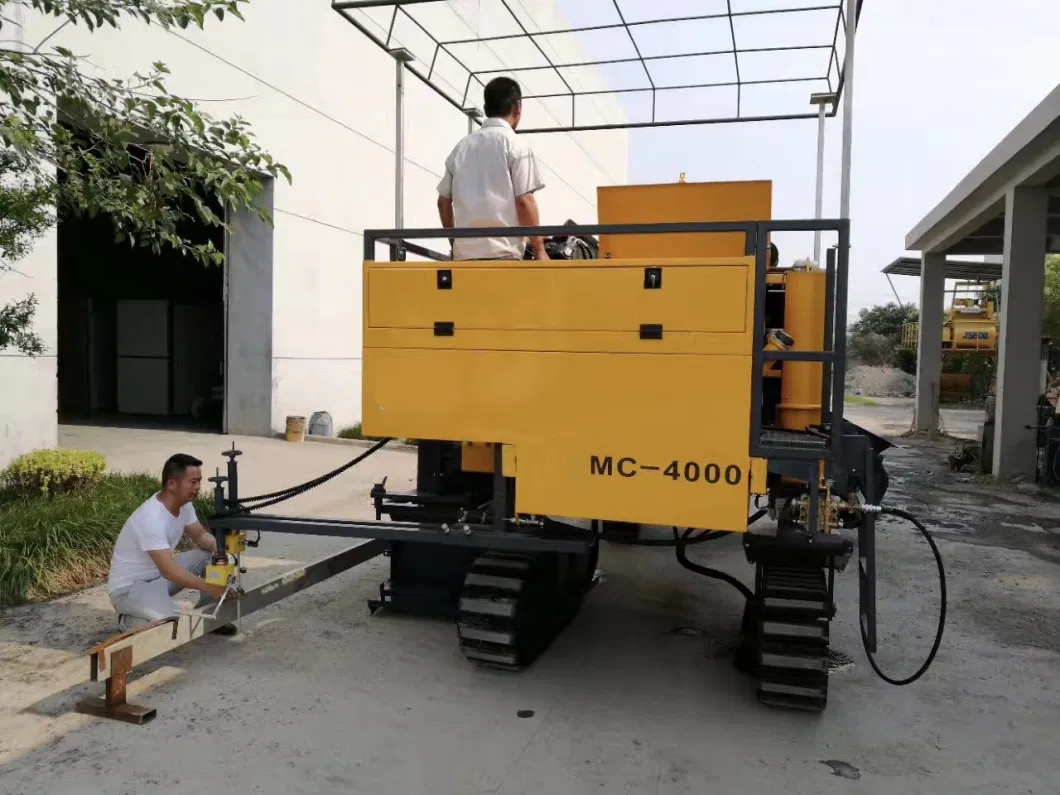

MC4000 Concrete Slipform Paver

⚙️ Electrohydraulic Control System

Simple and reliable operation using CAN bus communication technology.
Large LCD clearly displays working status and troubleshooting data.
Energy-saving hydraulic system with low temperature via Sauer brand load sense variable pumps.
Compact valve manifolds for convenient maintenance using Hydra force cartridge valves.
Equipped with high-quality hydraulic vibrators made by WYCO.

🔄 Advanced Working Mechanisms

All-track steering and hydraulically-driven offset mold reduce positioning time.
Versatile application on any job site using the side working unit.
Rotating, tilting, and shifting feeding auger centers material directly into the mold.

📋

Technical Data

Engine

Quanjiao QC4102G or equivalent

Vibrator

Hydraulic-driving by Wyco

Dimension

L500 × W216 × H255 cm

Weight

5500kg

Pouring Capacity

W200 × H90 cm

Pouring Radius

60cm

Pouring Speed

0 ~ 12m/min

🕹️ Automatic Control & Vibrators

Automatic Control System: Features precise electronic-over-hydraulic sensors for steering and leveling. Utilizes CAN communication between sensors and the controller.

Hydraulic Vibrators: Motor-in-head type with variable speed and independent control. Includes four hydraulic circuits and two hydraulic vibrators with mounts.

Track System: Three hydraulic powered tracks for superior mobility.

🛠️

Service & Guarantee

Technical Documents	Complete set in English or Bilingual (Chinese/English). Includes manuals for operation, parts books for both machine and engine, and manufacturer's certificate.
Commissioning & Training	Service engineers available for one-week on-site training and commissioning upon request (subject to international travel and daily salary terms).
Guarantee	12 months or 1,500 operational hours (whichever occurs first) from the date of delivery. Guaranteed to be made of first-class materials and workmanship.
