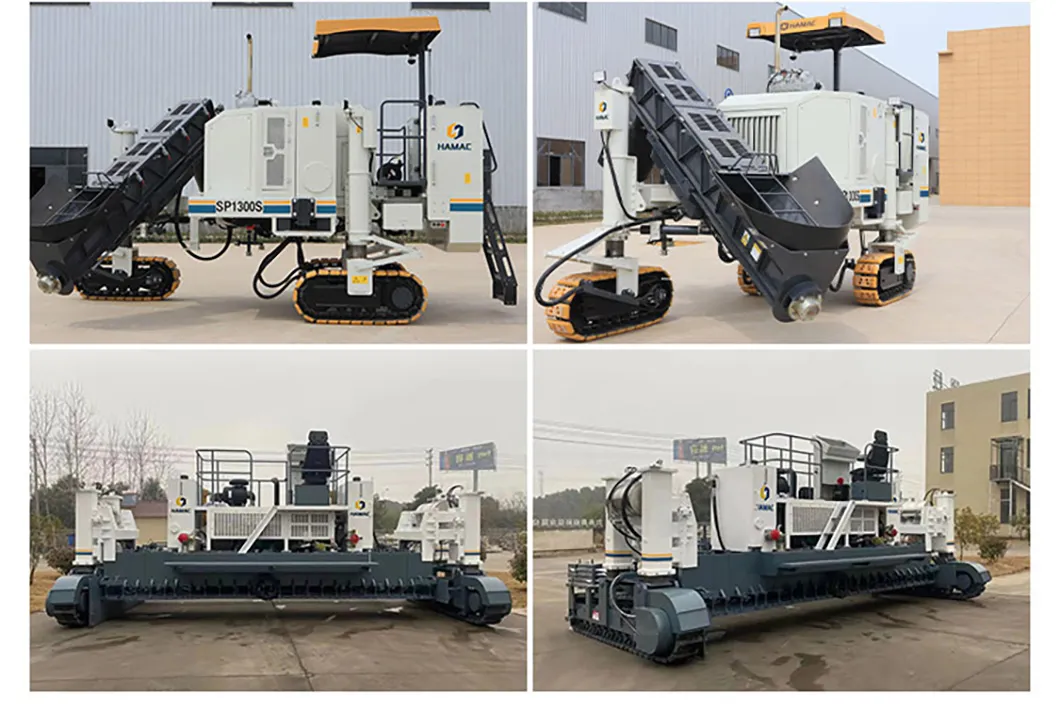

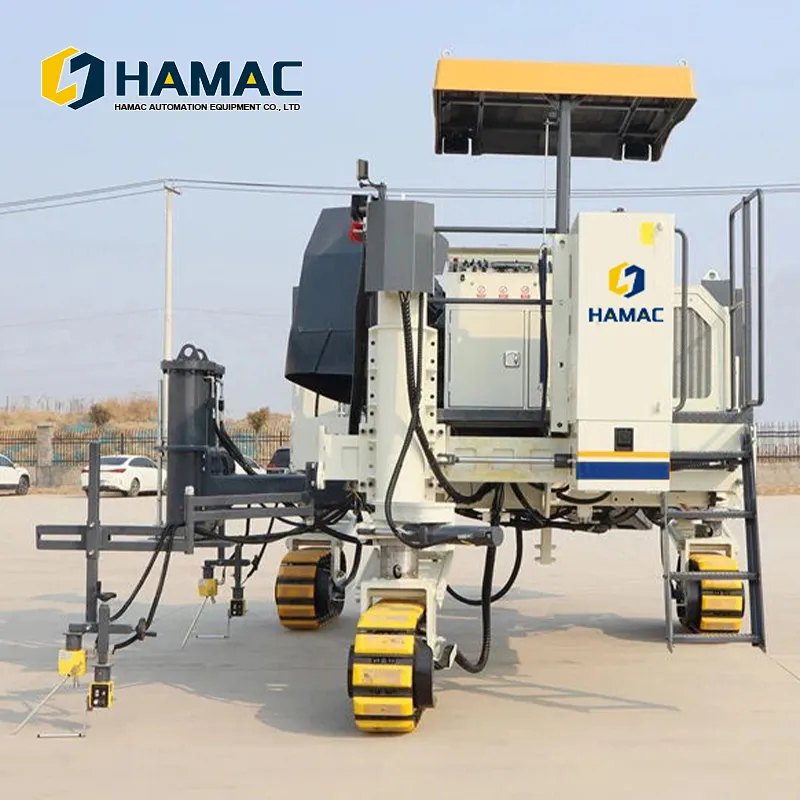

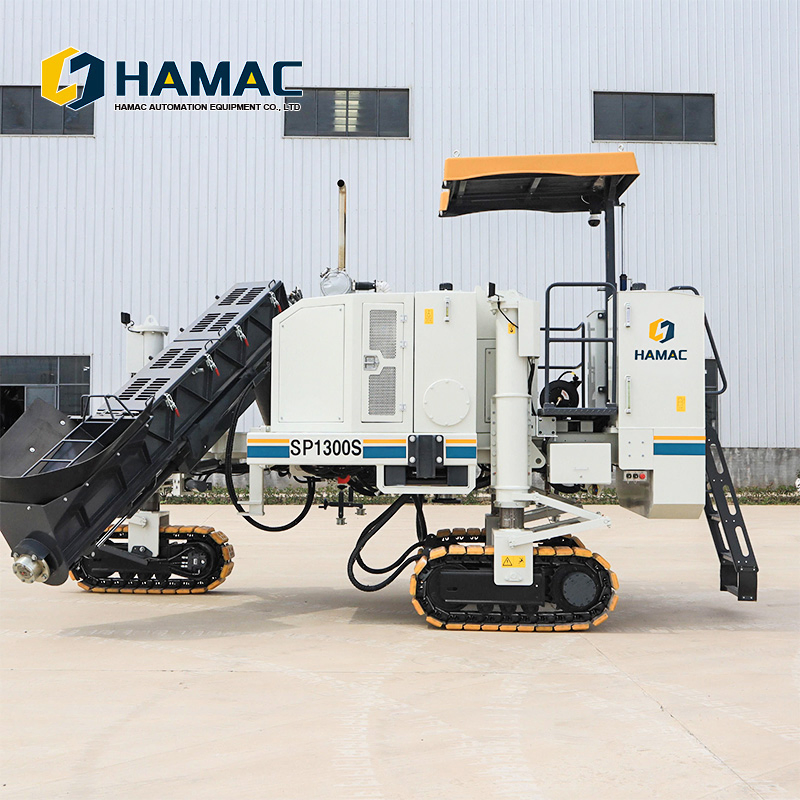

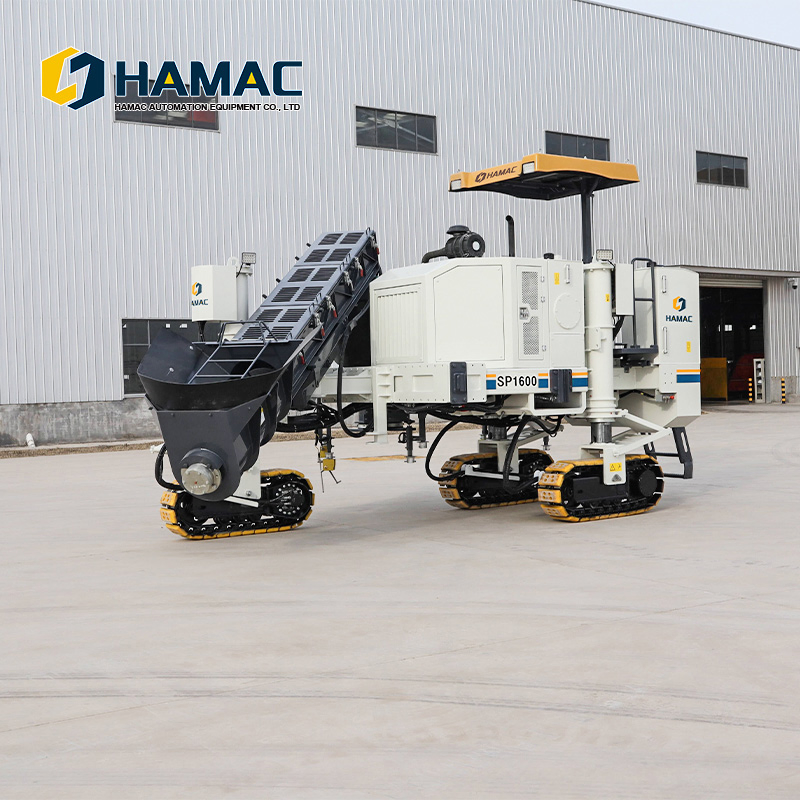

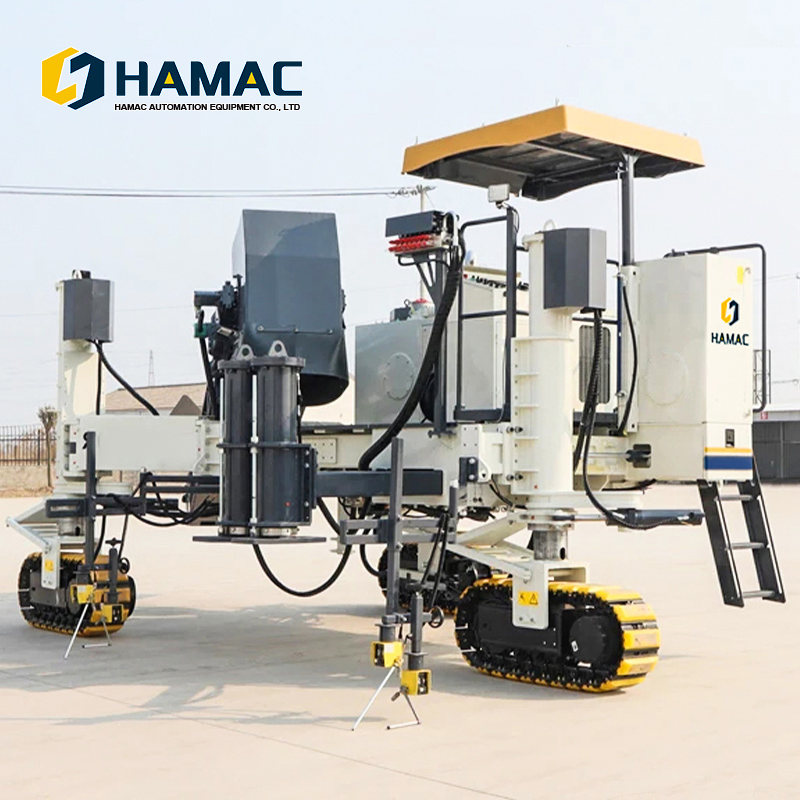

Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, kerb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile.

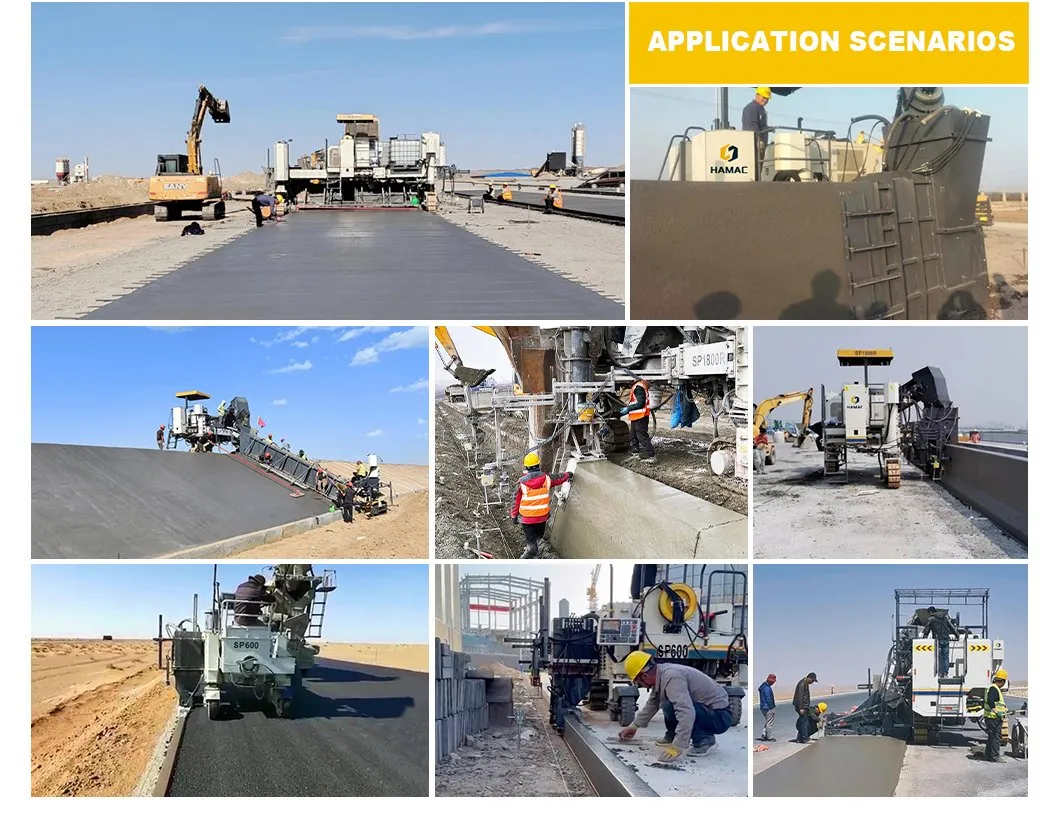

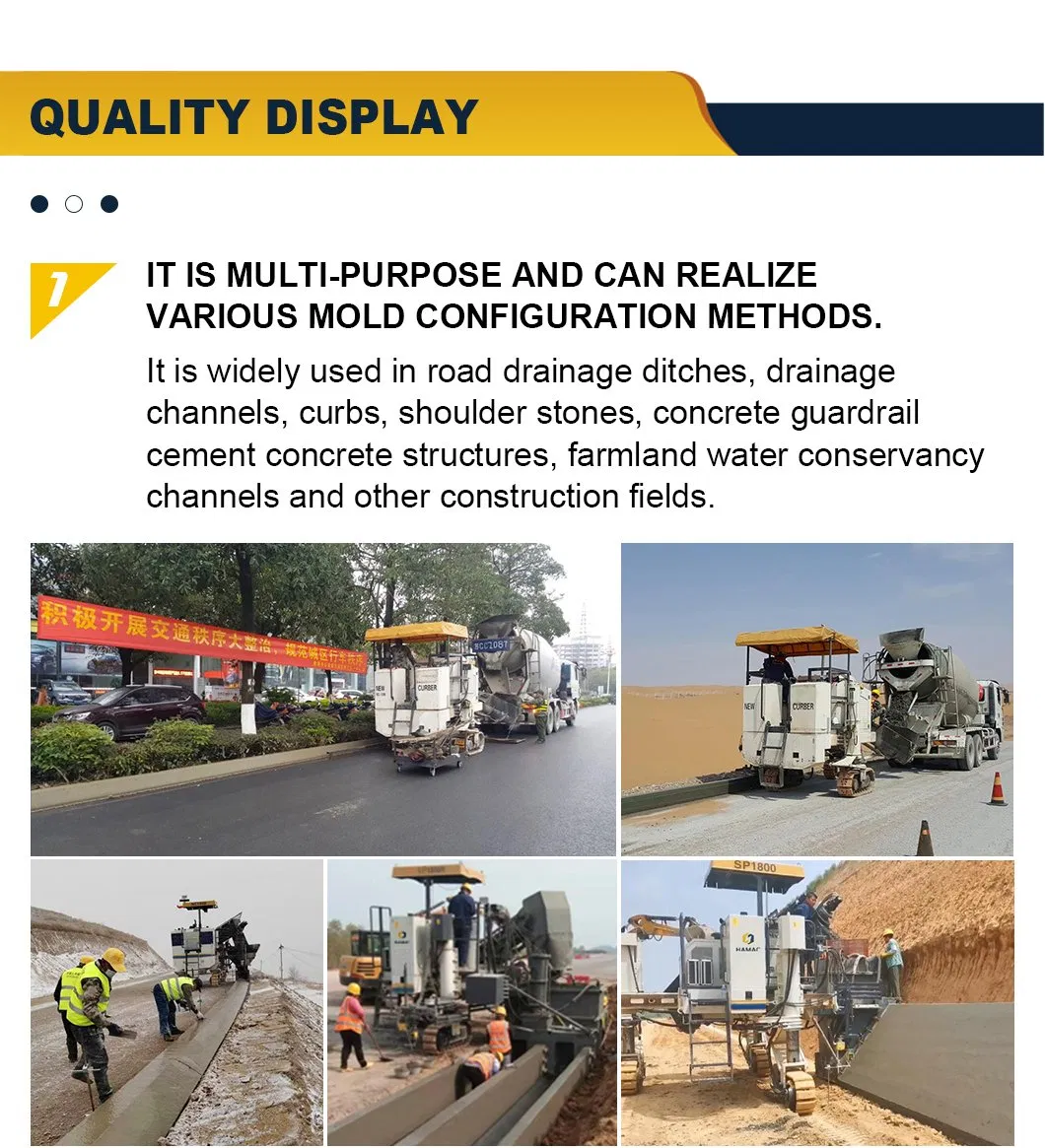

Multi-functional slipform pavers is a multi-purpose cement concrete construction equipment. It can realize various mold configuration methods. It is widely used in road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrail cement concrete structures, farmland water conservancy channels and other construction fields.

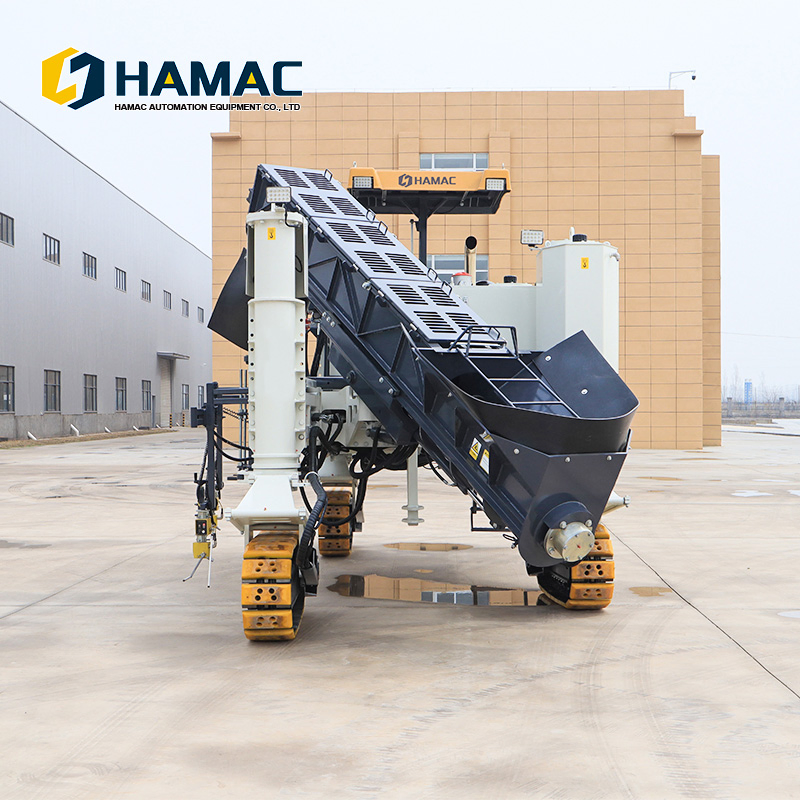

It replaces the traditional process and significantly improves the construction quality and speed of cement concrete structures. With slipform pavers, the concrete is placed directly in front of the machine and distributed by a spreading auger or spreading plough. Vibrators compact the concrete homogeneously and the mold forms it in the specified width and thickness as the slipform paver advances.
| PROJECT | UNIT | PARAMETER |
|---|---|---|
| Maximum side bunk height | mm | 600 |
| Maximum paving width | mm | 600 |
| Paving speed | m/min | 0-15 |
| Driving speed | m/min | 0-22 |
| Engine power | kw | 36.8 |
| Minimum turning radius | mm | 3500 |
| Outrigger hydraulic lifting stroke | mm | 430 |
| Auger speed | r/min | 0-60 |
| Auger conveying device dimensions | mm | 1600 |
| Vibrator interface | piece | 2 |
| Vibrator frequency | hz | 0-200 |
| Diesel tank | L | 100 |
| Hydraulic tank | L | 100 |
| Water tank | L | 158 |
| Weight (unladen) | KG | 3200 |
