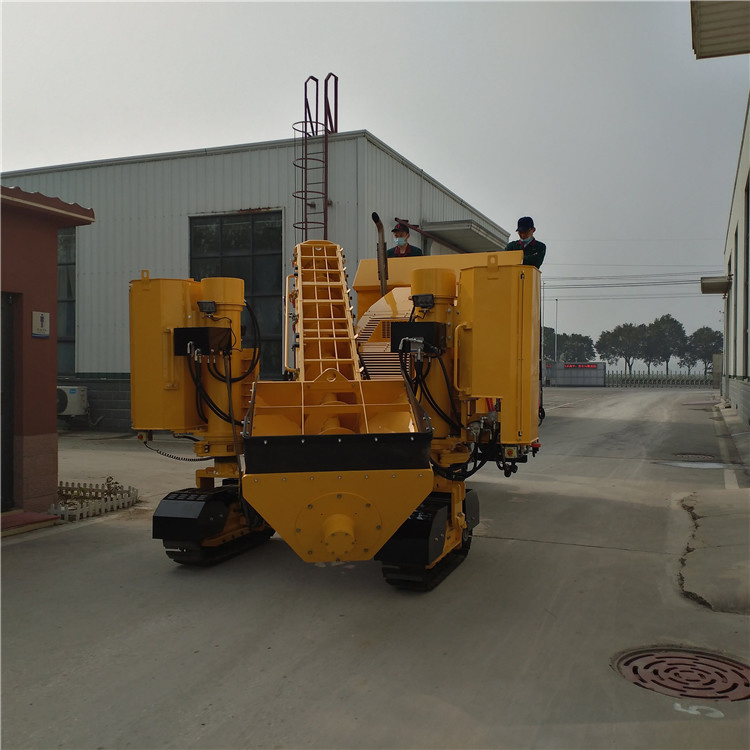

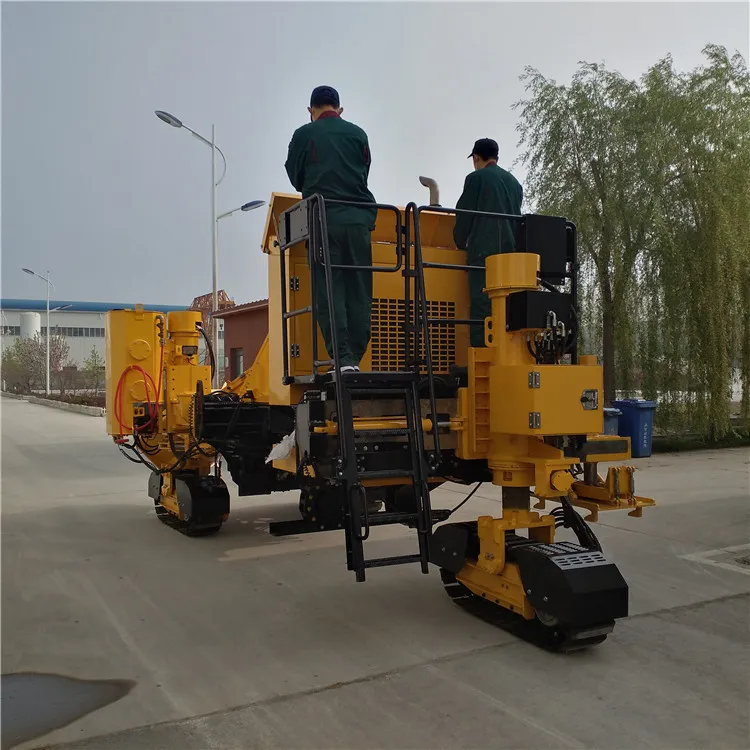

Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
1 / 5
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale
Kerbs Machine Making Automatic Kerb Mould Machine For Sale

Kerbs Machine Making Automatic Kerb Mould Machine For Sale

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Overview & Basic Information
Model NO.LDHM41TypePaver
ObjectCement Concrete PavementMoving TypeMobile
Mixing MethodIntermittent CompulsoryAutomatic GradeSemi-Automatic
Product Capacity40～400t/hCertificationISO9001: 2000, CE
ConditionNewWork Speed0-15m/Min
Power97kW/2200rpmEngine Oil Volume9L
Fuel Tank Volume120LTransport Size6975x2500x3420mm
Package Weight11,700kgHS Code8474802000
🏗️ Product Description

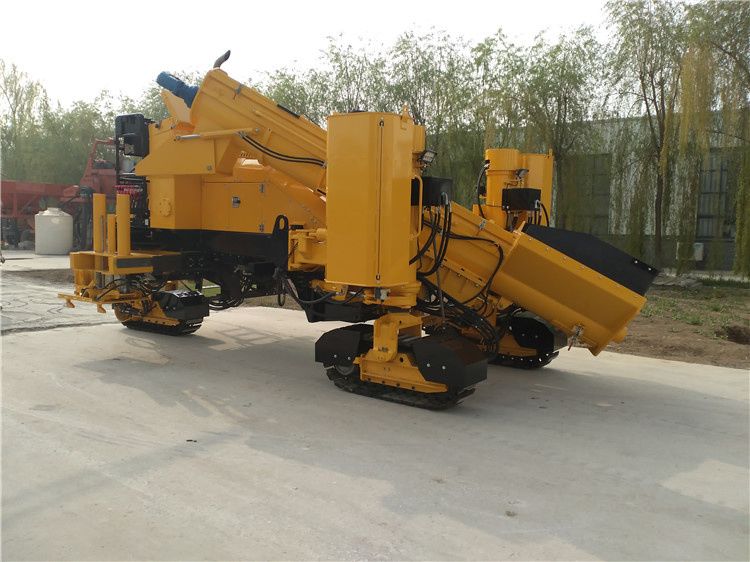

Kerbs Machine Making Automatic Kerb Mould Machine For Sale

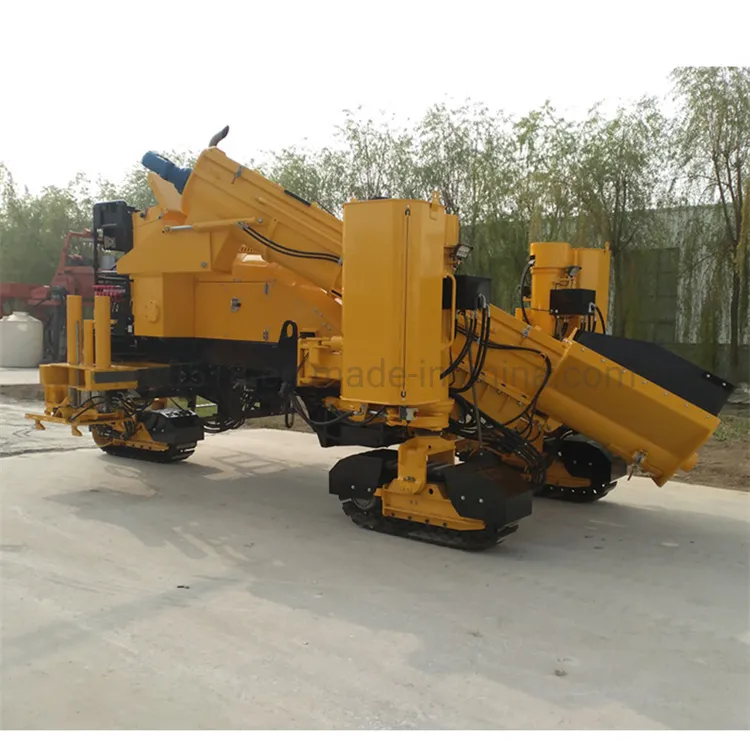

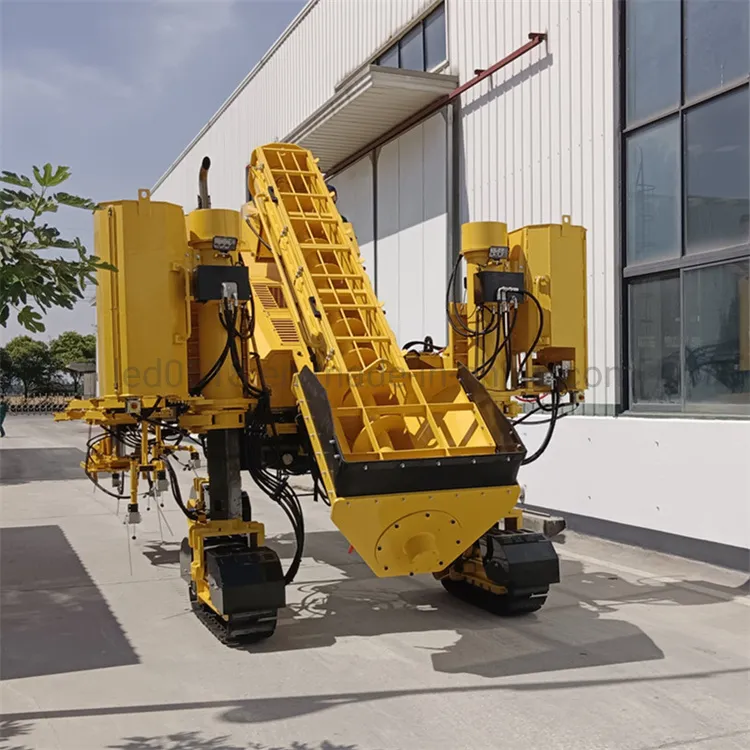

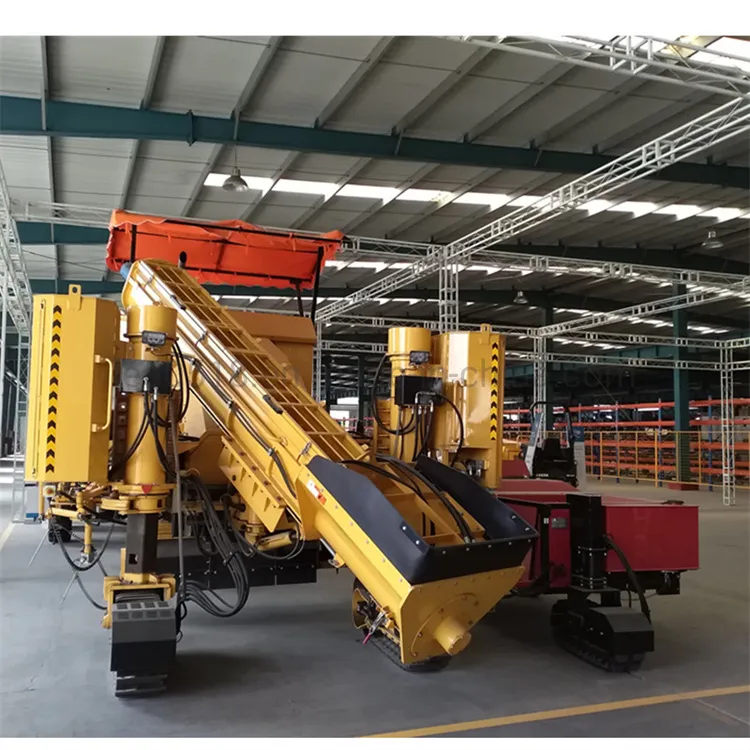

Automatic Kerb Machine
Kerb Mould Machine
Kerb Making Equipment

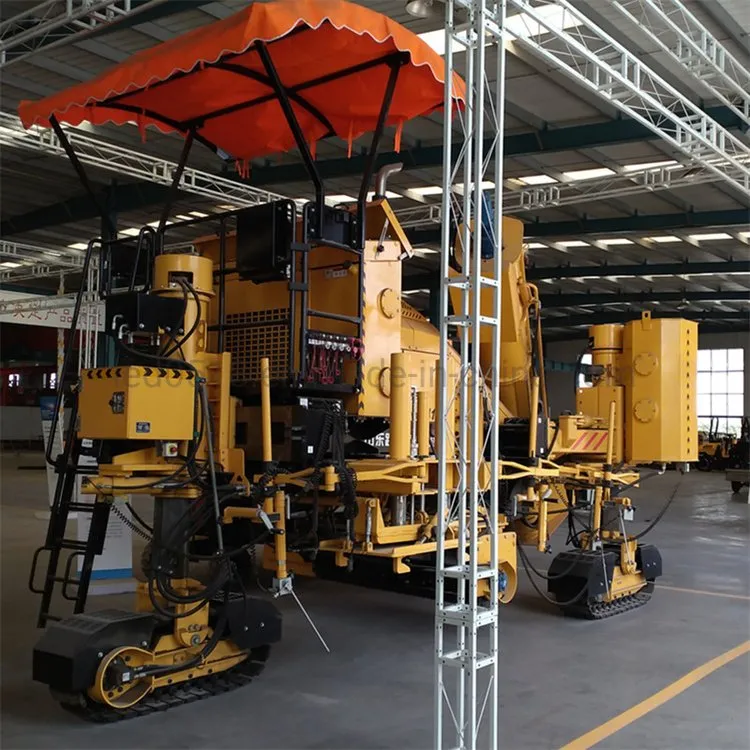

Concrete Kerb Machine
📸 Detailed Photos & Features

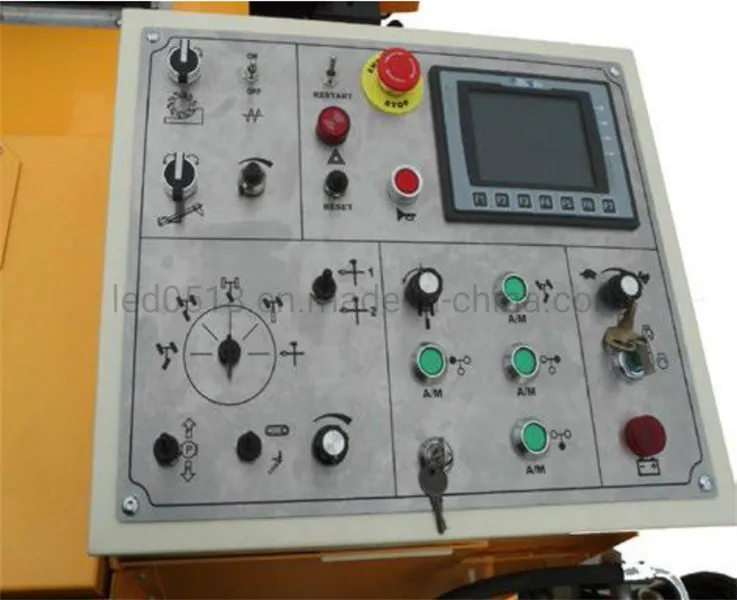

✔ With great function controller and automatic calculation, suitable for various projects.

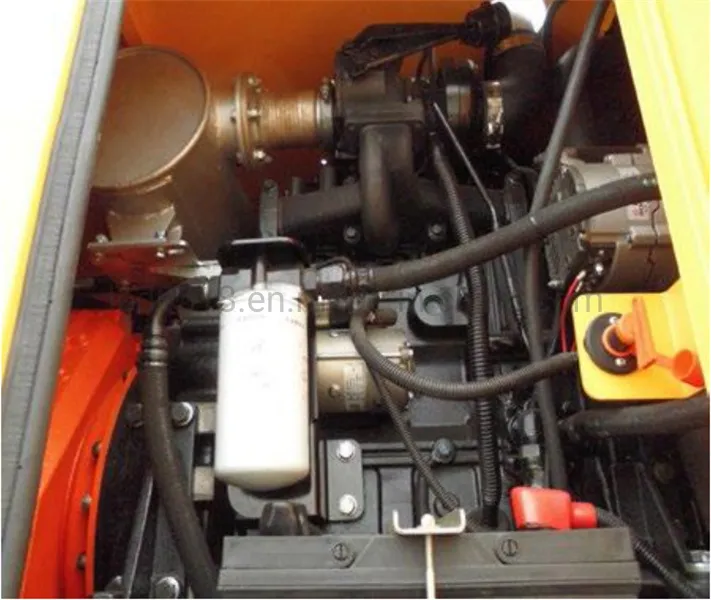

✔ Equipped with high-performance CUMMINS diesel engine.

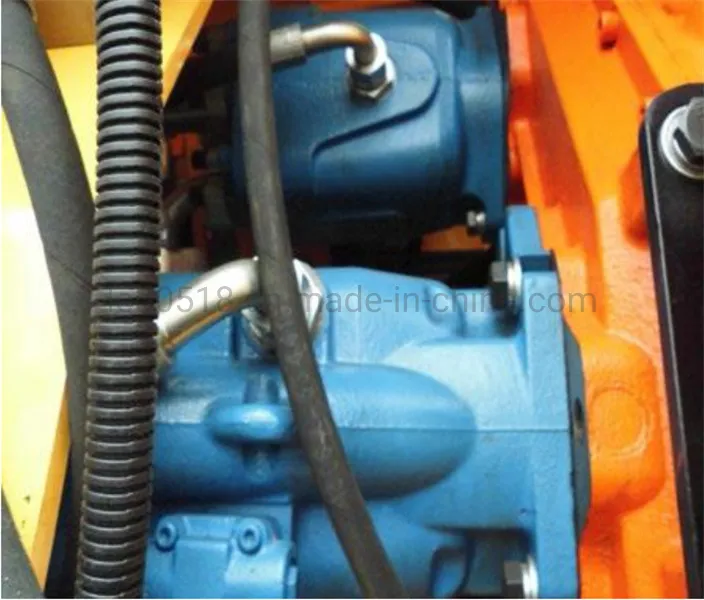

✔ Imported Danfoss hydraulic variable plunger pump for stepless speed control.

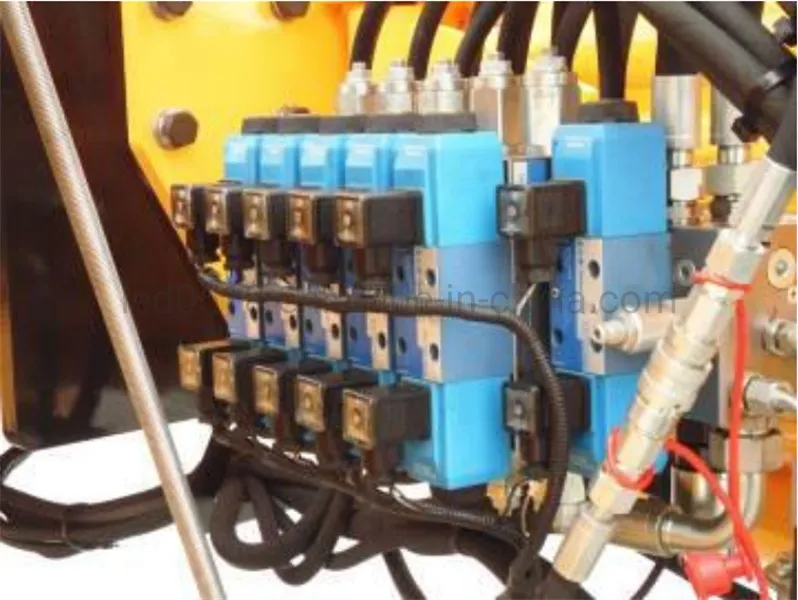

✔ U.S.A hydra force brand hydraulic control valve for intelligent function management.

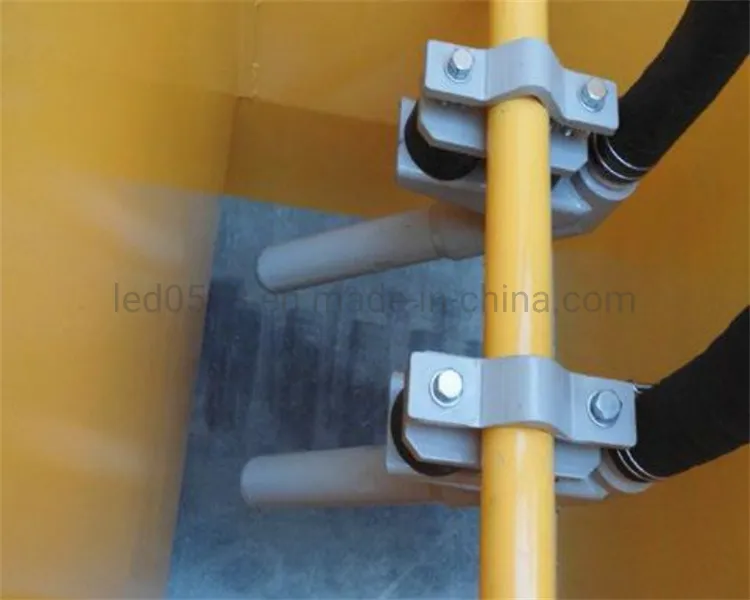

✔ High-frequency hydraulic rod with strong power.

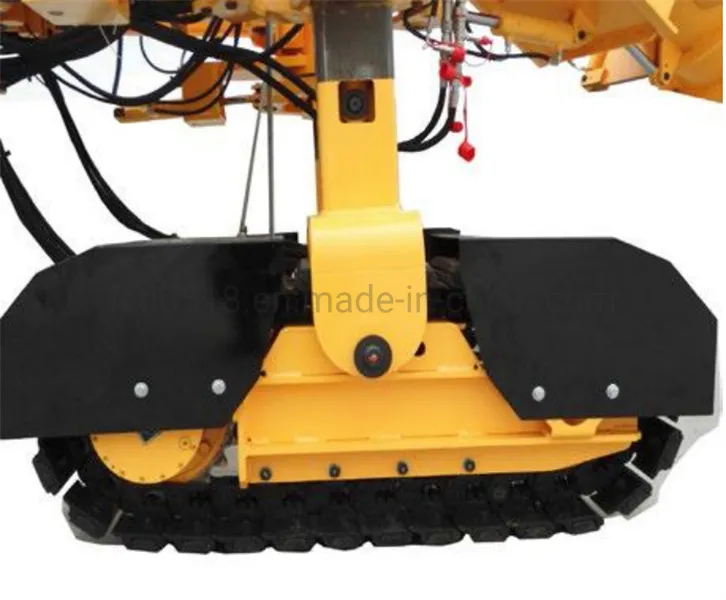

✔ Crawler walking mechanism with automatic tension cylinder for longer belt life.

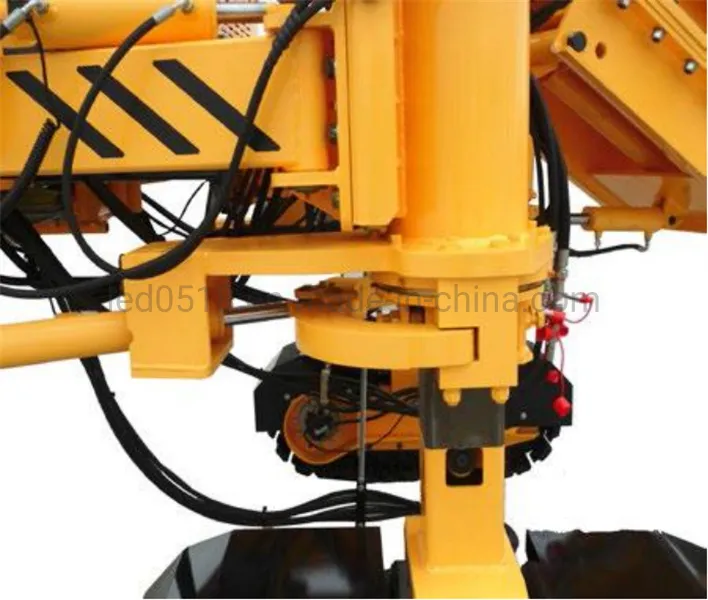

✔ Patented steering system, flexible and convenient.
✔ Multiple walking modes with quick-switch capability.

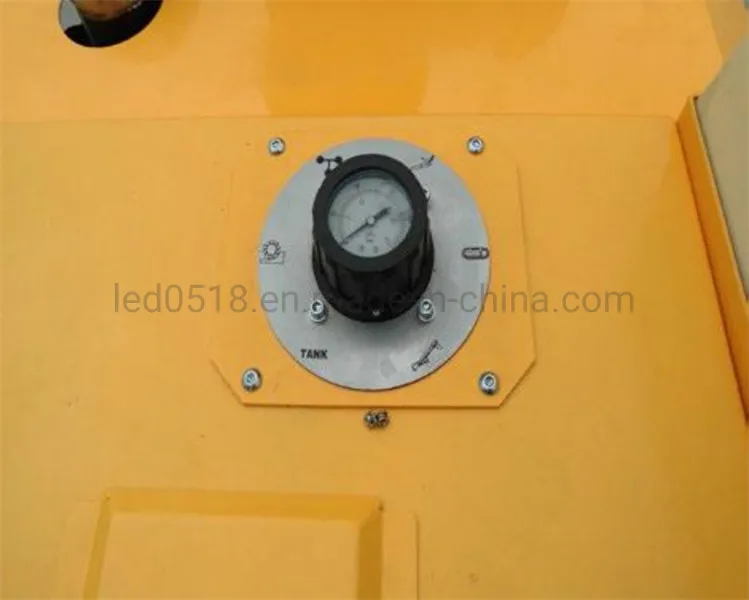

✔ Real-time pressure monitors for each working mechanism.

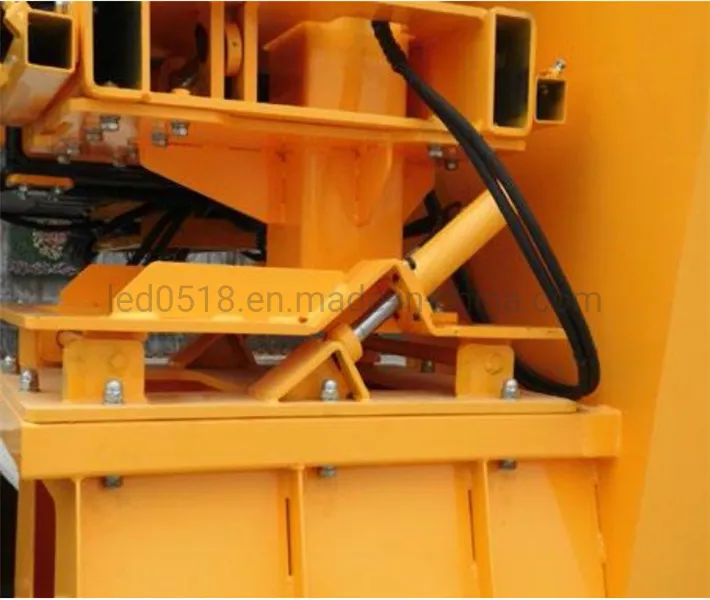

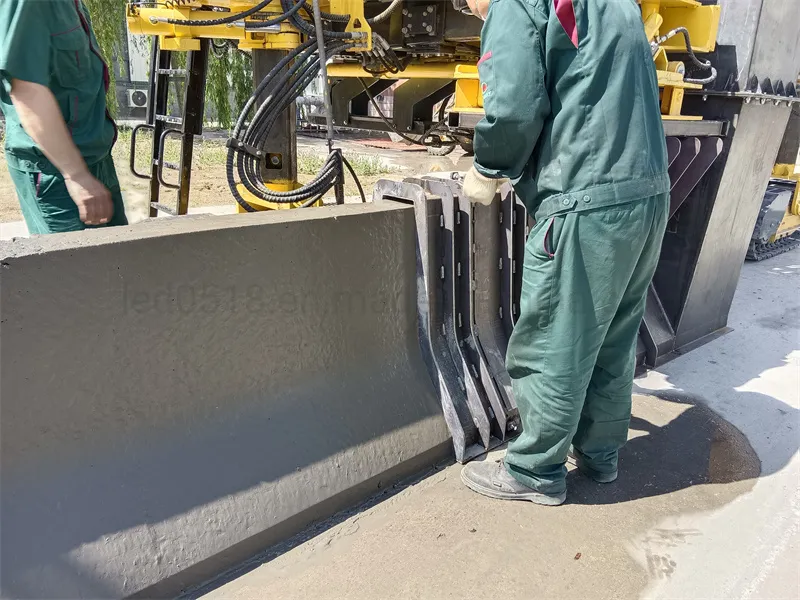

✔ Hydraulic mold hanging and dismantling for labor-saving operation.

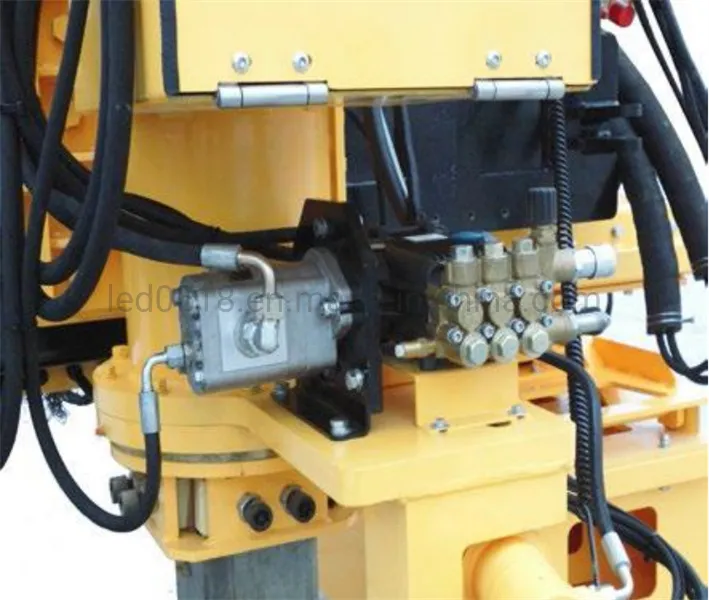

✔ Integrated high-pressure washing pump for easy maintenance.

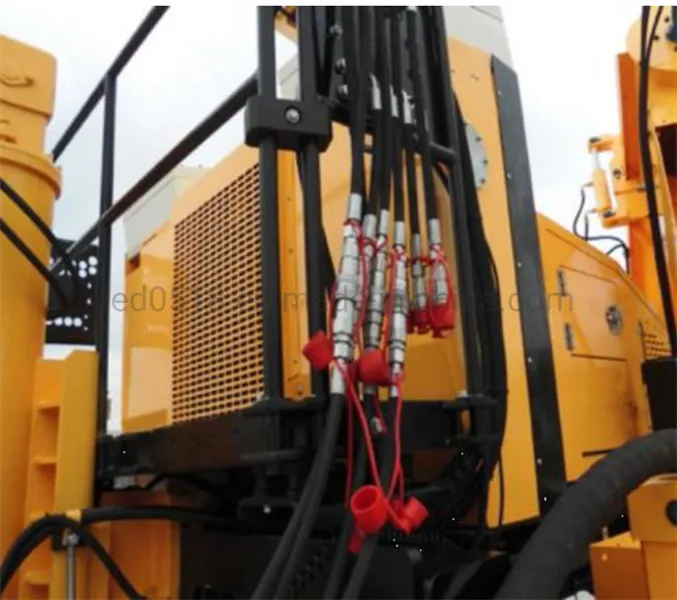

✔ Italy brand quick plugs for external hydraulic connections, ensuring no oil leaks.
📊 Product Parameters
Engine System
ModelCummins 4BTA 3.9
TypeDiesel Engine, liquid cooled, four cylinder
Power97kw/2200rpm
Traveling System
Traveling ModeBy Crawler

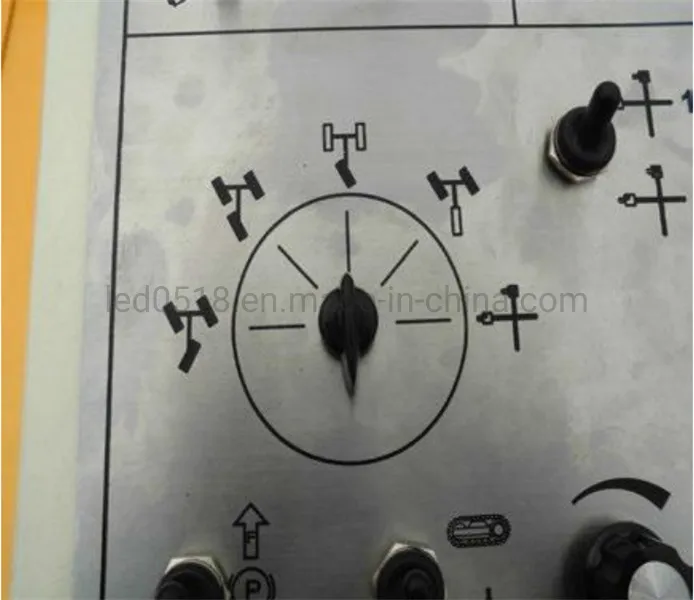

Steering ModeCollaborative/Yaw/Front wheel/Rear wheel/Automatic
Working Speed0-15m/min

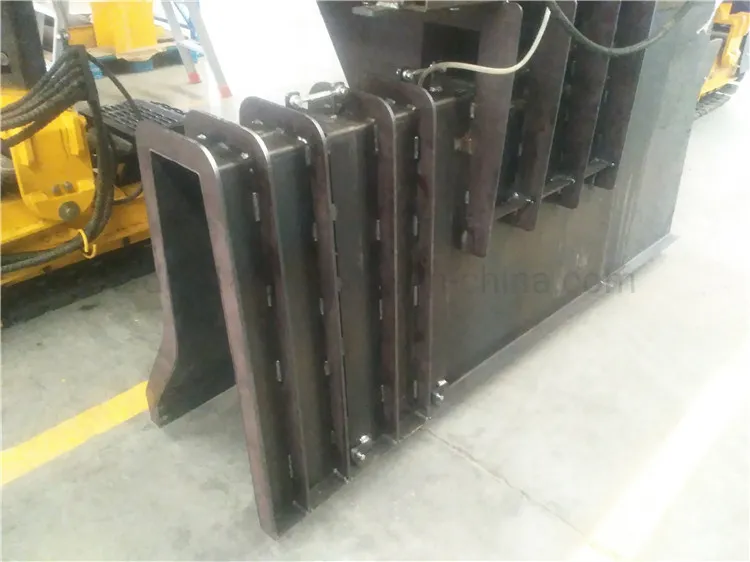

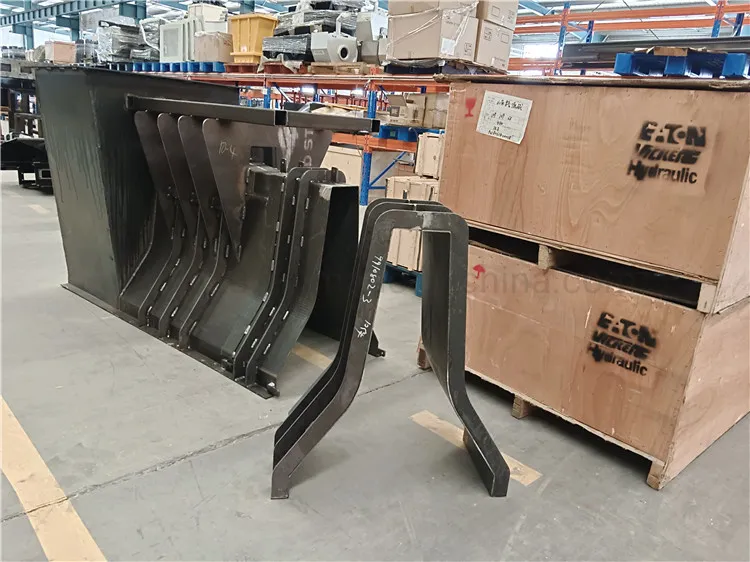

Mold Specifications
Max. Height of Mold1300mm
Max. Width of Mold1300mm
Height AdjustmentHydraulic 980mm / Mechanical 300mm
🛣️ Product Application

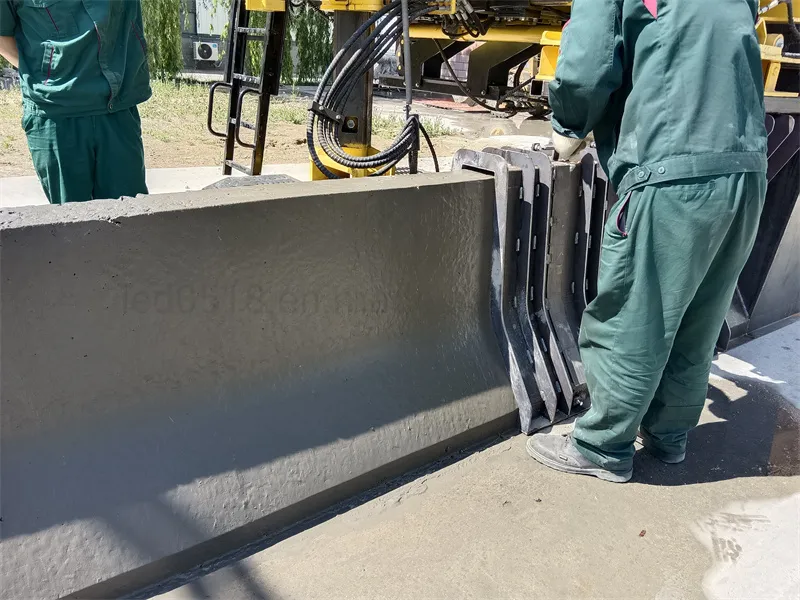

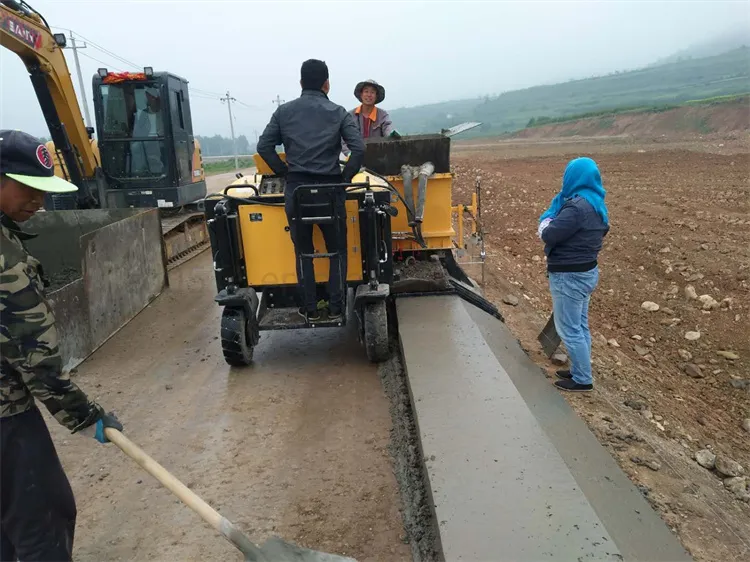

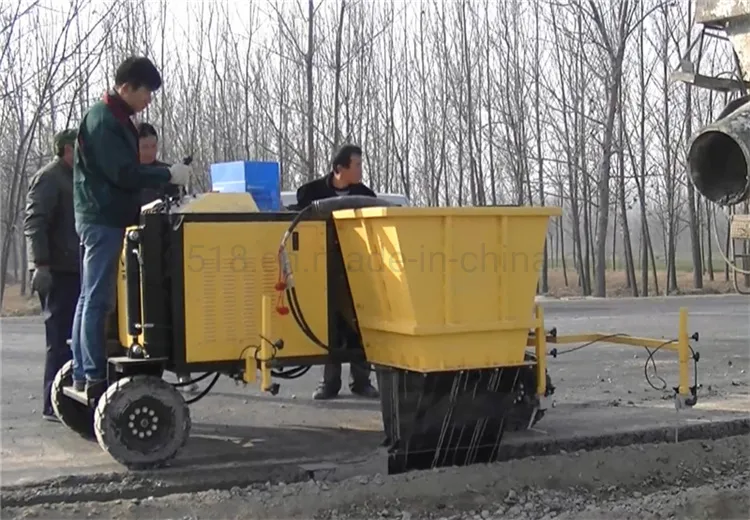

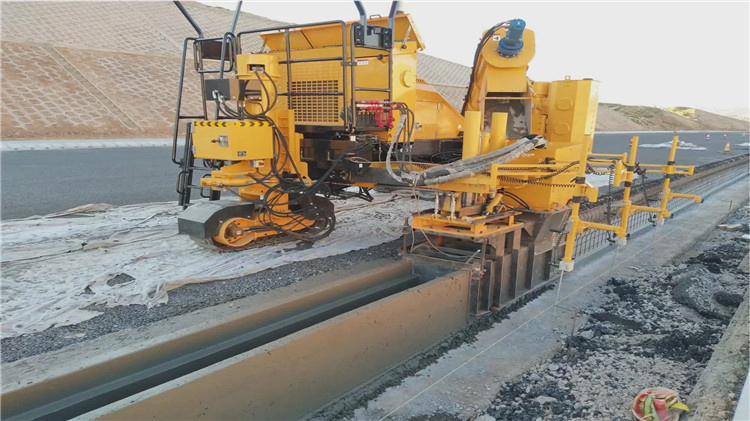

Widely used in highway and municipal road curbs molding projects.

🔗 Related Products

Model: LDHM31

Model: LDHM21 & LDHM11

🏢 Industry Presence
Frequently Asked Questions (FAQ)
Q1: What is the main application of the LDHM41 kerb machine? A: It is widely used for highway and municipal road curb molding, providing a semi-automatic solution for cement concrete pavements.
Q2: What type of engine does this machine use? A: The LDHM41 is powered by a high-quality Cummins 4BTA 3.9 liquid-cooled, four-cylinder diesel engine with a power output of 97kW.
Q3: How fast can the LDHM41 operate? A: The machine features a working speed range of 0-15 meters per minute and a traveling speed of up to 30 meters per minute.
Q4: Can the mold size be adjusted for different projects? A: Yes, the machine supports mold traverse adjustment up to 1000mm and height adjustment up to 400mm, with a maximum mold height and width of 1300mm.
Q5: What are the key hydraulic features of the machine? A: It includes Danfoss hydraulic variable plunger pumps, U.S.A hydra force control valves, and high-frequency hydraulic vibrating rods for efficient performance.
Q6: Is the machine easy to clean and maintain? A: Absolutely. It comes equipped with a high-pressure washing pump and utilizes Italy brand quick plugs for hydraulic connections to prevent leaks and simplify maintenance.
