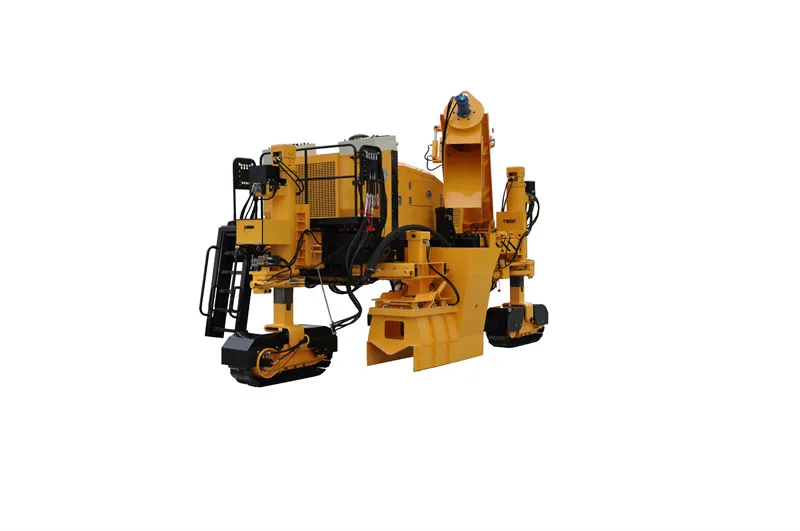

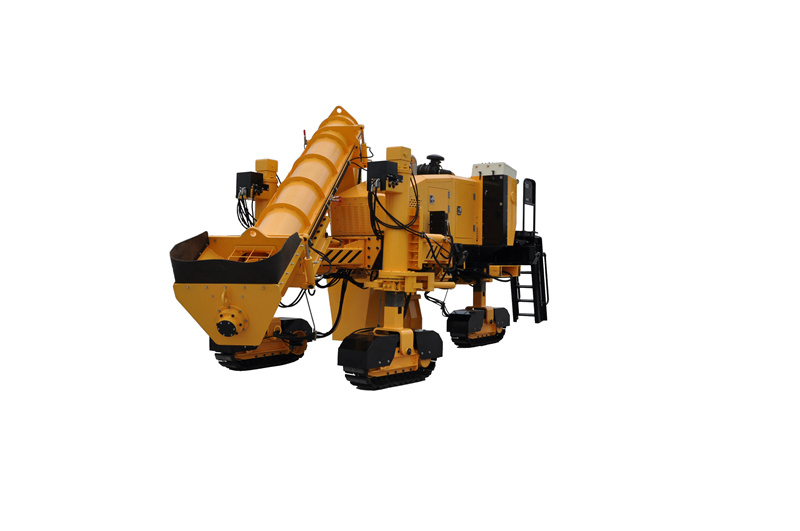

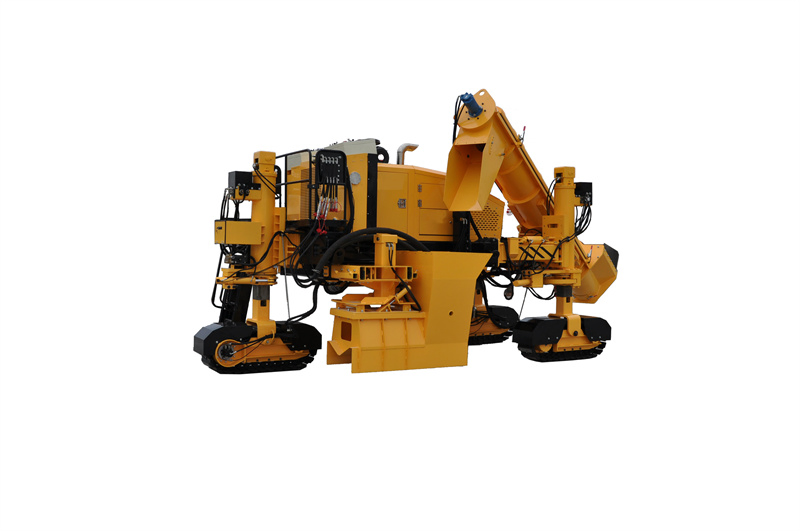

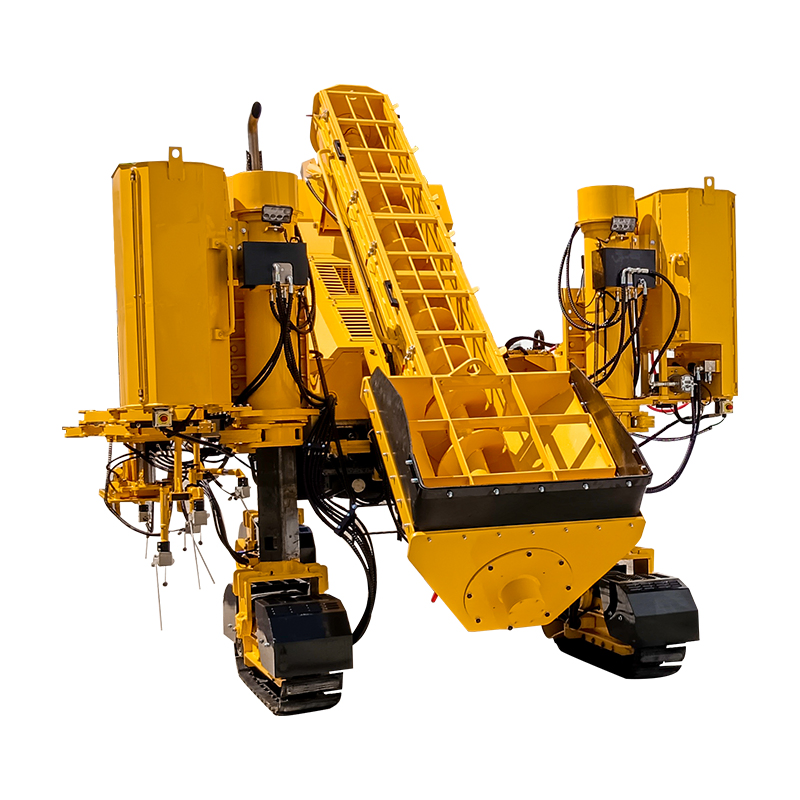

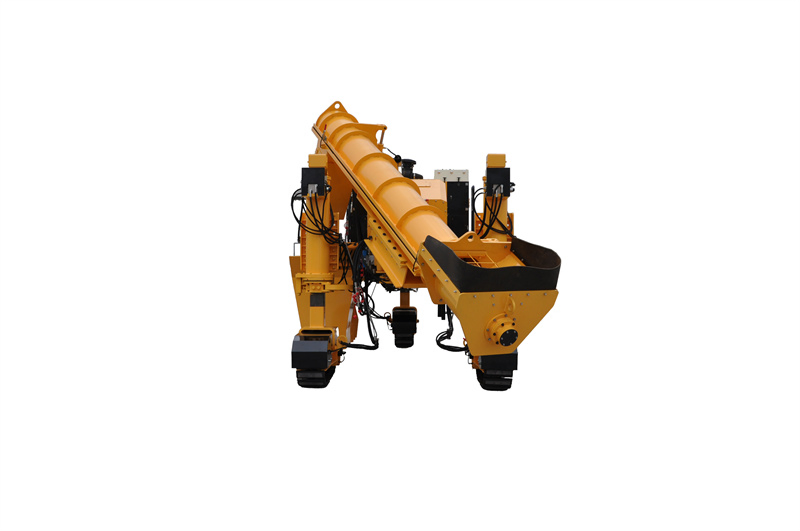

new designed Commercial Road Concrete Curb Paver Machine

1 / 5

new designed Commercial Road Concrete Curb Paver Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	LDHM41
Type	Paver
Object	Cement Concrete Pavement
Moving Type	Mobile
Mixing Method	Intermittent Compulsory
Automatic Grade	Semi-Automatic
Product Capacity	40～400t/h
Certification	ISO9001: 2000, CE
Condition	New
Work Speed	0-15m/Min
Power	97kW/2200rpm
Fuel tank volume	120L
Transport size	6975x2500x3420mm
Package Weight	11,700kg
HS Code	8474802000

Product Description

New Designed Commercial Road Concrete Curb Paver Machine

Detailed Photos & Key Features

With great function controller and automatic calculation, suitable for kinds of projects.
Equipped with imported brand CUMMINS diesel engine.
Equipped with imported Danfoss hydraulic variable plunger pump, drives machine in stepless speed.

With U.S.A hydra force brand hydraulic control valve to control each function intelligently.
With high frequency hydraulic rod and strong power output.
Crawler walking mechanism with automatic tension cylinder increases life of the belt.

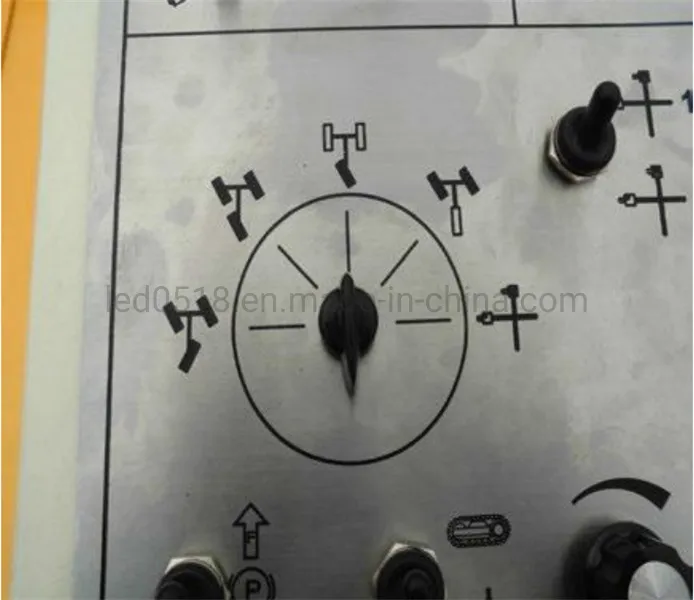

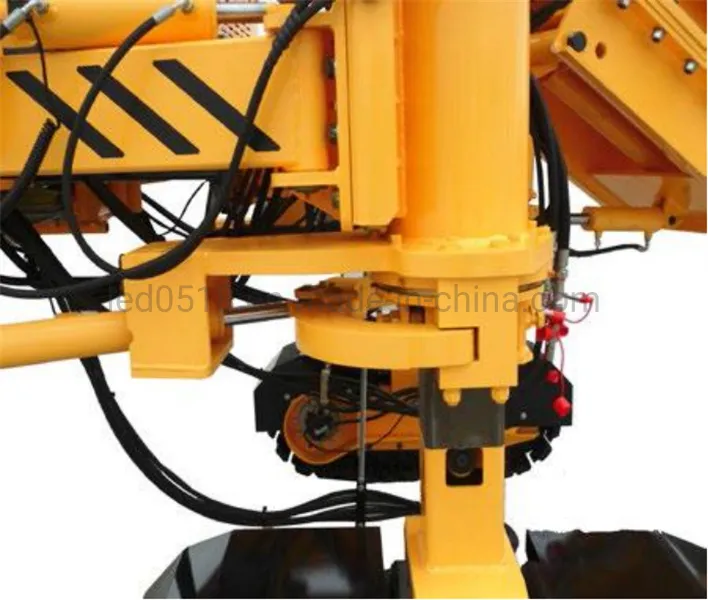

Patented steering system, flexible and convenient for various terrains.
Switch quickly between multiple walking modes.

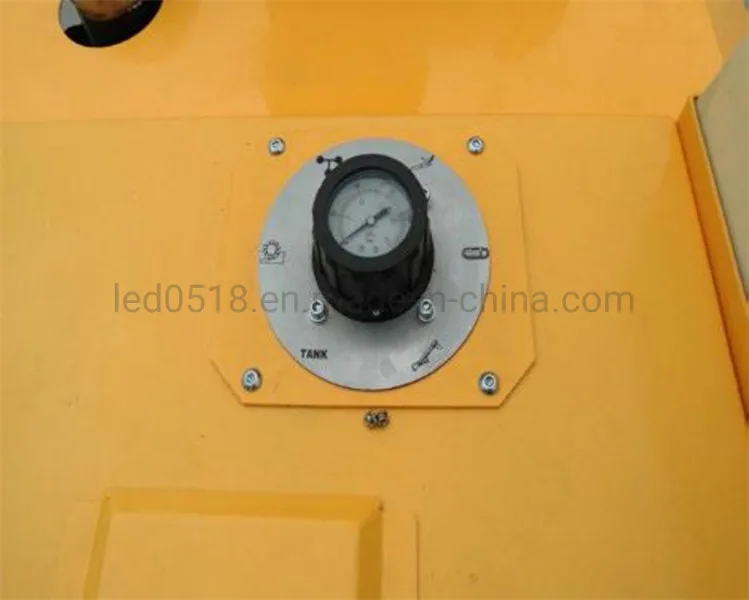

Real-time pressure monitors for each working mechanism.

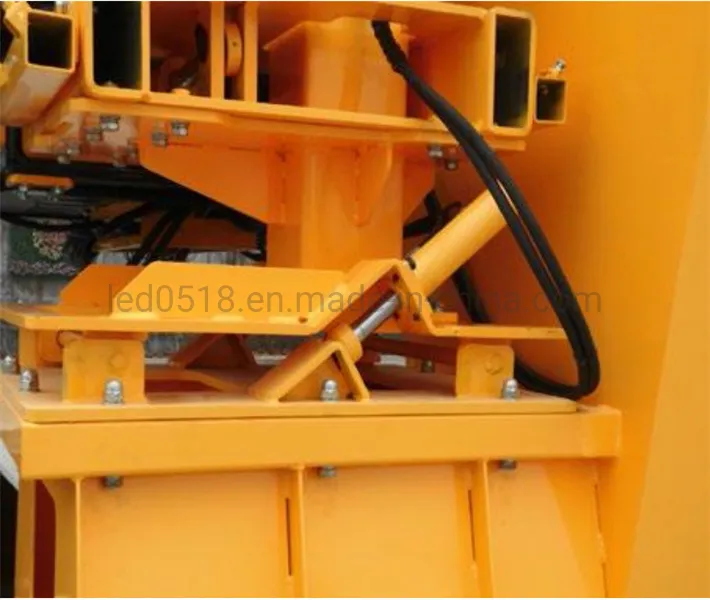

Hydraulic mold hanging and dismantling for easy, labor-saving operation.

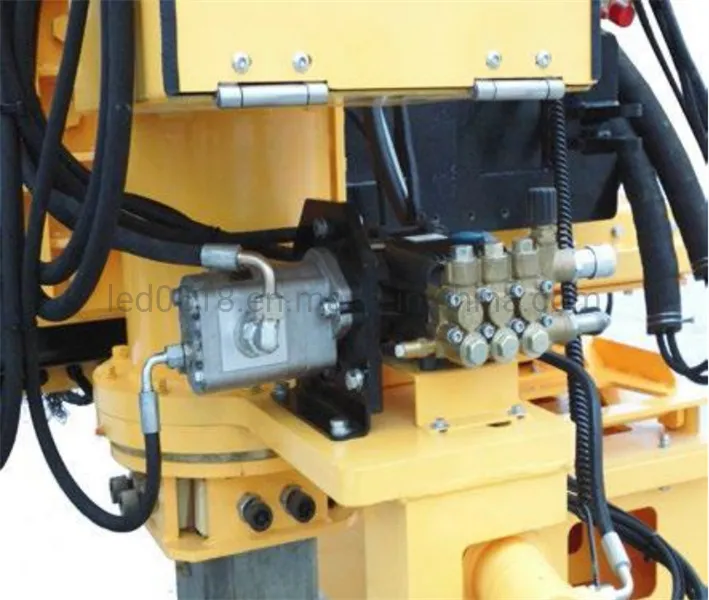

Integrated hydraulic high-pressure washing pump for easy cleaning.

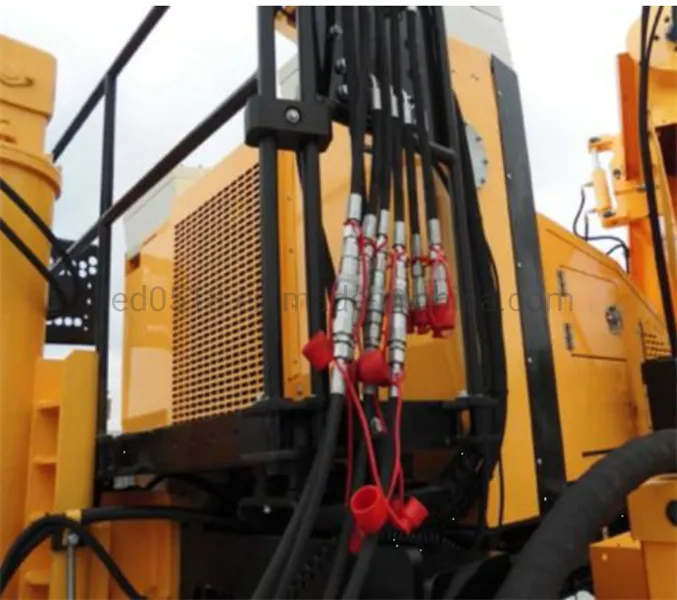

Italy brand quick plugs for external hydraulic connections, ensuring no oil leaks.

Specifications

Engine System
Model	Cummins 4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kw/2200rpm
Traveling System
Traveling Mode	By crawler
Driving Mode	By hydraulic
Steering Mode	Collaborative / Yaw / Front wheel / Rear wheel / Automatic
Traveling Speed	0-30m/min
Working Speed	0-15m/min
Mold Parameters
Traverse Adjustment	1000mm
Height Adjustment	400mm
Max. Mold Height	1300mm
Max. Mold Width	1300mm
Dimensions & Weight
Transport Size	6975x2500x3420mm
Weight	11,700kg

Product Application

Widely used in highway and municipal road curbs molding projects for precision and efficiency.

Related Models

LDHM31 Series

LDHM21 & LDHM11 Series

Company Capability

Frequently Asked Questions

Q1: What is the primary use of the LDHM41 Concrete Curb Paver?

A: The LDHM41 is primarily designed for high-precision molding of concrete curbs on highways and municipal roads.

Q2: What engine is equipped in this machine?

A: It features a powerful Cummins 4BTA 3.9 diesel engine, which is liquid-cooled and four-cylinder for reliable performance.

Q3: How fast can the machine work during curb molding?

A: The working speed is adjustable between 0 and 15 meters per minute, allowing for flexible operation depending on project requirements.

Q4: Can the mold size be adjusted or customized?

A: Yes, the machine allows for a mold traverse adjustment of 1000mm and a height adjustment of 400mm, accommodating various curb specifications.

Q5: Is it easy to maintain and clean the machine?

A: Absolutely. It comes with an integrated hydraulic high-pressure washing pump, enabling operators to clean the machine on-site at any time.

Q6: What type of steering system does it use?

A: It utilizes a patented steering system with multiple modes, including collaborative, yaw, front-wheel, and rear-wheel steering, plus an automatic mode.
