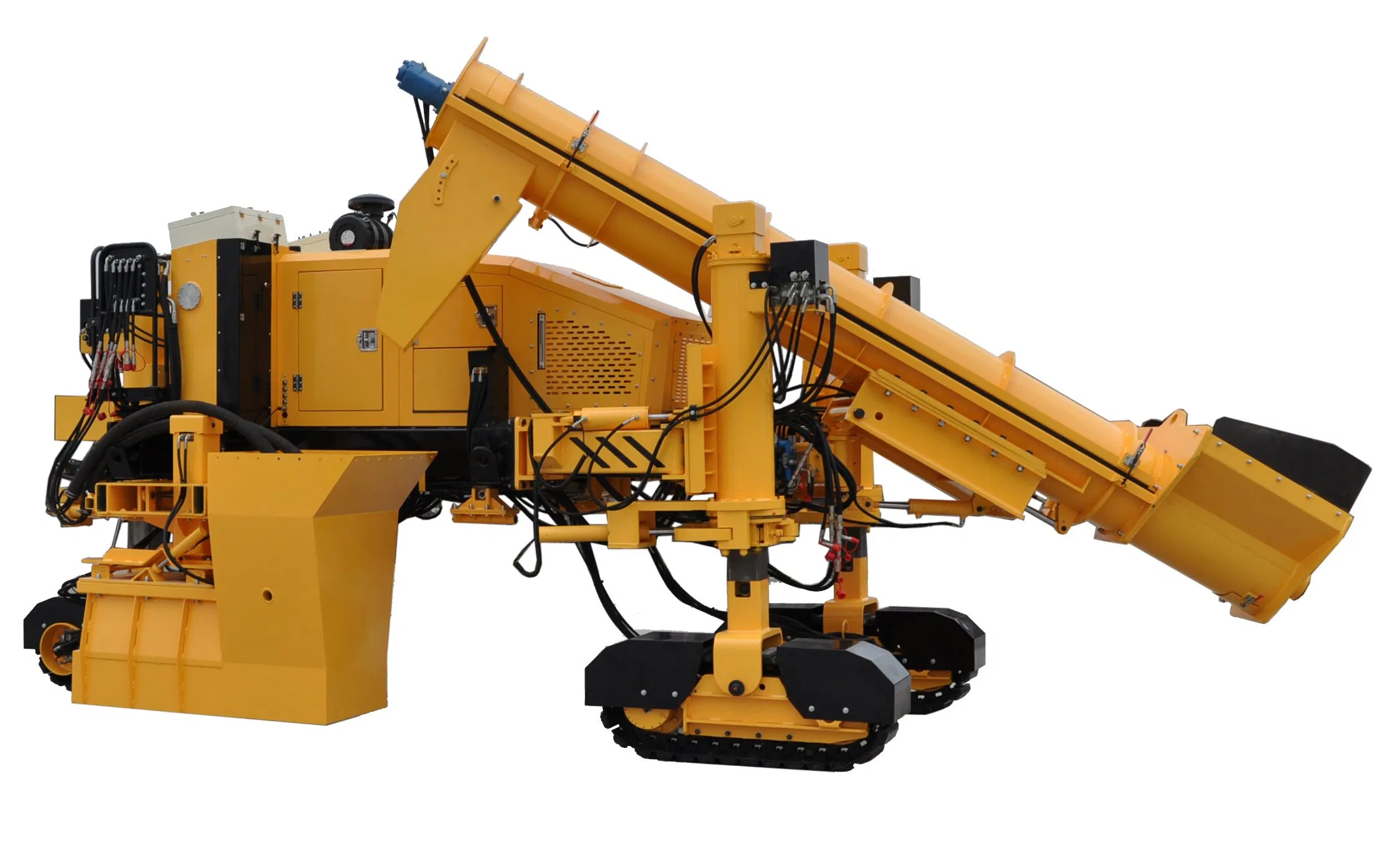

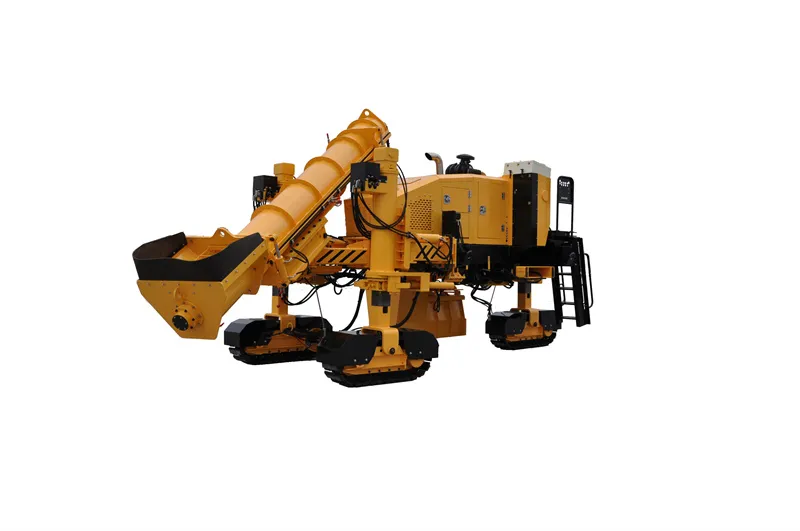

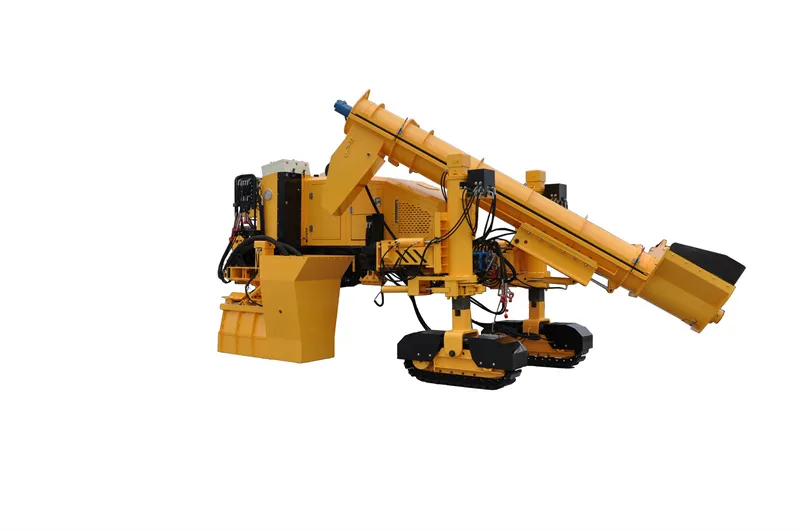

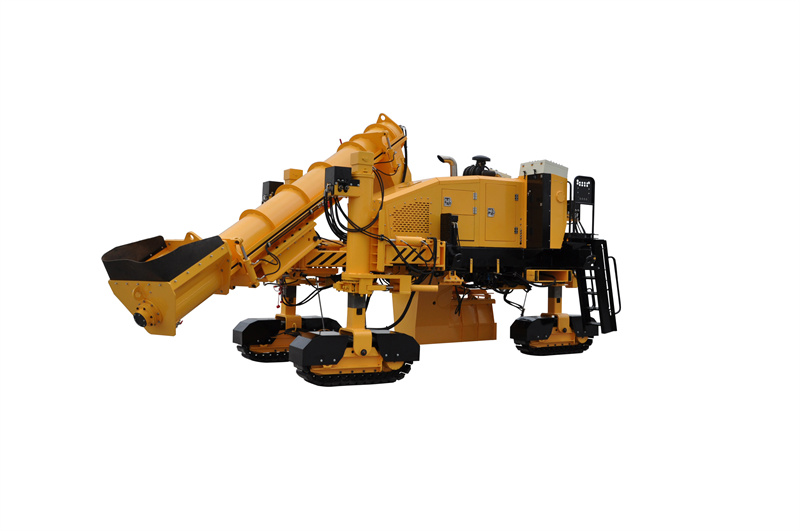

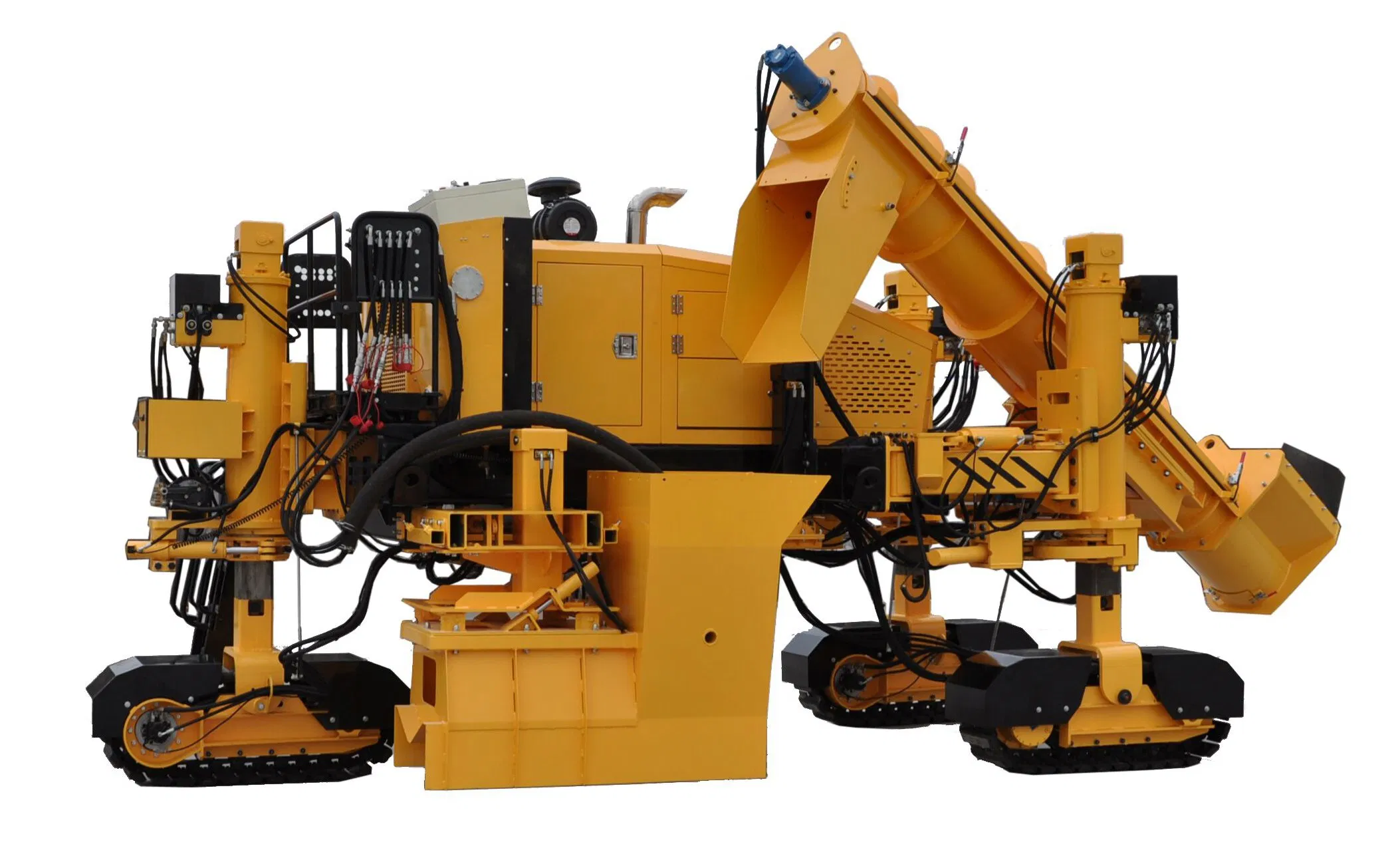

ditches paver Popular concrete cement road paver paving machine concrete slipform paver

1 / 5

ditches paver Popular concrete cement road paver paving machine concrete slipform paver

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	LDHM41
Type	Paver
Object	Cement Concrete Pavement
Moving Type	Mobile
Mixing Method	Intermittent Compulsory
Automatic Grade	Semi-Automatic
Product Capacity	40～400t/h
Certification	ISO9001: 2000, CE
Condition	New
Working Type	Diesel Engine, liquid cooled, four cylinder
Work Speed	0-15m/Min
Power	97kW/2200rpm
Engine oil volume	9L
Fuel tank volume	120L
Transport size	6975x2500x3420mm
Package Weight	11,700kg
Production Capacity	500PCS/Year

Product Description

Ditches paver Popular concrete cement road paver paving machine concrete slipform paver

Detailed Photos & Key Features

With great function controller and automatic calculation, suitable for kinds of projects

With imported brand CUMMINS diesel engine

With imported Danfoss hydraulic variable plunger pump, drives machine in stepless speed

With U.S.A hydra force brand hydraulic control valve, to control each function intelligently

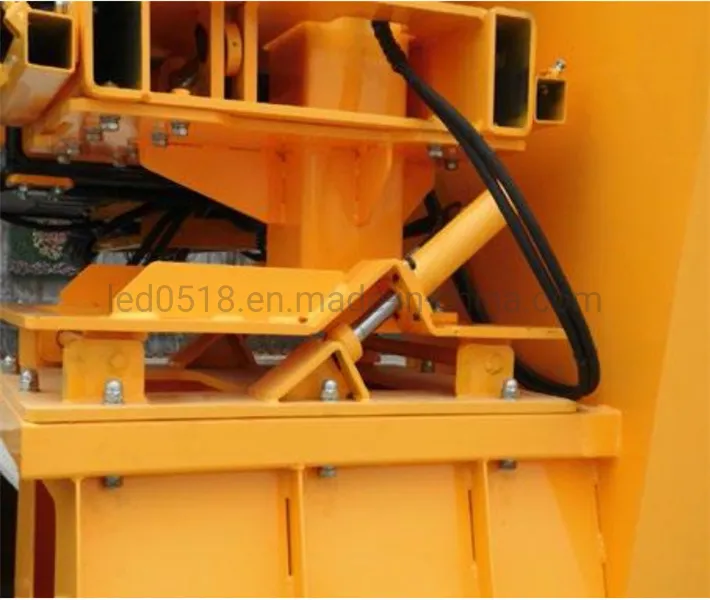

With hydraulic rod, high frequency, and strong power

The crawler walking mechanism with automatic tension cylinder increases life of the crawler belt

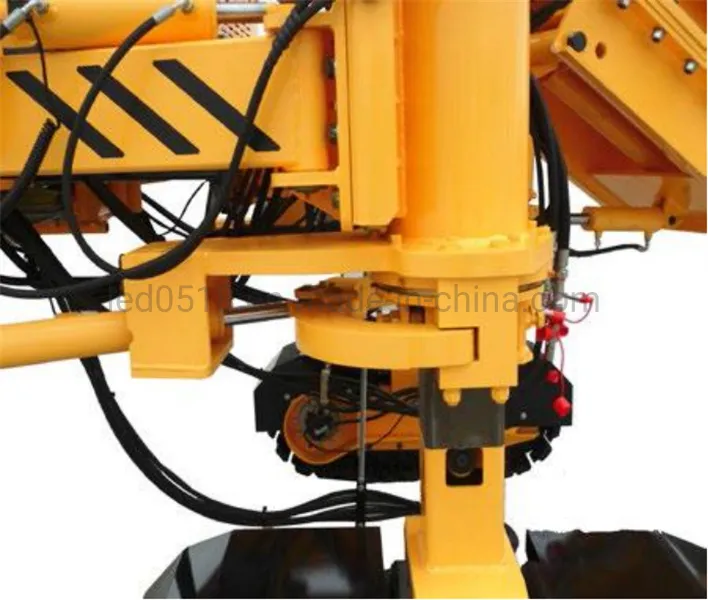

With patented steering system, flexible and convenient

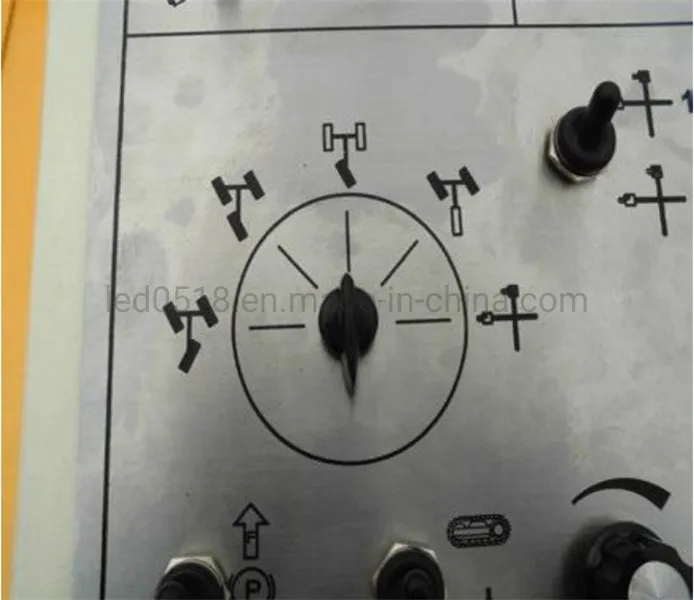

With kinds of walking modes that can quickly switch

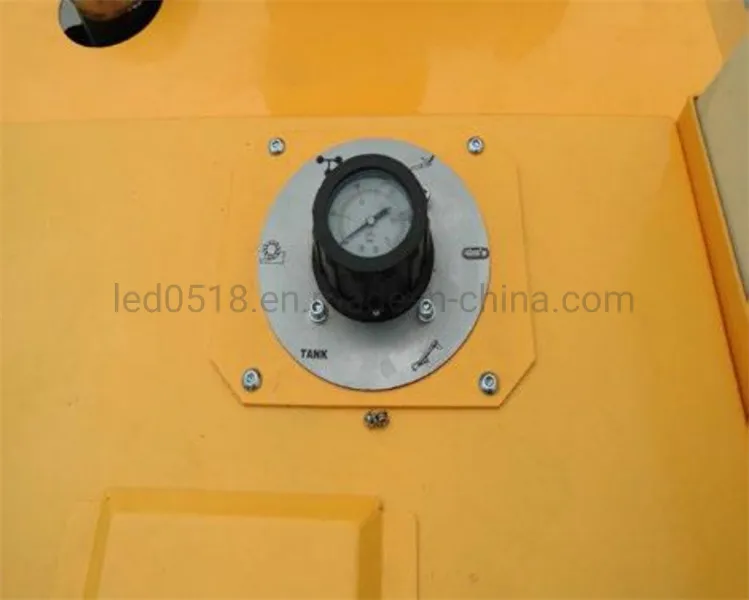

With pressure monitors for each work mechanism to supervise in real time

The mold hanging, dismantle hydraulically, easy work and labor-saving

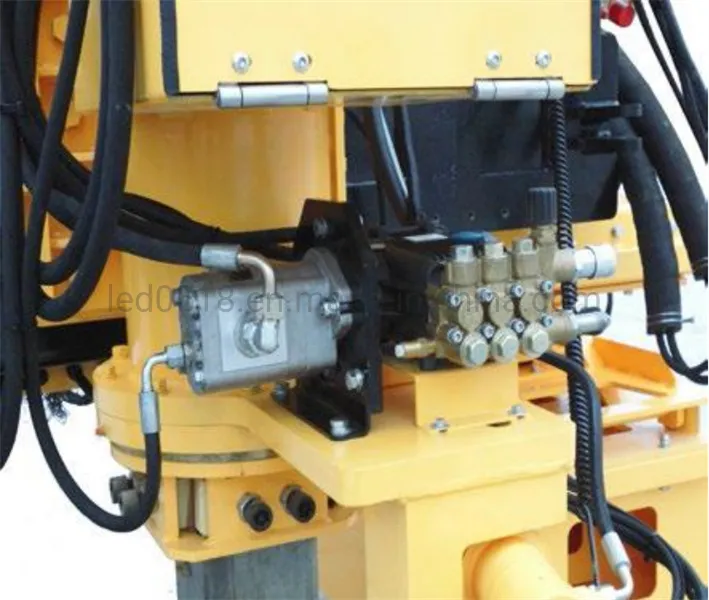

With hydraulic high pressure washing pump can clean the machine any time

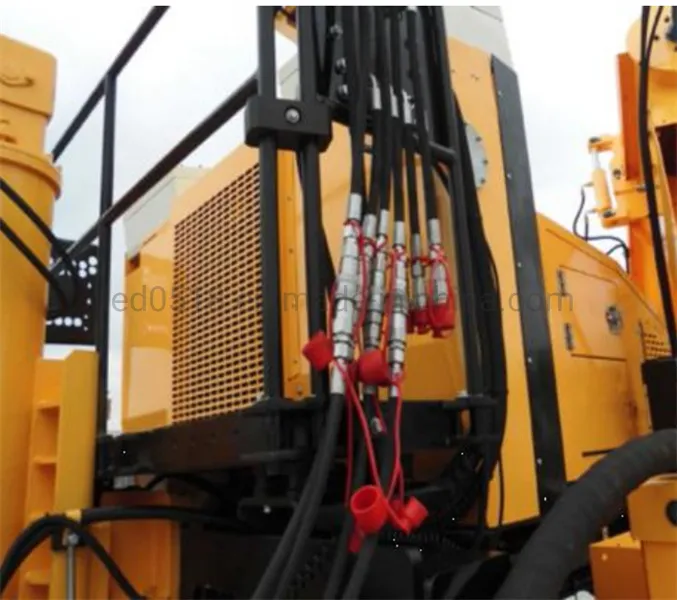

With Italy brand quick plugs for external connections of hydraulic powers

Product Parameters

Engine
Model	Cummins 4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kw/2200rpm
Engine oil volume	9L
Traveling System
Traveling mode	By crawler
Driving mode	By hydraulic
Steering mode	Collaborative/Yaw/Front wheel/Rear wheel/Automatic
Traveling speed	0-30m/min
Working speed	0-15m/min
Mold
Mold traverse adjustment	1000mm
Mold height adjustment	400mm
Max. height of the mold	1300mm
Max. width of the mold	1300mm
Volume
Fuel tank volume	120L
Hydraulic tank volume	280L
Water tank volume	120L
Dimension & Weight
Transport size	6975x2500x3420mm
Weight	11700kg

Product Application

Widely used in highway and municipal road curbs molding.

Related Products

LDHM31

LDHM21 & LDHM11

Our Process

Frequently Asked Questions

What is the maximum paving speed of the LDHM41?

The LDHM41 concrete paver has a working speed ranging from 0 to 15 meters per minute, allowing for efficient road curb molding.

What engine power does this machine provide?

It is equipped with a high-performance diesel engine providing 97kW at 2200rpm, ensuring strong power for demanding projects.

Can the mold dimensions be adjusted?

Yes, the mold height and width can both be adjusted up to 1300mm to meet specific project requirements.

How many steering modes does the crawler system support?

The machine supports five steering modes: Collaborative, Yaw, Front wheel, Rear wheel, and Automatic steering for maximum flexibility.

Is the machine easy to clean on-site?

Yes, it features a hydraulic high-pressure washing pump, allowing operators to clean the machine at any time during or after the job.

What is the total transport weight of the unit?

The total weight of the machine is approximately 11,700kg, designed for stable operation and reliable transport.
