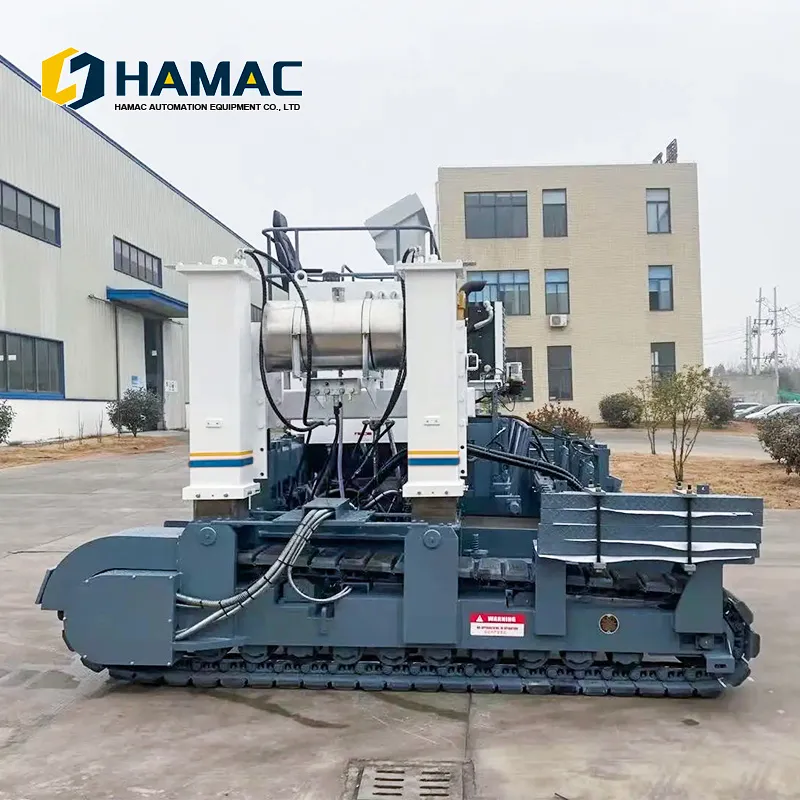

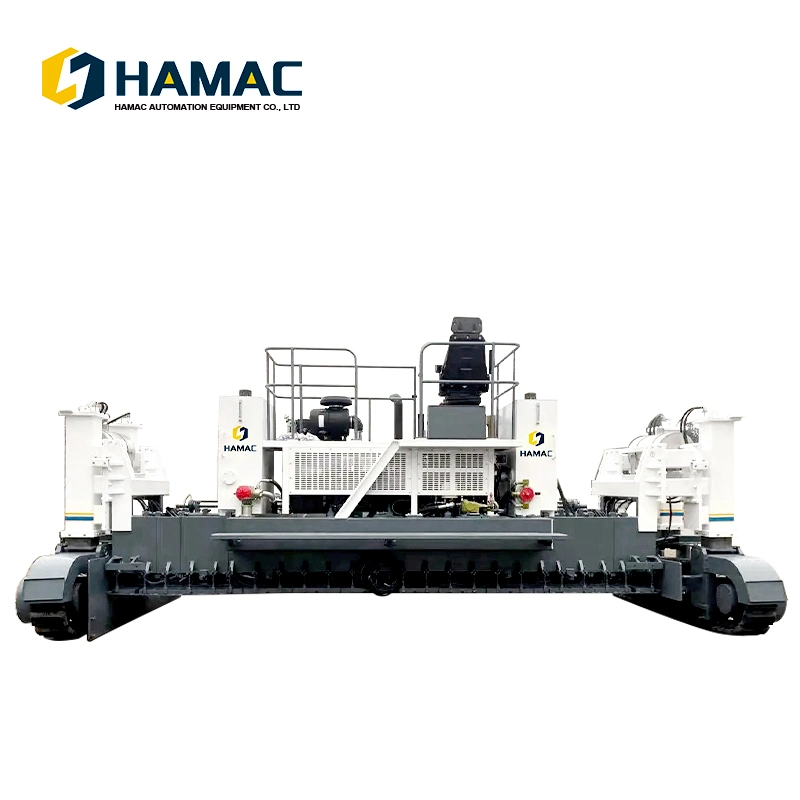

Cp6000 Factory Direct Price Interlock Pavers Road Running Speed 0-2km/H Slipform Paver

1 / 5

Cp6000 Factory Direct Price Interlock Pavers Road Running Speed 0-2km/H Slipform Paver

Customization:	Available
After-sales Service:	Online Support, Video Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SP6000

Type

Paver

Object

Cement Concrete Pavement

Moving Type

Mobile

Mixing Method

Continuous Drum

Automatic Grade

Automatic

Product Capacity

40～400t/h

Certification

ISO9001: 2000, CE

Condition

New

Drive System

Full Hydraulic

🏗️ Product Description

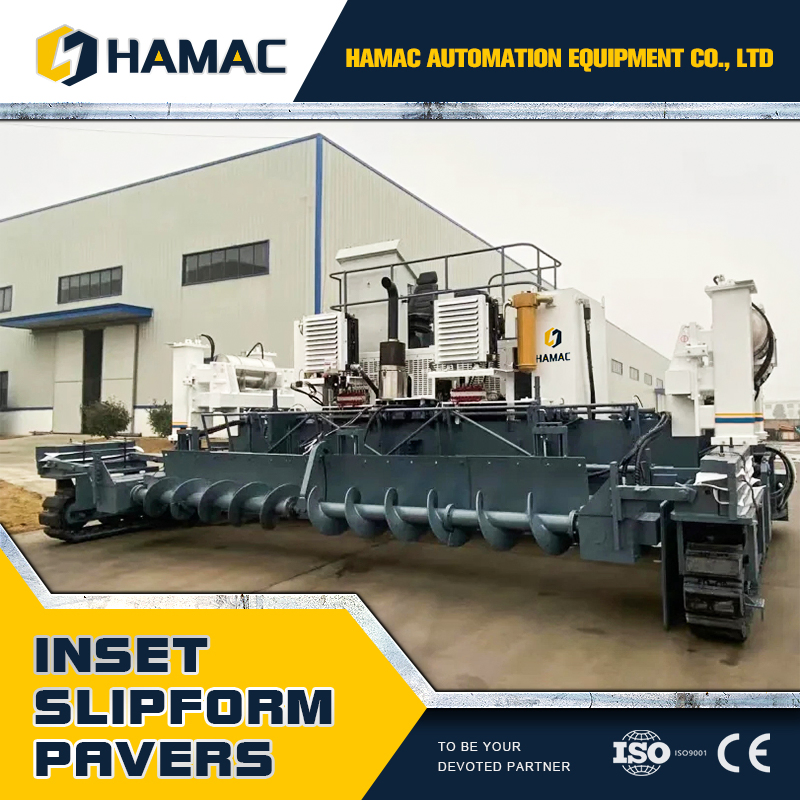

The inset slipform paver is based on the advanced technology introduced from professional engineering standards. It has developed offset-paving and inset-paving slipform pavers with paving widths ranging from 3.4~6 meters. It is widely used in concrete pavement projects such as urban and rural roads, high-grade highways, high-speed railway passenger lines, squares, docks, and water conservancy projects.

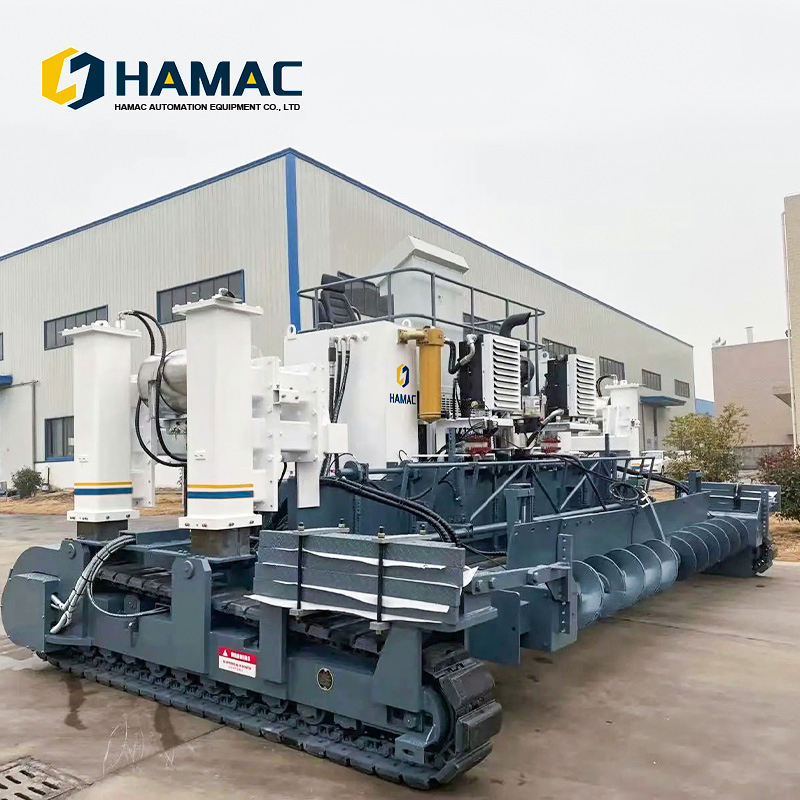

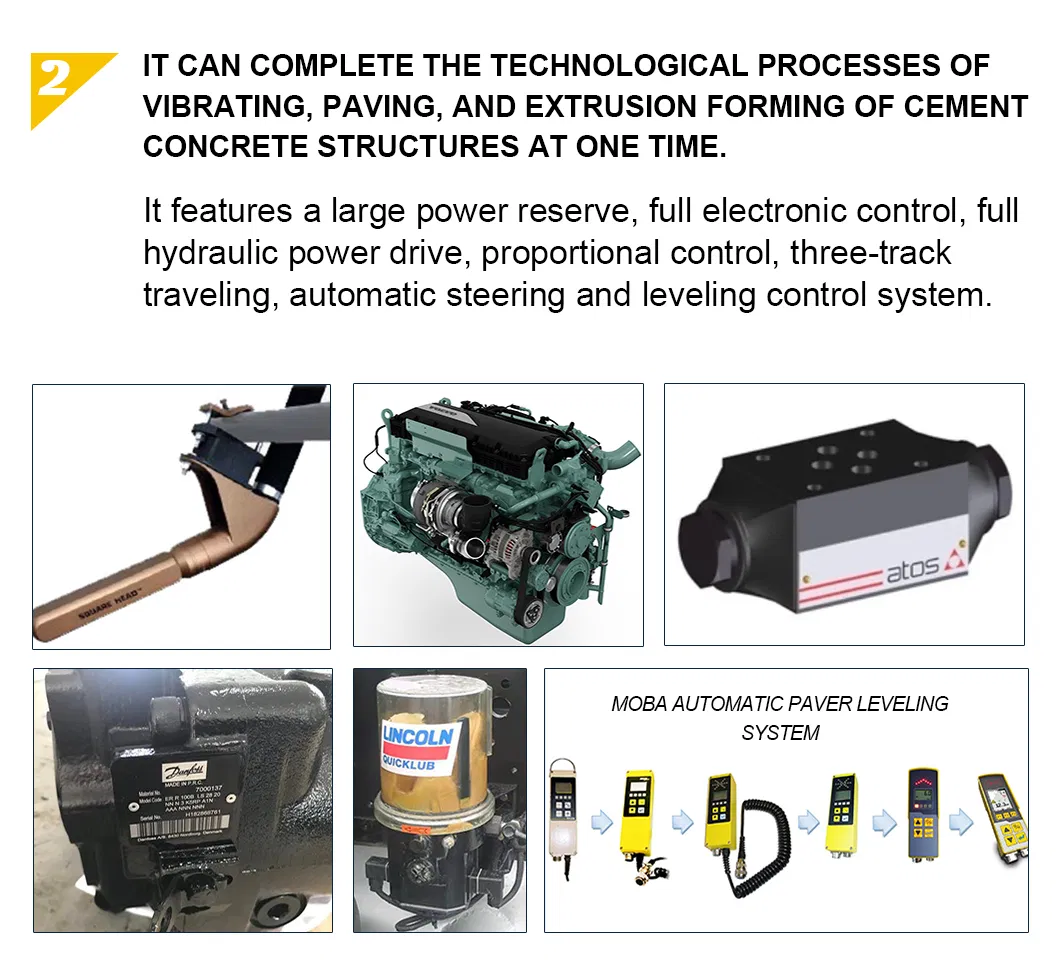

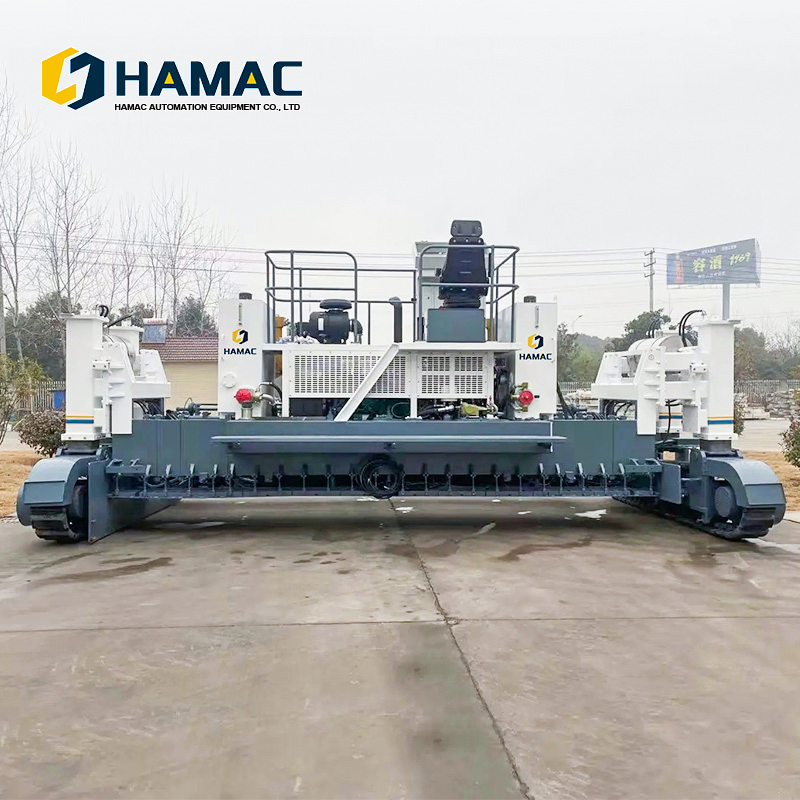

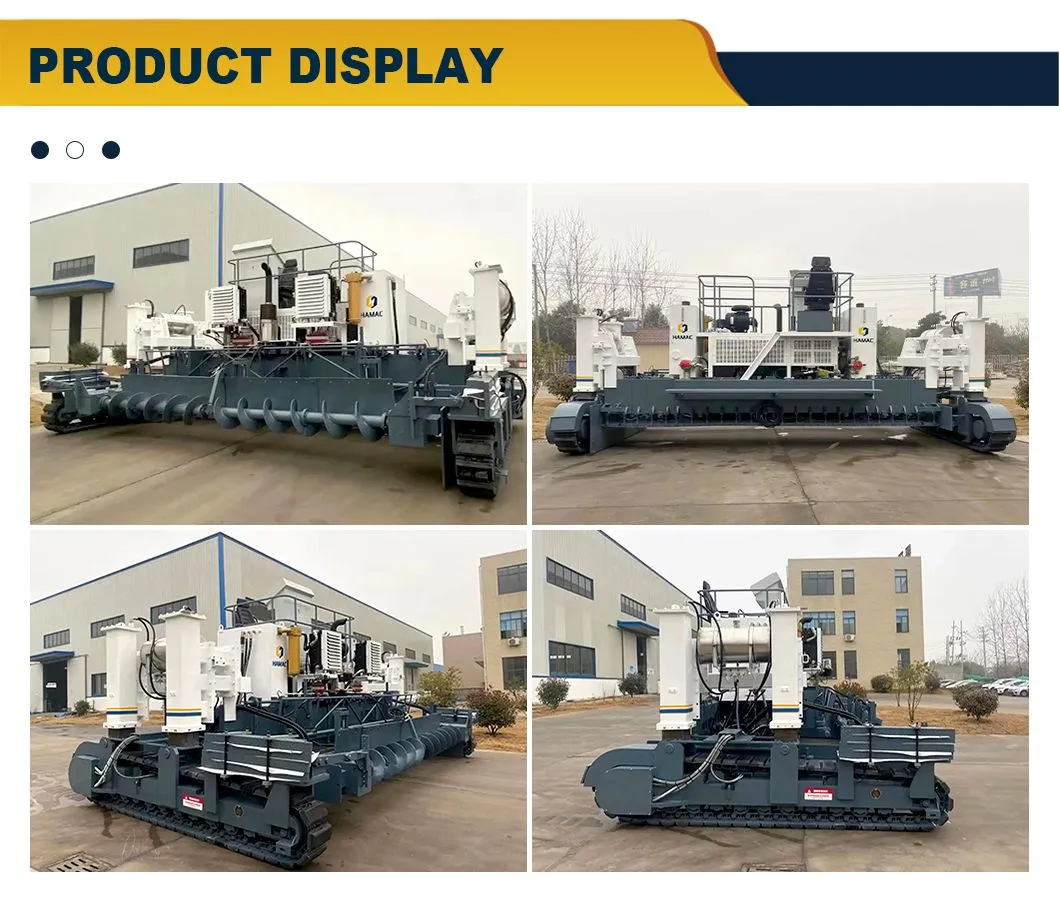

This machine is a fully hydraulic concrete slipform paver with high power and two crawler tracks. It is equipped with automatic driving and automatic leveling control systems. During operation, it can complete concrete paving, scraping, vibrating, tamping, extrusion, and other processes at one time. It can also handle middle and side steel bar insertion. Additionally, it can be equipped with a super trowel to eliminate surface unevenness, resulting in a smoother and more economical pavement finish.

📊 Technical Specifications

Item	Unit	SP6000 Data
Paving Width	mm	3400-6000
Paving Thickness	mm	0-500
Paving Speed	m/min	0-10
Travel Speed	Km/h	0-2.0
Drive System	-	Full Hydraulic
Travel System	-	Track type
Engine Model	-	TAD552VE (Volvo)
Engine Power	kW	160
Engine Speed	rpm	2300
Pavement Evenness	mm/3m	3mm/3m
Vibration Bar	-	High frequency & hydraulic drive
Overall Size	mm	402072902770
Machine Weight	T	22

❓ Frequently Asked Questions

What is the maximum paving width of the SP6000?

The SP6000 slipform paver supports a flexible paving width ranging from 3400mm to 6000mm.

What kind of engine powers this machine?

It is powered by a high-performance Volvo TAD552VE engine with 160kW power at 2300 rpm.

Can it handle different pavement thicknesses?

Yes, the machine is designed to handle paving thicknesses from 0mm up to 500mm, making it suitable for various road types.

Does the machine feature automatic leveling?

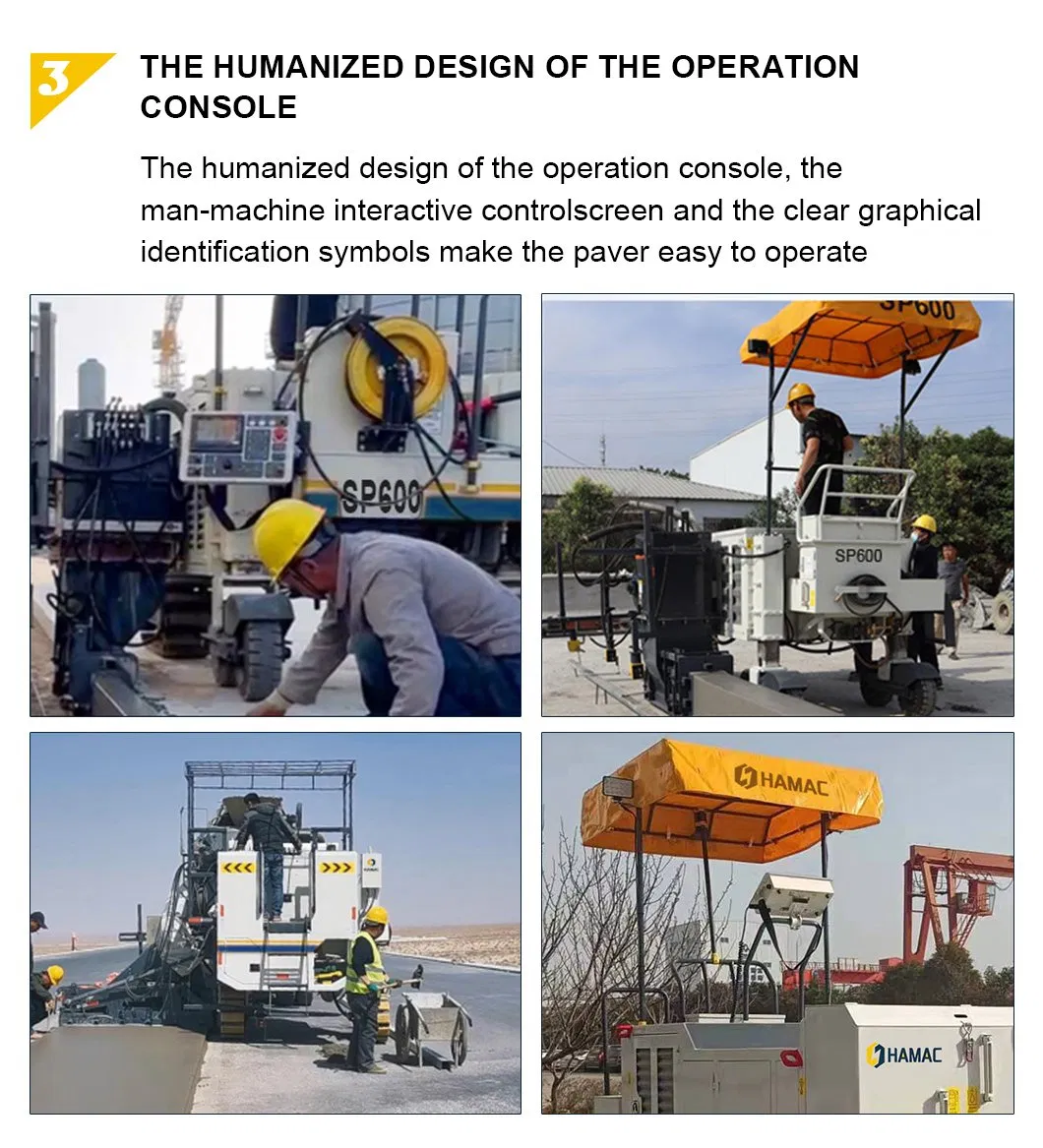

Yes, it is equipped with fully automatic driving and automatic leveling control systems for precision operation.

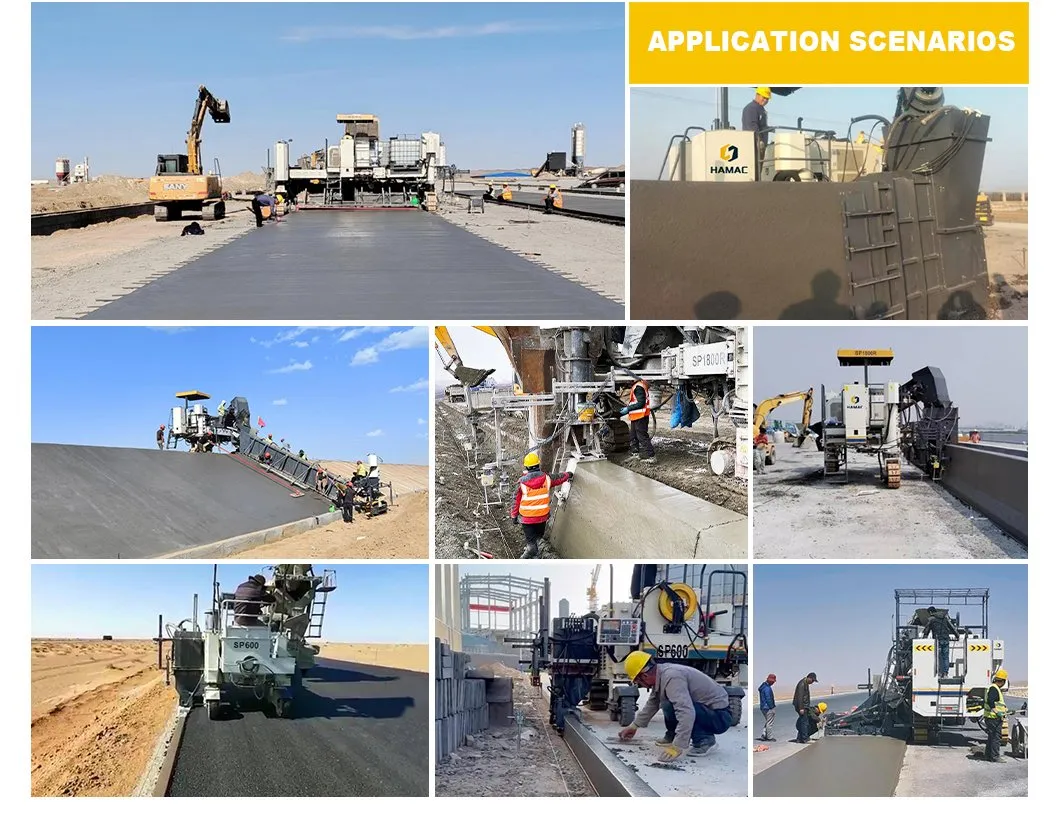

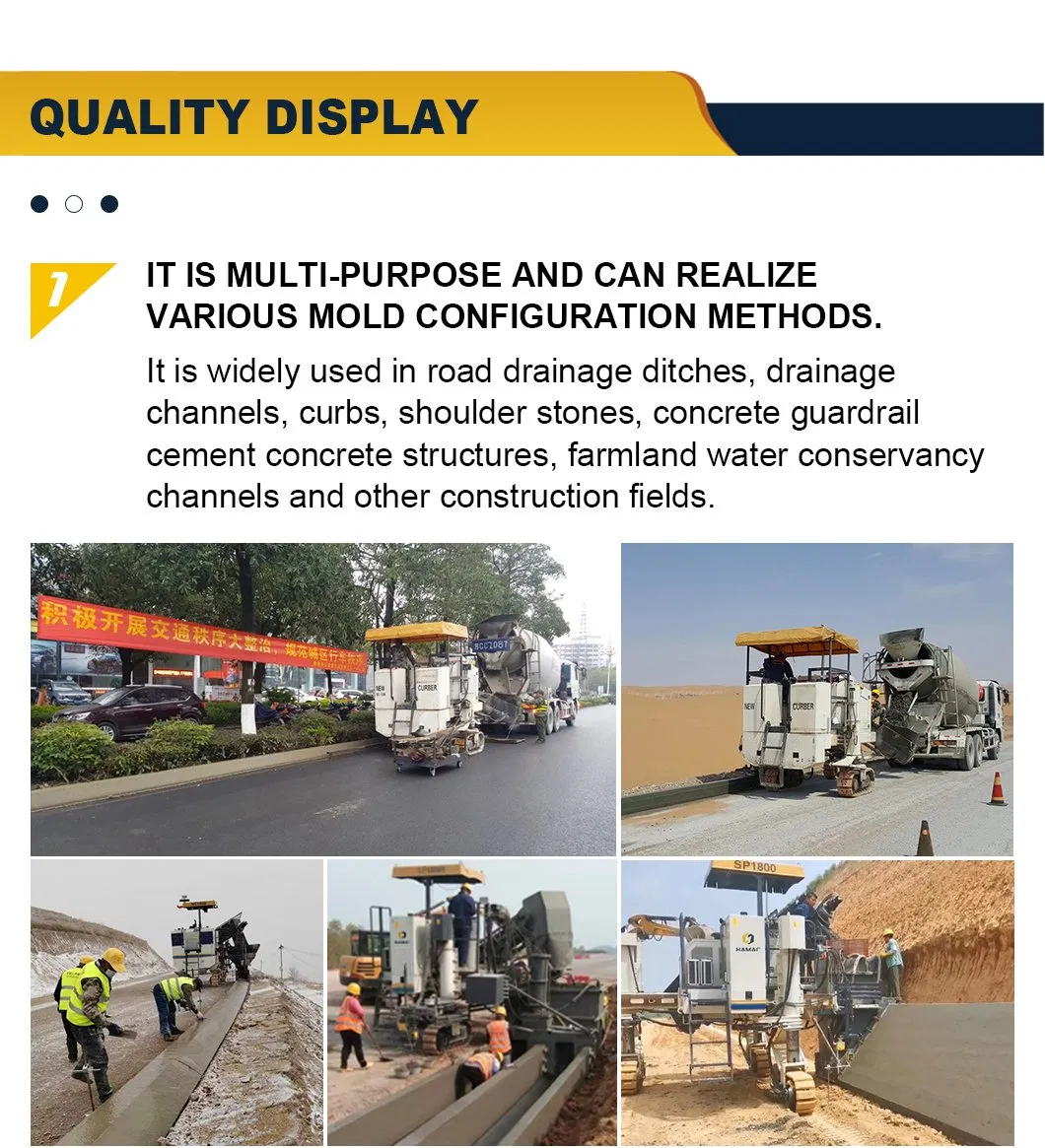

What are the typical applications for this slipform paver?

It is ideal for urban/rural roads, high-grade highways, high-speed railway lines, squares, docks, and water conservancy projects.

What is the travel and paving speed?

The paving speed is adjustable from 0-10 m/min, while the travel speed for relocation is up to 2.0 km/h.
