Product Description

Basic Information

Model NO.

LDHM41

Type

Paver

Object

Cement Concrete Pavement

Moving Type

Mobile

Mixing Method

Intermittent Compulsory

Automatic Grade

Semi-Automatic

Product Capacity

40～400t/h

Certification

ISO9001: 2000, CE

Condition

New

Power

97kW/2200rpm

Work Speed

0-15m/Min

Package Weight

11,700kg

Product Description

Crawler Multipurpose Slipform Machines Road Construction Machinery

Detailed Performance Features

01Great function controller with automatic calculation, suitable for various projects.

02Equipped with imported CUMMINS diesel engine for reliable power.

03Imported Danfoss hydraulic variable plunger pump, driving machine in stepless speed.

04U.S.A HydraForce brand hydraulic control valves for intelligent function management.

05High-frequency hydraulic rods with strong power for superior performance.

06Crawler walking mechanism with automatic tension cylinder for increased belt life.

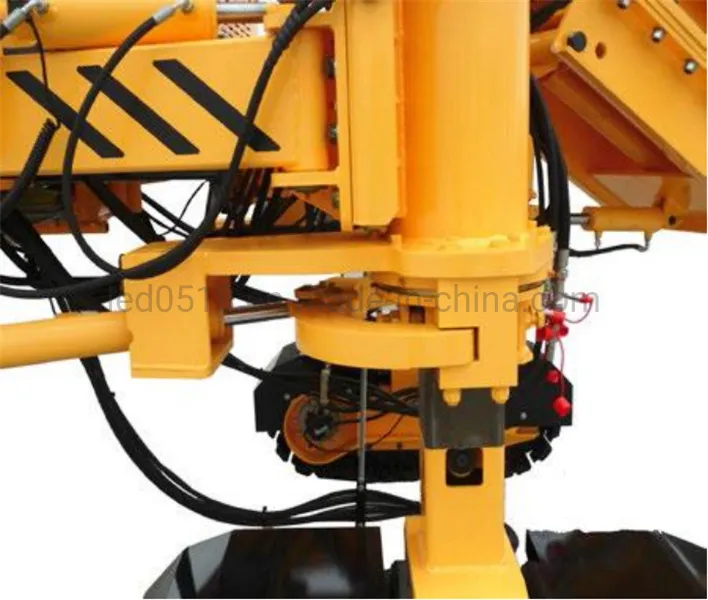

07Patented steering system, flexible and convenient for tight operations.

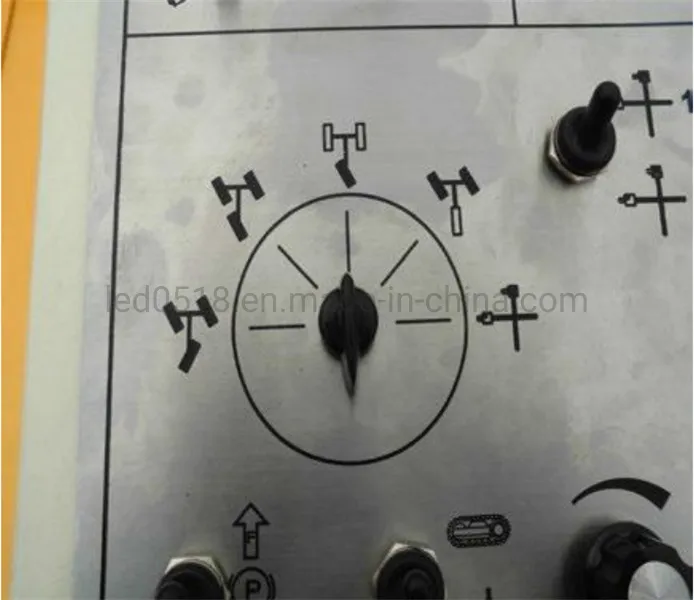

08Multiple walking modes that can be switched quickly for job site efficiency.

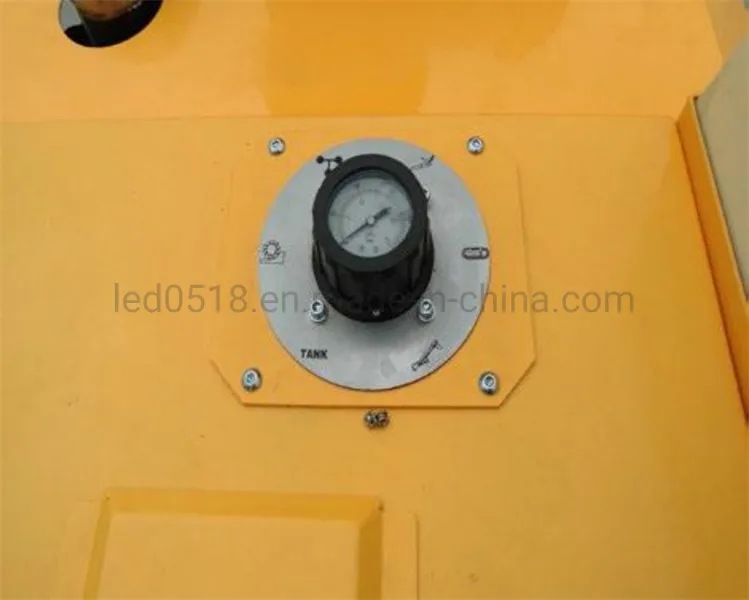

09Real-time pressure monitors for each working mechanism to ensure safe operation.

10Hydraulic mold hanging and dismantling system for labor-saving maintenance.

11Integrated hydraulic high-pressure washing pump for easy machine cleaning.

12Italian brand quick plugs for external hydraulic connections, ensuring no oil leaks.

Detailed Photos

Technical Parameters

General Information
Type	LDHM41
Engine System
Model	Cummins 4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kw/2200rpm
Engine oil volume	9L
Traveling System
Traveling mode	By crawler
Driving mode	By hydraulic
Steering mode	Collaborative/Yaw/Front wheel/Rear wheel/Automatic
Traveling speed	0-30m/min
Working speed	0-15m/min
Mold Configuration
Max. height of the mold	1300mm
Max. width of the mold	1300mm
Mold height adjustment	400mm
Volumes & Dimensions
Fuel tank volume	120L
Hydraulic tank volume	280L
Transport size	6975x2500x3420mm
Total Weight	11700kg

Product Application

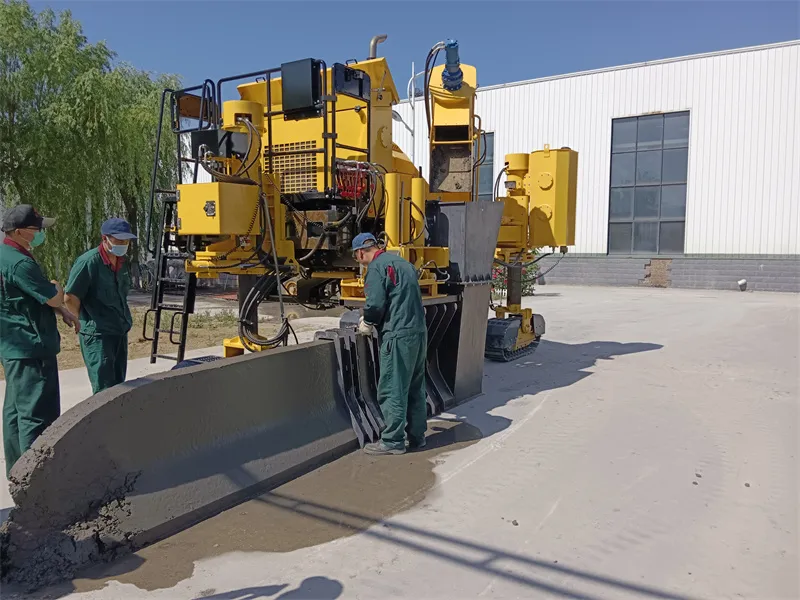

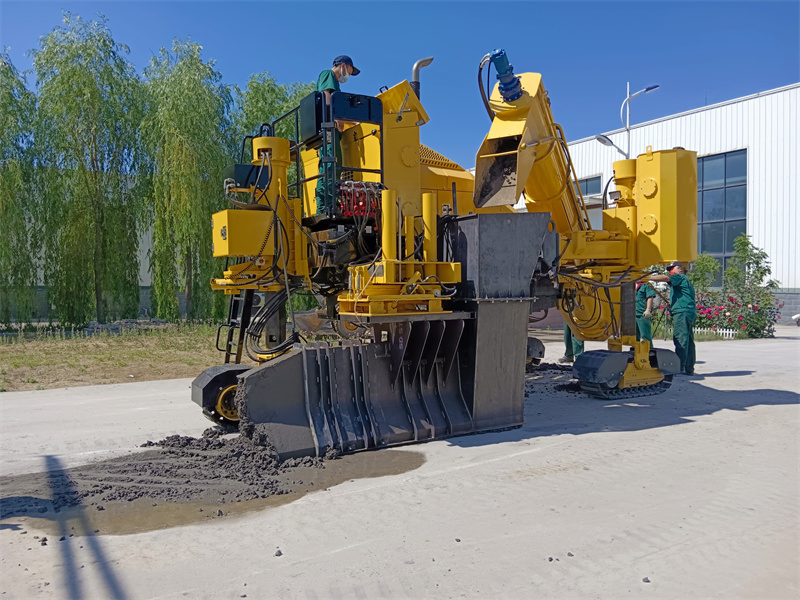

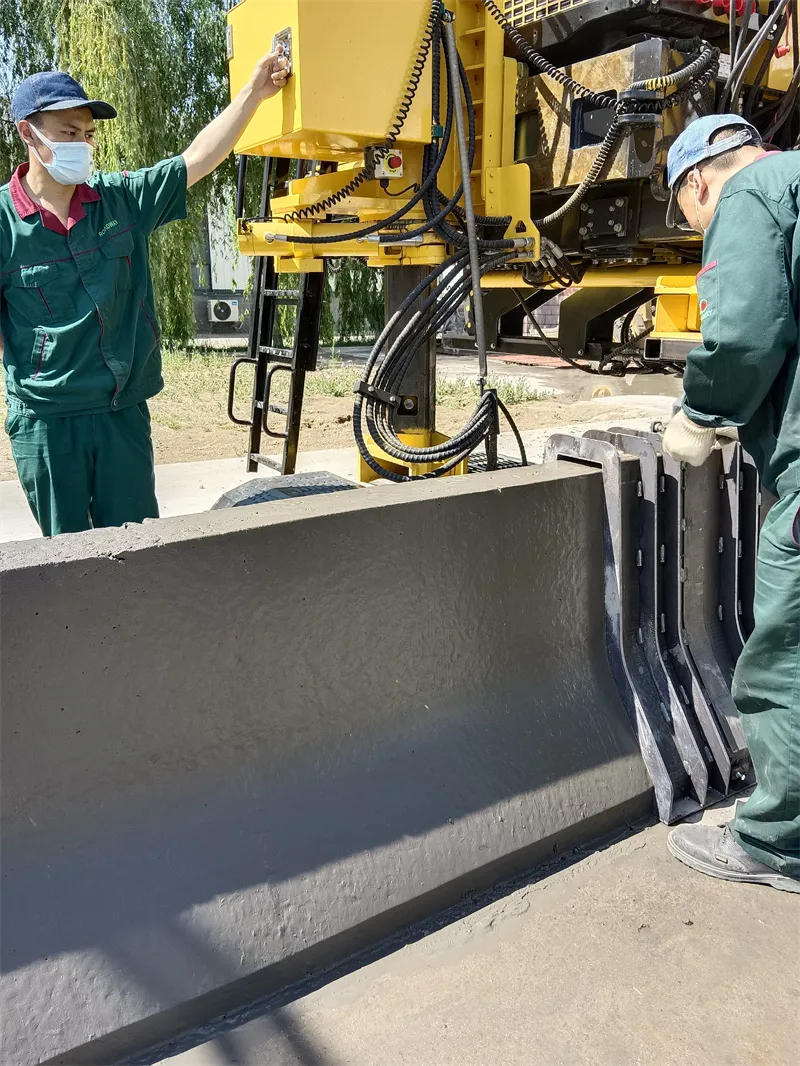

Widely used in highway and municipal road curbs molding for high-efficiency concrete paving.

Related Products

LDHM31

LDHM21 & LDHM11

Production & Quality Control

Frequently Asked Questions (FAQ)

Q1: What are the primary applications for the LDHM41 slipform machine? A: The LDHM41 is widely used for molding curbs in highway construction and municipal road projects, providing high-speed and high-quality concrete finishing.

Q2: Which engine brand is used in this road construction machinery? A: This machine is powered by a high-performance, liquid-cooled, four-cylinder Cummins 4BTA 3.9 diesel engine.

Q3: How flexible is the steering system of the crawler machine? A: It features a patented steering system with multiple modes including collaborative, yaw, front wheel, rear wheel, and automatic steering for maximum maneuverability.

Q4: Is the machine easy to clean after a workday? A: Yes, it is equipped with a hydraulic high-pressure washing pump, allowing the operator to clean the machine at any time on the job site.

Q5: What is the maximum paving width and height for this model? A: The LDHM41 supports a maximum mold height and width of up to 1300mm, with various hydraulic and mechanical height adjustments available.

Q6: Are the hydraulic components of high quality? A: Absolutely. The machine utilizes imported Danfoss pumps, U.S.A. HydraForce control valves, and Italian brand quick plugs to ensure reliability and prevent oil leaks.
