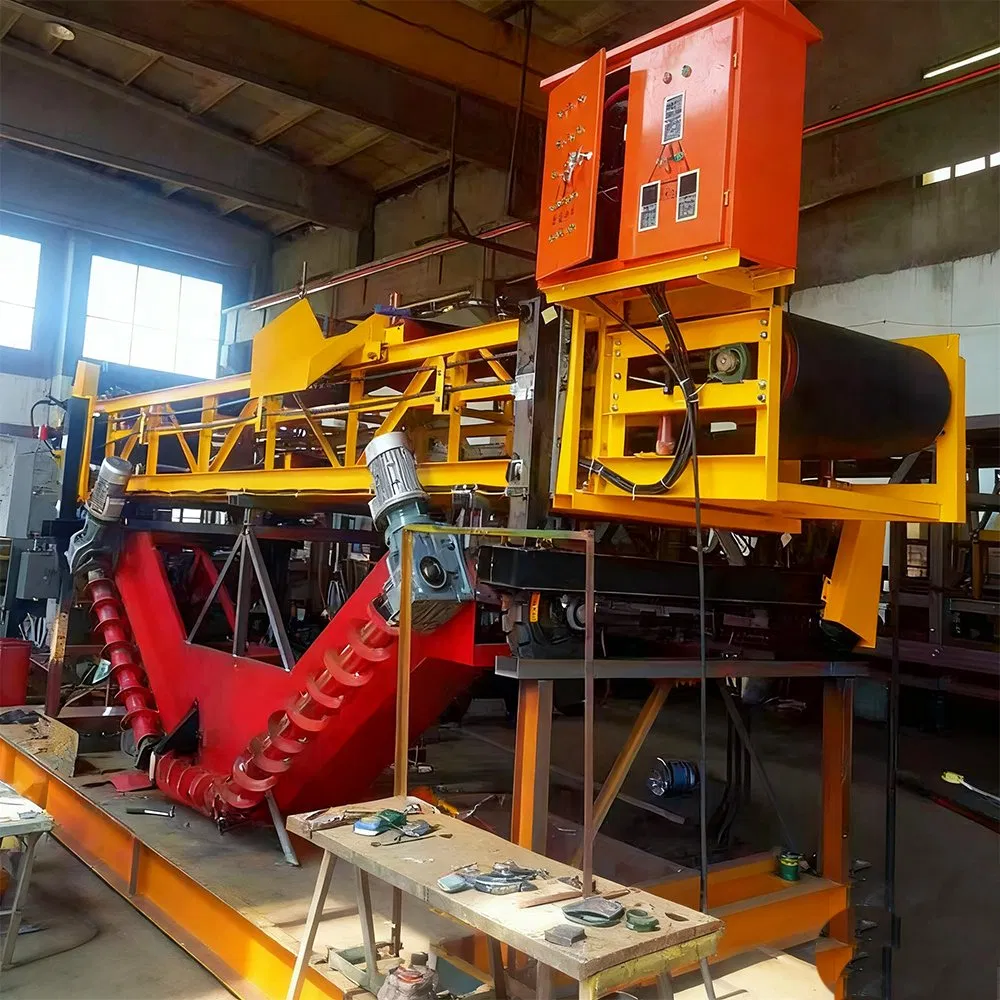

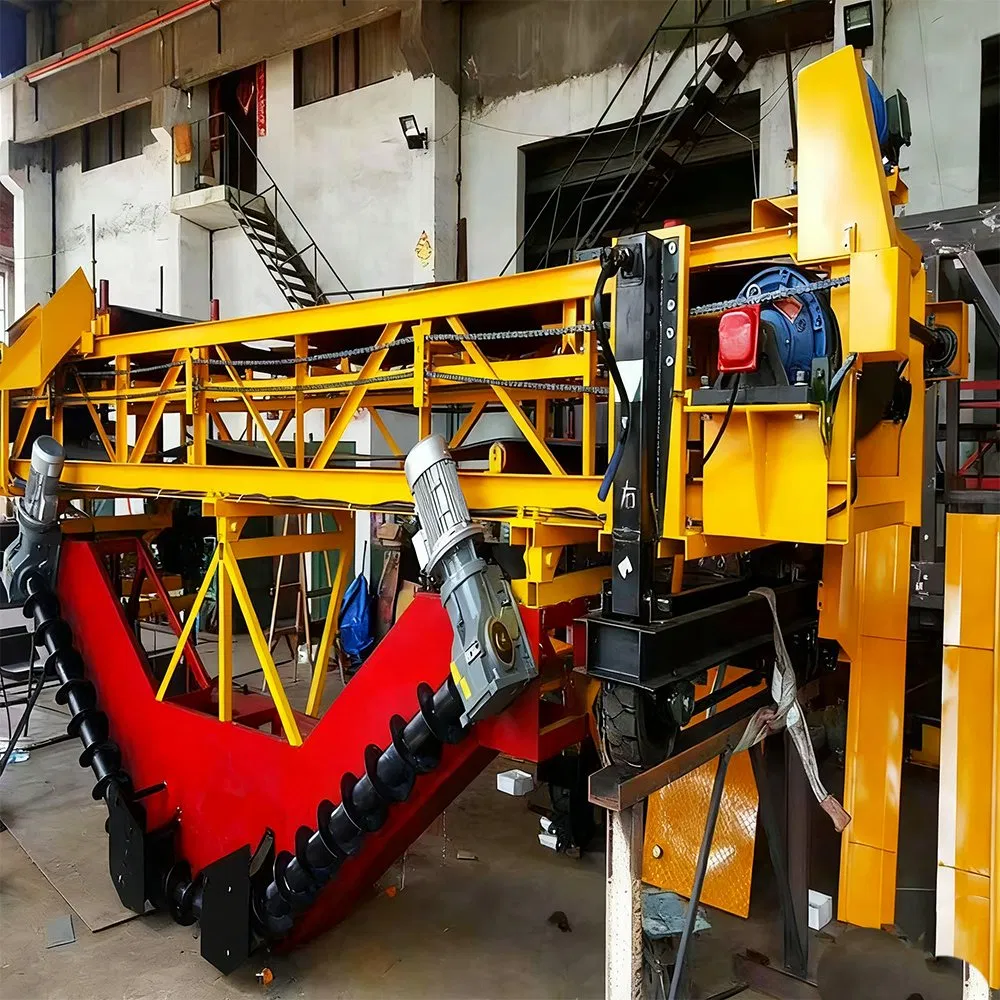

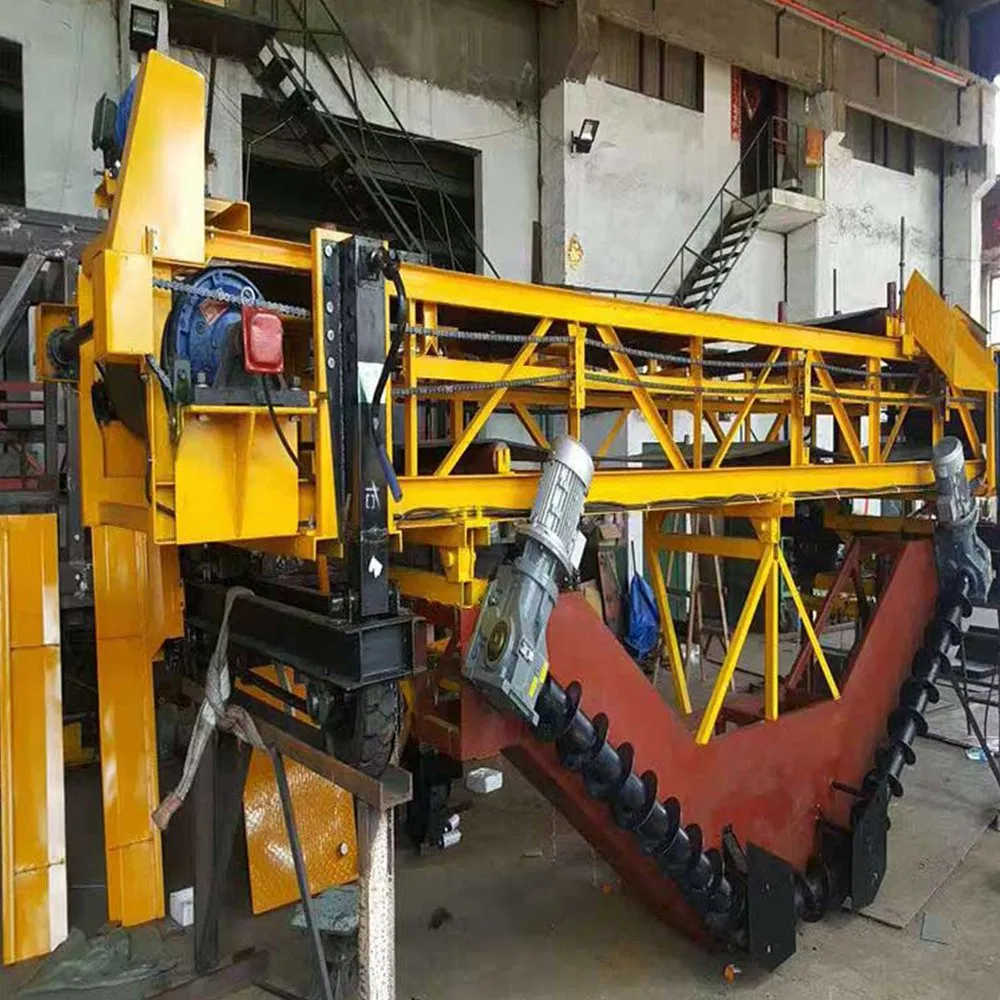

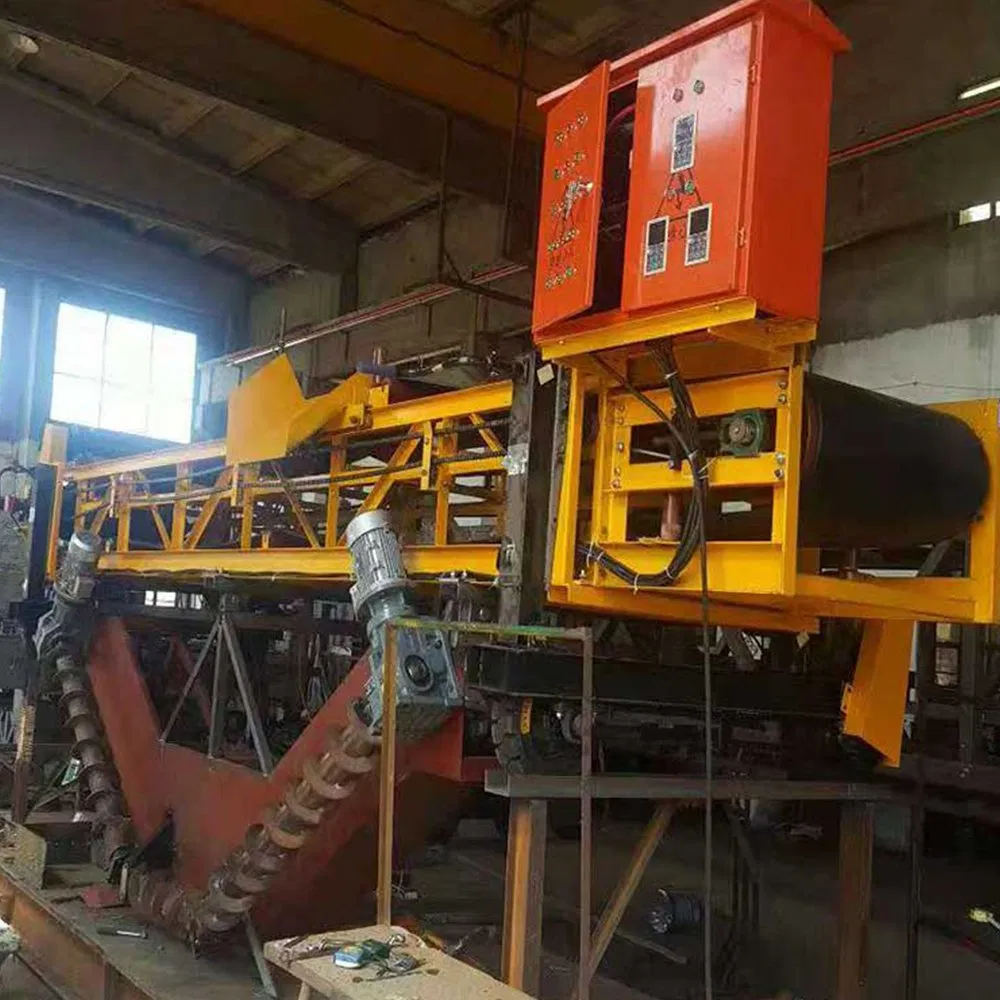

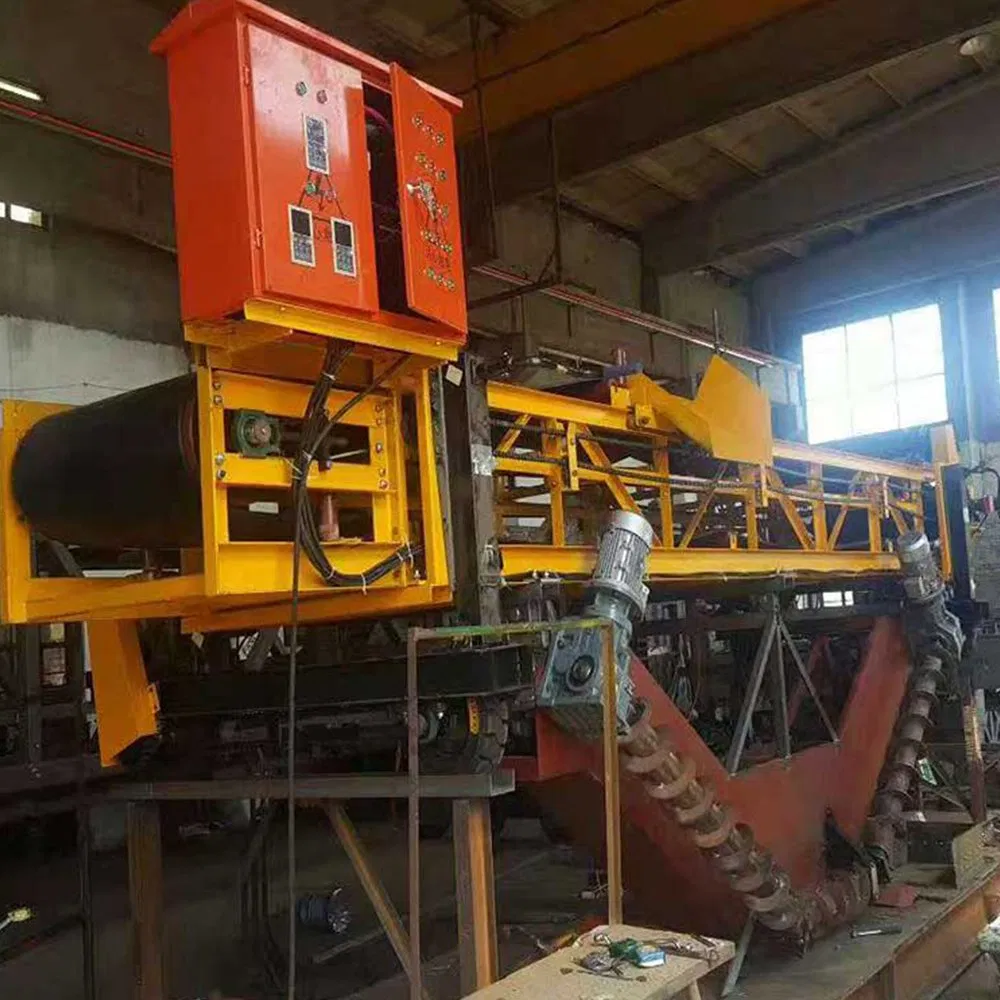

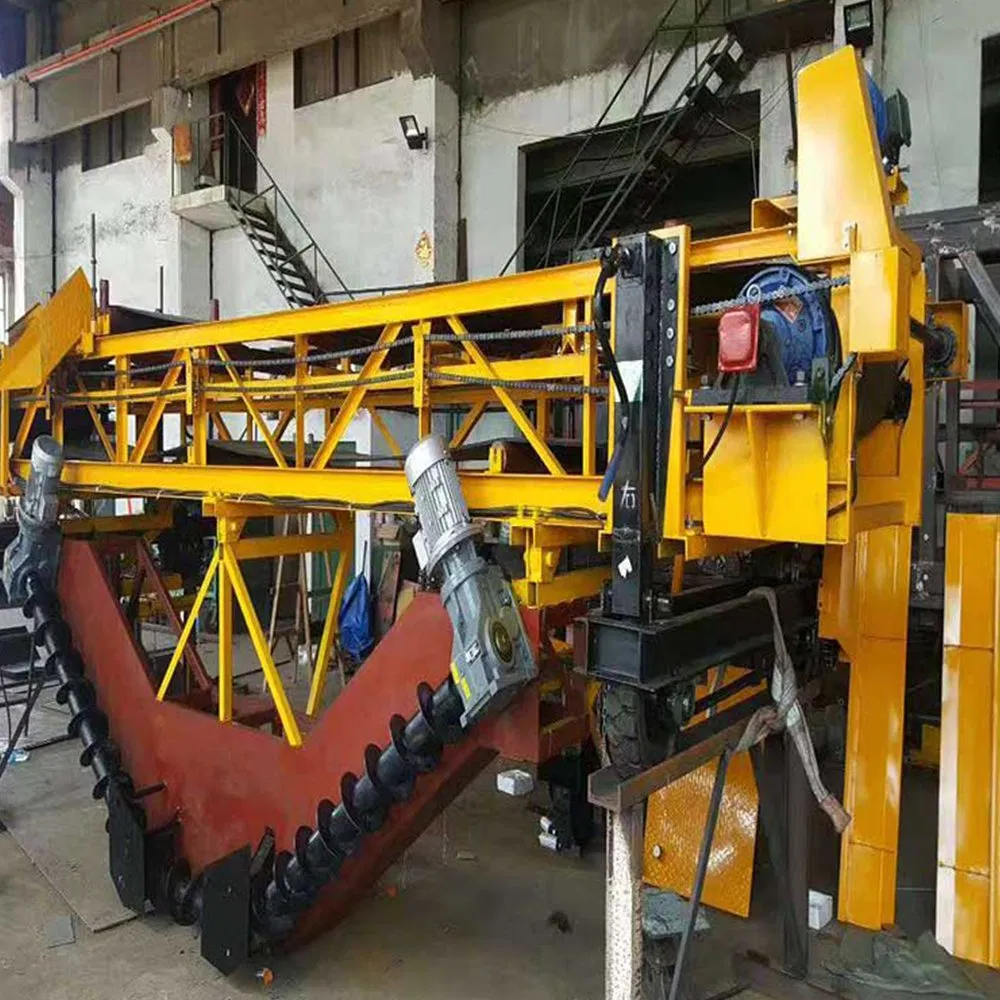

Our Channel Lining Machine is a pinnacle of innovation in large-scale hydraulic engineering equipment. Utilizing advanced sliding mode paving technology, it seamlessly and efficiently casts concrete linings across vast channel beds. This process forms a smooth, impermeable protective surface, significantly boosting the efficiency and longevity of water delivery systems, ensuring durability and optimum performance for your engineering projects.
| Name | Channel Lining Machine |
| Roller diameter(mm) | 230 |
| weight(kg) | 3000 |
| Screw conveyor diameter(mm) | 260 |
| Roller drive mode | Chain drive |
| Screw conveyor speed | 136rpm |
| Walking speed | 0-1.2m/min |
| Silo specification (mm) | 630*500*530 |
| Walking motor (kw) | 4*2.2 |
| Conveying power | Configured according to the slope length |
| Length of the fine-sliding template | 500mm (adjustable at the end) |
| Adaptable slope length | 23m (the longest lining surface) |
| Lining Thickness (mm) | 100-200 |
| Adaptable slope ratio | According to customer's need |
| Efficiency | ≤1.2m/min |
| Lifting device | Hydraulic lifting/Electro-mechanical lifting |
| High-frequency vibrating bar | VAF50-1 |
| Running mode | Manually |
| Traveling mode | Railway walking |
| Power and Component Parameters | |
| Engine | Honda 2KW or domestic Lifan 3KW or diesel genset Korola 3.8KW |
| Stirrer motor | 250W |
| Output pump motor | 400W |
| Burner | Imported Italian Rialto 445T1 diesel burner |
| Thermostatic control | SLA - 5000 intelligent digital temperature controller |
| Electric heating hose | 5 meters of electrically heated hose |
| Pipe Diameter | Φ16mm |
| Heat conduction oil | 30L/45kg, Great Wall brand |
| Motor oil | 15W - 40SG |
| Gasoline | 92# or above, 20 liters at most |
| Diesel | 0# or - 10#, 40L at most |
| Walking mode | Hand-push type / Traction type |
