| Model NO. | LDHM41 |
| Type | Paver |
| Object | Cement Concrete Pavement |
| Moving Type | Mobile |
| Mixing Method | Intermittent Compulsory |
| Automatic Grade | Semi-Automatic |
| Product Capacity | 40～400t/h |
| Certification | ISO9001: 2000, CE |
| Condition | New |
| Power | 97kW/2200rpm |
| Work Speed | 0-15m/Min |
| Package Weight | 11,700kg |

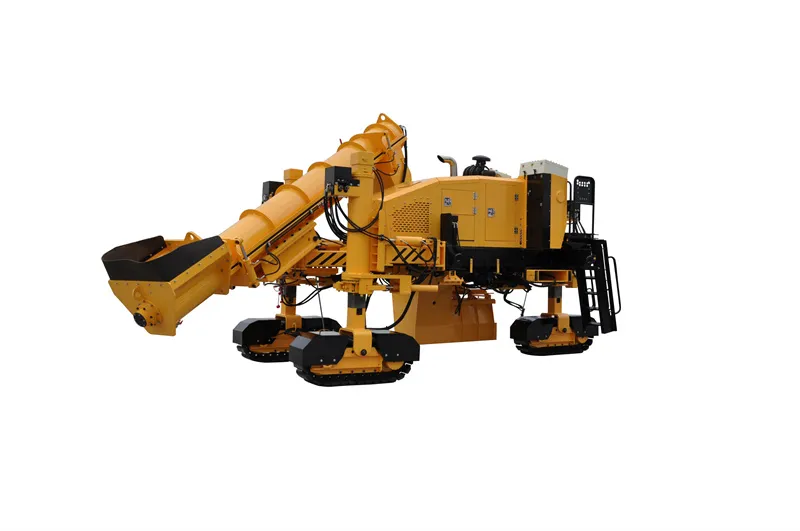

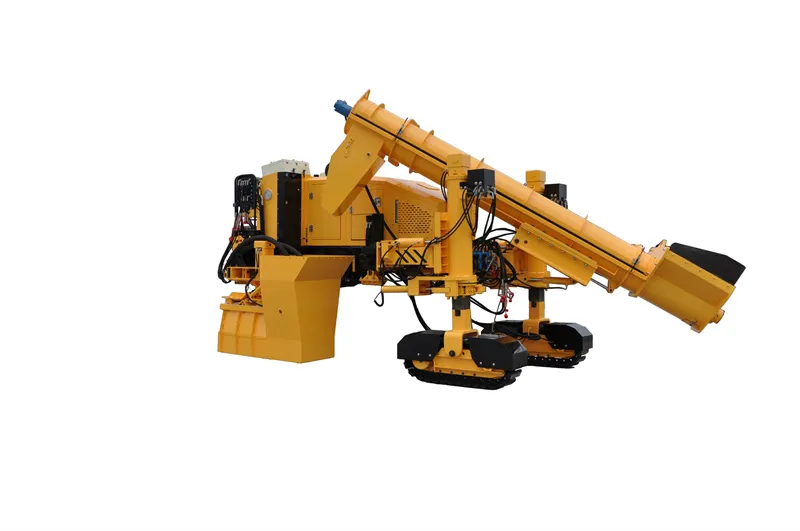

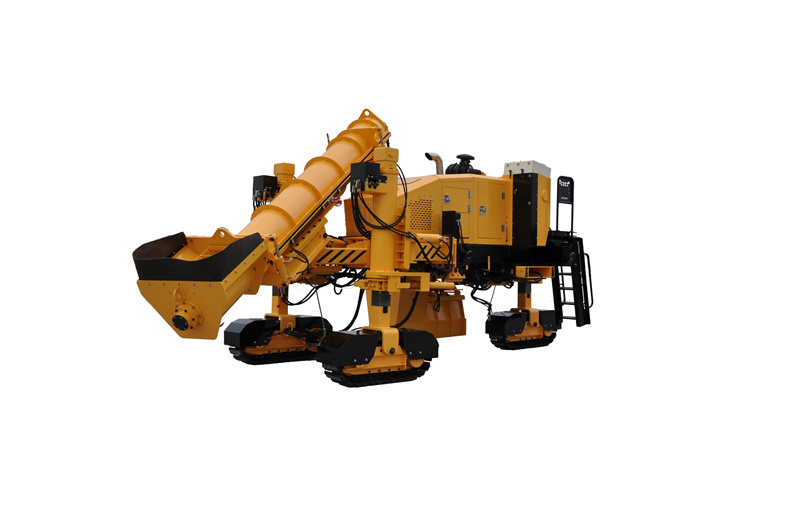

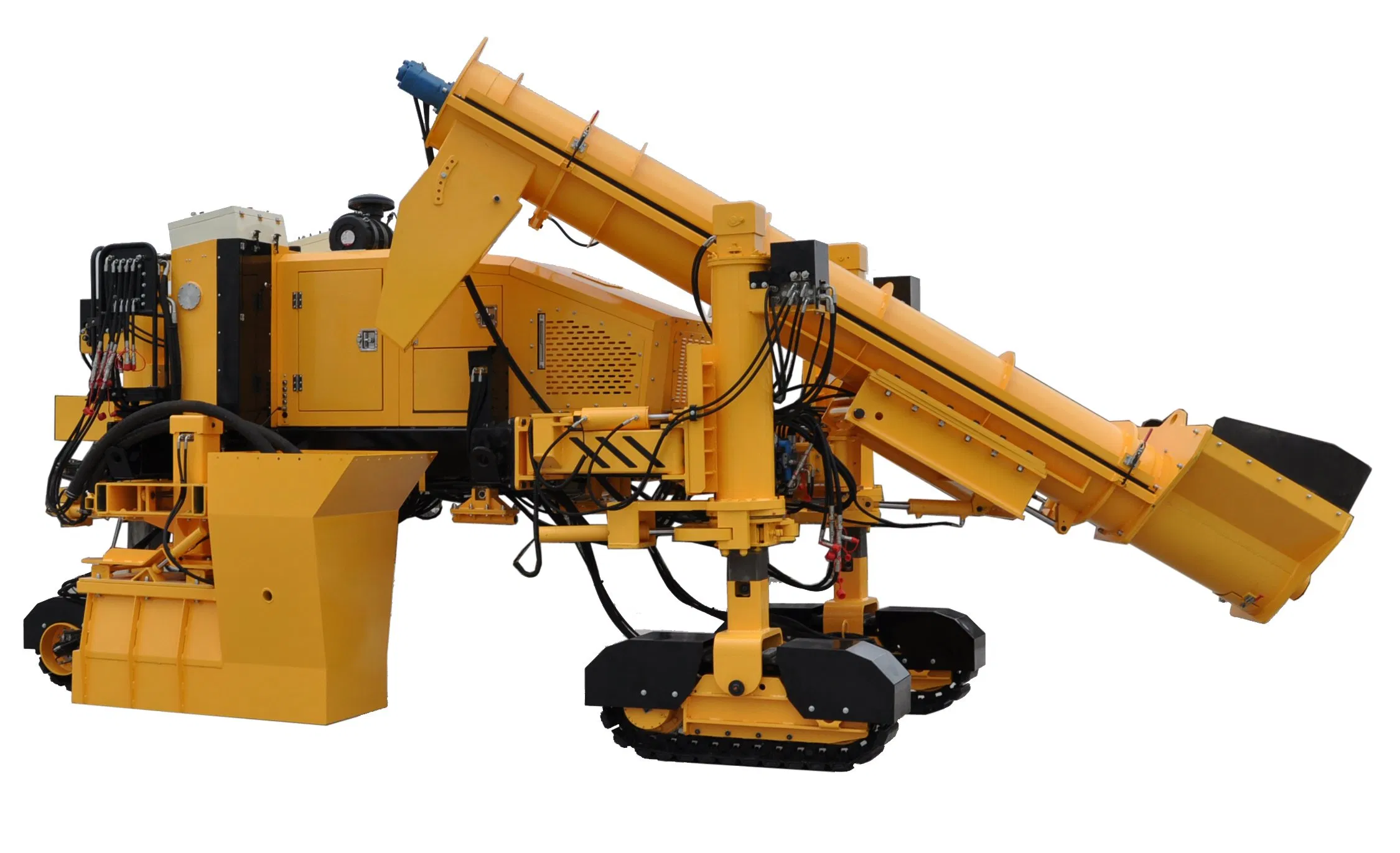

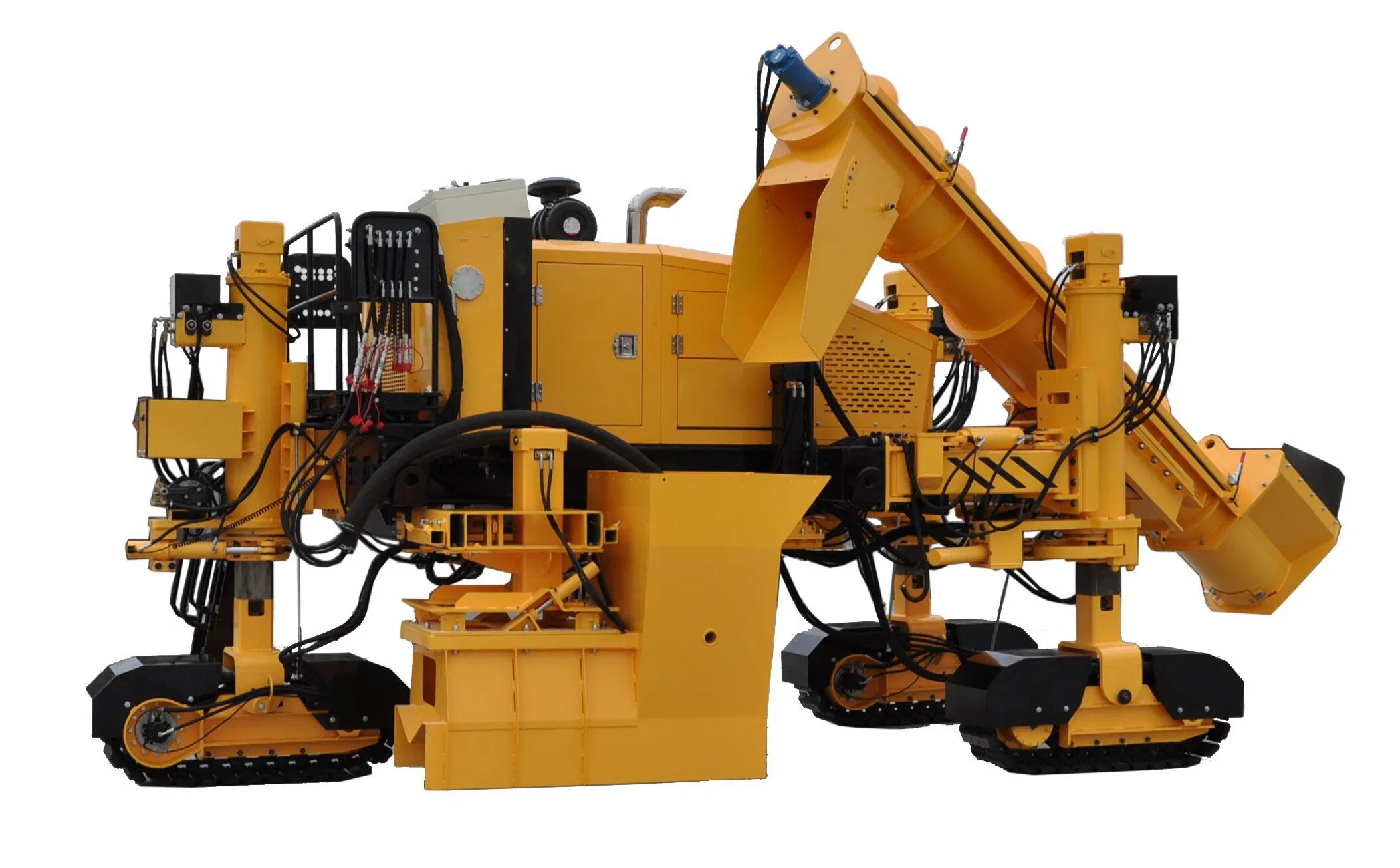

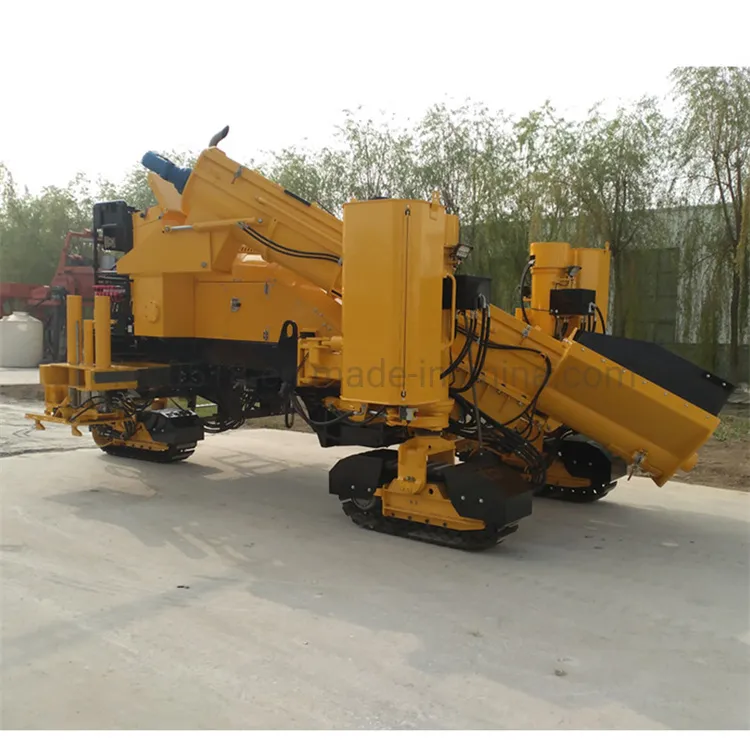

High Quality Concrete Curb Machine for Road Construction
| Engine Specifications | |
| Model | Cummins 4BTA 3.9 |
| Type | Diesel, Liquid Cooled, 4-Cylinder |
| Power | 97kw / 2200rpm |
| Traveling System | |

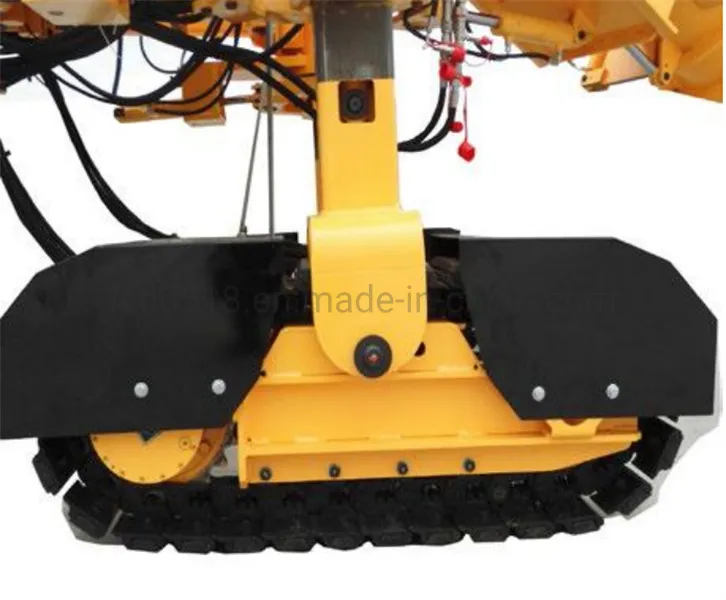

| Traveling Mode | By Crawler |

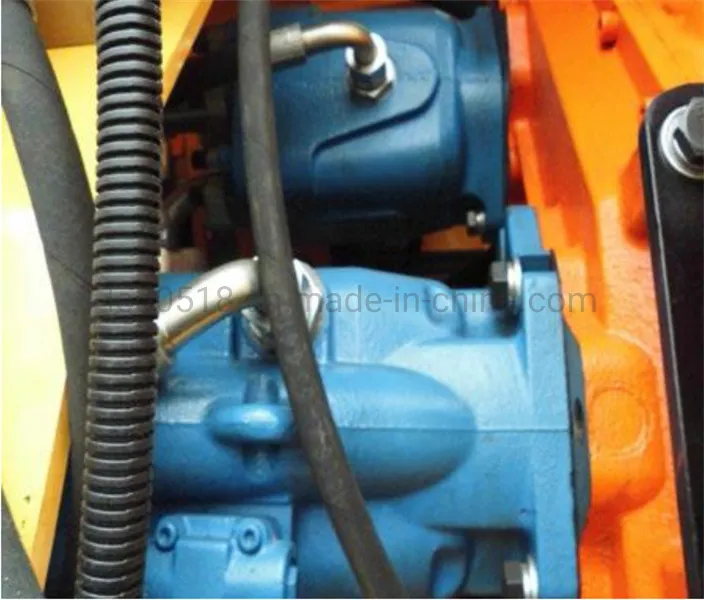

| Driving Mode | By Hydraulic |
| Working Speed | 0-15m/min |
| Mold Adjustment | |
| Traverse Adjustment | 1000mm |
| Height Adjustment | 400mm |
| Max Width | 1300mm |
| Dimensions | |
| Transport Size | 6975 x 2500 x 3420mm |
| Weight | 11,700kg |

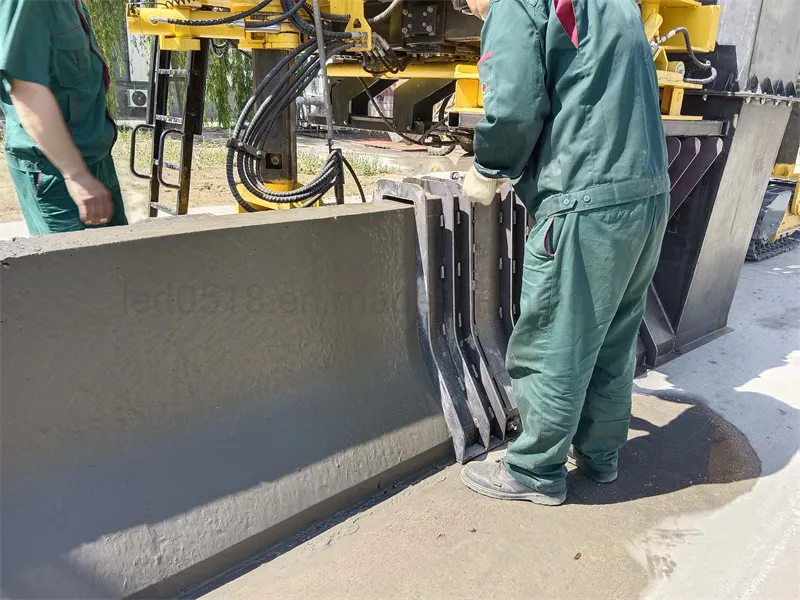

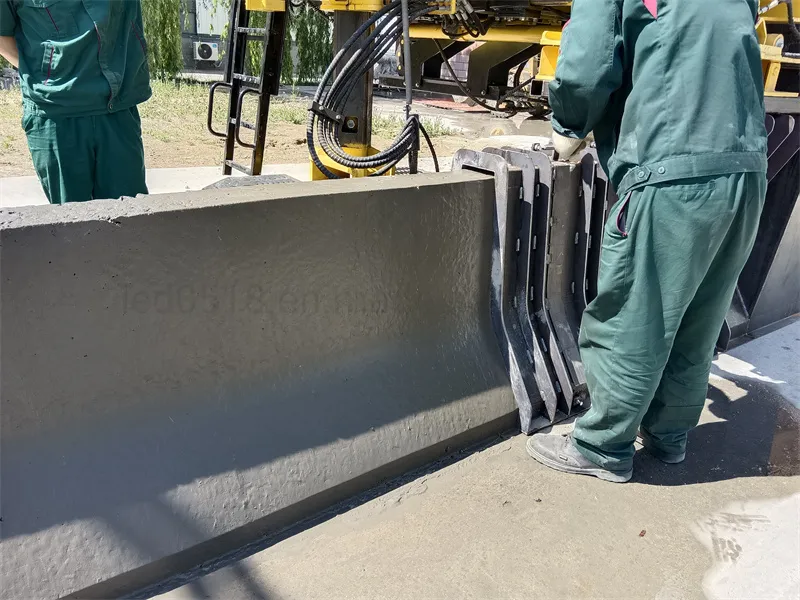

Widely used in highway and municipal road curbs molding for high-efficiency infrastructure projects.

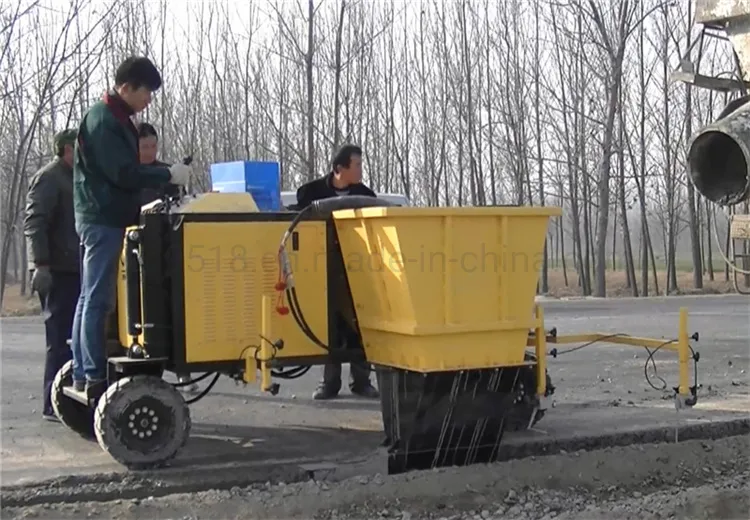

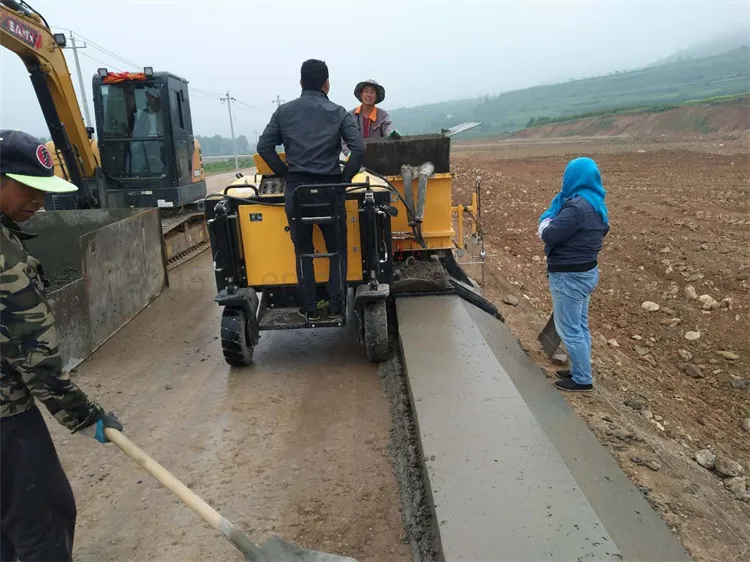

Model LDHM31

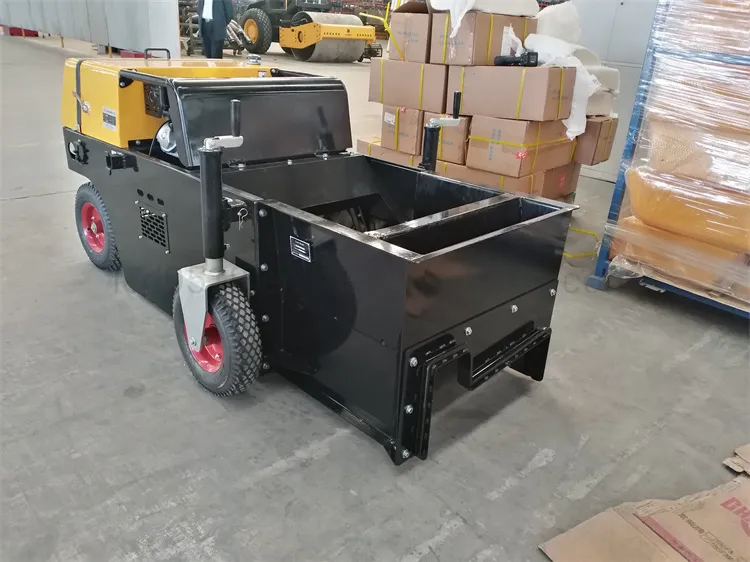

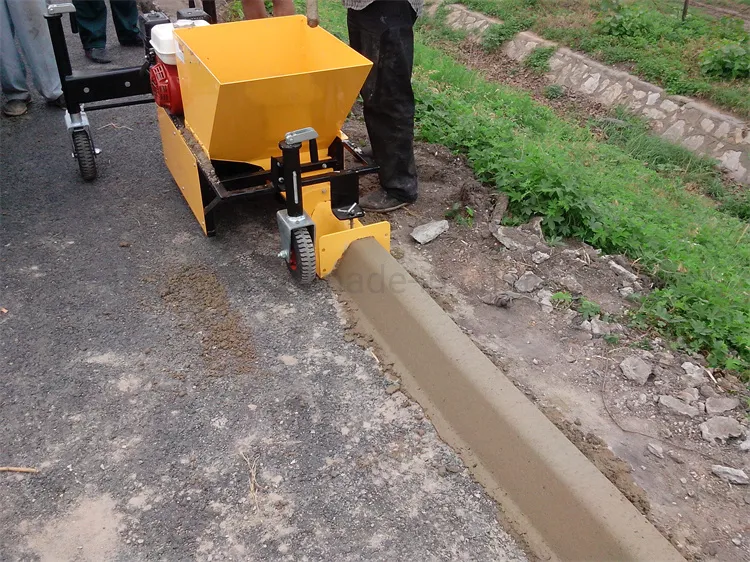

Models LDHM21 & LDHM11
A1: The LDHM41 is primarily used for highway curb molding, municipal road construction, and various concrete pavement projects where high-precision slipforming is required.

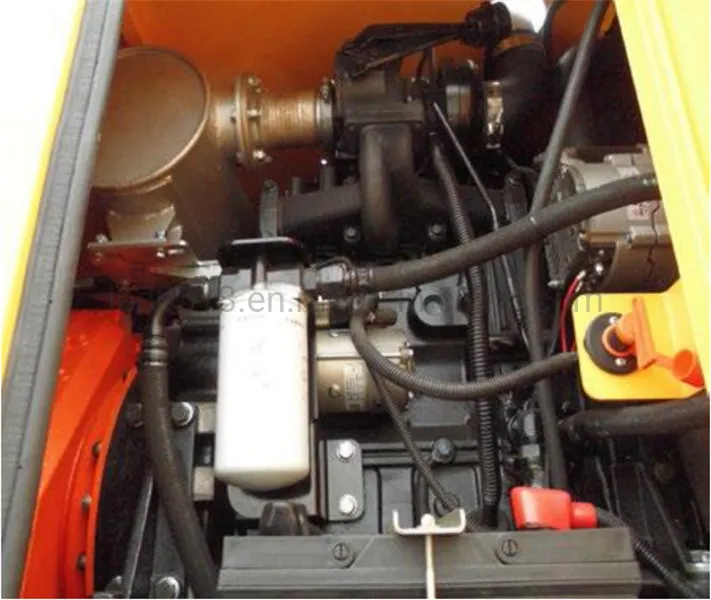

A2: This machine is powered by a high-performance, imported CUMMINS 4BTA 3.9 diesel engine, known for its reliability and strong power output of 97kw.

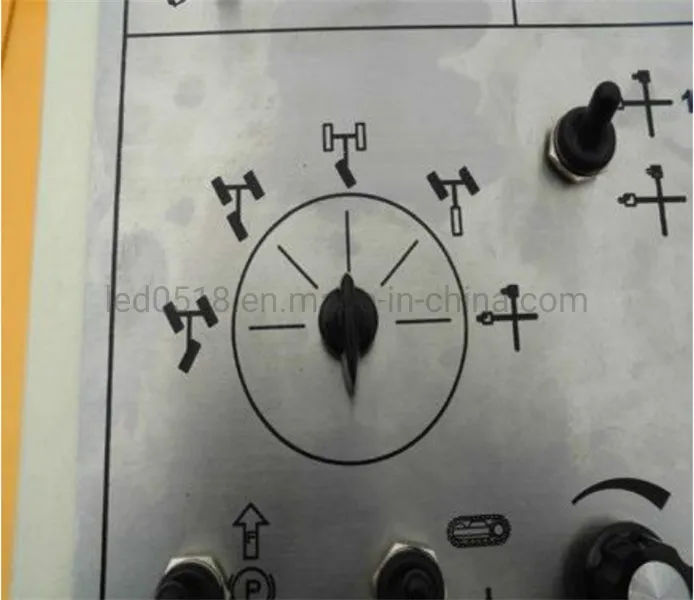

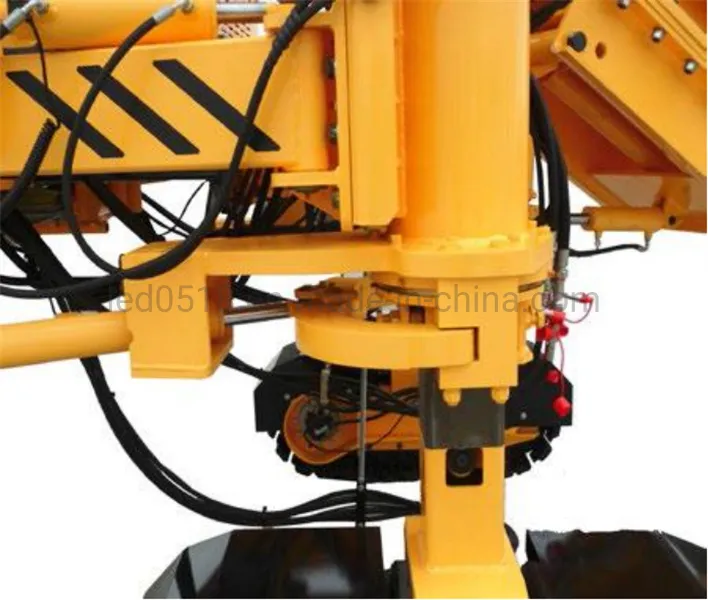

A3: It features a patented intelligent steering system that supports multiple modes, including front wheel, rear wheel, and collaborative steering, allowing for maximum flexibility on site.

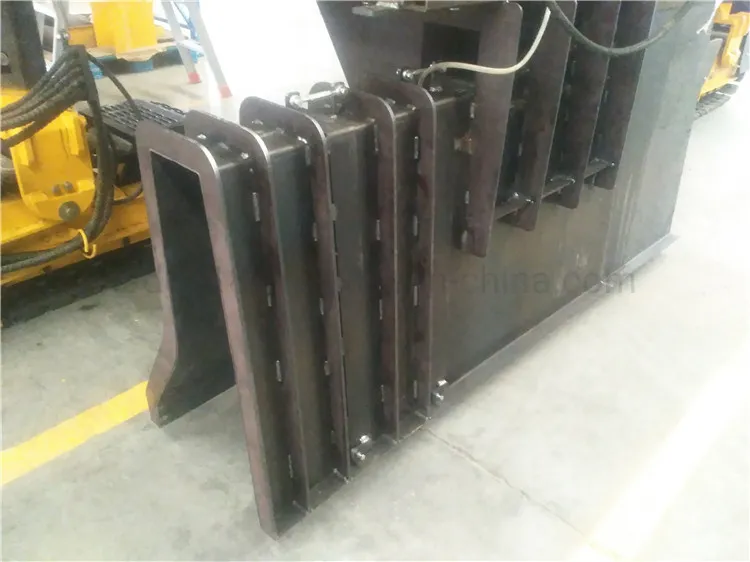

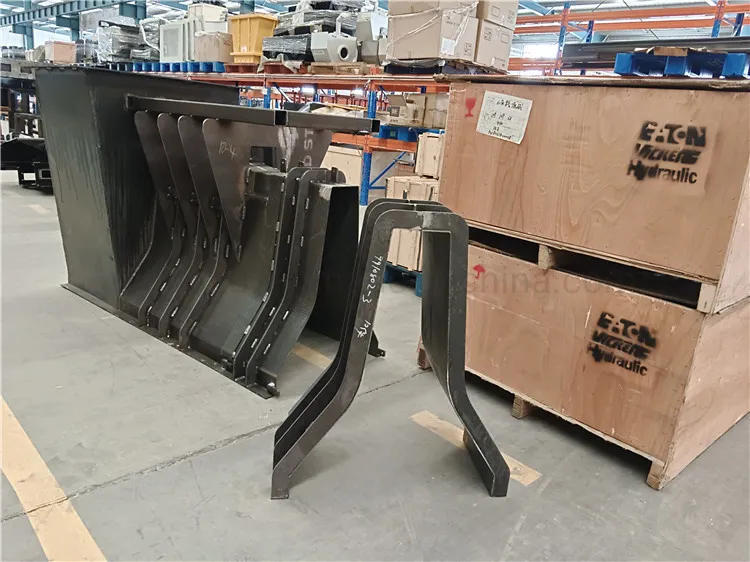

A4: Yes, the machine can be equipped with different molds based on the customer's specific requirements, with a maximum mold width and height of 1300mm.
A5: The working speed is adjustable between 0 to 15 meters per minute, while the traveling speed can reach up to 30 meters per minute for quick site relocation.

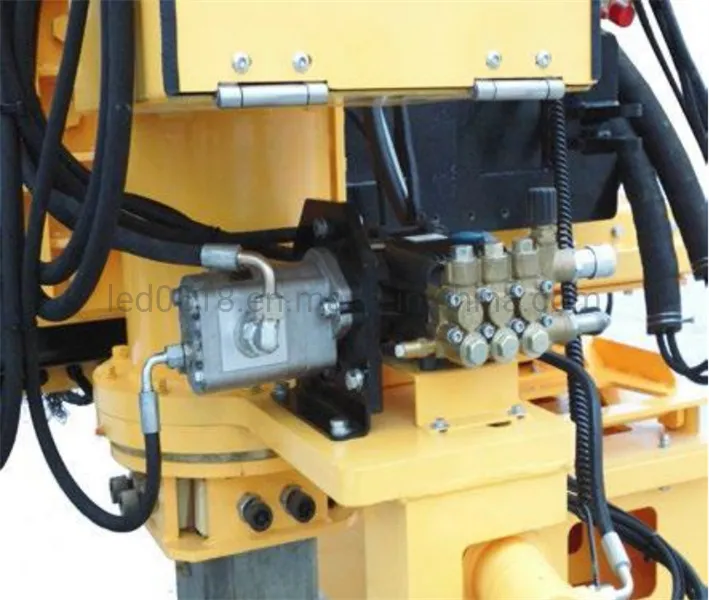

A6: The machine includes an integrated high-pressure hydraulic washing pump, allowing operators to clean the equipment easily after every work session.
