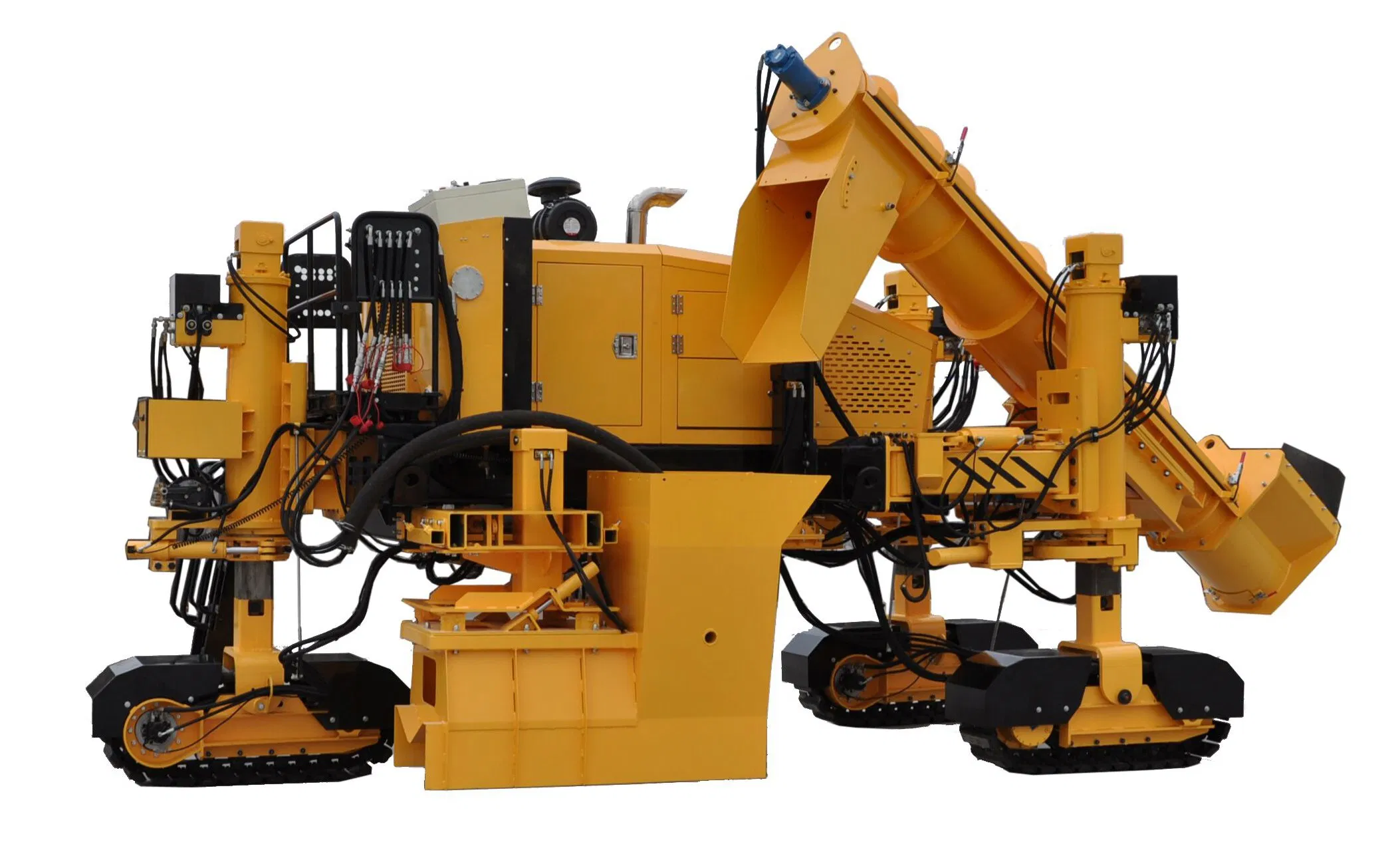

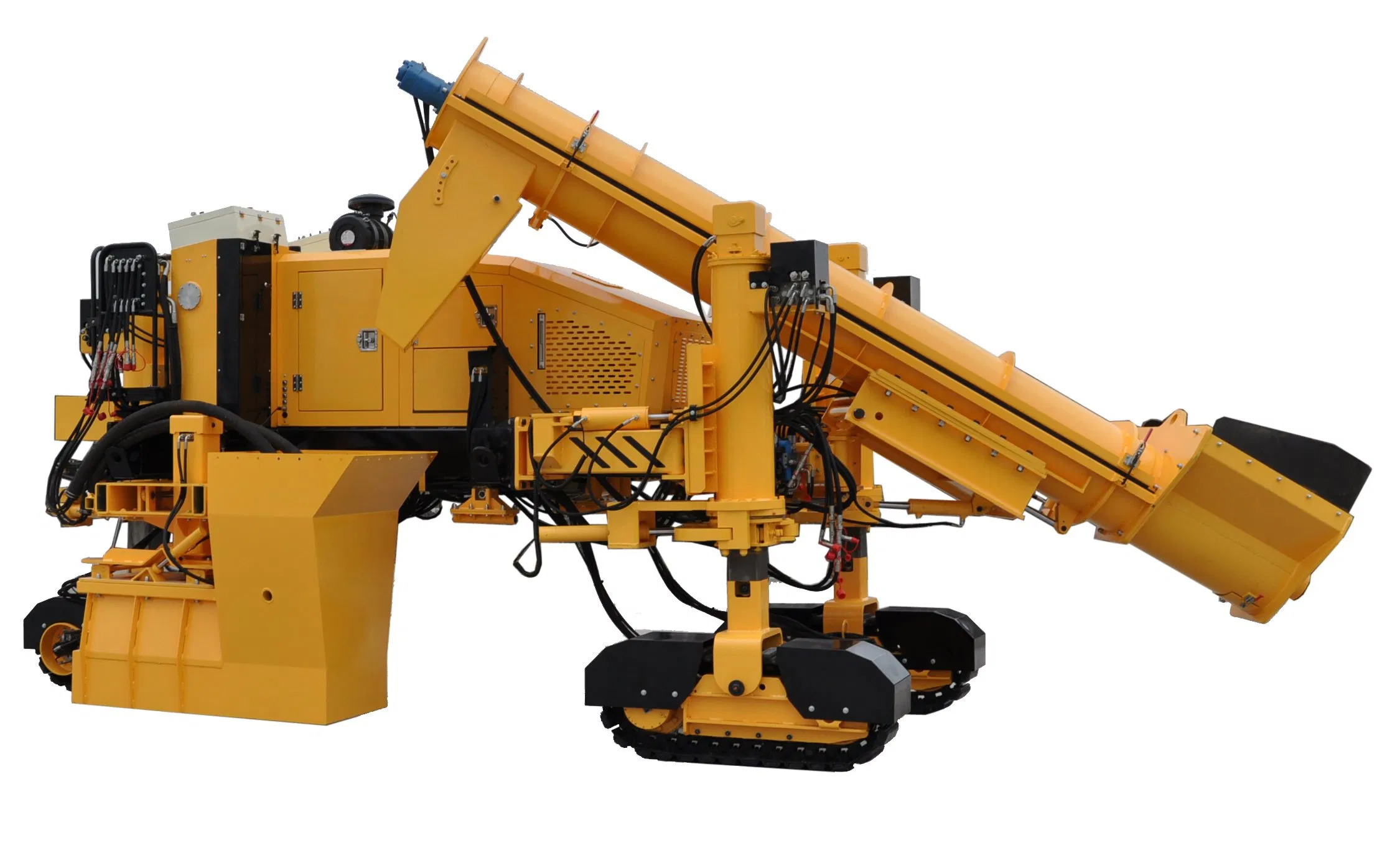

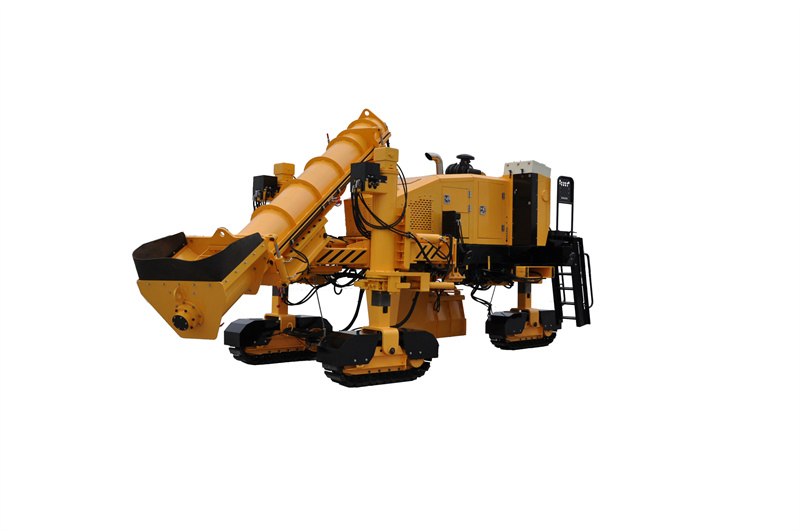

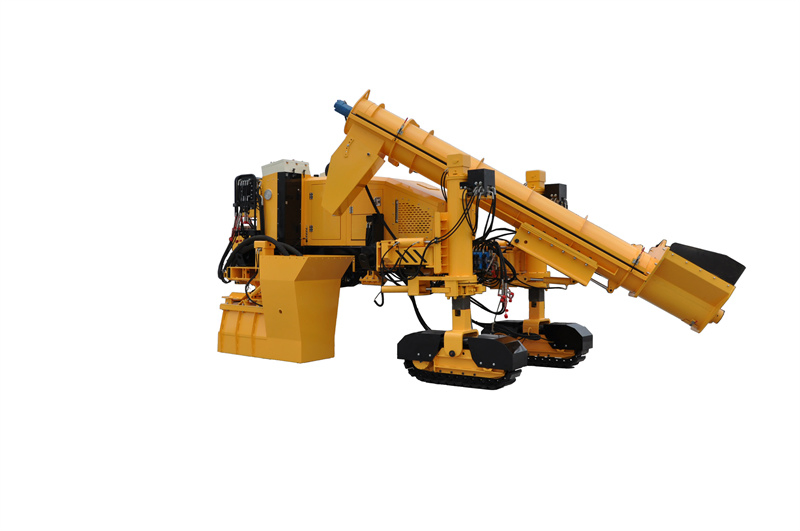

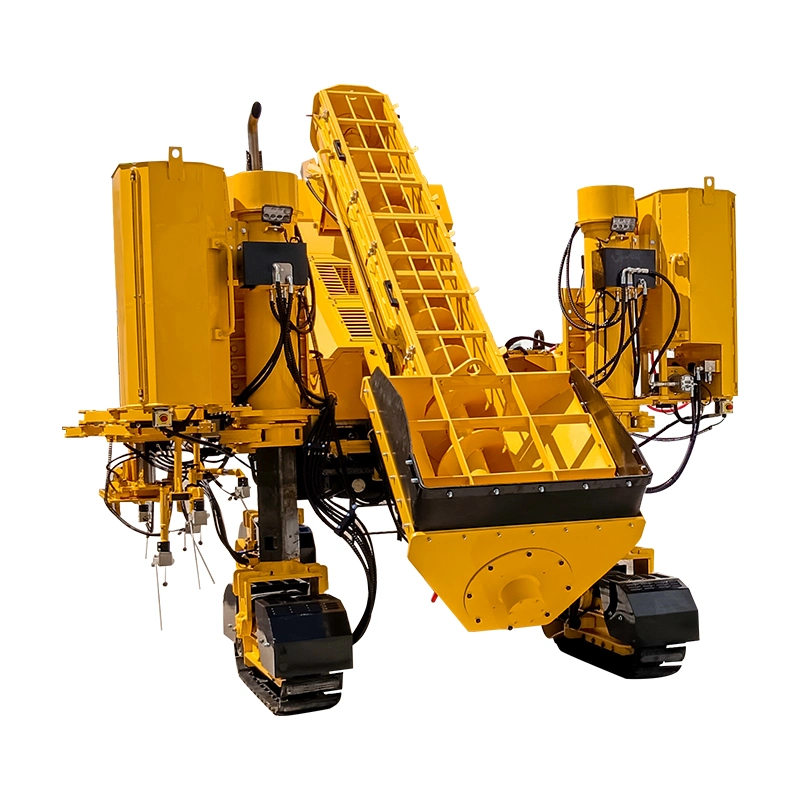

Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
1 / 5
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine
Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine

Hot Sale  Rode Concrete Curb Machine Kerbstone Making paver machine

Send Inquiry

Product Description

Product Description

Hot Sale Rode Concrete Curb Machine Kerbstone Making Paver Machine

Concrete Curb Machine
Kerbstone Making Machine
Paver Machine
Curb Machine Detail
Detailed Photos
Detail 1
Detail 2
Detail 3
01. Advanced Control With great function controller and automatic calculation, suitable for various projects.
02. Reliable Power Equipped with imported brand CUMMINS diesel engine for high performance.
03. Hydraulic Pump Imported Danfoss hydraulic variable plunger pump for stepless speed drive.
Detail 4
Detail 5
Detail 6
04. Intelligent Control U.S.A Hydra Force hydraulic control valves for precise function management.
05. Strong Power High frequency hydraulic rod provides strong power for consistent results.
06. Crawler Mechanism Automatic tension cylinder increases the service life of the crawler belt.
Detail 7
Detail 8
Detail 9

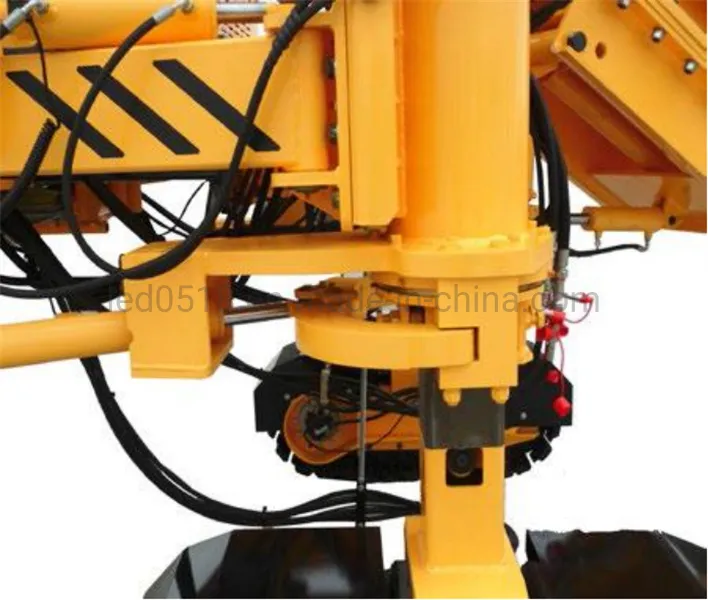

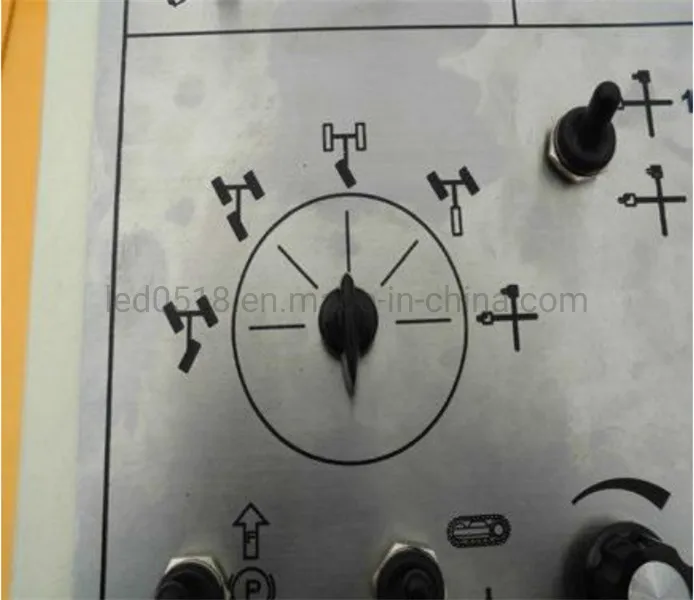

07. Patented Steering Flexible and convenient patented steering system for easy maneuvering.
08. Versatile Modes Quick-switch walking modes to adapt to different site requirements.

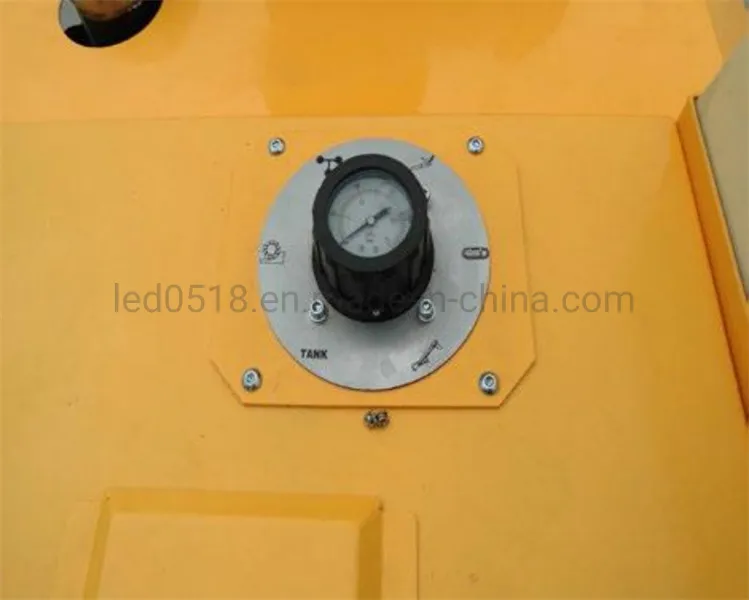

09. Real-time Monitoring Pressure monitors for each mechanism to supervise work in real time.
Detail 10
Detail 11
Detail 12

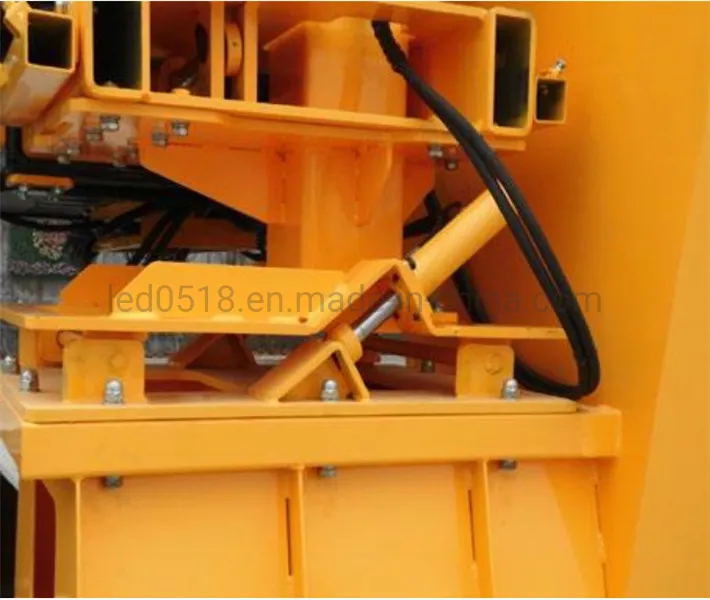

10. Hydraulic Mold Hydraulic hanging and dismantling for labor-saving operation.

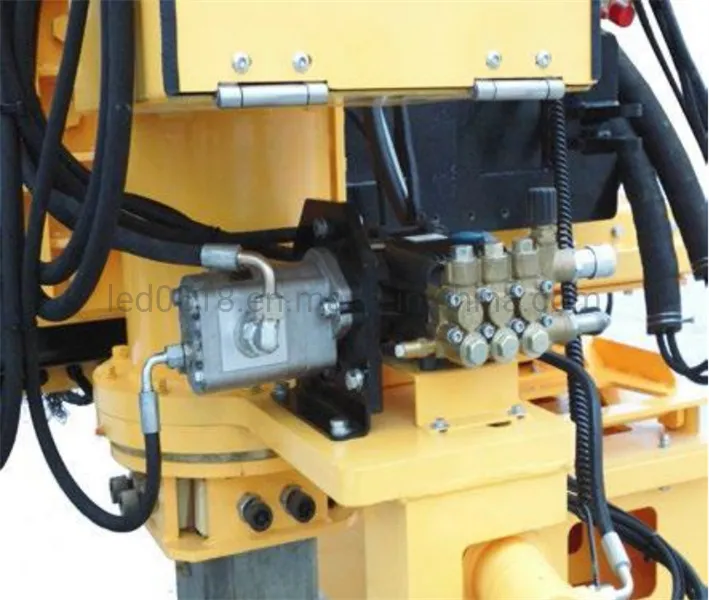

11. Cleaning System Integrated high-pressure washing pump for immediate machine cleaning.

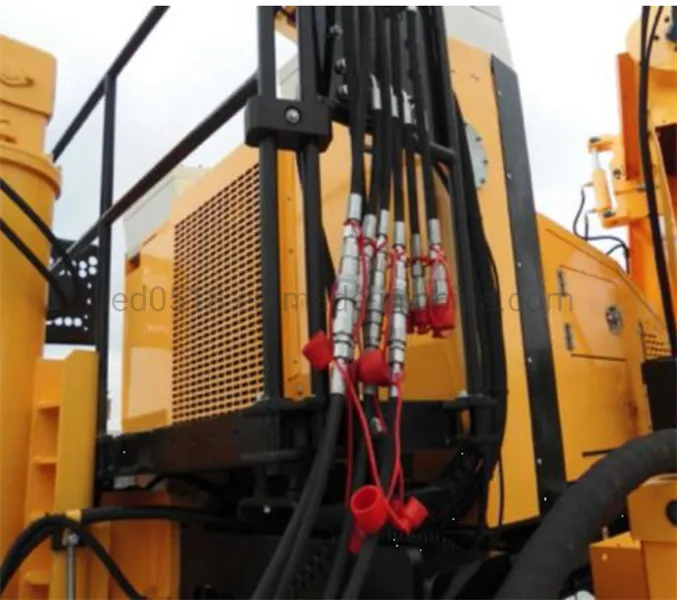

12. Quality Connections Italy brand quick plugs for smooth, leak-free hydraulic power connections.
Product Parameters
Type LDHM41
Engine
Model Cummins 4BTA 3.9
Type Diesel Engine, liquid cooled, four cylinder
Power 97kw/2200rpm
Engine oil volume 9L
Traveling System
Traveling mode By crawler
Driving mode By hydraulic
Steering mode Collaborative / Yaw / Front wheel / Rear wheel / Automatic
Traveling speed 0-30m/min
Working speed 0-15m/min
Mold Capabilities
Mold traverse adjustment 1000mm
Mold height adjustment 400mm
Max. height of the mold 1300mm
Max. width of the mold 1300mm
Volume & Capacity
Fuel tank volume 120L
Hydraulic tank volume 280L
Water tank volume 120L
Dimensions & Weight
Transport size 6975x2500x3420mm
Weight 11700kg
Product Application

Widely used in highway and municipal road curbs molding.

Application 1
Application 2
Application 3
Application 4
Related Products

Model: LDHM31

LDHM31
LDHM31 Detail

Models: LDHM21 & LDHM11

LDHM21
LDHM11
Frequently Asked Questions
What type of engine does the LDHM41 curb machine use?
The LDHM41 is equipped with a high-performance Cummins 4BTA 3.9 diesel engine, which is liquid-cooled and features four cylinders for reliable power output.
How fast can this concrete curb machine operate?
The machine has a traveling speed of 0-30 meters per minute and a dedicated working speed of 0-15 meters per minute, allowing for efficient road construction.
What are the main applications for the LDHM series?
This series is widely used for highway curb molding and municipal road construction, specifically for creating precise kerbstones and concrete curbs.
Does the machine support different steering modes?
Yes, the machine features a patented steering system with multiple modes including Collaborative, Yaw, Front wheel, Rear wheel, and Automatic steering.
Is the mold system easy to maintain?
Absolutely. The mold hanging and dismantling are controlled hydraulically, making the work easy and labor-saving for the operators.
What is the weight and transport size of the LDHM41?
The LDHM41 has a total weight of 11,700kg and its transport dimensions are 6975mm x 2500mm x 3420mm.
