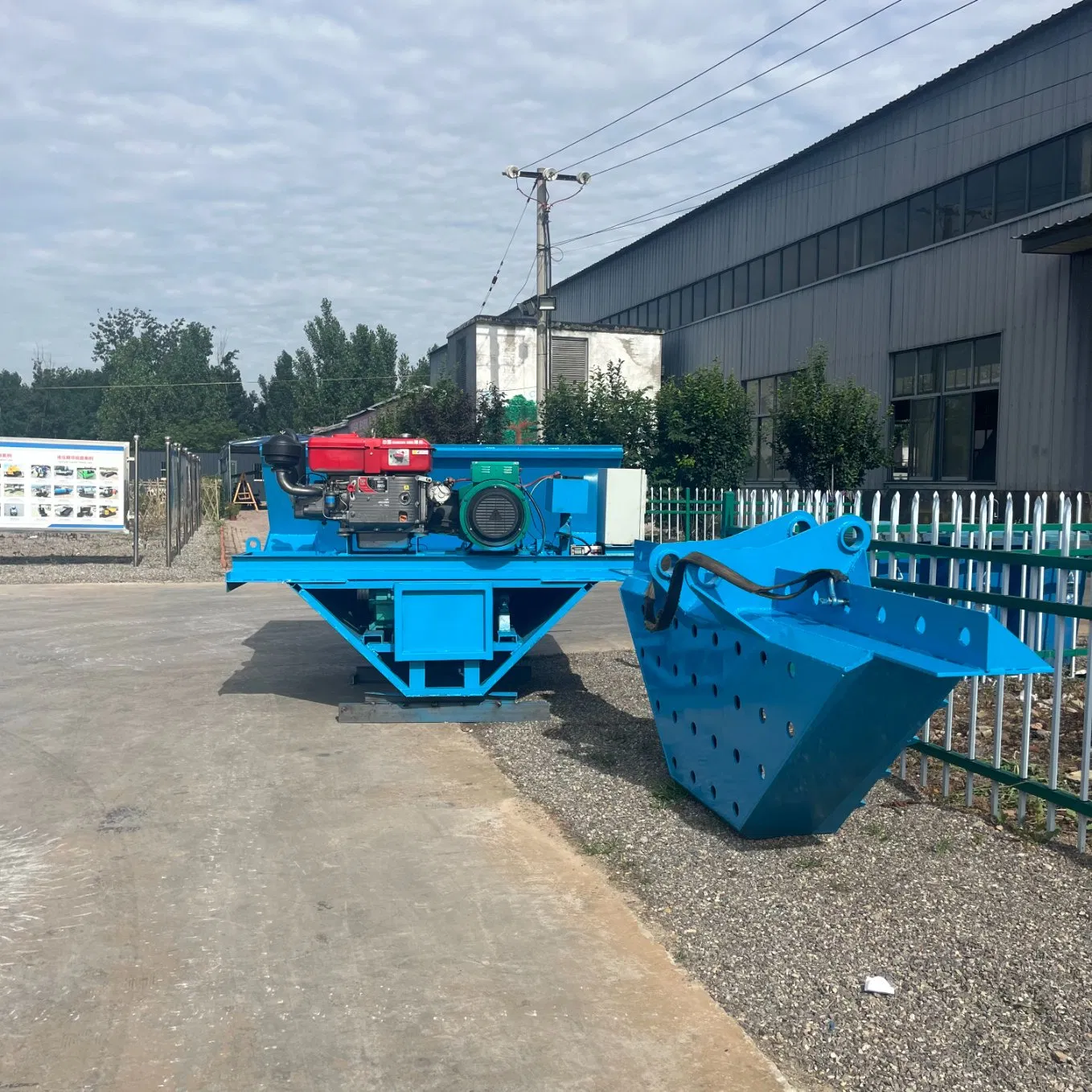

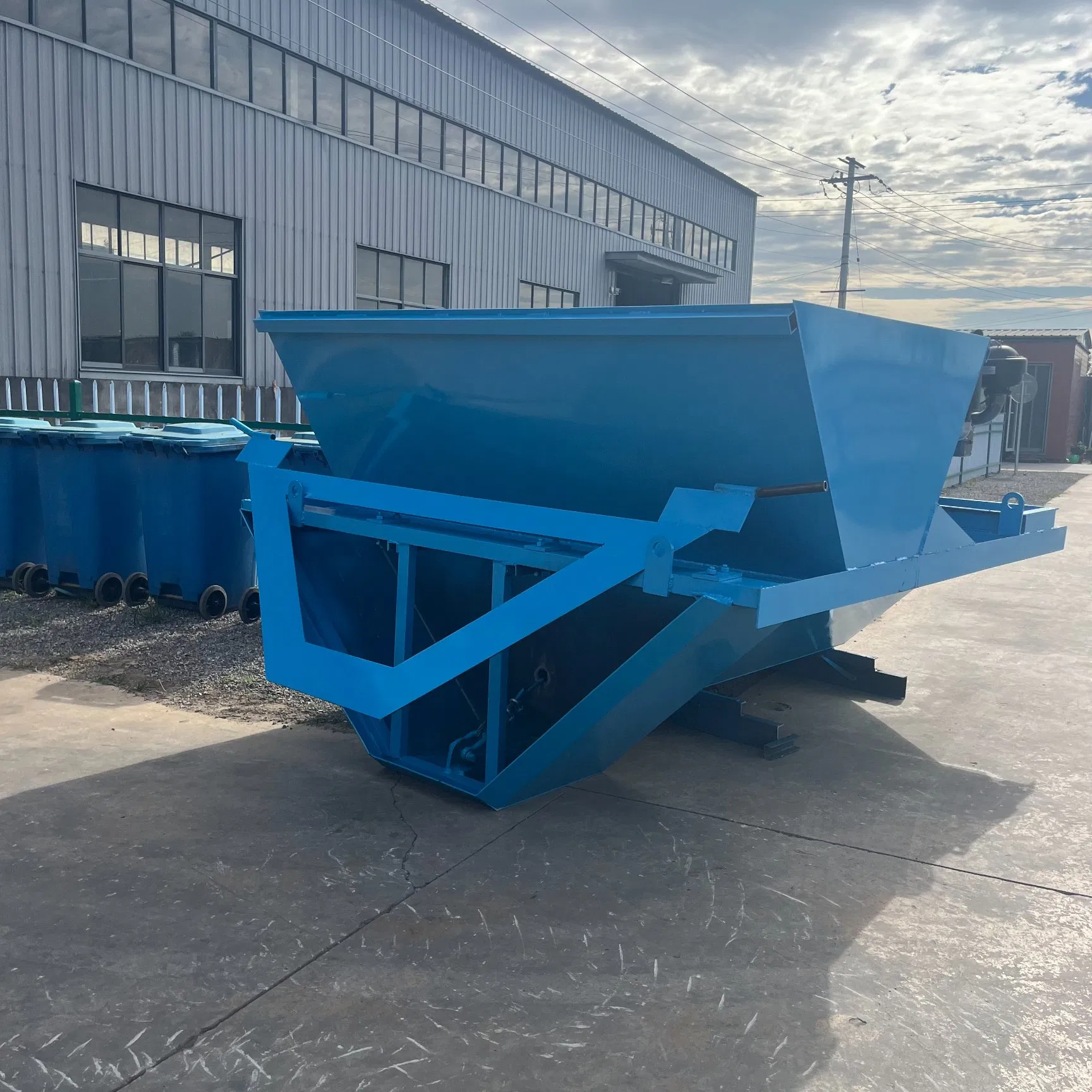

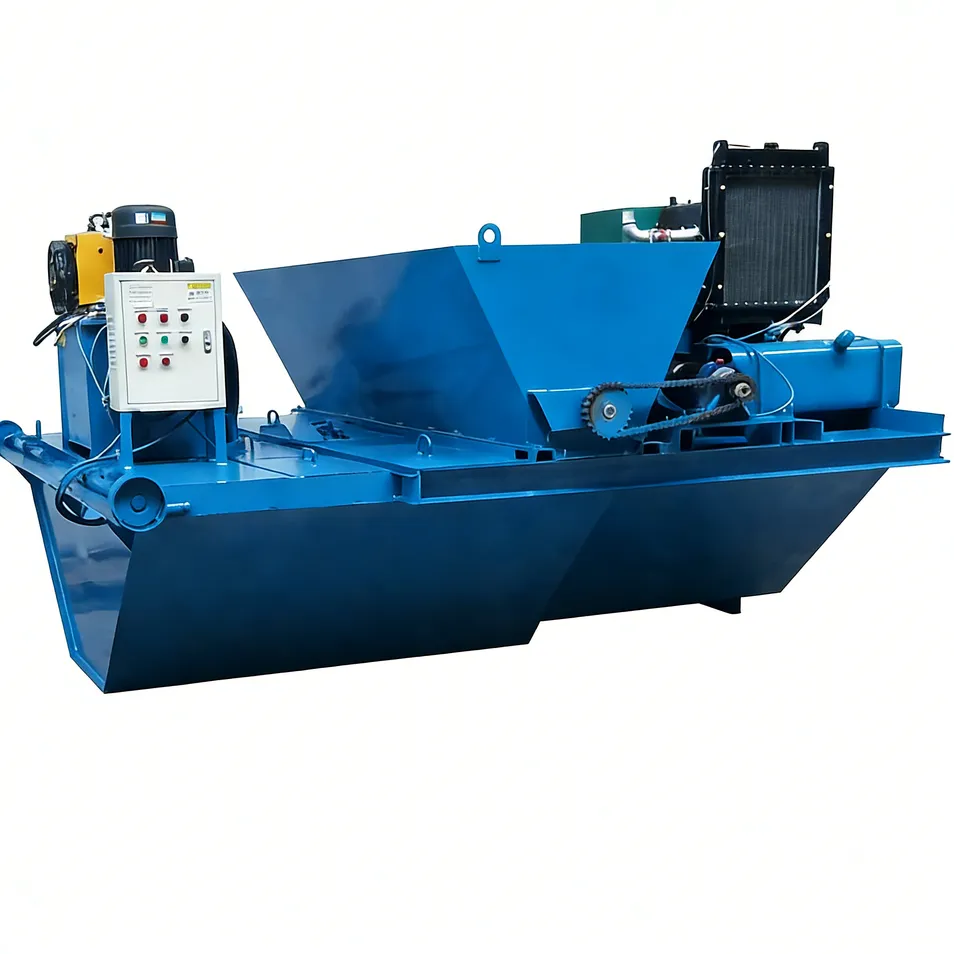

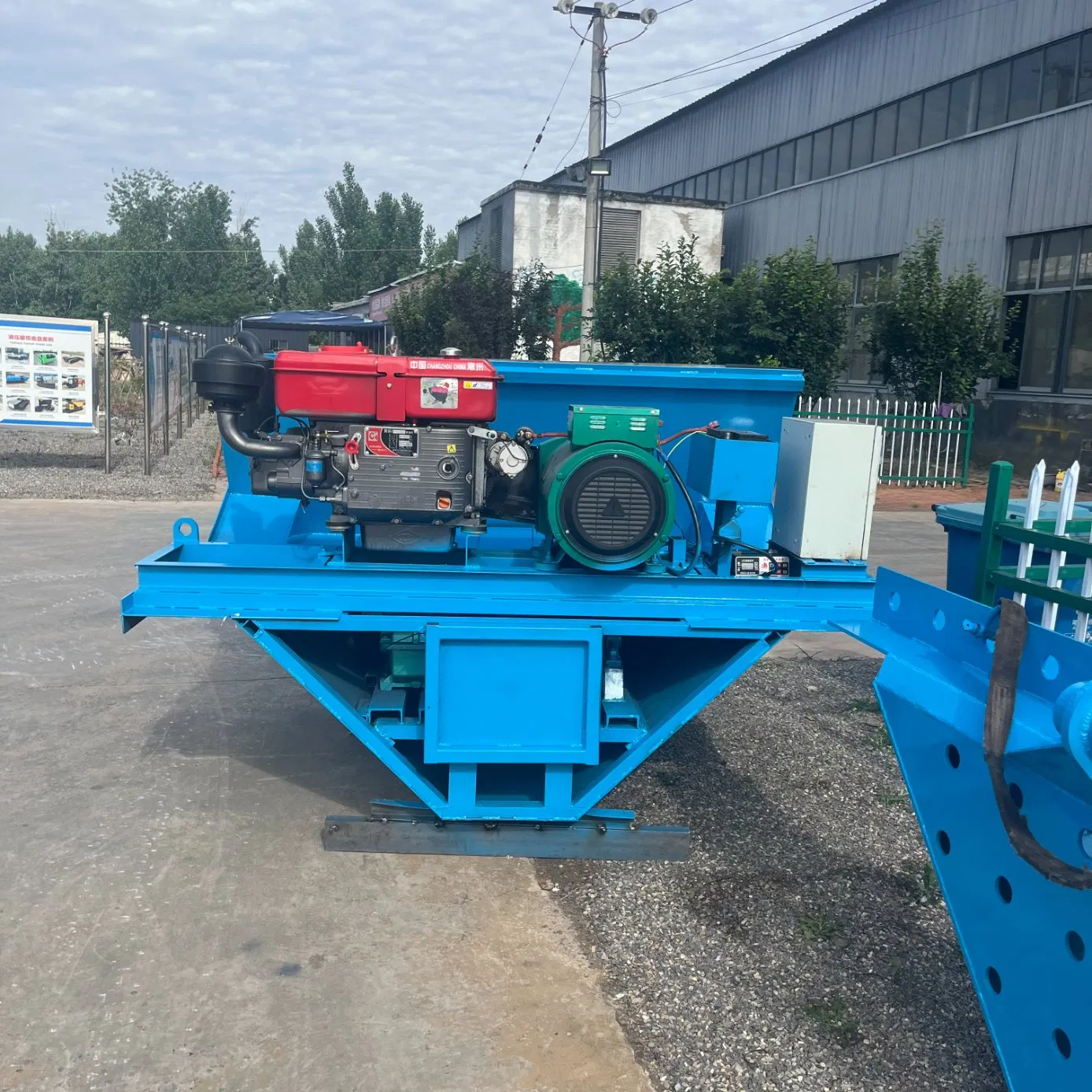

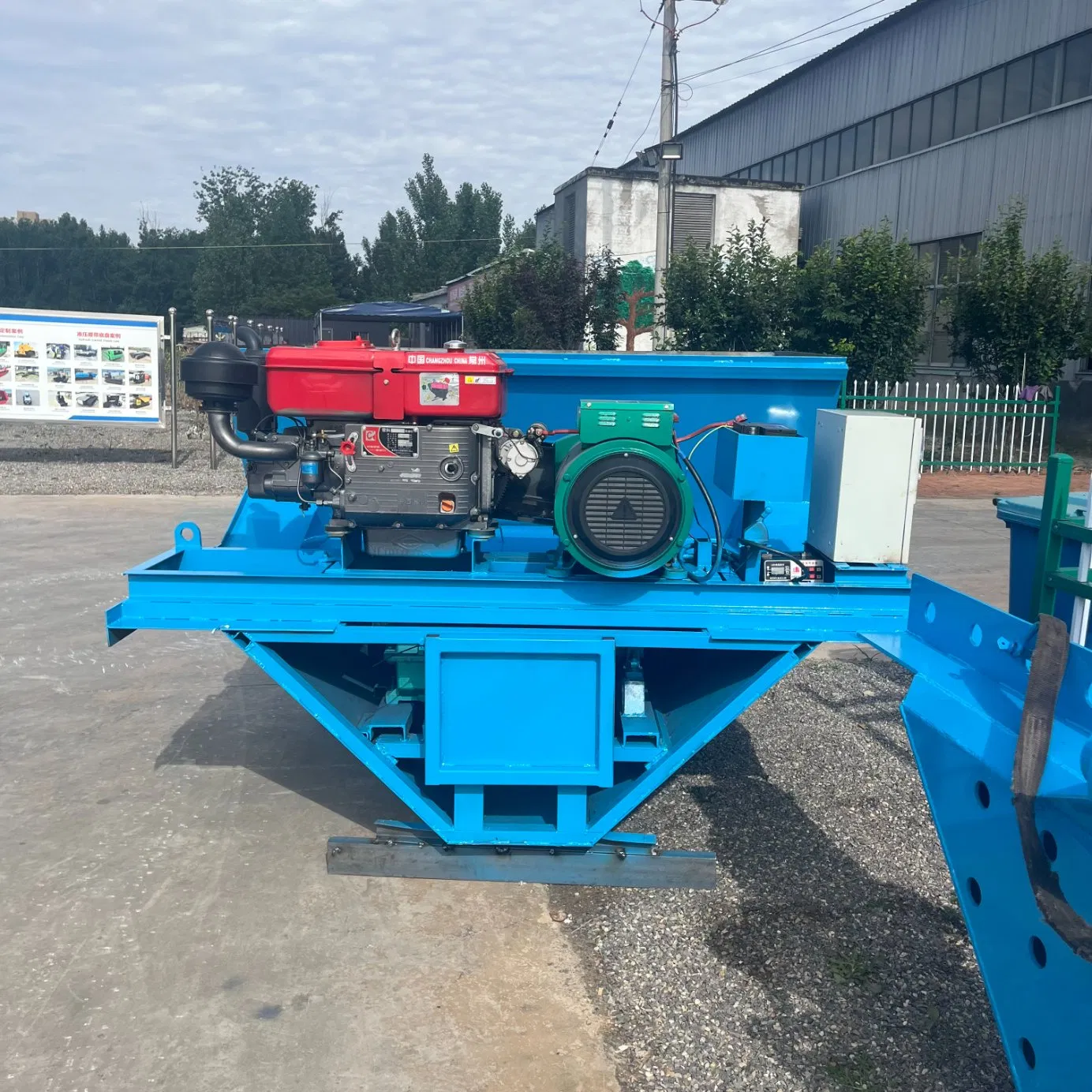

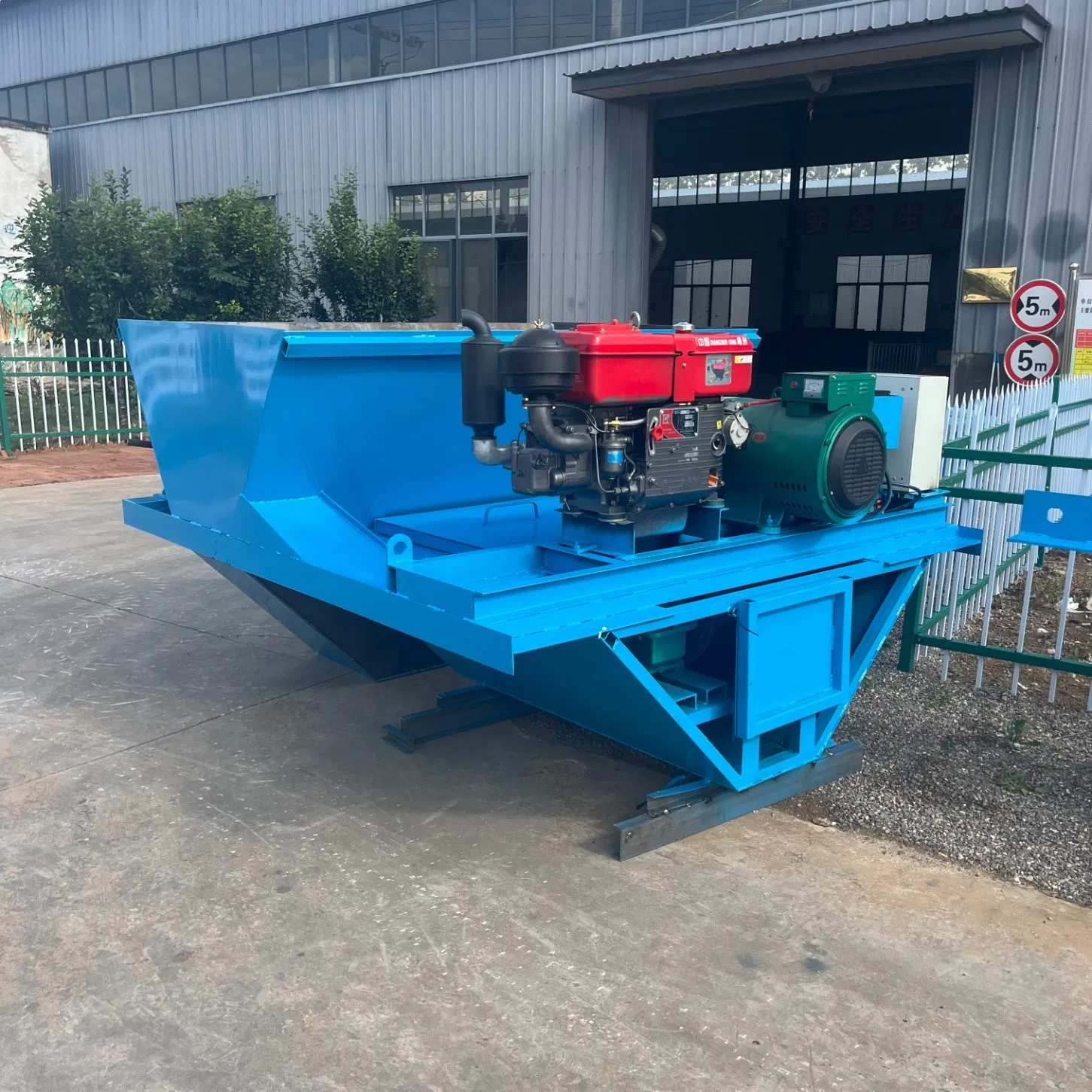

Integrated Cast-in-Place Trapezoidal Canal Lining Machine

i

Basic Information

Application Field:

Agriculture

Max Trenching Depth:

1500mm

Structure:

Single Disc

Power Source:

Hydraulic Turbine

Moving Way:

Crawler Loader

Speed:

100-500m/h

Working Depth:

30-150cm

Certification:

ECE, EU, CE, EPA

Warranty:

One Year

Package Size:

180cm * 800cm * 360cm

★

Product Description

Introduction to machines for building water ditches: Trapezoidal channel automatic vibrating concrete lining machine / U-shaped concrete automatic ditch channel lining device. These machines are adaptable to canal bottoms, canal slopes, highways, and more. Equipment specifications can be customized based on the working surface width.

Working Principle: The machine consists of a feeding machine, spreading machine, screeding machine, and receiving frame. Concrete is fed into the hopper, spread via a belt system, and compacted using a vibrating plate and trowel for a smooth, high-quality finish.

✔

Key Advantages

Cost Efficiency: Reduces template and labor costs; saves 200-600 cubic meters of water per acre by preventing leakage.
Time Saving: Construction speed reaches 40 to 50 meters per hour, far exceeding manual labor.
Durability: Compact canal structure saves about 40% of land compared to earthen canals.
Continuous Forming: Uses high-frequency vibrators for one-time, continuous concrete formation.

●

Application Scope

Agricultural: High-standard farmland irrigation canals and drainage.

Transportation: Slope drainage ditches for highways, railways, and national roads.

Municipal: Urban drainage networks and river management.

⚙

Technical Specifications

Model Type	U-Shaped	Ladder Type	Customized Type
Operating Weight (kg)	20,000	30,500	45,000
Engine Power (kW)	24	15	30
Work Ability (m/h)	40-50	40-50	40-50
Standard Length (m)	3.5	3.4	3.7
Labor Required	2 Personnel	2 Personnel	2 Personnel
Width	Customized	Customized	Customized

⚒

After-Sales & Quality

Standard Warranty: 12 months or 2,000 operating hours. Optional extended coverage available up to 36 months.

Support: 24/7 technical assistance, spare parts supply, and on-site or remote training options.

With over 20 years of expertise, our equipment is certified with ISO 9001, CE, and GOST, exported to over 50 countries. We offer turnkey project solutions and OEM/ODM capabilities.

?
