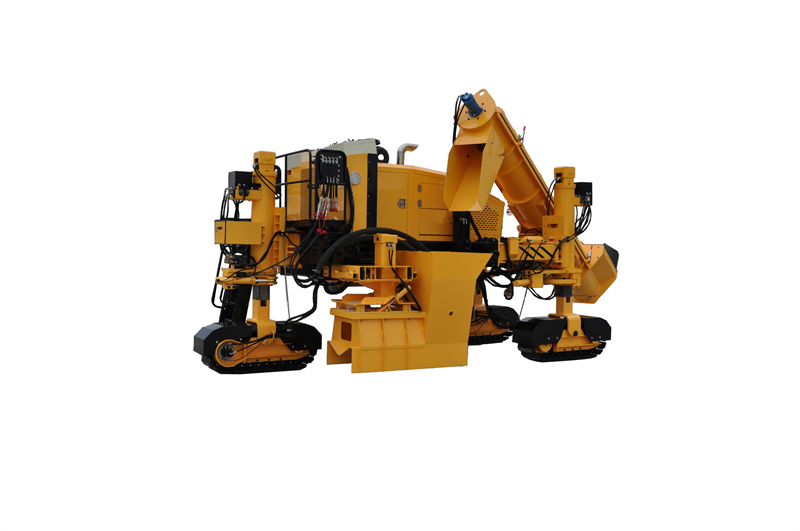

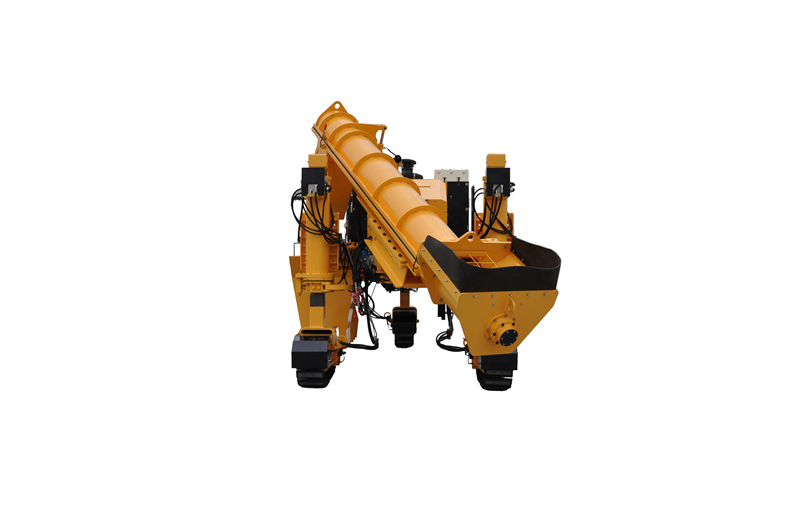

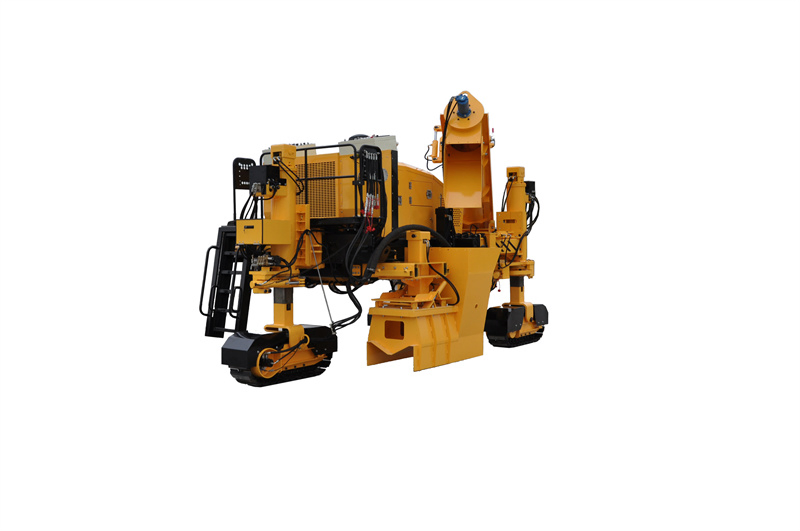

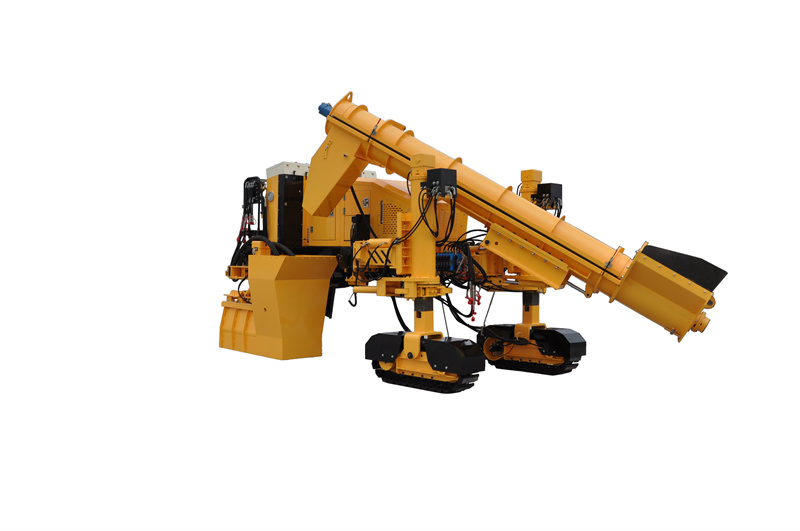

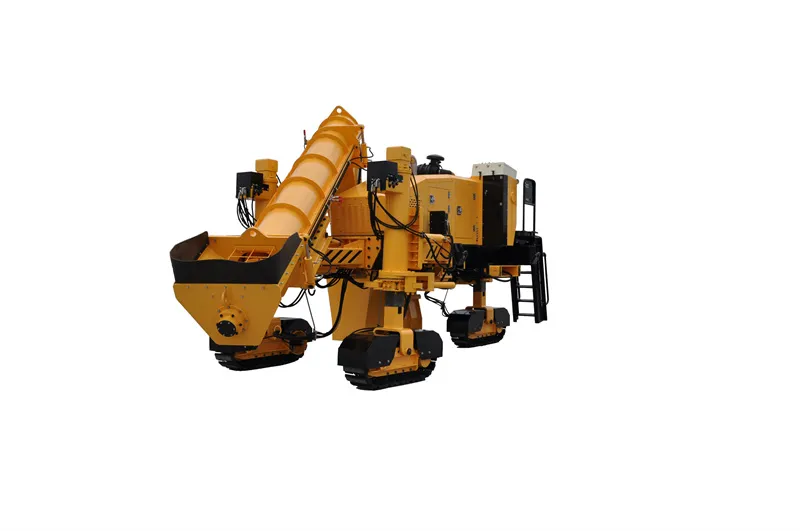

New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine
1 / 5
New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine
New Designed Road Concrete Curb Machine asphalt Machine

New Designed Road Concrete Curb Machine asphalt Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model:LDHM41
Type:Paver
Object:Cement Concrete Pavement
Moving Type:Mobile
Product Capacity:40～400t/h
Power:97kW/2200rpm
Weight:11,700kg
Certification:ISO9001: 2000, CE

Product Description

New Designed Road Concrete Curb Machine asphalt Machine

Concrete Curb Machine
Concrete Curb Machine
Curb Machine Detail
Curb Machine Detail

Key Features & Advantages

  • 01 Great function controller with automatic calculation for diverse projects.
  • 02 Equipped with imported CUMMINS diesel engine for reliable power.
  • 03 Danfoss hydraulic variable plunger pump for stepless speed control.
  • 04 USA HydraForce hydraulic control valve for intelligent function management.
  • 05 High-frequency hydraulic rods providing strong vibration power.
  • 06 Crawler walking mechanism with automatic tension cylinder for durability.
  • 07 Patented steering system, flexible and highly convenient for operators.
  • 08 Real-time supervision with pressure monitors for each mechanism.
  • 09 Hydraulic mold hanging and dismantling for labor-saving operation.
  • 10 Integrated high-pressure washing pump for easy machine maintenance.

Detailed Photos

Detail View 1
Detail View 2
Detail View 3
Detail View 4
Detail View 5
Detail View 6

Technical Parameters

Parameter Item Specifications
Engine ModelCummins 4BTA 3.9
Engine Power97kw / 2200rpm
Traveling ModeBy Crawler (Hydraulic Drive)
Steering ModeCollaborative / Yaw / Front / Rear / Automatic
Working Speed0-15m/min
Max. Height of Mold1300mm
Max. Width of Mold1300mm
Fuel Tank Volume120L
Hydraulic Tank Volume280L
Transport Dimension6975x2500x3420mm

Applications

Widely used in highway construction and municipal road curbs molding projects.

Application 1
Application 2

Related Models

LDHM31 / LDHM21 / LDHM11

LDHM31
LDHM31 Side
LDHM21
LDHM11

Production Excellence

Production Workflow

Frequently Asked Questions

What is the primary application of the LDHM41 machine?
The LDHM41 is specifically designed for high-efficiency concrete curb molding in highway and municipal road construction.
What engine powers the LDHM41 curb paver?
It is equipped with a high-performance Cummins 4BTA 3.9 diesel engine, providing 97kW of power for demanding tasks.
How is the machine's speed controlled during operation?
It utilizes an imported Danfoss hydraulic variable plunger pump, which allows for stepless speed adjustment between 0-15m/min during work.
Can the mold dimensions be adjusted?
Yes, the machine supports a maximum mold height and width of 1300mm, with hydraulic traverse adjustments up to 1000mm.
Does the machine include a cleaning system?
Yes, it comes integrated with a hydraulic high-pressure washing pump to clean the machine components immediately after use.
What steering modes are available?
The LDHM41 features a patented steering system with multiple modes, including Collaborative, Yaw, Front wheel, Rear wheel, and Automatic steering.
