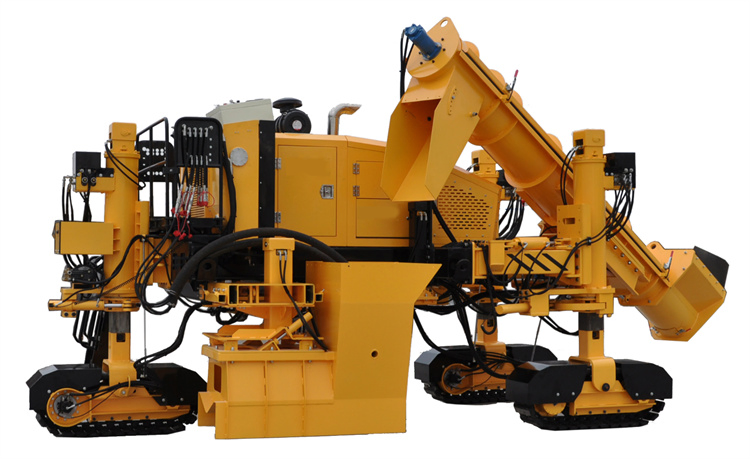

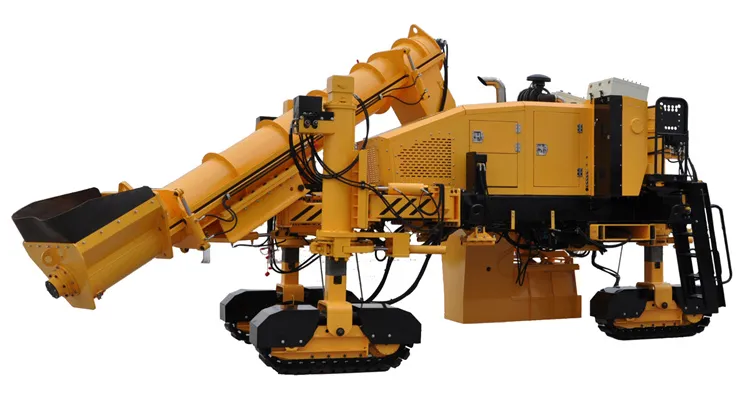

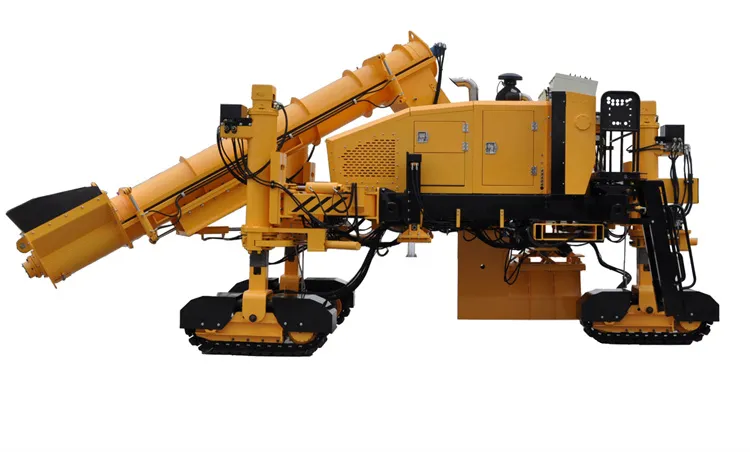

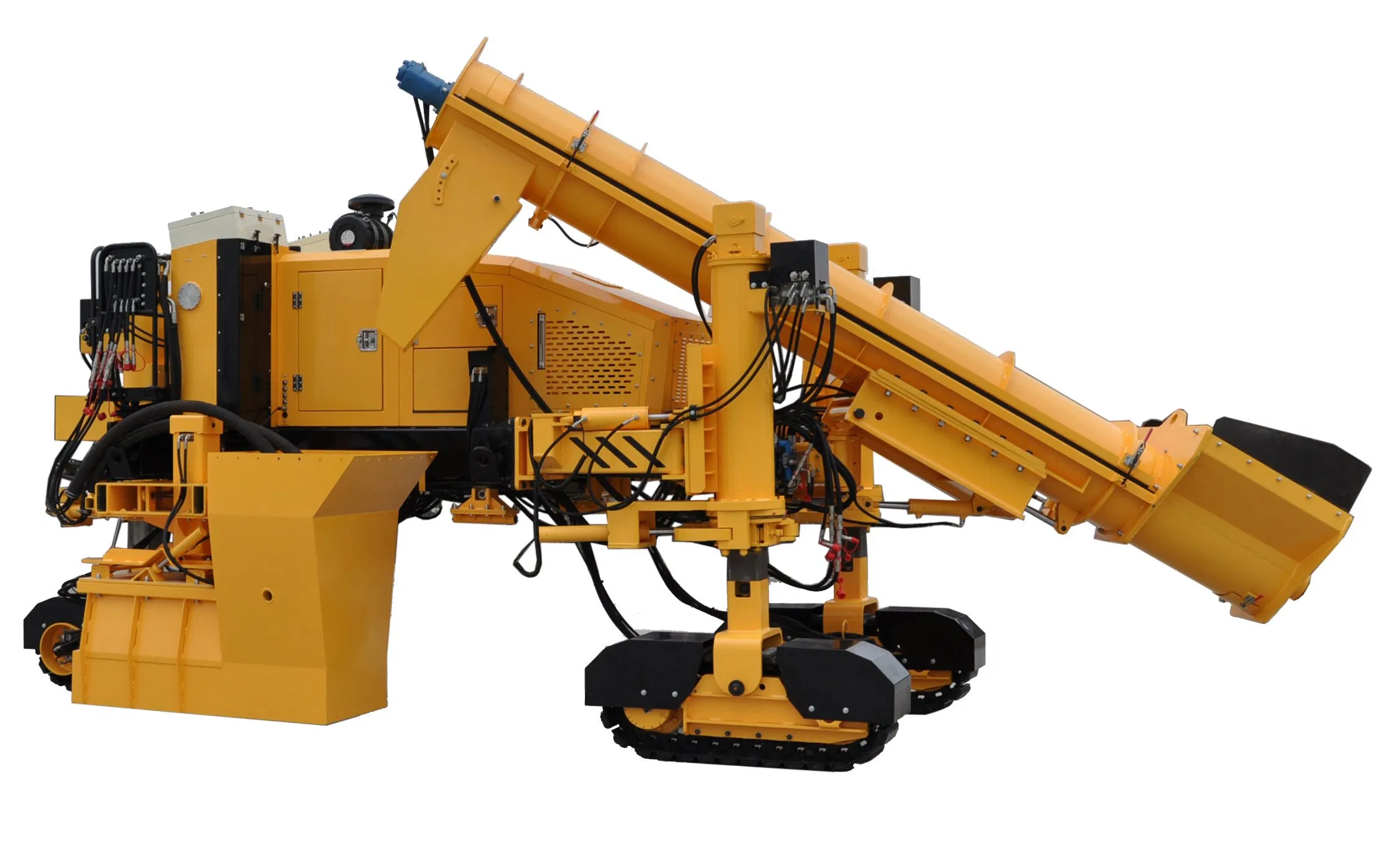

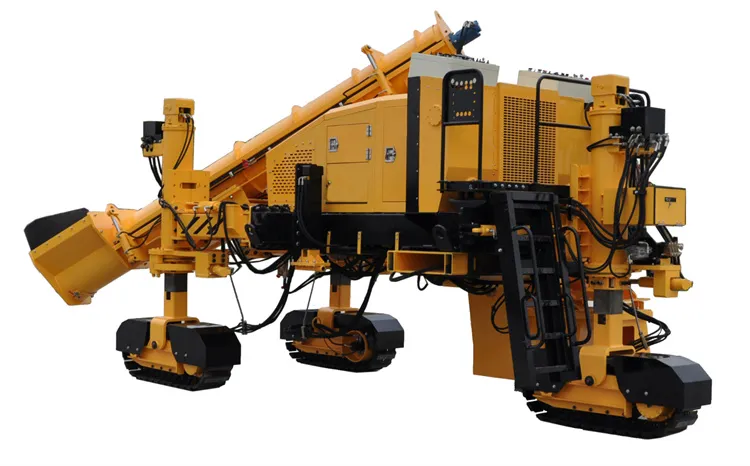

ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
1 / 5
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines
ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines

ditches paver New Pave Width 9.5M Concrete Slipform Paver Machines

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.LDHM41TypePaver
ObjectCement Concrete PavementMoving TypeMobile
Mixing MethodIntermittent CompulsoryAutomatic GradeSemi-Automatic
Product Capacity40～400t/hCertificationISO9001: 2000, CE
ConditionNewWorking TypeDiesel Engine, liquid cooled
Work Speed0-15m/MinPower97kW/2200rpm
Transport size6975x2500x3420mmPackage Weight11,700kg
Product Description

Concrete Slipform Paver Machines - New Pave Width 9.5M

Paver Machine 1
Paver Machine 2
Paver Machine 3
Paver Machine 4
Detailed Features
✔Great function controller with automatic calculation for various projects.
✔Equipped with imported brand CUMMINS diesel engine for reliable power.
✔Imported Danfoss hydraulic variable plunger pump for stepless speed control.
✔U.S.A HydraForce brand hydraulic control valves for intelligent function management.
✔High-frequency hydraulic rod with strong vibration power.
✔Crawler walking mechanism with automatic tension cylinder for longer life.
✔Patented steering system, flexible and convenient for maneuvering.
✔Real-time pressure monitors for each working mechanism.
✔Hydraulic mold hanging and dismantling for labor-saving operation.
✔Integrated high-pressure washing pump for easy on-site cleaning.
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Technical Parameters
Engine Performance
ModelCummins 4BTA 3.9
TypeDiesel Engine, liquid cooled, four cylinder
Power97kw / 2200rpm
Traveling System
Traveling ModeBy Crawler
Driving ModeBy Hydraulic
Traveling Speed0-30m/min
Working Speed0-15m/min
Mold & Vibration
Mold Traverse Adjustment1000mm
Mold Height Adjustment400mm
Hydraulic Vibrating Rod Port4
Water Tank Volume120L
Product Application

This equipment is widely used for highway and municipal road curbs molding, providing efficient and high-precision concrete slipform solutions.

Application 1
Application 2
Application 3
Application 4
Related Models

Model: LDHM31

LDHM31 - 1
LDHM31 - 2

Models: LDHM21 & LDHM11

LDHM21
LDHM11
Manufacturing Excellence
Manufacturing Process
Frequently Asked Questions
Q1: What is the primary engine used in the LDHM41 Paver? A: The LDHM41 is equipped with a high-performance Cummins 4BTA 3.9 liquid-cooled, four-cylinder diesel engine.
Q2: What is the maximum working speed of this slipform paver? A: The machine operates at a working speed of 0 to 15 meters per minute, which is adjustable depending on the project requirements.
Q3: Can the mold height and position be adjusted? A: Yes, the mold features a traverse adjustment of 1000mm and a height adjustment of 400mm to suit various curb designs.
Q4: Does the machine include a cleaning system? A: Yes, it comes with a built-in hydraulic high-pressure washing pump, allowing operators to clean the machine at any time on-site.
Q5: What are the main applications for the LDHM series? A: These machines are specifically designed for molding curbs on highways, municipal roads, and various landscaping projects.
Q6: How does the steering system work? A: It features a patented steering system with multiple modes, including collaborative, front wheel, rear wheel, and automatic steering for maximum flexibility.
