Object
Cement Concrete Pavement
Mixing Method
Intermittent Compulsory
Automatic Grade
Semi-Automatic
Product Capacity
40～400t/h
Certification
ISO9001: 2000, CE

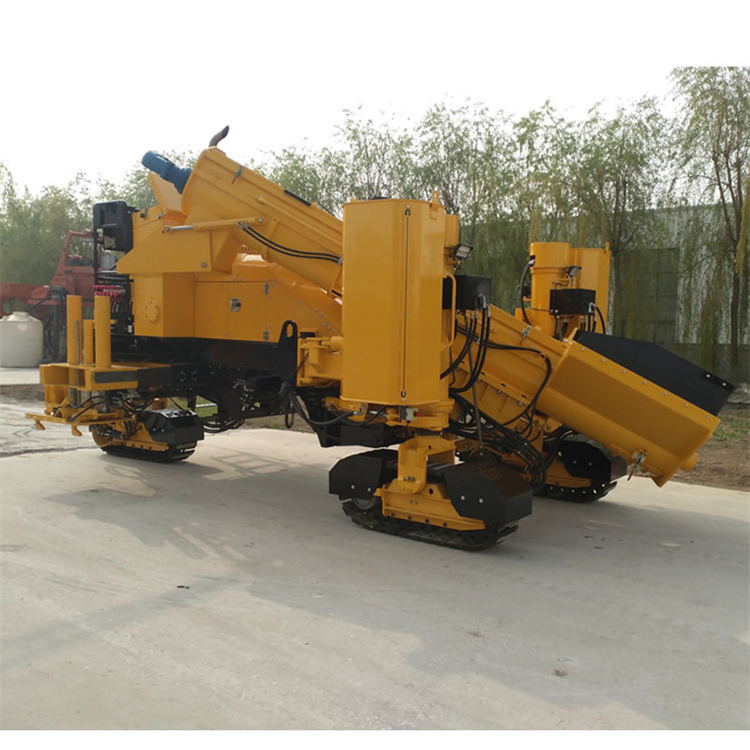

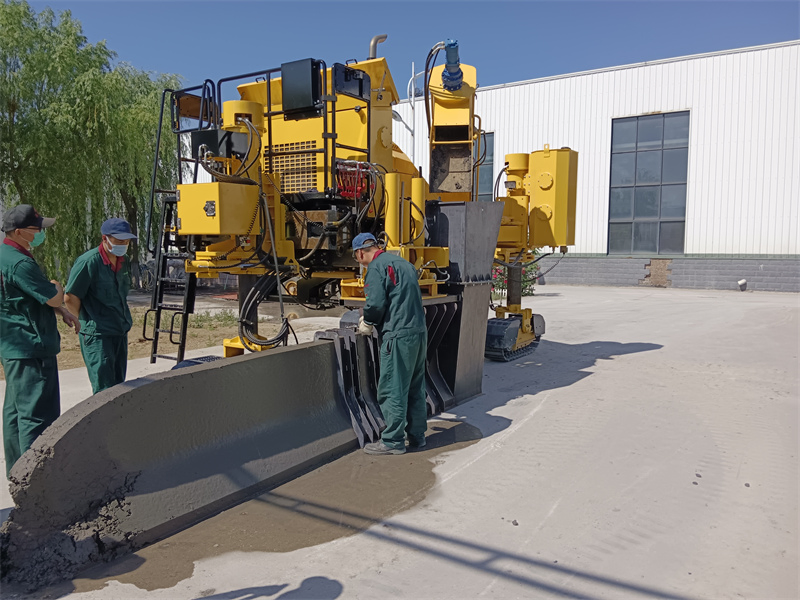

Ditches Paver Construction Machinery - 9.5m Width Slip-form Concrete Paver
✔

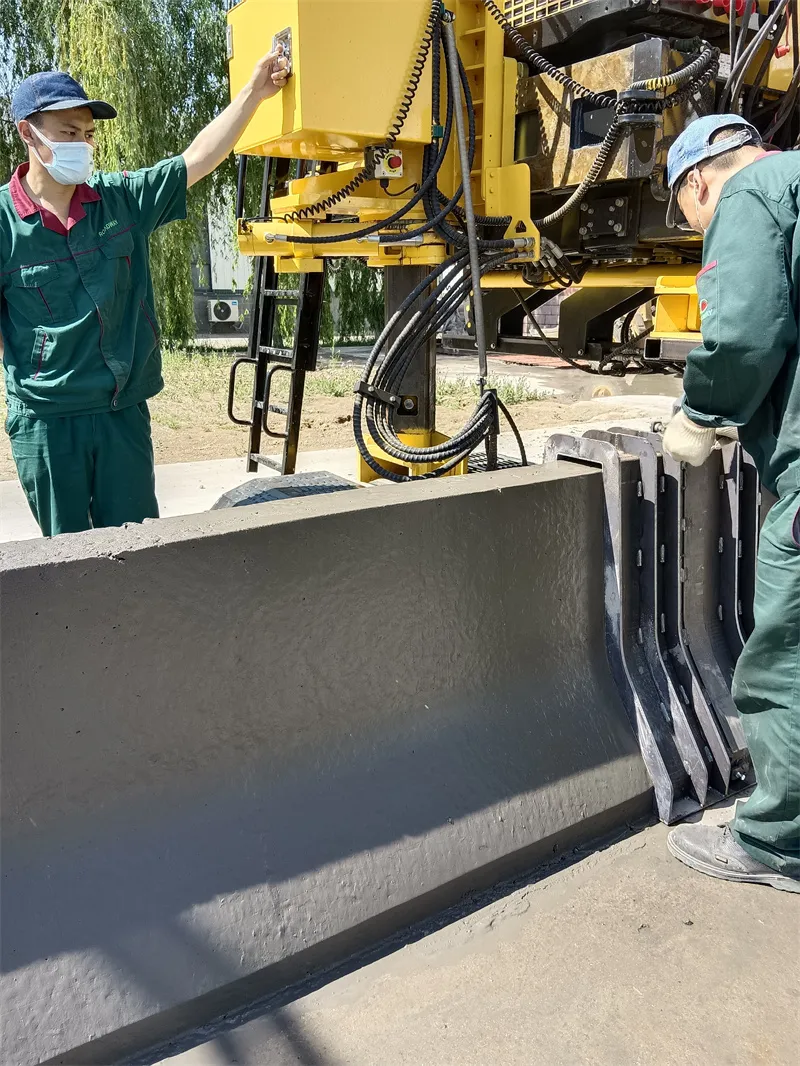

Detailed Photos & Key Features
- ●1. High-performance controller with automatic calculation, suitable for diverse projects.
- ●2. Equipped with imported brand CUMMINS diesel engine.
- ●3. Imported Danfoss hydraulic variable plunger pump for stepless speed control.
- ●4. U.S.A HydraForce brand hydraulic control valves for intelligent function management.
- ●5. Hydraulic rods with high frequency and strong power.
- ●6. Crawler walking mechanism with automatic tension cylinders to increase belt life.

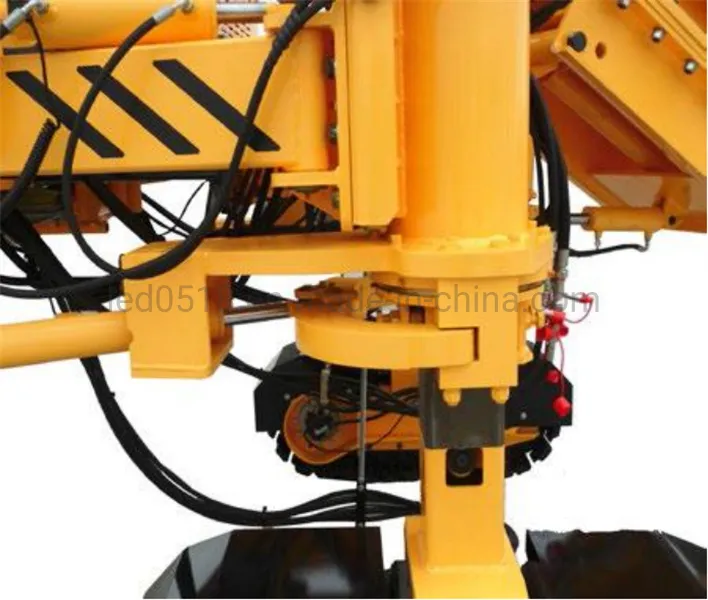

- ●7. Patented steering system, flexible and convenient.

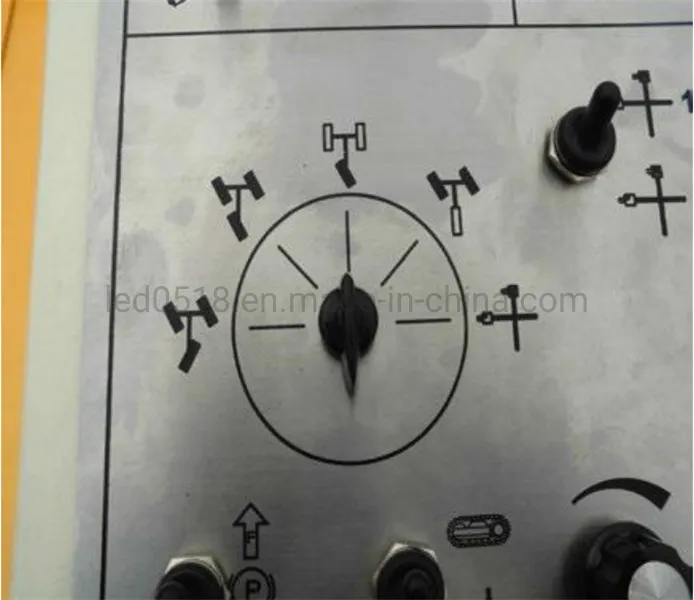

- ●8. Multiple walking modes with quick-switch capability.

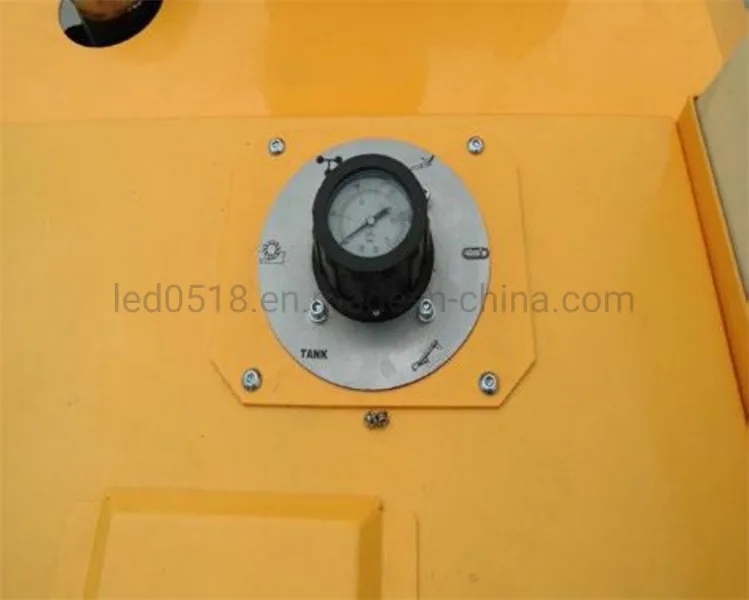

- ●9. Real-time supervision via pressure monitors for each work mechanism.

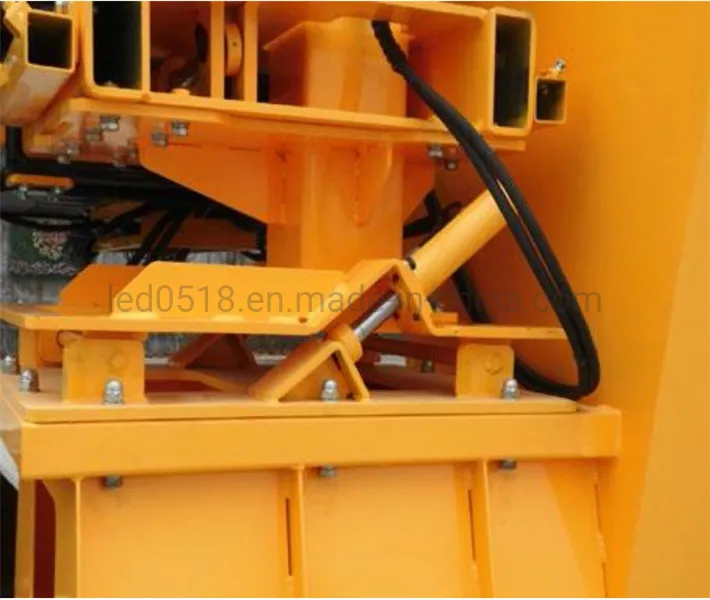

- ●10. Hydraulic mold hanging and dismantling for labor-saving operation.

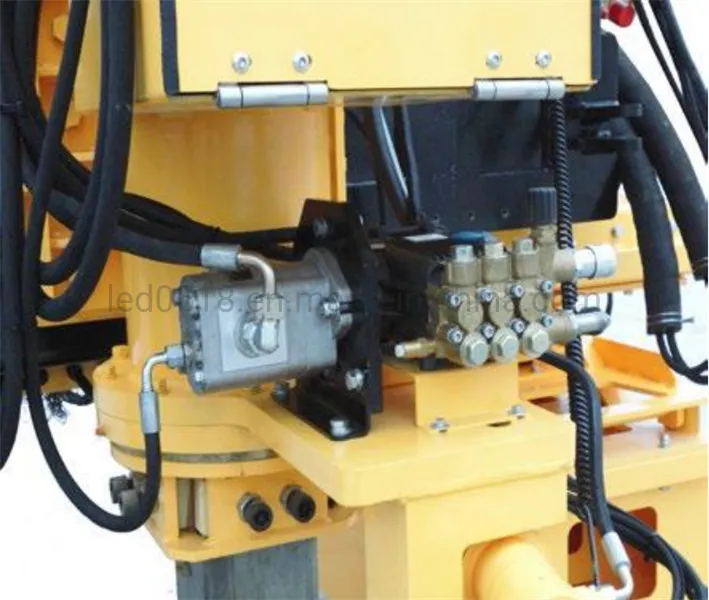

- ●11. High-pressure washing pump for easy cleaning at any time.

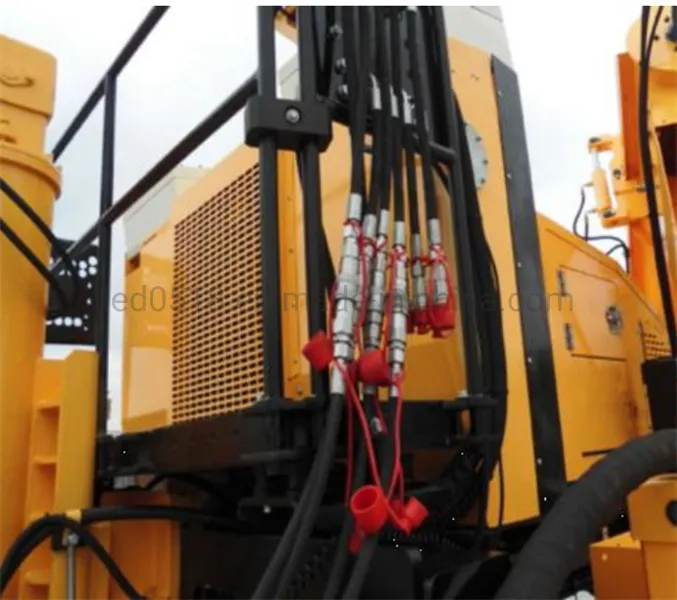

- ●12. Italy brand quick plugs for external hydraulic connections, ensuring no oil leaks.
| Category |
Specifications |
| Type | LDHM41 |
| Engine System |
| Engine Model | Cummins 4BTA 3.9 |
| Engine Type | Diesel, liquid cooled, 4-cylinder |
| Rated Power | 97kw / 2200rpm |
| Engine Oil Volume | 9L |
| Traveling System |
| Traveling Mode | By crawler |
| Driving Mode | By hydraulic |
| Steering Mode | Collaborative/Yaw/Front/Rear/Automatic |
| Traveling Speed | 0-30m/min |
| Working Speed | 0-15m/min |
| Mold Adjustment |
| Traverse Adjustment | 1000mm |
| Height Adjustment | 400mm |
| Max Mold Height | 1300mm |
| Max Mold Width | 1300mm |
| Capacity & Dimensions |
| Fuel Tank | 120L |
| Hydraulic Tank | 280L |
| Transport Size | 6975 x 2500 x 3420mm |
| Total Weight | 11700kg |

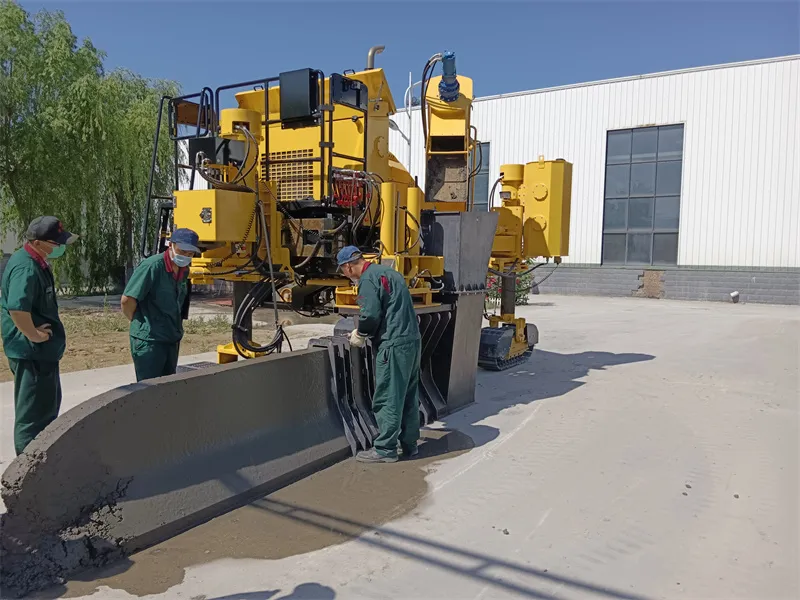

Widely used in highway and municipal road curbs molding projects, providing efficient slip-form solutions.
?
Frequently Asked Questions
What are the primary applications for the LDHM41 paver?
The LDHM41 is widely used for highway construction and municipal road curb molding, specifically designed for efficient concrete pavement projects.
What type of engine powers this machine?
It is powered by a reliable CUMMINS 4BTA 3.9 diesel engine, which is liquid-cooled and features four cylinders for consistent power output.
Can the mold dimensions be adjusted?
Yes, the mold height can be adjusted by 400mm and traverse adjustment by 1000mm. The maximum mold height and width supported are 1300mm each.
How is the machine's speed controlled?
The machine uses an imported Danfoss hydraulic variable plunger pump, which allows for stepless speed control ranging from 0-15m/min during work and up to 30m/min during transport.
Is the steering system versatile for different site conditions?
Absolutely. It features a patented steering system with multiple modes including Collaborative, Yaw, Front wheel, Rear wheel, and Automatic steering for maximum flexibility.
How do you maintain and clean the machine after use?
The machine is equipped with a high-pressure hydraulic washing pump, allowing operators to clean the equipment thoroughly at any time on-site.
