Product Description

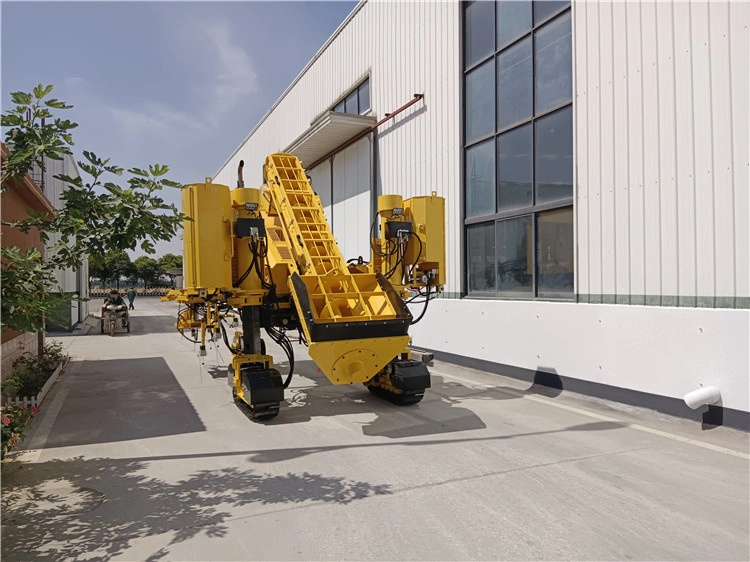

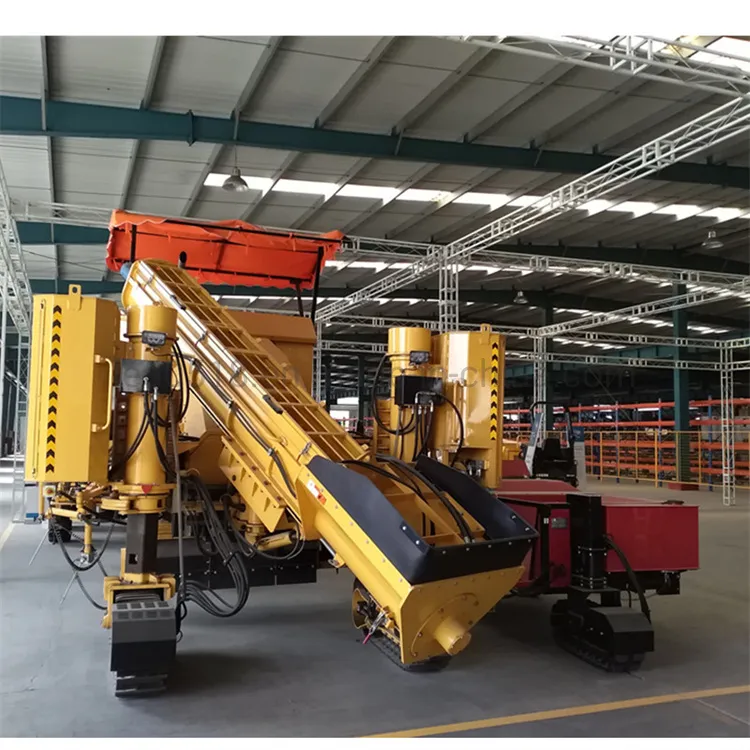

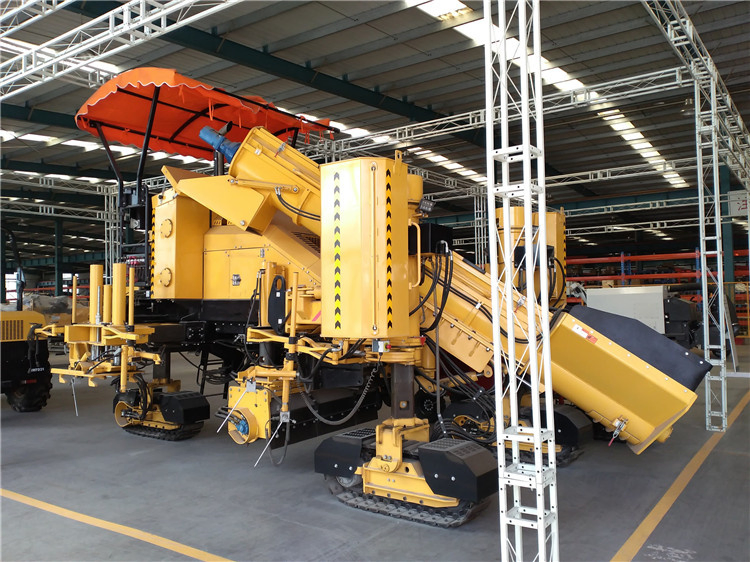

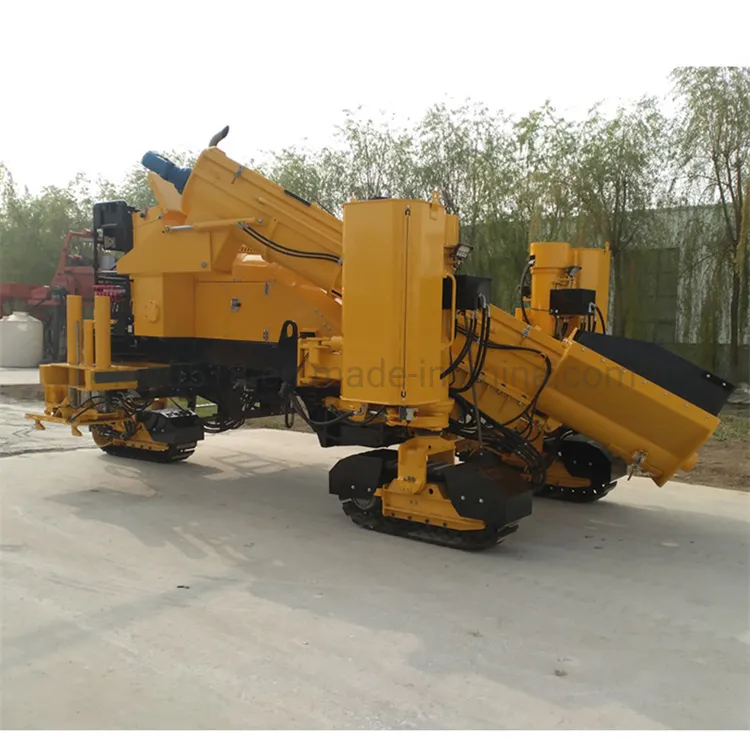

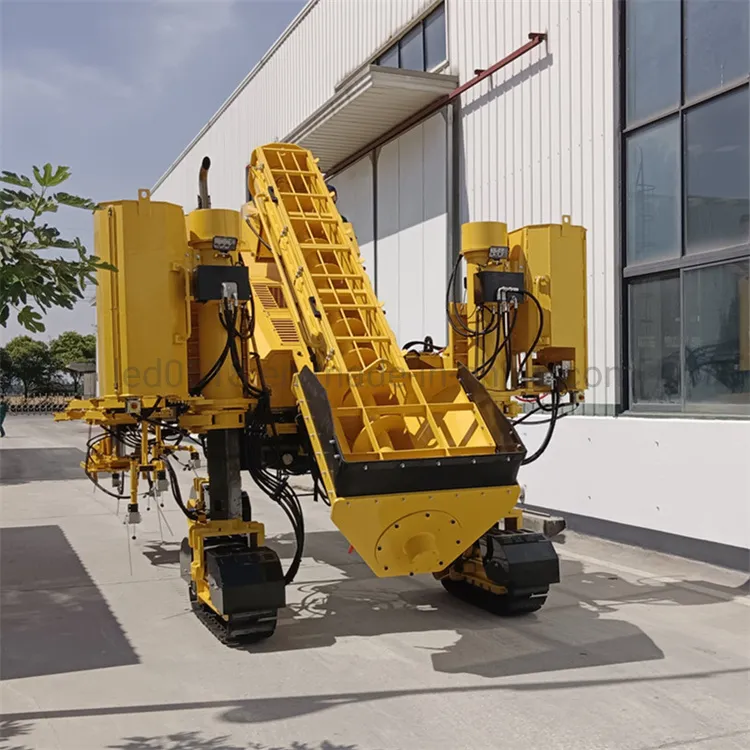

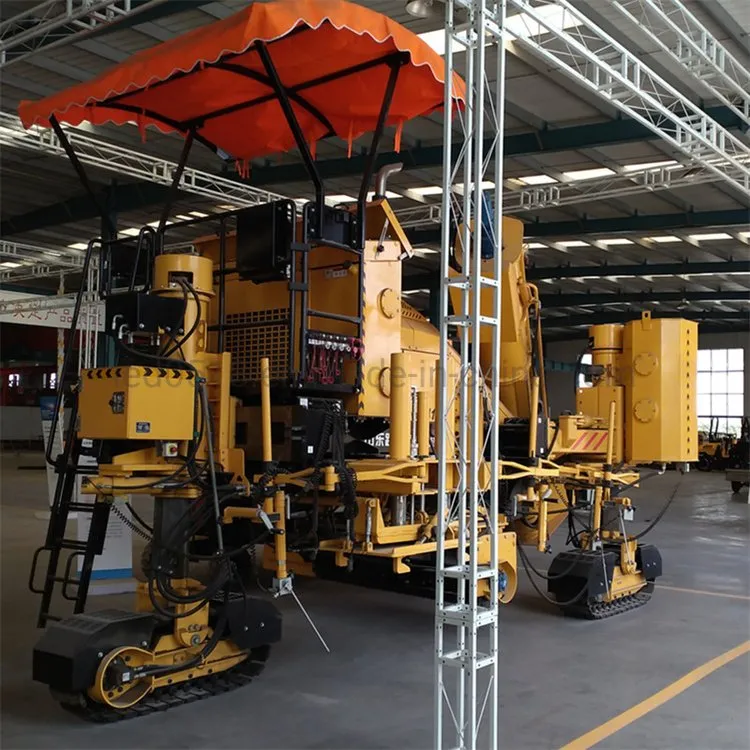

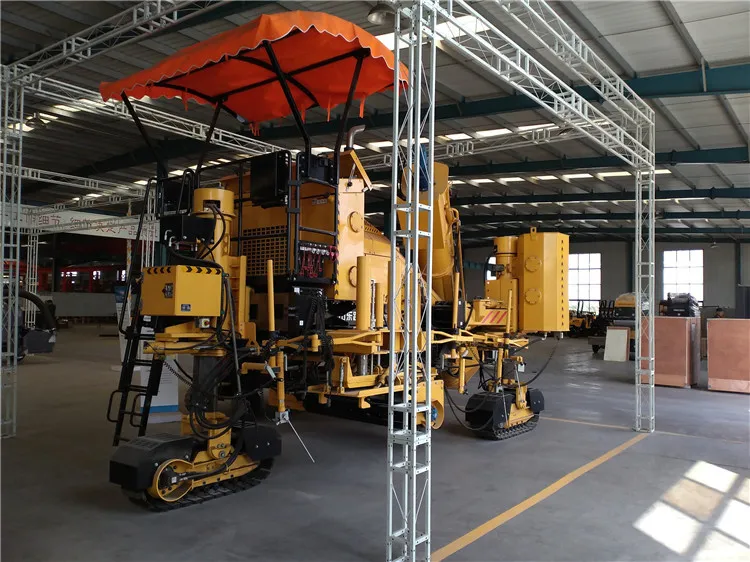

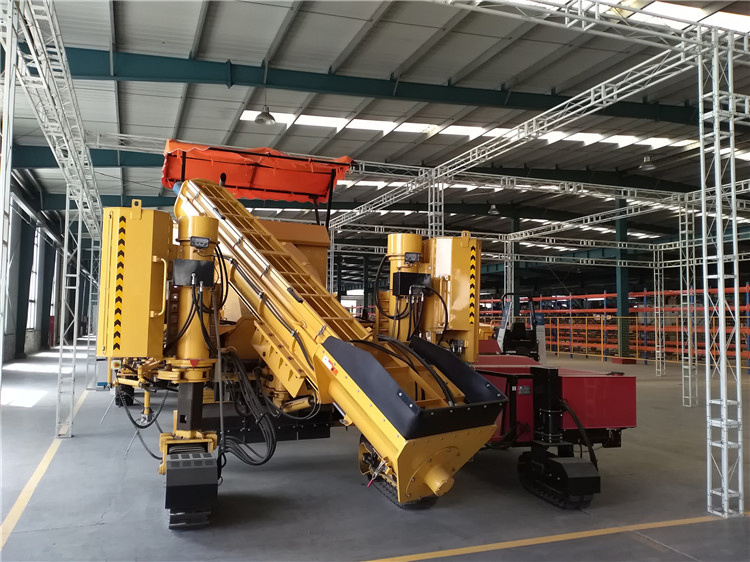

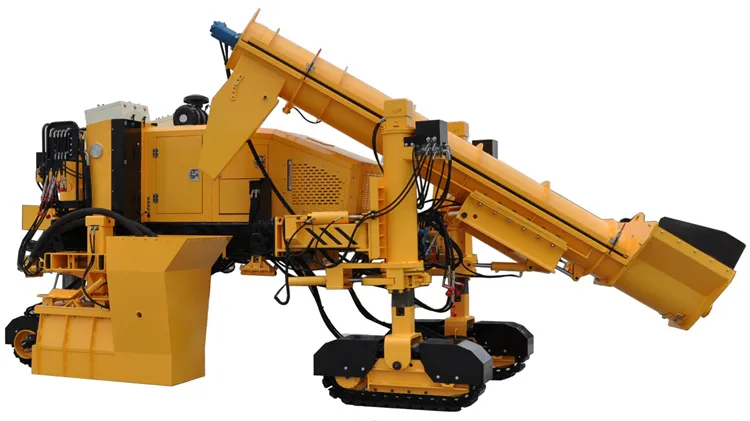

Hot Sale Running Track Paver Machine Cement Pavers Concrete Slip Form Paver
Detailed Key Features
✔

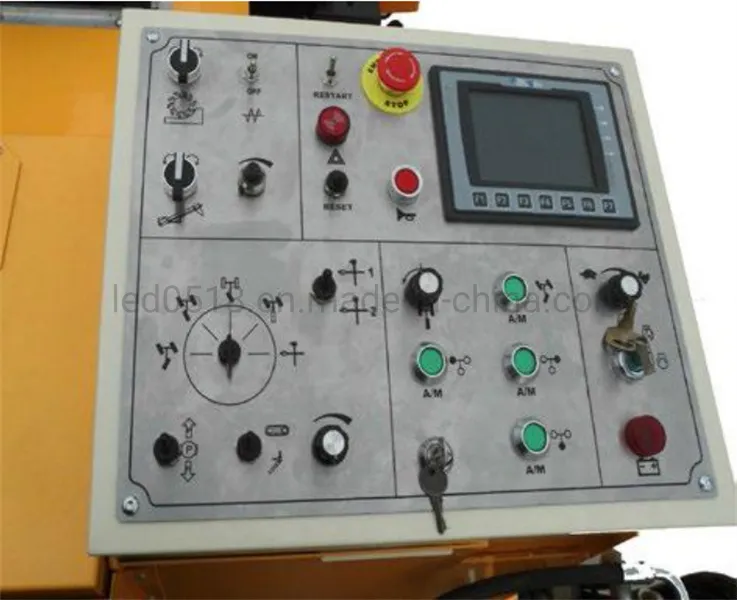

With great function controller and automatic calculation, suitable for all types of projects.
✔

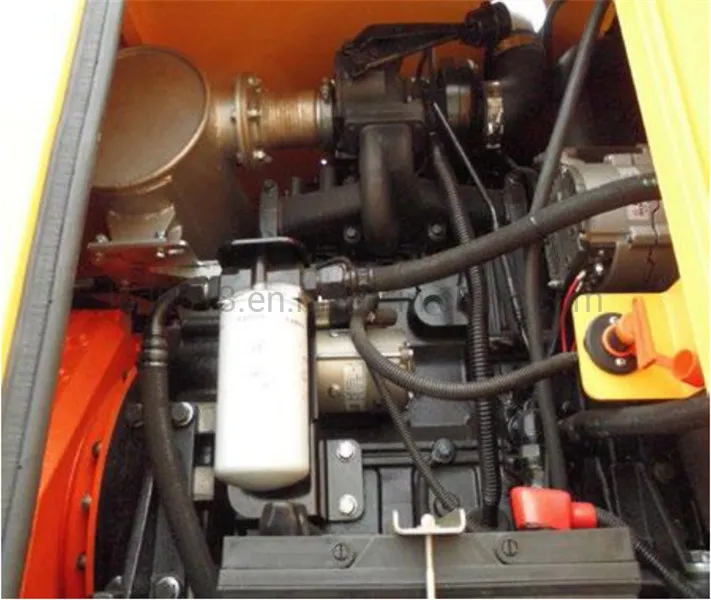

Equipped with imported brand CUMMINS diesel engine for reliable power.
✔

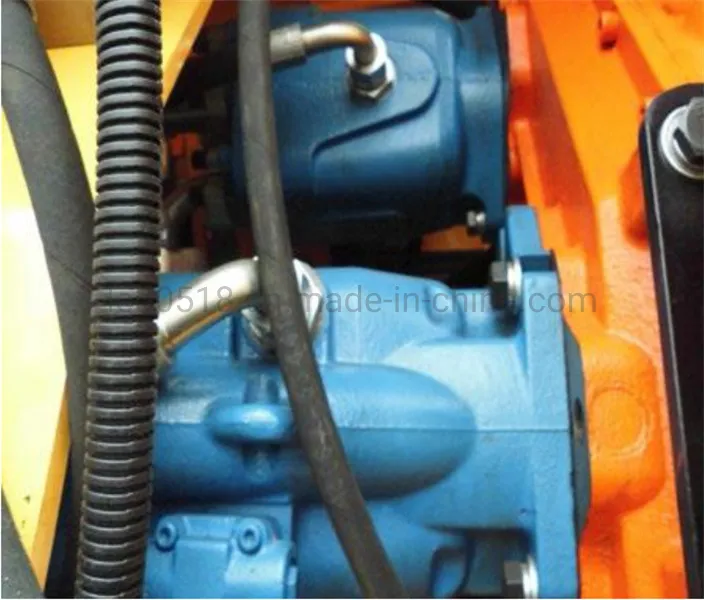

Features imported Danfoss hydraulic variable plunger pump, driving the machine at stepless speeds.
✔

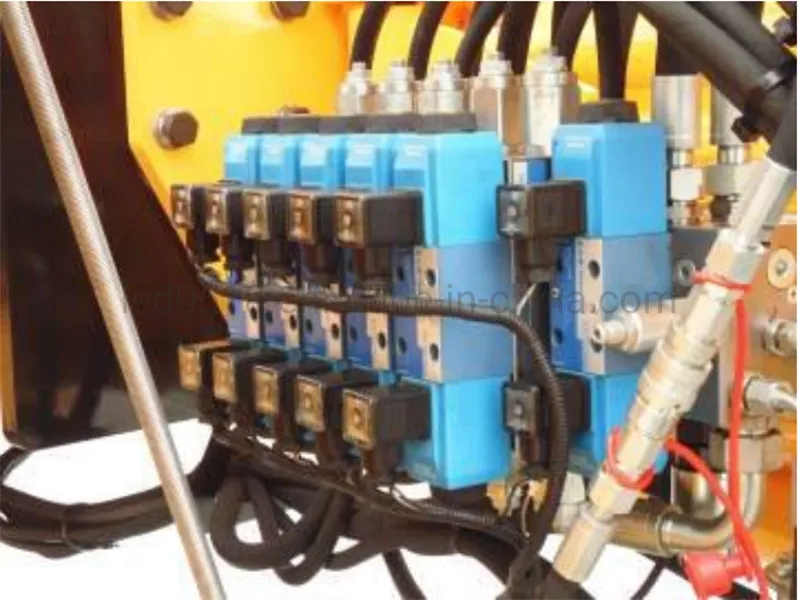

U.S.A. Hydra Force brand hydraulic control valve ensures intelligent function management.
✔

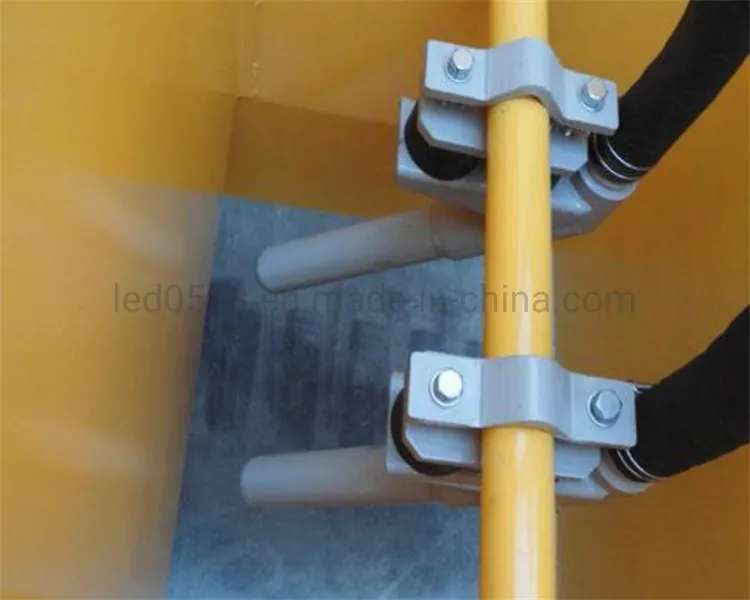

Hydraulic rod with high frequency and strong power for efficient operation.
✔

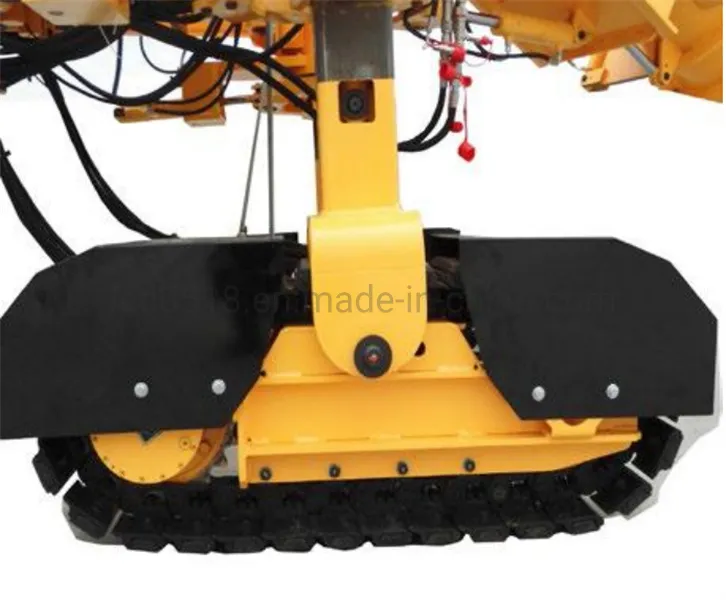

Crawler walking mechanism with automatic tension cylinder to increase the life of the crawler belt.
✔
Patented steering system, flexible and convenient for various road conditions.
✔
Multiple walking modes that can be quickly switched during work.
✔
Real-time supervision with pressure monitors for each working mechanism.
✔

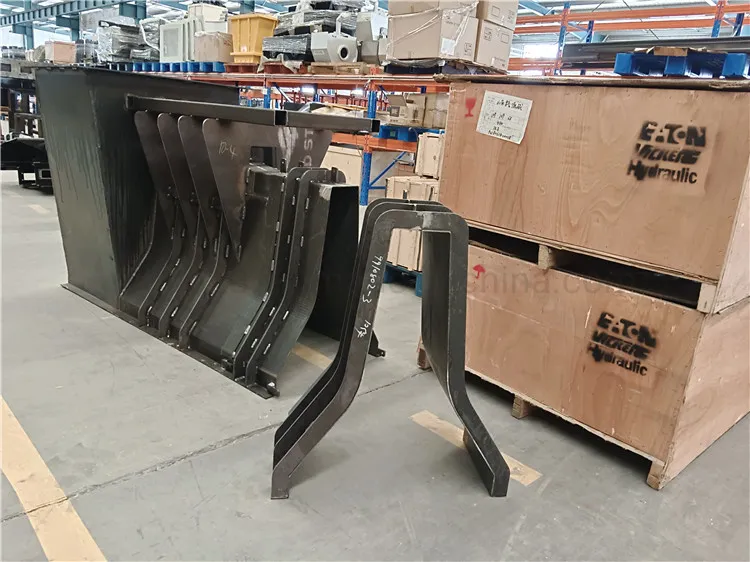

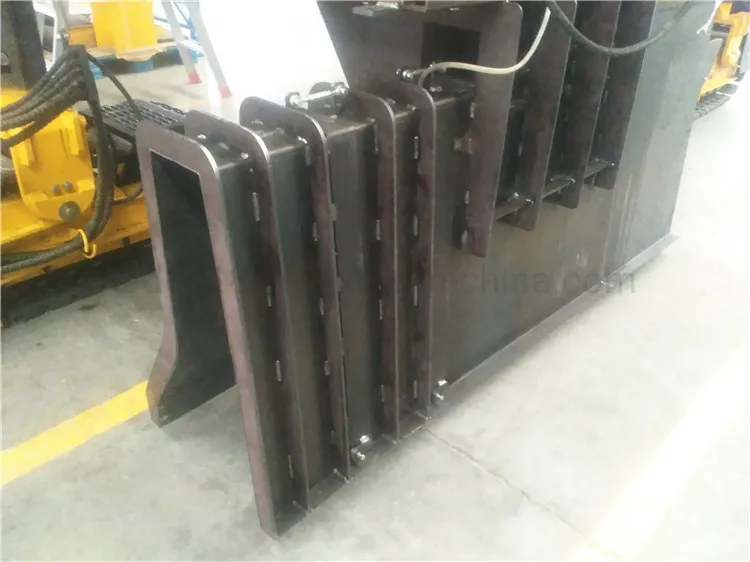

Hydraulic mold hanging and dismantling for easy operation and labor-saving.
✔
Hydraulic high-pressure washing pump included for cleaning anytime.
✔
Italy brand quick plugs for external hydraulic connections ensure no oil leaks.
Product Parameters
| Basic Specification |
| Model | LDHM41 |
| Type | Paver / Concrete Slip Form |
| Product Capacity | 40～400t/h |
| Engine System |
| Engine Model | Cummins 4BTA 3.9 |
| Engine Type | Diesel Engine, liquid cooled, four cylinder |
| Power | 97kW/2200rpm |
| Engine Oil Volume | 9L |
| Traveling & Performance |
| Traveling Mode | By Crawler (Hydraulic Drive) |
| Traveling Speed | 0-30m/min |
| Working Speed | 0-15m/min |
| Automatic Grade | Semi-Automatic |
| Mold & Adjustment |
| Mold Traverse Adjustment | 1000mm |
| Mold Height Adjustment | 400mm |
| Max. Width of Mold | 1300mm |
| Hydraulic Height Adjustment | 980mm |
| Dimensions & Weight |
| Transport Size | 6975x2500x3420mm |
| Package Weight | 11,700kg |
| Fuel Tank Volume | 120L |
| Hydraulic Tank Volume | 280L |
Product Application

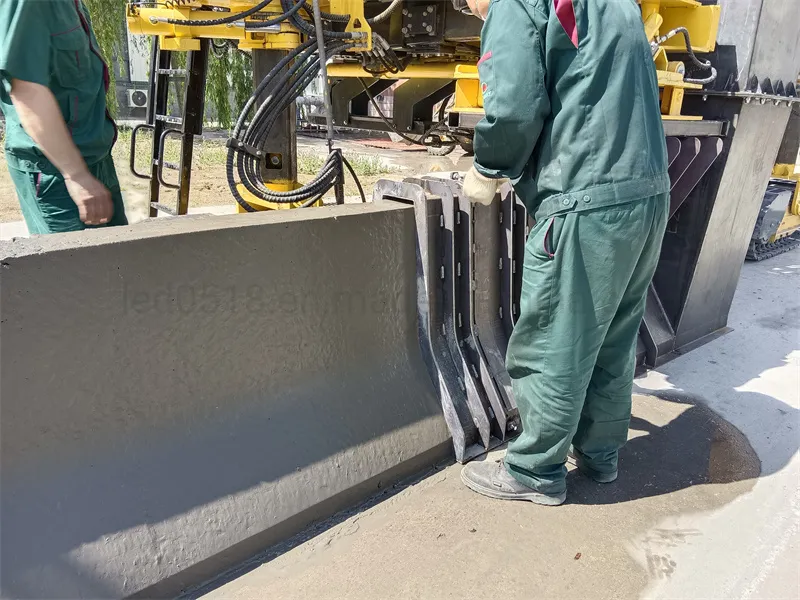

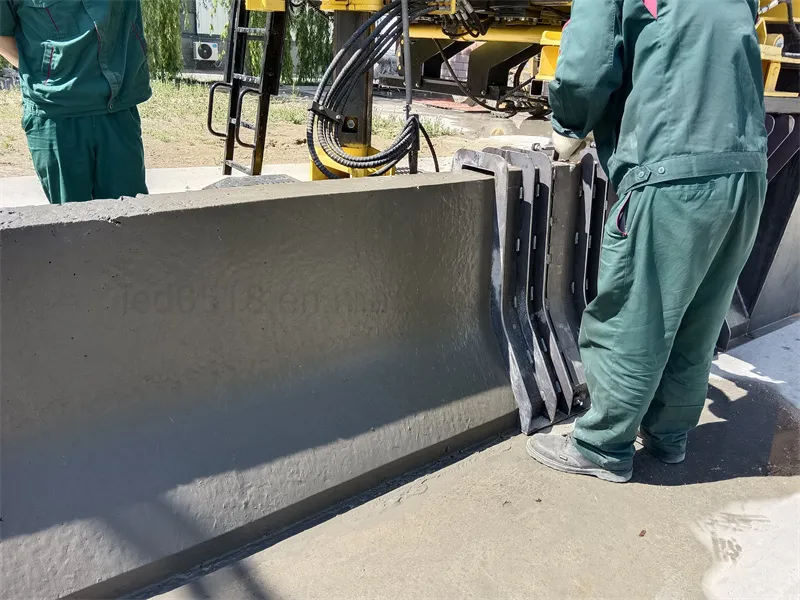

The equipment is widely used in highway and municipal road curbs molding projects, offering high efficiency and precision.
Related Models

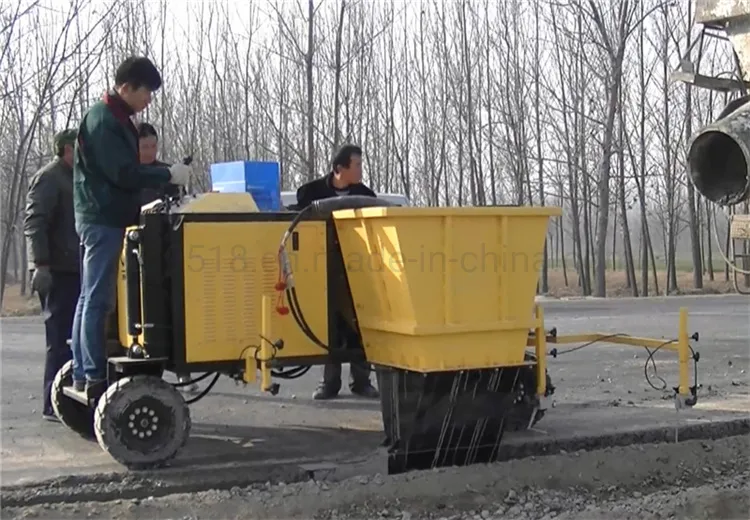

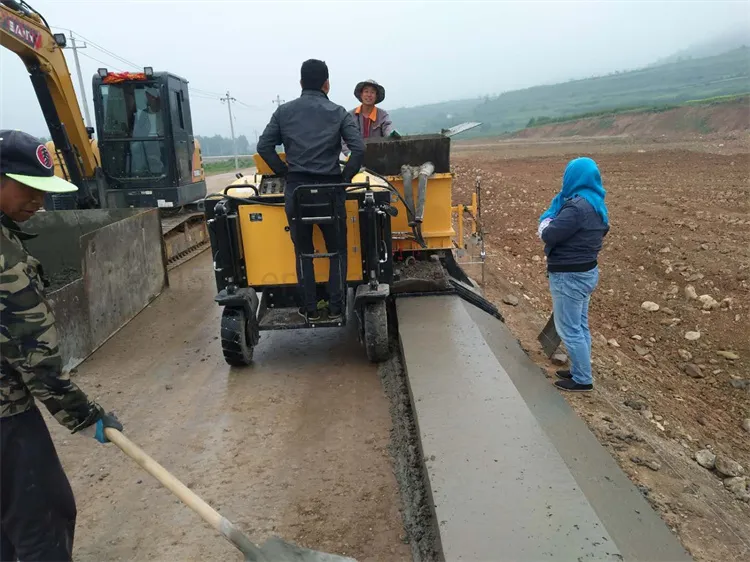

LDHM31 Model:

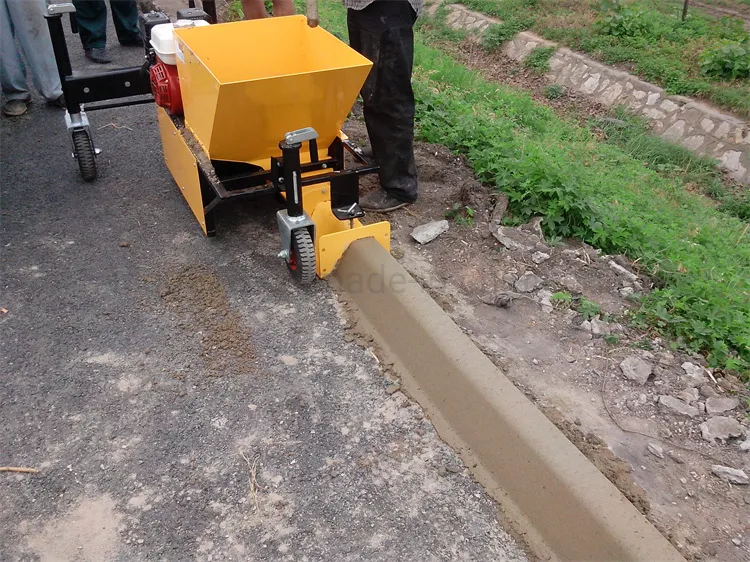

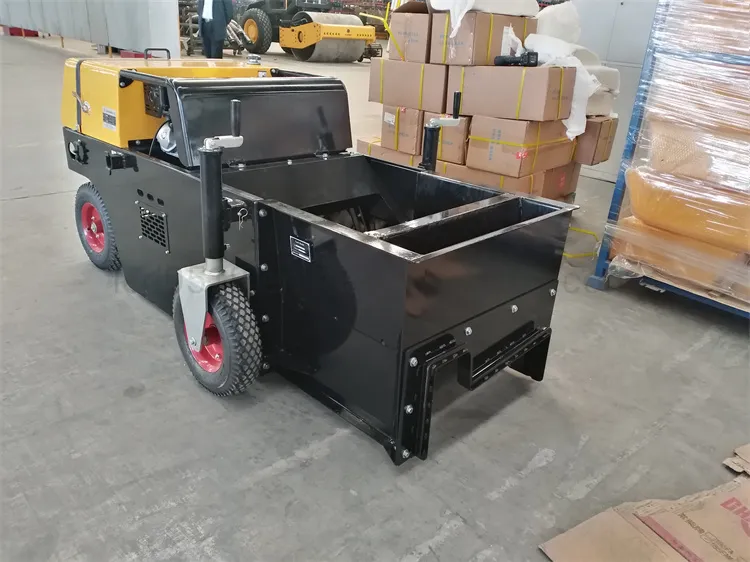

LDHM21 & LDHM11 Models:
Frequently Asked Questions
1. What kind of engine does the LDHM41 paver use?
The LDHM41 is powered by a high-performance CUMMINS 4BTA 3.9 diesel engine, which is liquid-cooled and features four cylinders.
2. What is the working speed of this concrete slip form paver?
The machine offers a working speed range of 0-15 meters per minute, allowing for precise control during pavement tasks.
3. Can the mold dimensions be adjusted?
Yes, the mold height can be adjusted by 400mm, and the traverse adjustment is up to 1000mm. The maximum width of the mold is 1300mm.
4. Is the machine easy to clean after work?
Yes, the machine is equipped with a hydraulic high-pressure washing pump, enabling you to clean the equipment thoroughly at any time on the job site.
5. What are the main applications for this equipment?
It is specifically designed for highway and municipal road curbs molding, ensuring efficient cement and concrete pavement.
6. What type of driving and steering systems are used?
The machine utilizes a hydraulic driving mode with a crawler mechanism and features a patented steering system that supports collaborative, yaw, front wheel, and automatic modes.
