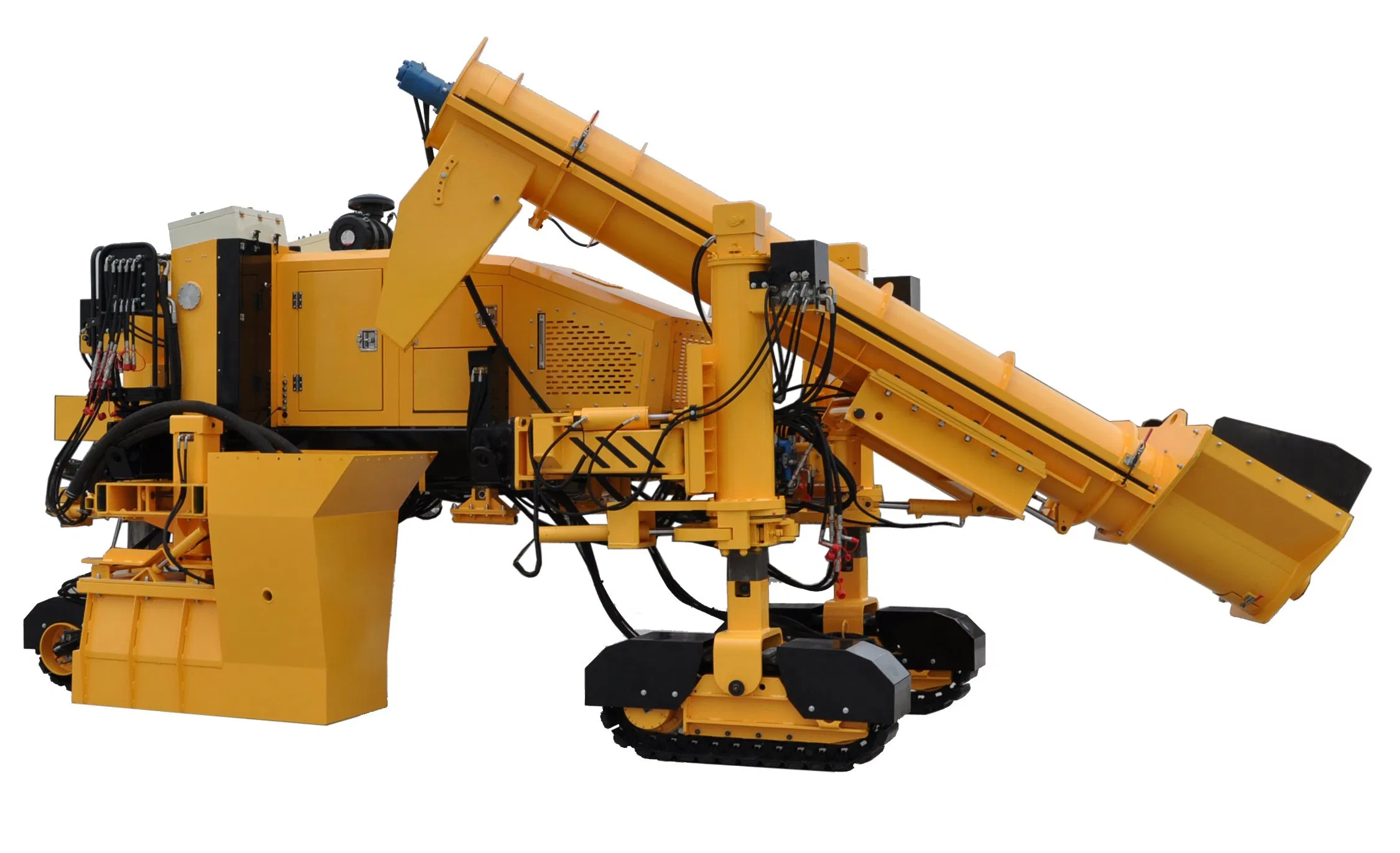

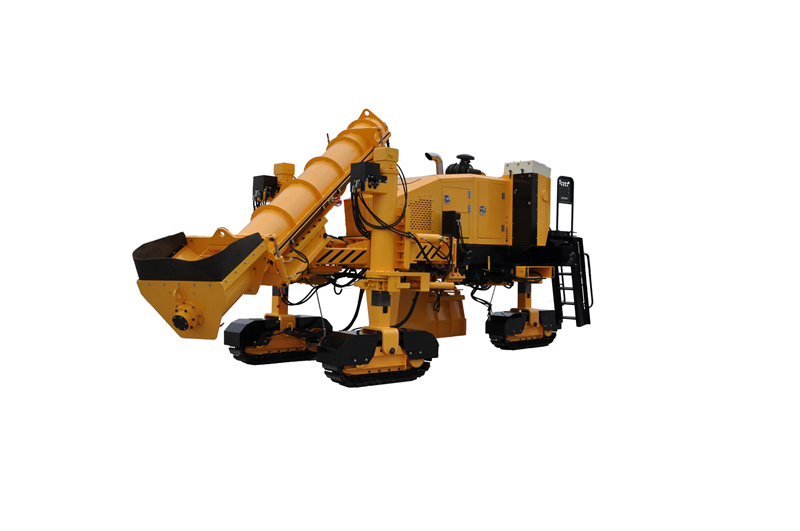

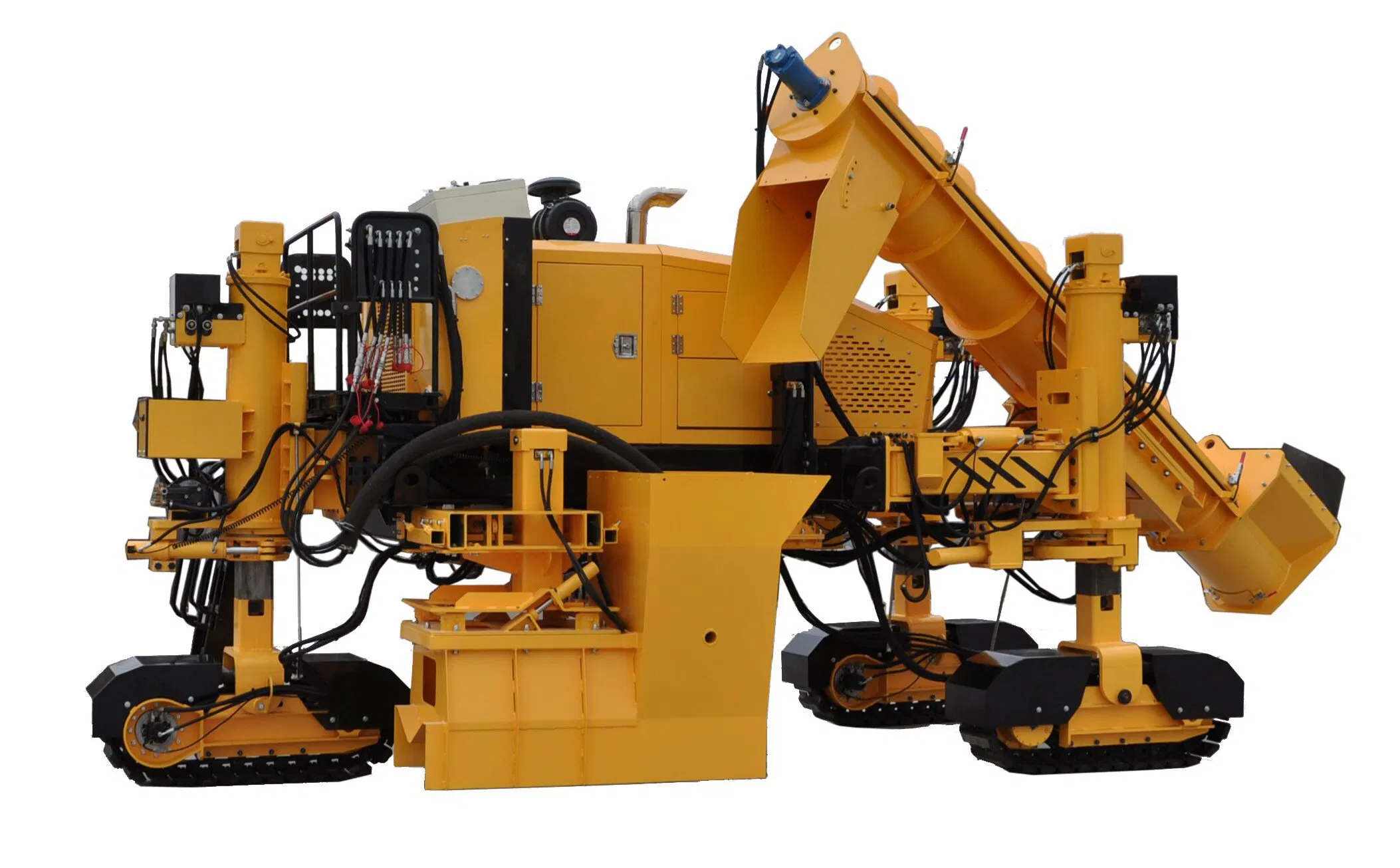

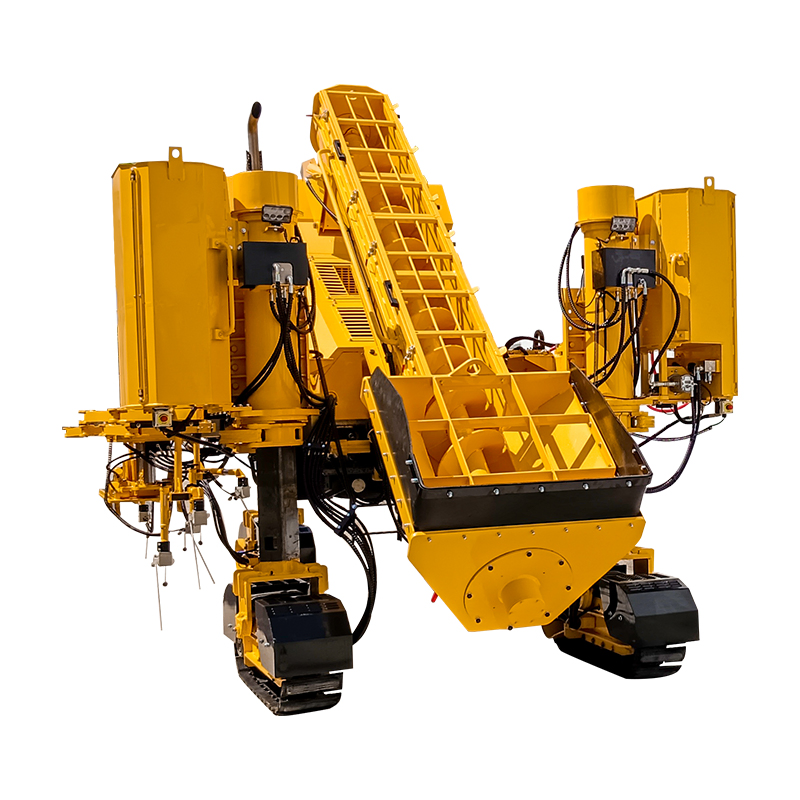

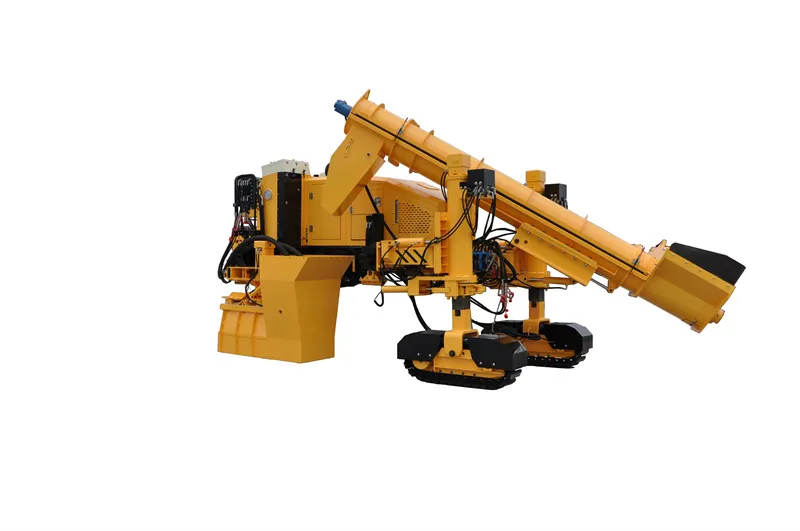

Road Concrete Asphalt Curb Slipform Machine Kerbstone making machine

1 / 5

Road Concrete Asphalt Curb Slipform Machine Kerbstone making machine

Send Inquiry

Product Description

Road Concrete Asphalt Curb Slipform Machine

Detailed Photos & Features

✓1. Equipped with high-performance controller and automatic calculation systems, suitable for diverse project requirements.

✓2. Features imported brand CUMMINS diesel engine for reliable power.

✓3. Utilizes imported Danfoss hydraulic variable plunger pumps for stepless speed control.

✓4. Intelligent control via U.S.A HydraForce brand hydraulic valves.

✓5. High-frequency hydraulic vibrating rods with strong power output.

✓6. Crawler walking mechanism with automatic tension cylinders to extend belt life.

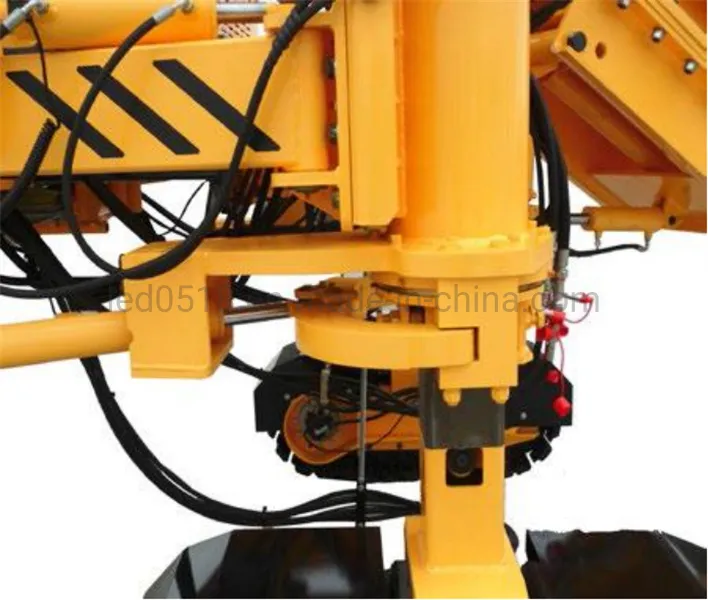

✓7. Flexible and convenient patented steering system.

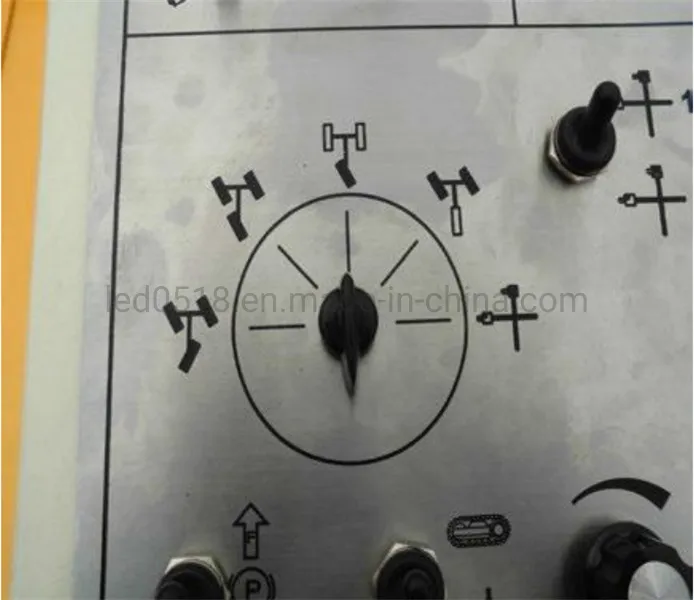

✓8. Multiple walking modes with rapid switching capabilities.

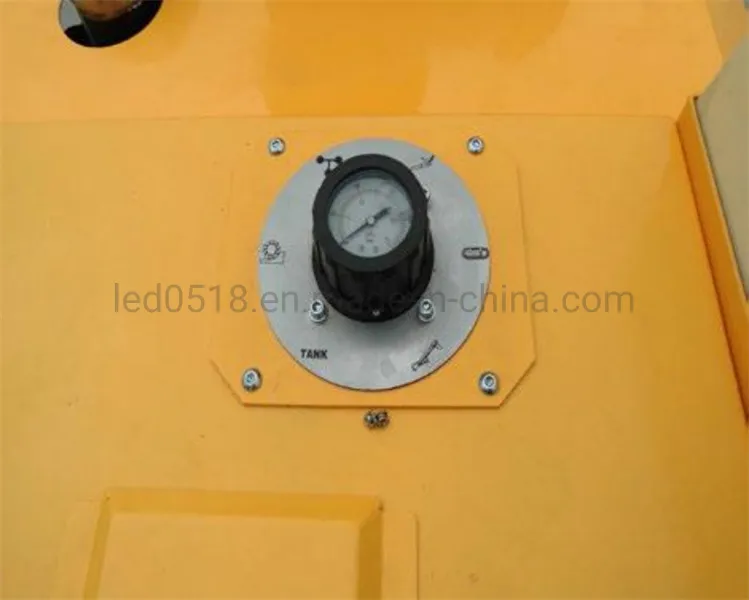

✓9. Real-time supervision via pressure monitors for every work mechanism.

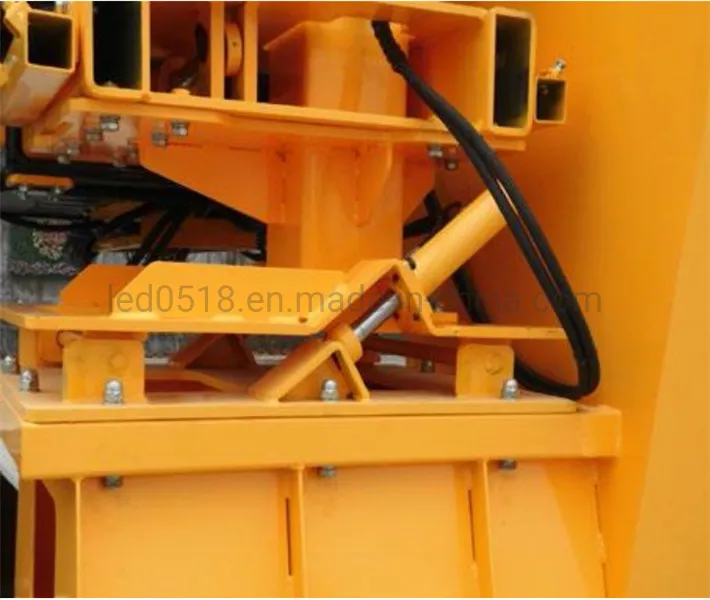

✓10. Labor-saving hydraulic mold hanging and dismantling.

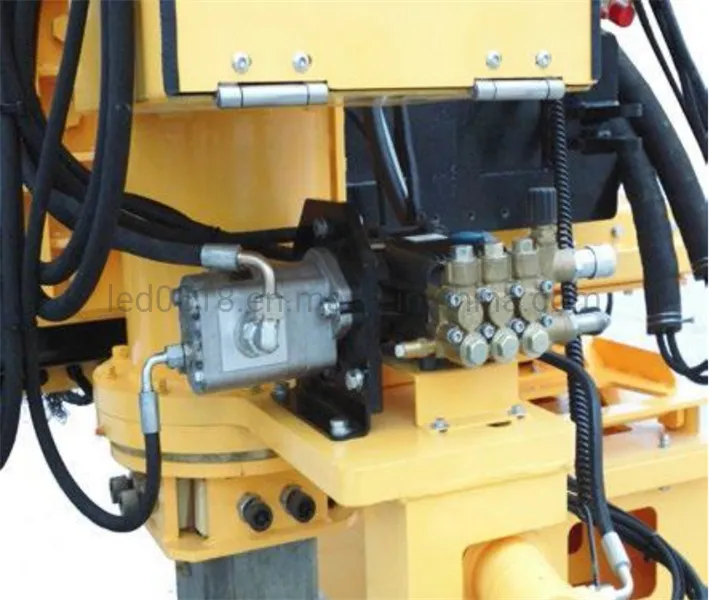

✓11. On-board hydraulic high-pressure washing pump for easy cleaning.

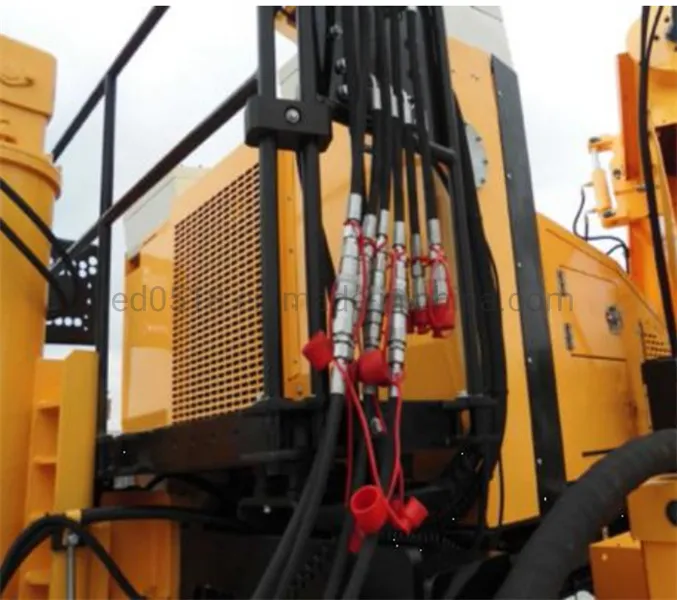

✓12. Leak-free Italy brand quick plugs for external hydraulic connections.

Product Parameters

Category	Specification
Model	LDHM41
Engine Details
Engine Model	Cummins 4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kw/2200rpm
Engine oil volume	9L
Traveling System
Traveling Mode	By crawler
Driving Mode	By hydraulic
Steering Mode	Collaborative/Yaw/Front wheel/Rear wheel/Automatic
Traveling Speed	0-30m/min
Working Speed	0-15m/min
Mold Capacity
Max. Height of Mold	1300mm
Max. Width of Mold	1300mm
Height Adjustment	Hydraulic: 980mm / Mechanical: 300mm
Tank Volumes
Fuel Tank	120L
Hydraulic Tank	280L
Water Tank	120L
Dimensions
Transport Size	6975x2500x3420mm
Weight	11700kg

Product Application

Widely used in highway and municipal road curbs molding.

Related Products

Model: LDHM31

Models: LDHM21 & LDHM11

Production Environment

Frequently Asked Questions (FAQ)

What type of engine is used in the LDHM41 curb machine?

The machine is powered by a Cummins 4BTA 3.9 diesel engine, which is liquid-cooled, four-cylinder, providing 97kw at 2200rpm.

What are the maximum dimensions for the curb molds?

The LDHM41 can handle molds with a maximum height of 1300mm and a maximum width of 1300mm.

How many vibrating rod ports are available on this model?

The LDHM41 is equipped with 4 hydraulic vibrating rod ports to ensure high-density concrete molding.

What are the traveling and working speed ranges?

The machine has a traveling speed range of 0-30m/min and a working (molding) speed range of 0-15m/min.

Does the machine support automatic steering?

Yes, the machine features a patented steering system with multiple modes, including Collaborative, Yaw, Front wheel, Rear wheel, and Automatic steering.

What is the total weight and transport size of the equipment?

The machine weighs 11,700kg and its transport dimensions are 6975x2500x3420mm.
