Basic Info
Model NO.SP1800
TypePaver
ObjectCement Concrete Pavement
Product Capacity40~400t/h
CertificationISO9001: 2000, CE
ConditionNew
Maximum Side Bunk Heiah600mm
Paving Speed0-15m/Min
Driving Speed0-22m/Min
Engine Powere36.8kw
Minimum Turning Radius3500mm
Auger Speed0-60r/Min
Track Size (Lxwxh)1340mmx300mmx514mm
Specification4200x2500x2100
OriginChina
HS Code8479102100
Production Capacity20 Pieces/Month
🏗️
Product Description

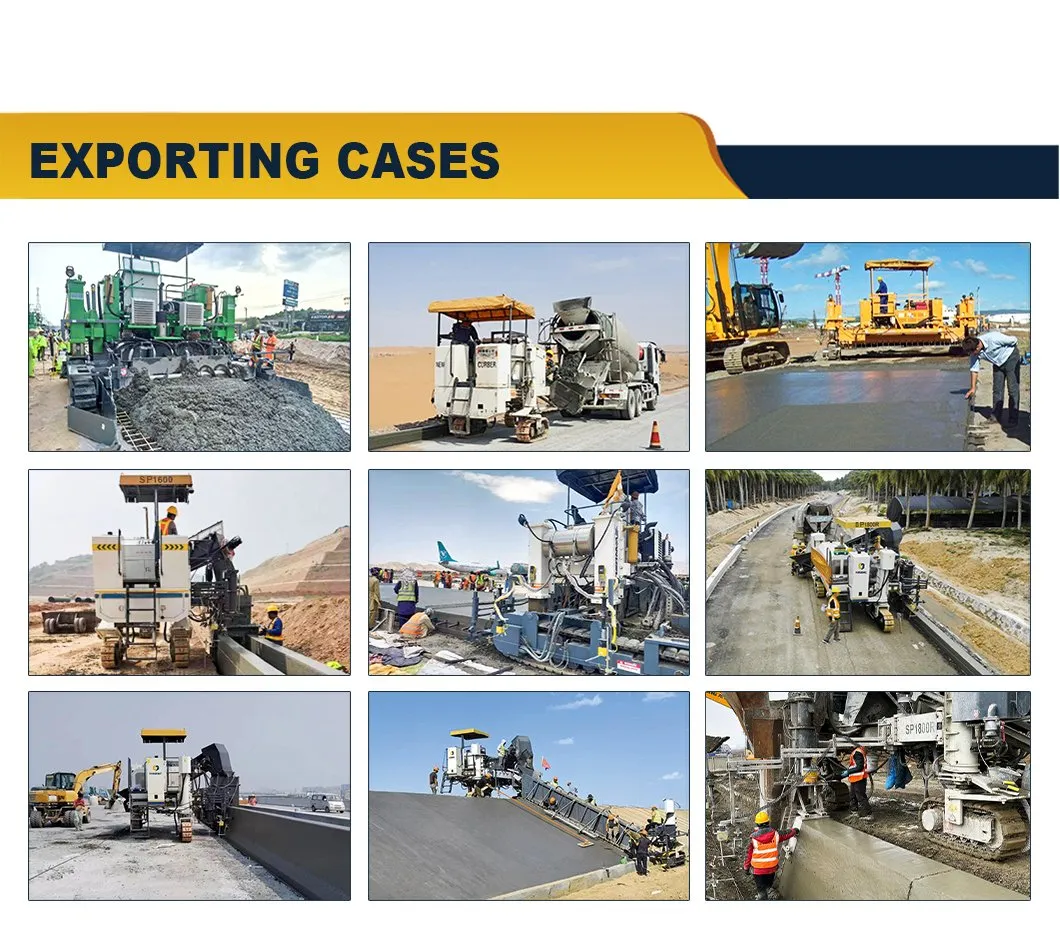

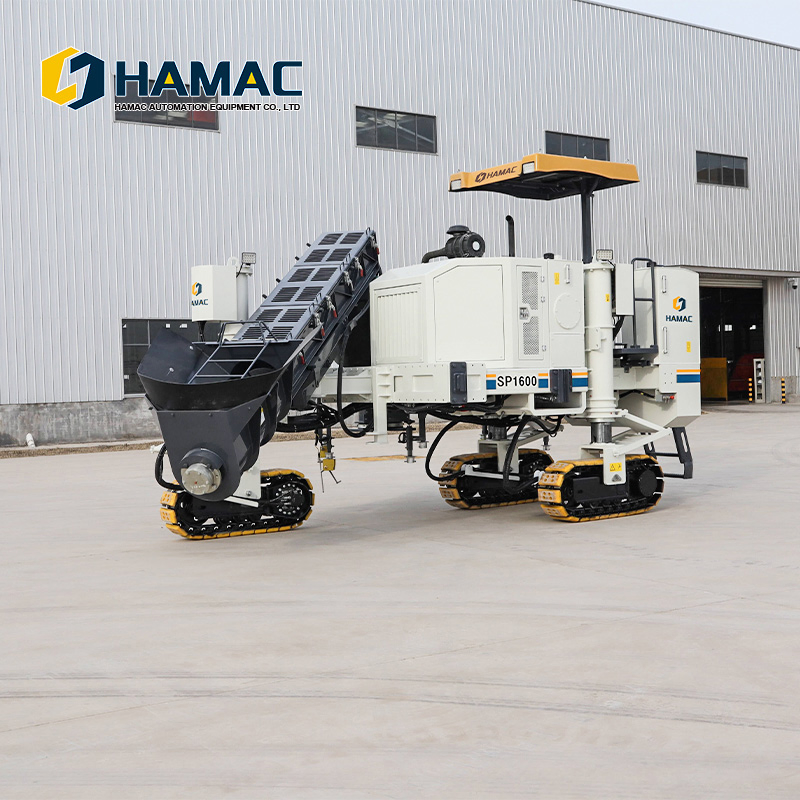

Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, kerb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile.

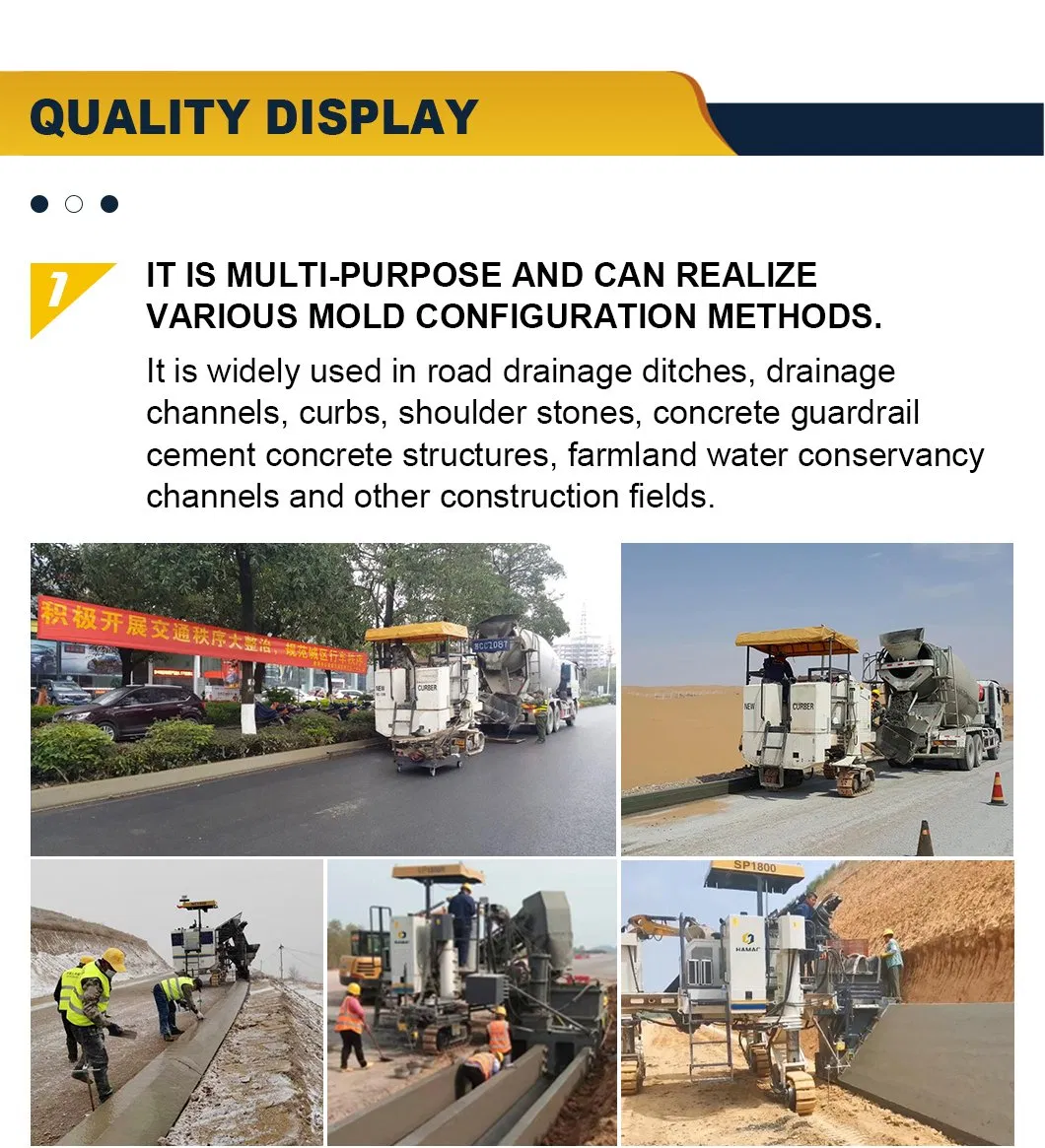

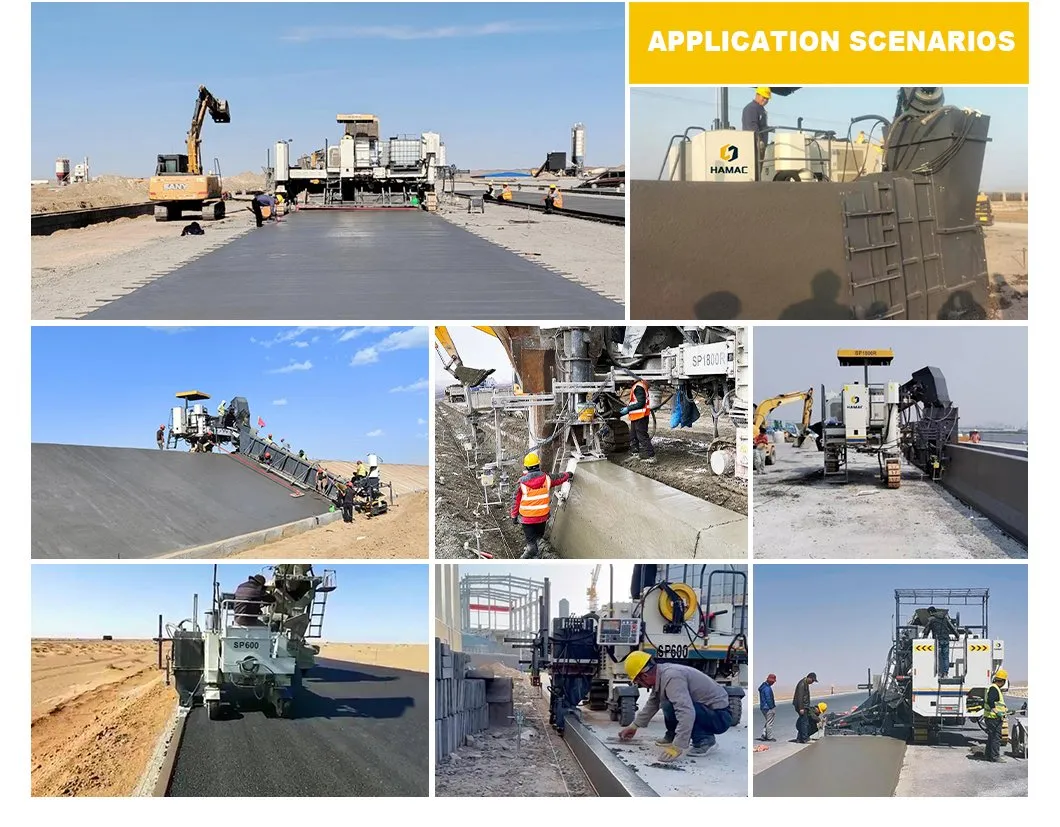

Multi-functional slipform pavers is a multi-purpose cement concrete construction equipment. It is multi-purpose and can realize various mold configuration methods. It is widely used in road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrail cement concrete structures, farmland water conservancy channels and other construction fields. It replaces the traditional process and significantly improves the construction quality and speed of cement concrete structures. With slipform pavers, the concrete is placed directly in front of the machine and distributed by a spreading auger or spreading plough. Vibrators compact the concrete homogeneously and the mold forms it in the specified width and thickness as the slipform paver advances.
| SP600 TECHNICAL SPECIFICATIONS |
| PROJECT |
UNIT |
PARAMETER |
| Maximum side bunk height | mm | 600 |
| Maximum paving width | mm | 600 |
| Paving speed | m/min | 0-15 |
| Driving speed | m/min | 0-22 |
| Engine model | / | YCF3050-T302 |
| Engine power | kw | 36.8 |
| Minimum turning radius | mm | 3500 |
| Outrigger hydraulic lifting stroke | mm | 430 |
| Auger speed | r/min | 0-60 |
| Auger conveying device dimensions | mm | 1600 |
| Vibrator interface | piece | 2 |
| Vibrator frequency | hz | 0-200 |
| Diesel tank | L | 100 |
| Hydraulic tank | L | 100 |
| Water tank | L | 158 |
| Track size (LxWxH) | mm | 1340x300x514 |
| Shipping dimensions (LxWxH) | mm | 4200x2500x2100 |
| Weight (unladen) | KG | 3200 |
❓
Frequently Asked Questions

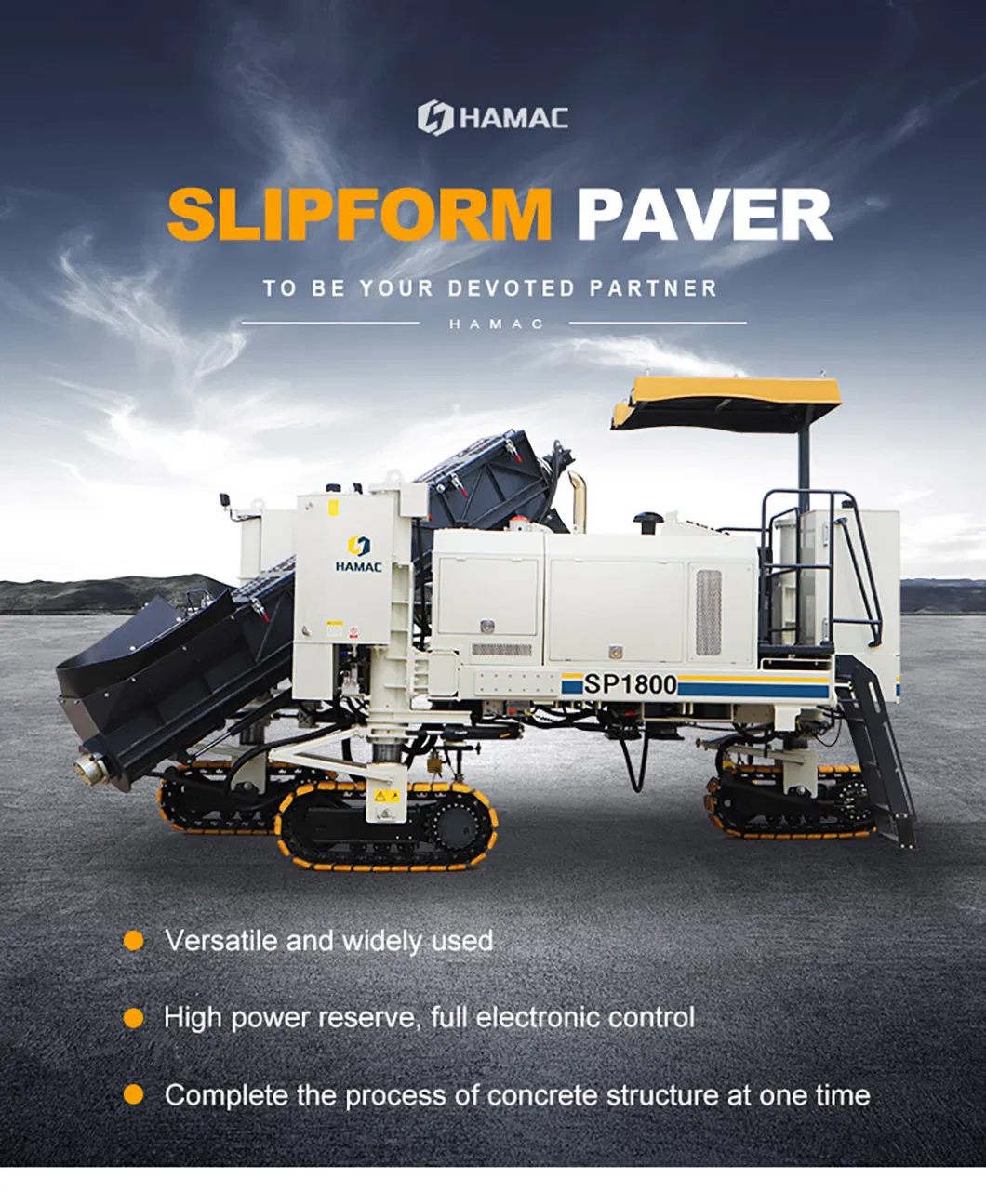

1. What are the primary applications for the SP1800 offset slipform paver?
The SP1800 is highly versatile and used for producing monolithic concrete profiles such as protective walls, kerbs, gutters, drainage ditches, and narrow paths.
2. How does the slipform paving process improve construction?
It replaces traditional manual processes, significantly increasing construction speed and improving the quality and consistency of the cement concrete structures.
3. What is the maximum side bunk height this machine can handle?
The machine is designed to handle a maximum side bunk height of 600mm.
4. What type of engine powers the SP1800?
It features a powerful 36.8kw engine (such as the YCF3050-T302) to ensure stable performance during heavy-duty paving operations.
5. Can the machine operate in tight spaces?
Yes, with a minimum turning radius of 3500mm, it is capable of navigating and working in relatively confined construction areas.
6. How is the concrete distributed and compacted?
Concrete is distributed by a spreading auger or plough directly in front of the machine, while vibrators compact the concrete homogeneously as the mold forms the specified shape.
